PUKOMC Electric Deep Fryer (Model B0DG2Q2FYC)

1. Introduction

Thank you for choosing the PUKOMC Electric Deep Fryer. This appliance is designed for convenient and safe deep frying in your home. With its 1.5-liter oil capacity, adjustable temperature control, and easy-to-clean components, you can enjoy a variety of fried foods with minimal effort. Please read this manual thoroughly before first use to ensure proper operation and safety.

Image 1.1: PUKOMC Electric Deep Fryer with fried french fries.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before operating the deep fryer.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or heating element in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Ensure the cool-touch sides are not obstructed during operation to prevent accidental burns.
15. Always ensure the lid is properly closed during frying to prevent oil splatters and utilize the odor filter.

3. Product Overview and Components

The PUKOMC Electric Deep Fryer is designed for ease of use and safety. Familiarize yourself with its main components:

• Main Unit: Stainless steel exterior with cool-touch handles.
• Control Panel: Features an adjustable temperature dial and indicator lights.
• Frying Basket: Removable basket with a foldable handle for compact storage and easy food handling.
• Lid: Equipped with a viewing window and a replaceable odor filter to minimize cooking smells and splatters.
• Oil Container: Nonstick interior for easy cleaning.
• Heating Element: Immersed heating element for fast and even heating.

Image 3.1: Detail of cool-touch handles and viewing window.

4. Setup

1. Unpacking: Carefully remove all packaging materials and promotional labels from the deep fryer.
2. Initial Cleaning: Before first use, wash the frying basket, lid, and oil container in warm, soapy water. Rinse thoroughly and dry completely. The main unit should be wiped with a damp cloth.
3. Placement: Place the deep fryer on a stable, heat-resistant surface away from water and heat sources. Ensure adequate ventilation.
4. Add Oil: Pour cooking oil into the oil container. Observe the MIN and MAX fill lines indicated inside the container. Do not overfill or underfill. The oil capacity is 1.5 liters.
5. Insert Basket: Place the frying basket into the oil container. Ensure the handle is in the upright position or folded away as needed.
6. Connect Power: Plug the detachable power cord into the back of the deep fryer, then into a standard electrical outlet.

Video 4.1: Demonstration of the PUKOMC Deep Fryer's setup and features.

This video shows the compact size, the detachable power cord, and the basket's functionality, including how to add oil and prepare for frying.

5. Operating Instructions

1. Preheating: Turn the temperature control dial to your desired temperature. The red 'Power' indicator light will illuminate. The green 'Ready' indicator light will turn on when the oil has reached the set temperature.
2. Temperature Settings: Refer to the recommended temperature and time settings on the control panel for common foods like shrimp (265°F), fish (300°F), pork chops (340°F), and french fries (375°F).
3. Adding Food: Carefully place food into the frying basket. Lower the basket slowly into the hot oil. Close the lid to prevent splatters and contain odors.
4. Monitoring: Use the viewing window on the lid to monitor the cooking process without opening the lid.
5. Removing Food: Once food is cooked, lift the basket out of the oil. Allow excess oil to drain before carefully removing the food.
6. Power Off: After use, turn the temperature dial to the 'OFF' position and unplug the appliance.

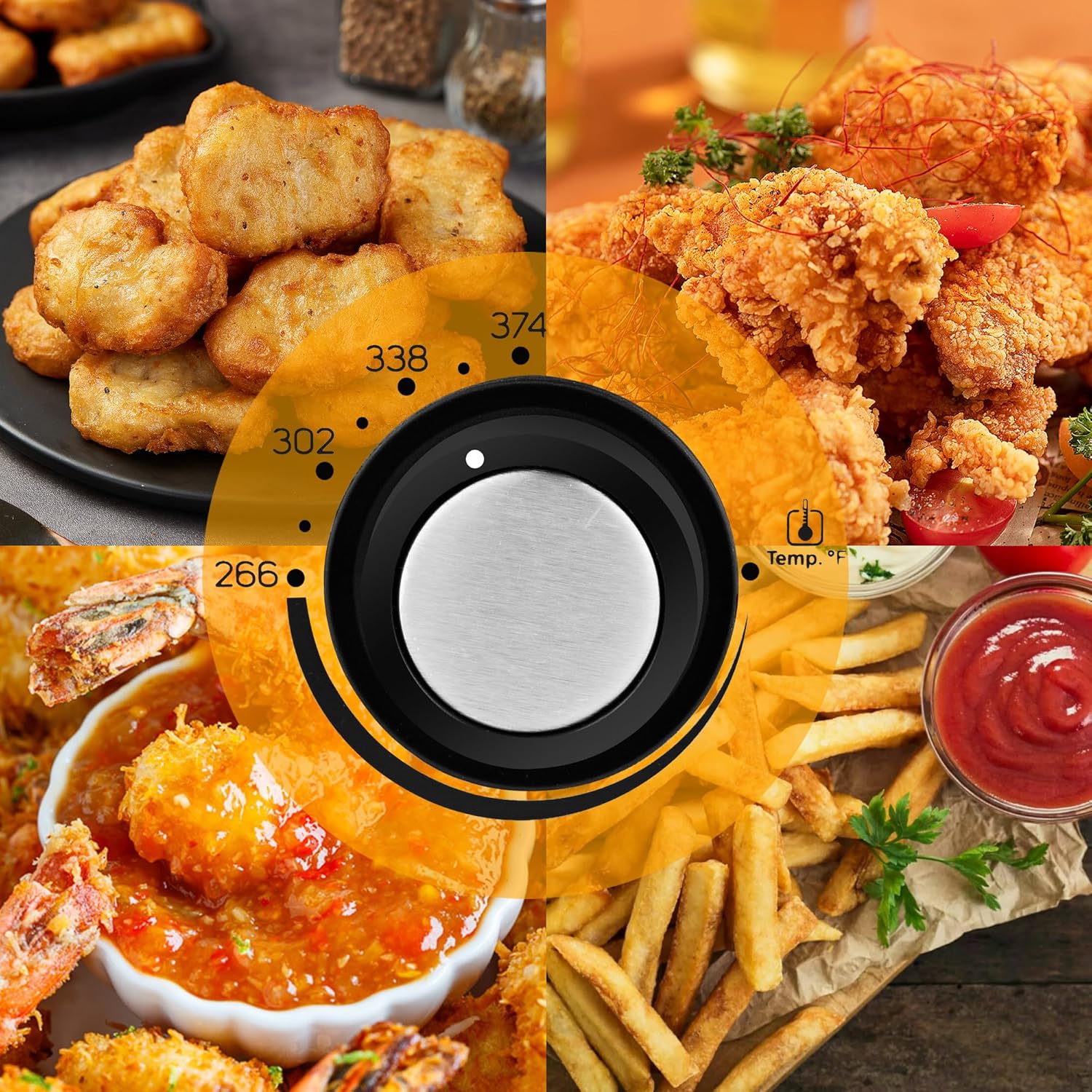

Image 5.1: Temperature control dial with recommended settings for various foods.

Image 5.2: Fast frying and heat-up with immersed heating element.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your deep fryer. Always ensure the appliance is unplugged and completely cooled before cleaning.

1. Drain Oil: Once the oil has cooled completely, carefully pour it out of the oil container.
2. Disassemble: Remove the lid and frying basket. The lid and basket are dishwasher safe.
3. Clean Oil Container: The nonstick oil container can be removed and washed by hand with warm, soapy water. Avoid abrasive cleaners or scouring pads that could damage the nonstick surface.
4. Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit or heating element in water.
5. Odor Filter: The replaceable odor filter in the lid should be changed periodically for best results.
6. Reassemble: Ensure all parts are completely dry before reassembling the deep fryer.

Image 6.1: Removable heating element for thorough cleaning.

7. Troubleshooting

• Appliance does not turn on: Ensure the power cord is securely plugged into both the appliance and the wall outlet. Check if the wall outlet is functioning.
• Oil is not heating: Verify that the temperature dial is set to a temperature above 'OFF'. Ensure the green 'Ready' light is not yet illuminated, indicating it's still preheating.
• Food is not crispy: Ensure the oil has reached the correct temperature before adding food. Do not overload the basket, as this can lower oil temperature. Ensure food is dry before frying.
• Excessive smoke: This may indicate old or dirty oil, or the oil temperature is too high. Replace oil if necessary and check temperature setting.

8. Specifications

Image 8.1: Product dimensions of the PUKOMC Deep Fryer.

9. Warranty and Support

Your PUKOMC Electric Deep Fryer is covered by a manufacturer's warranty. For specific details regarding warranty coverage, please refer to the documentation included with your purchase or contact Pukomc customer support.

For technical assistance, troubleshooting, or general inquiries, please visit the official Pukomc website or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.
