1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Devoko LED Vanity Table. Designed with modern functionality and ample storage, this vanity table is a versatile addition to any bedroom. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

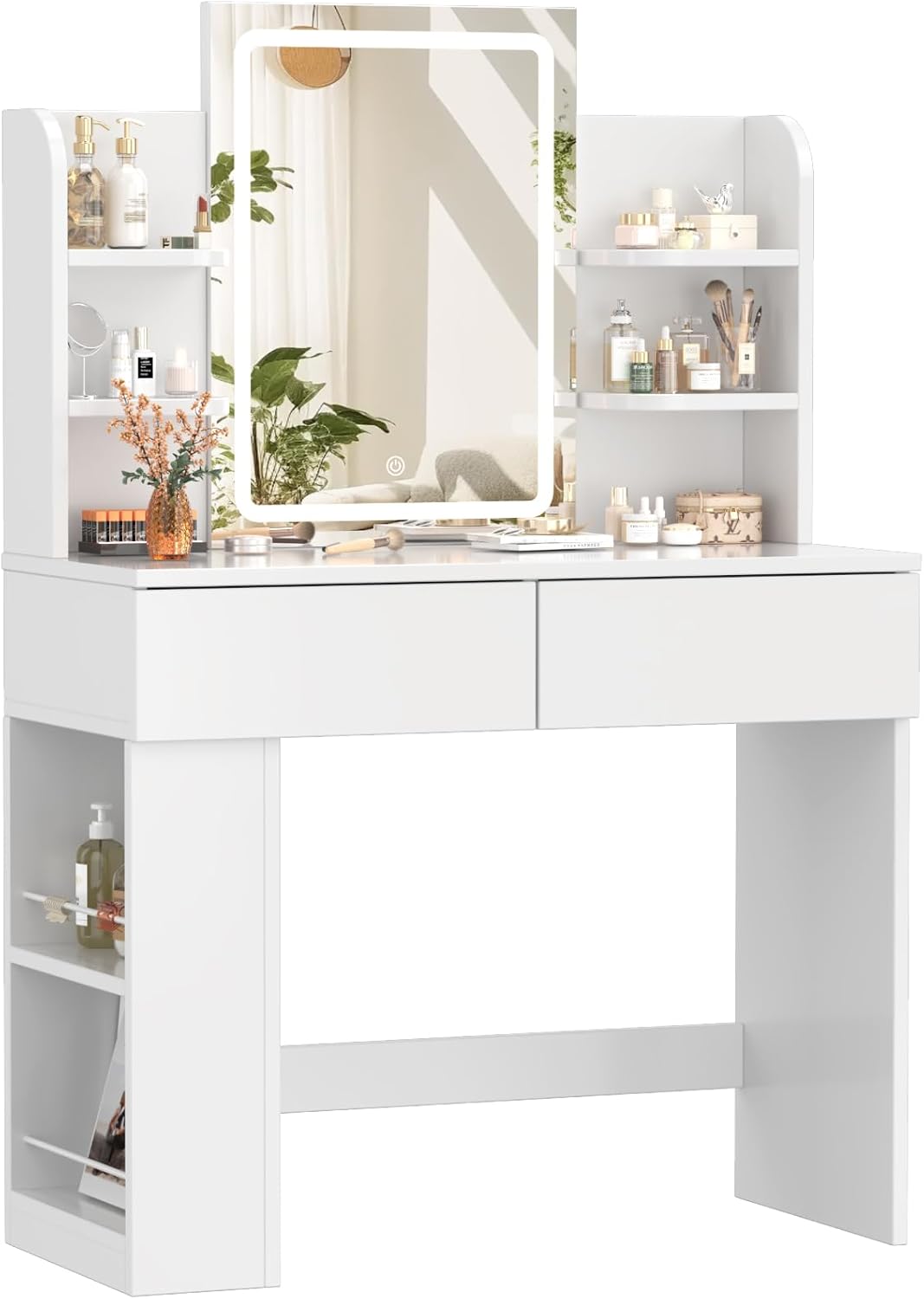

Figure 1: Devoko LED Vanity Table with mirror and storage.
2. Safety Instructions
- Ensure all components are securely fastened during assembly. Loose parts can cause instability.
- Do not overload drawers or shelves. Distribute weight evenly to prevent tipping.
- Keep the vanity table away from direct heat sources, open flames, and excessive moisture.
- For the LED mirror, ensure the power cord is not pinched or damaged. Unplug the mirror from the power source before cleaning or if it will not be used for an extended period.
- Supervise children around the vanity table to prevent accidents, especially during assembly or when drawers are open.
- Use only a dry cloth for cleaning the electrical components of the mirror.
3. Package Contents
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact Devoko customer support.
- Vanity Tabletop
- LED Mirror Unit
- 2 Large Drawers
- Side Cabinet Unit (reversible)
- Open Shelf Units (4 sections)
- Assembly Hardware (screws, dowels, connectors)
- Assembly Instructions Manual
4. Setup and Assembly
The Devoko LED Vanity Table requires assembly. Follow the step-by-step illustrated instructions provided in the separate assembly manual. All parts are numbered for easy identification.
- Preparation: Clear a spacious area for assembly. It is recommended to have a second person assist with assembly for stability and ease.
- Tools: A standard screwdriver is sufficient, but an electric screwdriver can expedite the process.
- Side Cabinet Installation: The side cabinet unit can be installed on either the left or right side of the vanity table, depending on your preference and room layout. Refer to the assembly manual for specific steps on reversible installation.
- Adjustable Shelves: The open shelves next to the mirror can be adjusted or removed to accommodate items of various heights.
Figure 2: Adjustable shelf configuration.
Figure 3: Side cabinet can be mounted on either side.
5. Operating Instructions
5.1 LED Mirror Operation
The integrated LED mirror features adjustable brightness and three color temperature settings to optimize your lighting for various makeup applications and times of day.
- Power On/Off: Locate the touch sensor on the mirror surface. A short tap will turn the LED lights on or off.
- Adjust Brightness: When the lights are on, press and hold the touch sensor to cycle through brightness levels. Release when the desired brightness is achieved.
- Change Color Temperature: With the lights on, quickly tap the touch sensor to switch between the three lighting modes: Cool White, Warm White, and Warm Yellow.
Figure 4: Three adjustable light modes for the LED mirror.
6. Maintenance
Proper care will extend the life and appearance of your Devoko Vanity Table.
- Cleaning: Wipe the surface of the vanity table with a dry, soft cloth. For stubborn marks, a slightly damp cloth can be used, followed immediately by a dry cloth. Avoid abrasive cleaners or harsh chemicals, as they may damage the finish.
- LED Mirror Care: For the mirror surface, use a glass cleaner applied to a soft cloth, then wipe the mirror. Do not spray cleaner directly onto the mirror or electrical components.
- Surface Durability: The vanity table surface is designed to be waterproof, scratch-resistant, and resistant to oils and greases. However, it is still recommended to clean spills promptly.
- Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Tighten if necessary.
7. Troubleshooting
If you encounter issues with your Devoko LED Vanity Table, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| LED mirror lights do not turn on. | No power, loose connection, faulty sensor. | Ensure the power cord is securely plugged in. Check for any visible damage to the cord. Try tapping the touch sensor firmly. |
| Drawers are difficult to open or close. | Misaligned drawer slides, overloaded drawer, debris in slides. | Check if the drawer slides are correctly aligned and installed. Reduce the weight in the drawer. Clean any dust or debris from the drawer slides. |
| Vanity table feels unstable or wobbly. | Loose assembly hardware, uneven floor. | Retighten all assembly screws. Ensure the table is placed on a flat, level surface. Use furniture pads if necessary to level. |
If the problem persists after attempting these solutions, please contact Devoko customer support for further assistance.
8. Specifications
Key specifications for the Devoko LED Vanity Table:
- Model Number: MW0501-110-2
- Dimensions (L x W x H): 90 cm x 40 cm x 135 cm (35.4 in x 15.7 in x 53.1 in)
- Weight: Approximately 29.2 kg (64.4 lbs)
- Material: Engineered Wood
- Color: White
- Number of Drawers: 2
- Assembly Required: Yes
- Care Instructions: Wipe with a dry cloth
Figure 5: Product dimensions overview.
9. Warranty and Support
For warranty information or technical support, please refer to the purchase documentation or contact Devoko customer service directly. Information regarding spare parts availability is not provided in this manual. Please retain your proof of purchase for any warranty claims.
