GOOLOO GE3000 Portable Lithium Jump Starter User Manual

Introduction

Thank you for choosing the GOOLOO GE3000 Portable Lithium Jump Starter. This device is engineered to provide reliable power for jump-starting vehicles, charging electronic devices, and offering emergency lighting. Designed for convenience and safety, the GE3000 is an indispensable tool for any motorist. Please read this manual thoroughly before operation to ensure proper use and to maximize the lifespan of your device.

Safety Information

Always observe the following safety precautions to prevent injury or damage to the device and vehicle:

• Do not attempt to jump-start a frozen battery.
• Ensure proper polarity connection (positive to positive, negative to negative) to avoid sparks and damage.
• Do not short-circuit the jump starter clamps.
• Keep the device away from children.
• Do not expose the device to rain or extreme temperatures.
• Disconnect the jump starter from the vehicle battery immediately after starting the engine.
• Wear eye protection when working with batteries.
• Refer to your vehicle's owner's manual for specific jump-starting procedures.

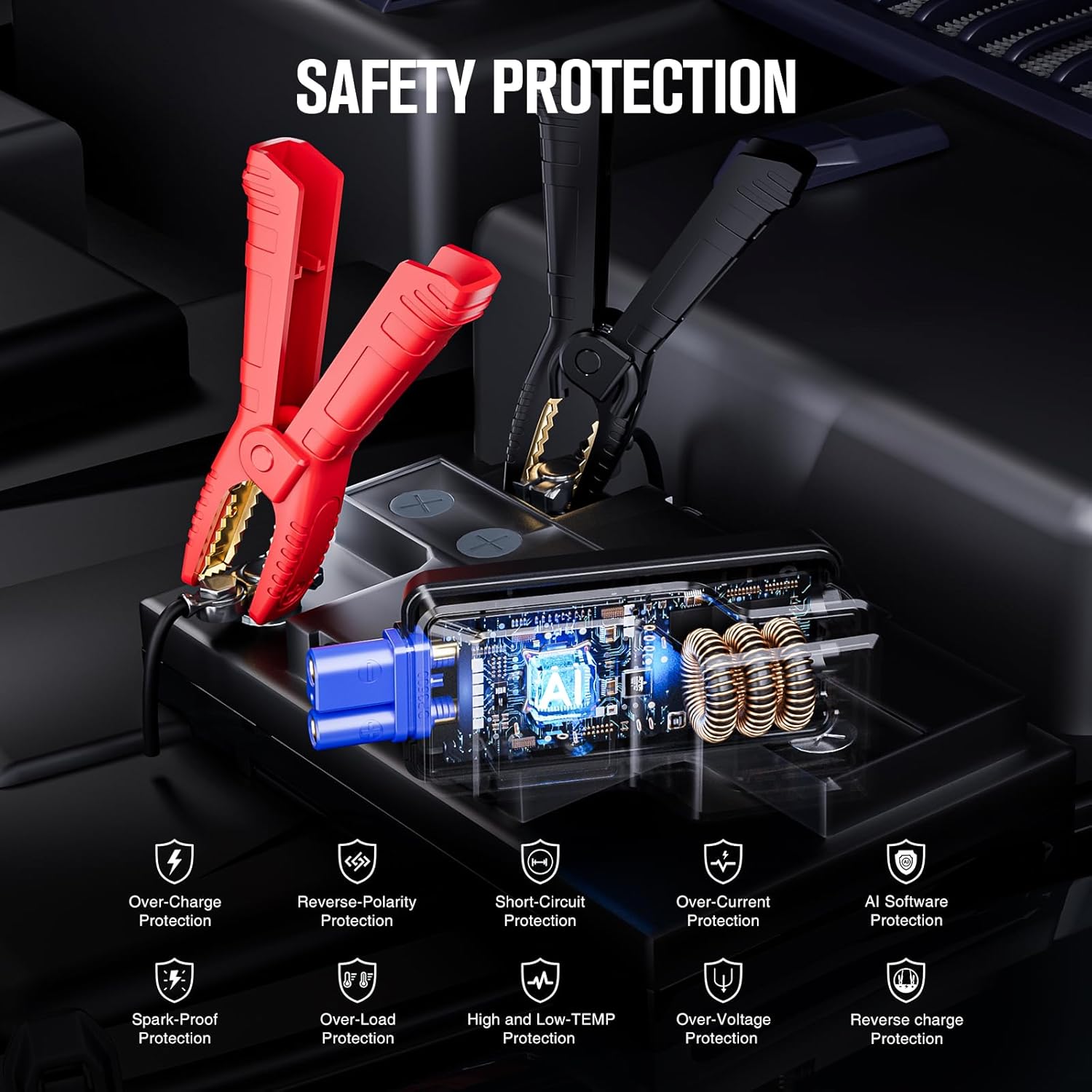

Image: The GOOLOO GE3000 features 10 types of safety protection, including over-charge, reverse-polarity, short-circuit, over-current, AI software, spark-proof, over-load, high and low-temperature, over-voltage, and reverse charge protection.

Package Contents

Verify that all items are present in the package:

• GOOLOO GE3000 Jump Starter Unit
• Smart Jumper Cables
• USB to Type-C Cable
• Storage Bag
• User Manual

Image: A visual representation of the GOOLOO GE3000 jump starter unit, smart jumper cables, USB to Type-C cable, storage bag, and user manual included in the box.

Product Overview: Parts and Functions

Familiarize yourself with the components of your GOOLOO GE3000 jump starter:

• Power Switch: Turns the unit on/off.
• Battery Display Screen: Shows battery level, input, and output power.
• 12V Jump Starter Cable Socket: Port for connecting the smart jumper cables.
• Type-C Input Port: For charging the jump starter unit.
• USB Output Port (5V/2.4A): For charging external electronic devices.
• LED Emergency Flashlight: Provides illumination with multiple modes (flashlight, SOS, strobe).

Image: A detailed diagram highlighting the power switch, battery display screen, 12V jump starter cable socket, Type-C input port, USB output port, and LED emergency flashlight on the GOOLOO GE3000 unit.

Setup

Charging the Jump Starter

Before first use, fully charge the GOOLOO GE3000. It is recommended to charge the unit after each use to ensure it is ready for the next emergency.

• Connect the provided USB to Type-C cable to the Type-C input port on the jump starter.
• Connect the other end of the USB cable to a compatible USB wall charger (not included) or a car charger (not included).
• The battery display screen will show the charging progress. The unit is fully charged when the display shows 100%.
• A full charge typically takes approximately 3.8 hours.

Image: The GOOLOO GE3000 jump starter connected to a wall charger via its Type-C port, indicating the charging process. A wall charger is not included.

Image: The GOOLOO GE3000 jump starter connected to a car charger, demonstrating its ability to be charged on the go. A car charger is not included.

Operating Instructions

Jump Starting a Vehicle

The GOOLOO GE3000 is designed to jump-start 12V vehicles with up to 8.5L gas or 6L diesel engines.

1. Insert the Jump Starter Cable: Firmly insert the blue plug of the smart jumper cables into the 12V jump starter cable socket on the GOOLOO GE3000 unit. Ensure a secure connection.
2. Connect Clamps to Battery:
   • Connect the RED positive (+) clamp to the positive (+) terminal of the vehicle's battery.
   • Connect the BLACK negative (-) clamp to the negative (-) terminal of the vehicle's battery.

   The smart jumper cable indicator light will show the connection status. A solid green light indicates a correct connection. If the light is flashing green or off, check the connections.

3. Start Your Car Engine: Once the smart jumper cable indicator shows a solid green light, start your vehicle's engine.
4. Remove Jump Starter Cable: Immediately after the engine starts, remove the smart jumper cables from the vehicle battery terminals, then disconnect the cables from the jump starter unit.

Image: A four-panel illustration demonstrating the easy steps to jump-start a vehicle: 1. Insert jump starter cable, 2. Connect clamps to battery, 3. Start car engine, 4. Remove jump starter cable.

Image: A person connecting the GOOLOO GE3000 jump starter to a car battery, illustrating the process of jump-starting a 12V vehicle with 3000A peak current.

Image: The GOOLOO GE3000 demonstrating its 'BOOST' function, which allows starting a car even if the car battery is completely drained. The image shows the indicator light for correct connection.

Image: This image illustrates two modes for jump-starting: one with a solid green light indicating a correct connection, and another for when the light is flashing green or off, requiring the 'BOOST' function for a completely drained battery.

Using as a Portable Power Bank

The GE3000 can charge your electronic devices via its USB output port.

• Connect your device's USB charging cable to the USB output port (5V/2.4A) on the jump starter.
• The jump starter will automatically begin charging your device.

Image: The GOOLOO GE3000 jump starter functioning as a portable power bank, charging a smartphone and a tablet via its USB and USB-C output ports, suitable for use outdoors.

Using the LED Flashlight

The built-in LED flashlight offers multiple modes for various situations.

• Press and hold the power button for a few seconds to turn on the flashlight (Normal mode).
• Press the power button once to cycle through modes: Normal → SOS → Strobe → Off.

Image: The GOOLOO GE3000 jump starter's LED flashlight in use during an outdoor setting, highlighting its Normal, SOS, and Strobe light modes for emergency and general illumination.

Maintenance

• Store the jump starter in a cool, dry place when not in use.
• Recharge the unit every 3-6 months, even if not used, to maintain battery health.
• Clean the unit with a dry, soft cloth. Do not use harsh chemicals or abrasives.
• Inspect the smart jumper cables for any damage before each use.

Troubleshooting

Specifications

Image: The GOOLOO GE3000 Portable Lithium Jump Starter with its smart jumper cables, showcasing its compact design and digital display.

Warranty and Support

Your GOOLOO GE3000 Portable Lithium Jump Starter comes with an 18-month warranty from the date of purchase. This warranty covers manufacturing defects and ensures peace of mind with your product.

For technical support, warranty claims, or any inquiries, please contact GOOLOO customer support. Refer to the contact information provided on the GOOLOO official website or the packaging for the most up-to-date support channels.

• Customer Support: 18 months friendly customer support.
• Return Policy: 30-day unconditional return guarantee (as per Amazon's buybox winner info).
• Technical Support: Lifetime technical support.
