COBIZI 12x20 Heavy Duty Portable Carport Canopy Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your COBIZI 12x20 Heavy Duty Portable Carport Canopy. Designed for versatile outdoor use, this carport offers robust protection for vehicles, boats, trucks, and garden tools. Please read this manual thoroughly before beginning assembly or use to ensure safe and proper installation and longevity of your product.

2. Safety Information

Your safety and the proper functioning of the carport are paramount. Adhere to the following safety guidelines:

• Secure Anchoring: Ensure the carport is securely anchored to the ground, especially in windy conditions, to prevent damage or injury. Inadequate anchoring can lead to structural failure and potential hazards.
• Temperature Caution: The fabric of the canopy may become hot when exposed to direct sunlight. Exercise caution when touching the carport surface during peak sunlight hours to avoid burns.
• Snow and Water Accumulation: The round roof design is intended to reduce snow and water accumulation. However, in areas with heavy snowfall or prolonged rain, regularly clear any significant buildup to prevent stress on the structure.
• Assembly Safety: Always follow assembly instructions carefully. Use appropriate safety gear, such as gloves, during installation. It is recommended to have at least two people for assembly.
• Site Selection: Choose a level and stable site for installation, clear of overhead obstructions like power lines or tree branches.

3. Setup and Assembly

The COBIZI Carport Canopy is designed for straightforward assembly. All necessary instructions and hardware are included. Each component is marked with numbers to simplify the process. It is recommended to have at least two people for assembly.

3.1. Pre-Assembly Checklist

• Verify all components are present and undamaged by checking against the parts list provided in the packaging.
• Ensure you have adequate space for assembly and the final placement of the carport (Product Dimensions: 240"L x 144"W x 118"H).
• Gather necessary tools, such as a rubber mallet, wrench, and possibly an impact drill for screws and bolts as suggested by users.

3.2. Assembly Steps

1. Frame Assembly: Begin by assembling the galvanized rust-resistant steel frame. Follow the numbered instructions carefully. Ensure all connections are secure.
2. Cover Installation: Carefully drape the 180g PE waterproof tarpaulin over the structure. Ensure it is centered and aligned properly.
3. Door Attachment: Attach the removable double zipper rolling doors. These are designed for easy opening and closing and provide good sealing.
4. Anchoring: Secure the carport using the provided elastic balls, ground nails, and wind ropes. Utilize the 10 galvanized steel legs and ratchet fixing method for maximum stability. Proper anchoring is crucial for year-round stability.

Image: Key components for assembly, including the PE tarp cover, windproof rope fixing, rubber ball connection, and ratchet strap.

Image: The assembled COBIZI Carport Canopy providing shelter for a vehicle.

4. Operating Instructions

The COBIZI Carport Canopy offers flexible usage options to suit various needs.

4.1. Door Operation

The carport features removable double zipper rolling doors at both ends. These doors can be:

• Fully Closed: Zip down both doors for complete enclosure and maximum protection from elements.
• Partially Rolled Up: Roll up one or both sides to create an open-air shelter, allowing for better airflow and easier access.
• Fully Open: The removable design allows for the doors to be completely removed, increasing the available door height to 9 FT, which can easily accommodate cars, SUVs, and higher vehicles.

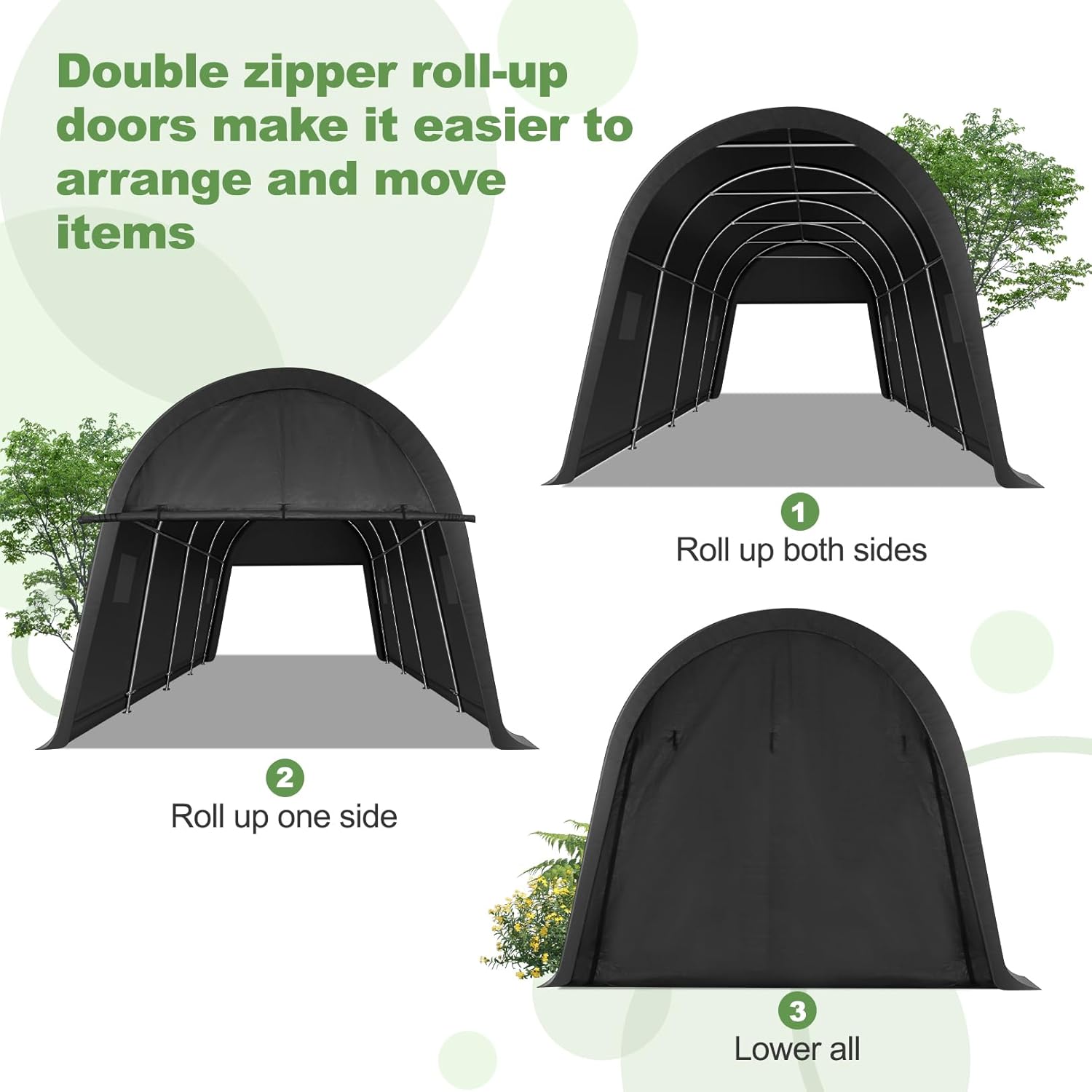

Image: Demonstrating the versatility of the double zipper roll-up doors for various access and ventilation needs.

4.2. Ventilation

The carport includes unique vent designs to promote air circulation and reduce moisture buildup inside. Ensure these vents are not obstructed for optimal performance.

Image: Close-up of the unique vent design, showing inner mesh layer and detachable vent support for improved air circulation.

4.3. Versatile Applications

This portable carport is suitable for a wide range of uses:

• Vehicle protection (cars, SUVs, trucks)
• Outdoor activities and events
• Storage for garden tools, equipment, or other large items
• Temporary workspace
• Camping and outdoor adventures
• Boat storage

Image: Examples of versatile applications, including storage for outdoor tools, vehicles, and boats.

5. Maintenance

Regular maintenance will extend the lifespan of your COBIZI Carport Canopy.

• Cleaning: Clean the canopy fabric periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material. Rinse thoroughly.
• Frame Inspection: Periodically inspect the steel frame for any signs of rust, corrosion, or damage. While the frame is galvanized and rust-resistant, extreme conditions or prolonged exposure can affect it. Address any issues promptly.
• Anchor Check: Regularly check the tightness of all anchors, elastic balls, ground nails, and wind ropes. Re-tighten as necessary to ensure the carport remains securely fastened, especially after strong winds or storms.
• Fabric Condition: Inspect the PE tarpaulin for any tears, punctures, or excessive wear. Small damages can be repaired with appropriate patch kits to prevent further deterioration.
• Snow/Water Removal: In areas prone to heavy snow or rain, regularly remove accumulated snow or standing water from the canopy to prevent structural strain and potential collapse.

6. Troubleshooting

This section addresses common issues you might encounter with your carport.

7. Specifications

8. Warranty and Support

COBIZI provides a warranty and dedicated customer support to ensure a worry-free experience from purchase to use. Your satisfaction is our top priority.

• Customer Service: If you encounter any problems during installation or use, please feel free to contact COBIZI customer support.
• Warranty Information: Refer to the product packaging or contact customer support for specific warranty terms and conditions.
• Online Resources: Visit the official COBIZI Store for additional product information and support: COBIZI Store

9. Product Media

9.1. Product Images

Image: The COBIZI 12x20 Carport Canopy in dark gray, providing shelter for a red Jeep. The image also shows the included elastic balls for securing the canopy.

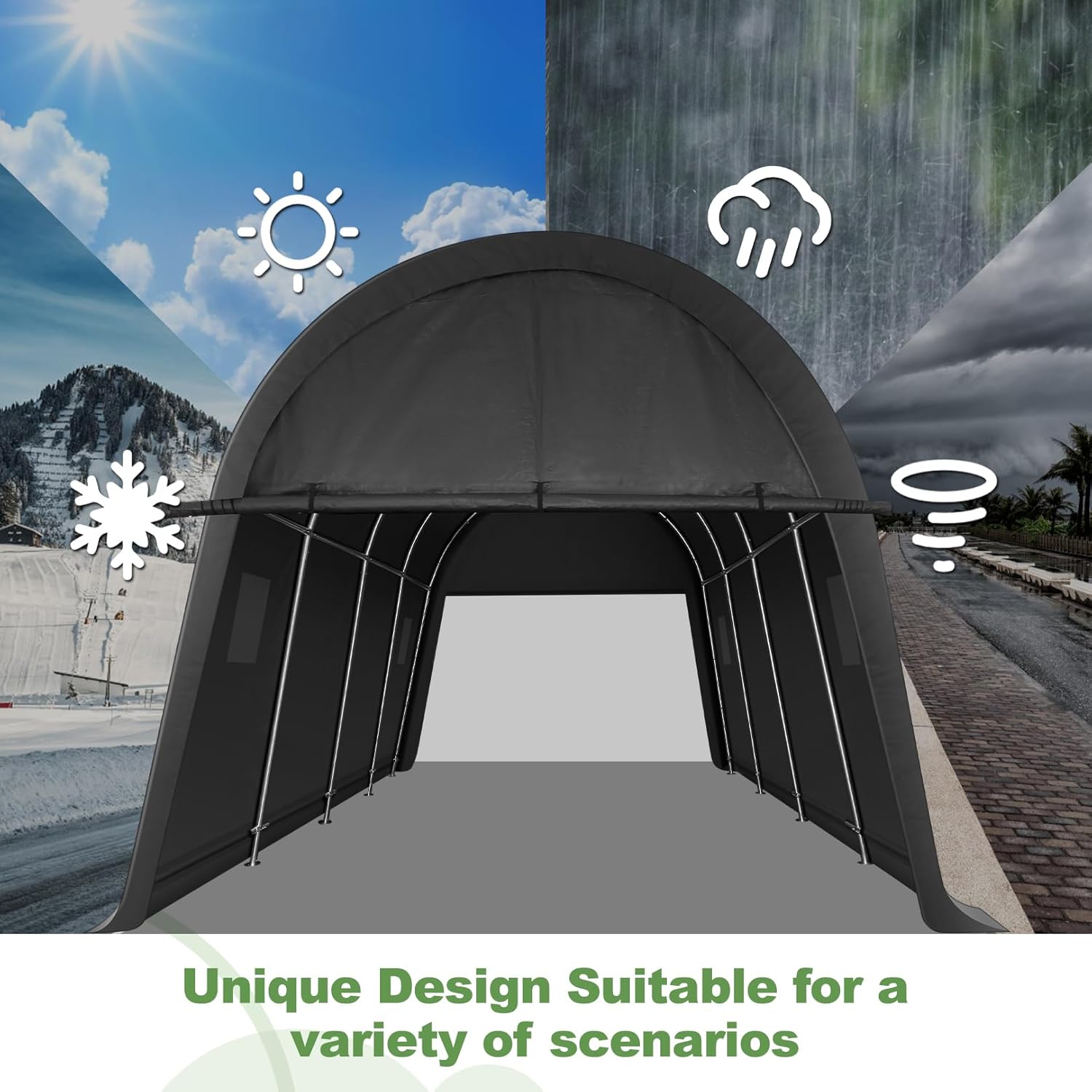

Image: Illustrates the carport's durability and suitability for various weather conditions, including sun, rain, snow, and wind.

Image: A diagram detailing the product dimensions of the carport (10FT height, 12FT width, 20FT length) and indicating that it ships in two boxes.

Image: The COBIZI Carport Canopy sheltering a white SUV, showcasing its practical use as a portable garage.

Image: Highlights the 180G PE cover, emphasizing its ability to protect vehicles in diverse weather conditions.

Image: Showcases the arched top design, which is effective for water and wind resistance, depicted in a natural outdoor setting.

Image: Detailed views highlighting the tear-resistant and waterproof properties of the carport's material.

Image: Illustrates the large space and versatility for parking vehicles, bicycles, and storing boats.

Image: Further examples of versatile use, including storage for camping equipment, outdoor tools, and other large items.

Image: Detail of the stable roof structure.

Image: Close-up of the double zipper mechanism on the doors.

Image: Detail of the reinforced joint structure of the frame.

Image: Close-up of the strong grip anchoring mechanism.

9.2. Official Product Videos
