Product Overview
The Seelink Washing Machine Outlet Box is designed to provide a secure and organized connection point for your washing machine's water supply and drain. This unit features a center drain, 1/2 inch Pex Crimp inlets, and 3/4 inch Male Hose Thread (MHT) outlets, ensuring compatibility with standard washing machine hoses. Constructed from durable, lead-free brass and high-impact, non-corrosive materials, it is built for longevity and reliable performance.
Image: Complete Seelink Washing Machine Outlet Box kit, including the main box with pre-installed valves, faceplate, and support brackets.
Image: Detailed view of the package contents, showing the washing machine outlet box, box cover, and two pre-installed support brackets.
Image: Diagram highlighting key components of the outlet box, including the plastic box, lead-free brass valves, metal handles, and center drain.
Image: Illustration detailing the premium materials used, such as corrosion-resistant and lead-free brass, ensuring long service life and suitability for portable water.
Specifications
| Model | F1807 Regular |
| Material | Lead-free Brass, High-impact Plastic |
| Inlet Connection | 1/2 inch Pex Crimp |
| Outlet Connection | 3/4 inch Male Hose Thread (MHT) |
| Drain Type | Center Drain |
| Dimensions (Approx.) | 9.53 x 9.21 x 4.41 inches (Package) |
| Item Weight | 1.76 pounds |
| Included Components | Washing machine outlet box, pre-installed support brackets, protective box cover |
Image: Diagram illustrating the approximate dimensions of the washing machine outlet box, showing height and width measurements.
Installation Instructions
Important: Ensure the main water supply is turned off before beginning installation. Keep the valve handles in the closed position during installation.
- Prepare the Wall Opening: Identify the desired location for the outlet box, typically between wall studs. Cut an opening in the drywall or wall material that accommodates the dimensions of the box. Ensure there is sufficient space for plumbing connections.
- Mount the Box: The outlet box is designed for recessed installation. Use the pre-installed support brackets to secure the box to the wall studs. The brackets can be adjusted to reach distant mounting plates if necessary. Ensure the box is level and securely fastened.
- Connect PEX Inlets: Connect your 1/2 inch PEX water supply lines to the Pex Crimp inlets on the valves. Use appropriate PEX crimp tools and rings to ensure a secure, leak-free connection. The valves are clearly marked for hot (red handle) and cold (blue handle) water.
- Connect Drain Line: Connect your washing machine drain hose to the center drain opening at the bottom of the box. Ensure a proper seal to prevent leaks.
- Install Washing Machine Hoses: Once the box is securely installed and water lines are connected, attach your washing machine's 3/4 inch MHT hoses to the outlets on the valves. Hand-tighten, then use a wrench for a quarter turn to ensure a snug fit without overtightening.
- Install Faceplate: Once all connections are made and tested, snap the protective box cover (faceplate) into place over the outlet box for a clean, finished appearance.
- Test for Leaks: Slowly turn on the main water supply. Inspect all connections for any signs of leaks. If leaks are detected, turn off the water supply and re-tighten or re-crimp connections as needed.
Image: Visual guide demonstrating the connection points for the 1/2 inch PEX pipe inlets and the 3/4 inch MHT outlets for washing machine hoses.
Image: Illustration showing how the pre-installed support brackets extend to facilitate mounting the outlet box to wall studs, ensuring a stable installation.
Operation
The Seelink Washing Machine Outlet Box features quarter-turn ball valves for easy operation. To turn on the water supply to your washing machine, rotate the red (hot) and blue (cold) handles 90 degrees until they are parallel with the water pipes. To turn off the water supply, rotate the handles 90 degrees until they are perpendicular to the water pipes. It is recommended to turn off the water supply to the washing machine when it is not in use for extended periods, such as during vacations, to prevent potential leaks or water damage.
Maintenance
The Seelink Washing Machine Outlet Box requires minimal maintenance. Periodically inspect the connections for any signs of leaks, corrosion, or wear. Ensure the valve handles turn smoothly. If you notice any issues, turn off the main water supply and address them promptly. The lead-free brass construction is designed to resist rust and corrosion, ensuring long-term durability.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Loose connections at PEX inlets or MHT outlets. Damaged PEX crimp. | Turn off water supply. Check and tighten all connections. Re-crimp PEX connections if necessary. Ensure washing machine hoses have good washers. |
| Water Hammer Noise | Sudden stopping of water flow. | This model includes integrated water hammer arrestors designed to mitigate this issue. If noise persists, consult a plumbing professional. |
| Valves Difficult to Turn | Mineral buildup or internal wear. | The quarter-turn ball valves are designed for smooth operation. If a valve becomes stiff, it may indicate internal issues. Replacement of the valve or unit may be required. |
Warranty and Support
Seelink products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, typical return policies allow for returns within 30 days of purchase. For technical support, troubleshooting assistance, or warranty claims, please contact Seelink customer service through the retailer where the product was purchased or visit the official Seelink website for contact information.
For further assistance, please refer to the contact information provided by your point of purchase.

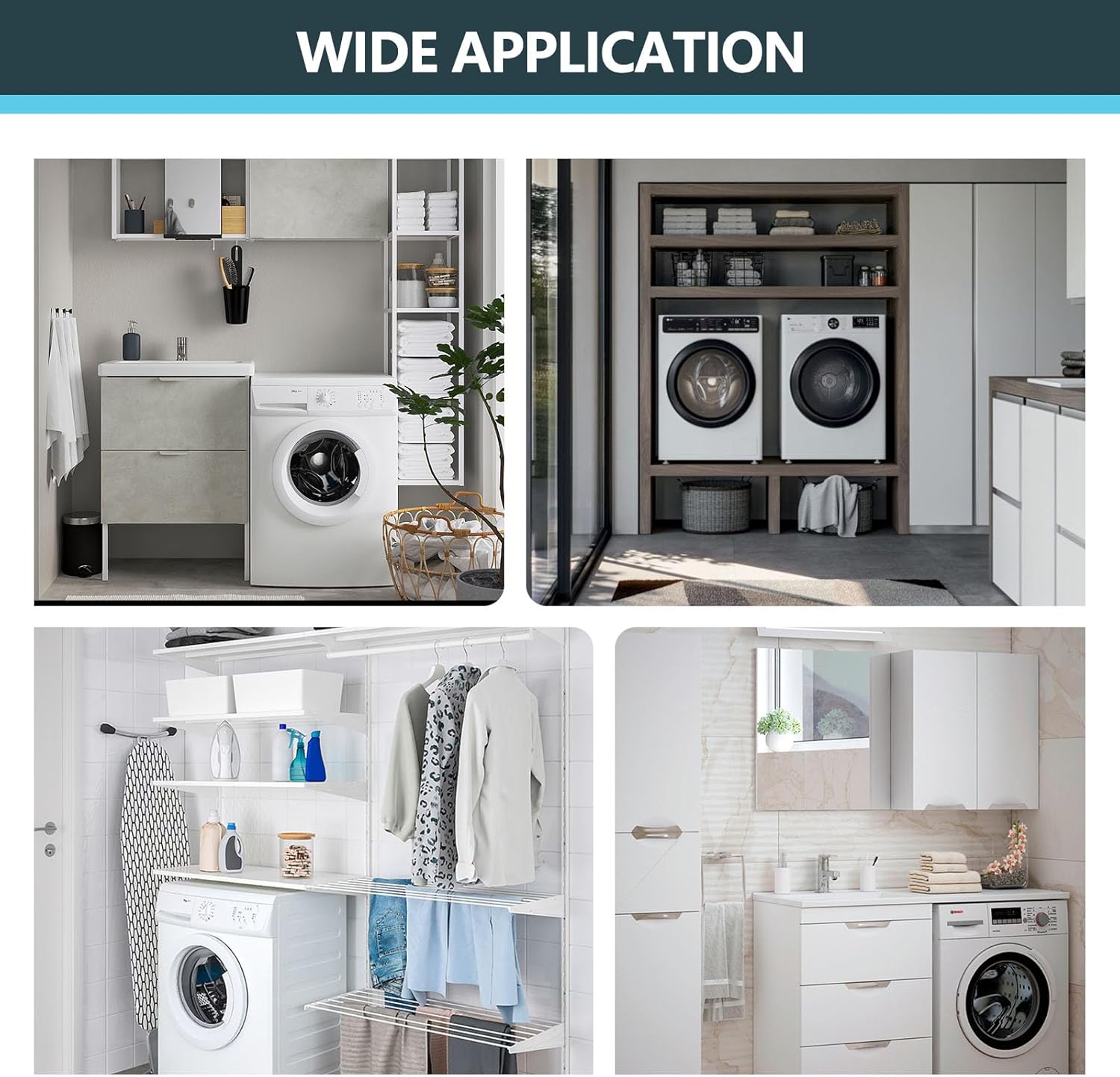

Wide Application
The Seelink Washing Machine Outlet Box is suitable for various residential and commercial laundry installations, providing a clean and efficient plumbing solution.
Image: Collage showing the washing machine outlet box installed in various laundry room configurations, demonstrating its versatility.
