1. Introduction
Thank you for choosing the GRUNDIG KSM 6430 Delisia Coffee Series DC5300 Espresso Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new coffee machine. Please read it thoroughly before first use and keep it for future reference.
Image 1.1: The GRUNDIG KSM 6430 Delisia Coffee Series DC5300 Espresso Machine, showcasing its sleek design and integrated milk frother.
The GRUNDIG KSM 6430 is designed to deliver a variety of coffee beverages, including espresso, latte, and cappuccino, with ease and professional results. It features a 20-bar brewing pressure system and an integrated milk frother for perfect milk foam.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Product Components
Familiarize yourself with the various parts of your GRUNDIG KSM 6430 espresso machine:
- Control Panel: Intuitive touch display for selecting coffee types and settings.
- Water Tank: Removable 1.1-liter tank for easy refilling.
- Portafilter: Holds ground coffee, capsules, or coffee pads.
- Milk Frother/Container: Integrated system for automatic milk frothing.
- Drip Tray: Collects excess liquid and is removable for cleaning.
- Coffee Spouts: Dual spouts allow for brewing two cups simultaneously.
- Accessories: Includes various portafilter inserts for different coffee types (ground, capsule, pad) and a measuring spoon with tamper.

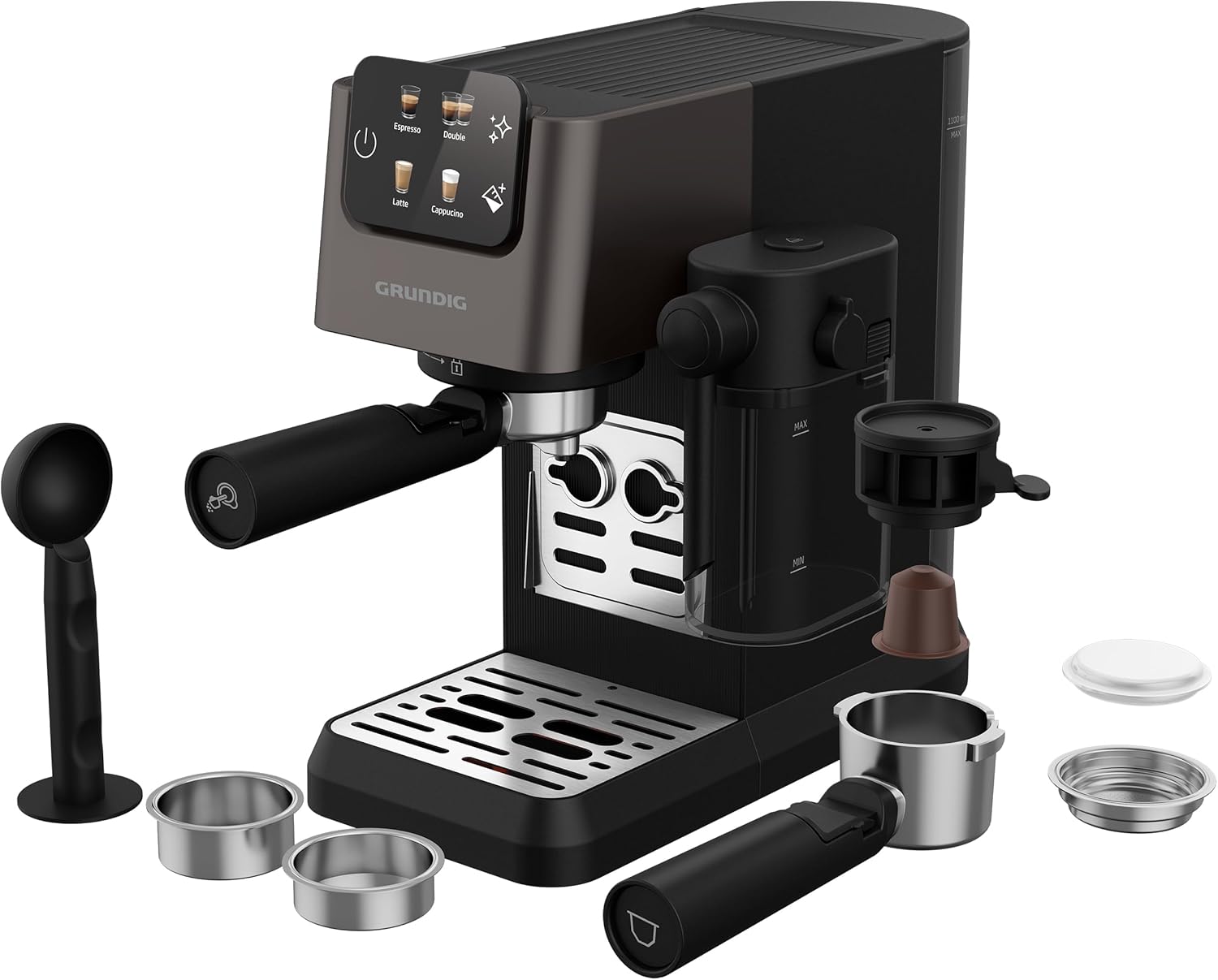

Image 3.1: Overview of the GRUNDIG KSM 6430 espresso machine and its included accessories, such as portafilters for different coffee types and a measuring spoon.
4. Initial Setup
Before using your coffee machine for the first time, follow these steps:
- Unpacking: Remove all packaging materials and ensure all components are present and undamaged.
- Cleaning: Wash the water tank, milk container, portafilter, and drip tray with warm soapy water, then rinse thoroughly and dry.
- Fill Water Tank: Remove the water tank from the back of the machine. Fill it with fresh, cold drinking water up to the MAX level. Reinsert the tank securely.
- First Rinse Cycle: Place a large container under the coffee spouts. Turn on the machine. Perform a rinse cycle without coffee to prime the system and clean any manufacturing residues. Refer to the operating section for how to dispense water.
- Milk System Rinse (Optional): If using the milk frother, fill the milk container with water and perform a milk frothing cycle to clean the milk system.
Image 4.1: The removable 1.1-liter water tank, designed for easy filling and cleaning.
5. Operating Instructions
5.1 Control Panel Overview
The machine features an intuitive touch display for easy selection of your desired beverage.
Image 5.1: The colored touch display showing options for Espresso, Double Espresso, Latte, and Cappuccino, along with power and cleaning indicators.
5.2 Preparing Coffee
Your GRUNDIG KSM 6430 supports three methods for coffee preparation: ground coffee, coffee capsules, and coffee pads.
Image 5.2: Visual representation of the three coffee preparation options: capsules, coffee pads, and ground coffee.
For Ground Coffee:
- Insert the appropriate filter basket (single or double shot) into the portafilter.
- Add finely ground coffee to the filter basket. Use the measuring spoon to ensure correct dosage and gently tamp the coffee.
- Attach the portafilter to the brewing head by aligning it and turning it to the right until secure.
- Place your cup(s) under the coffee spouts. The machine features a dual nozzle for two cups.
- Select 'Espresso' or 'Double' on the touch display. The machine will automatically brew your coffee.

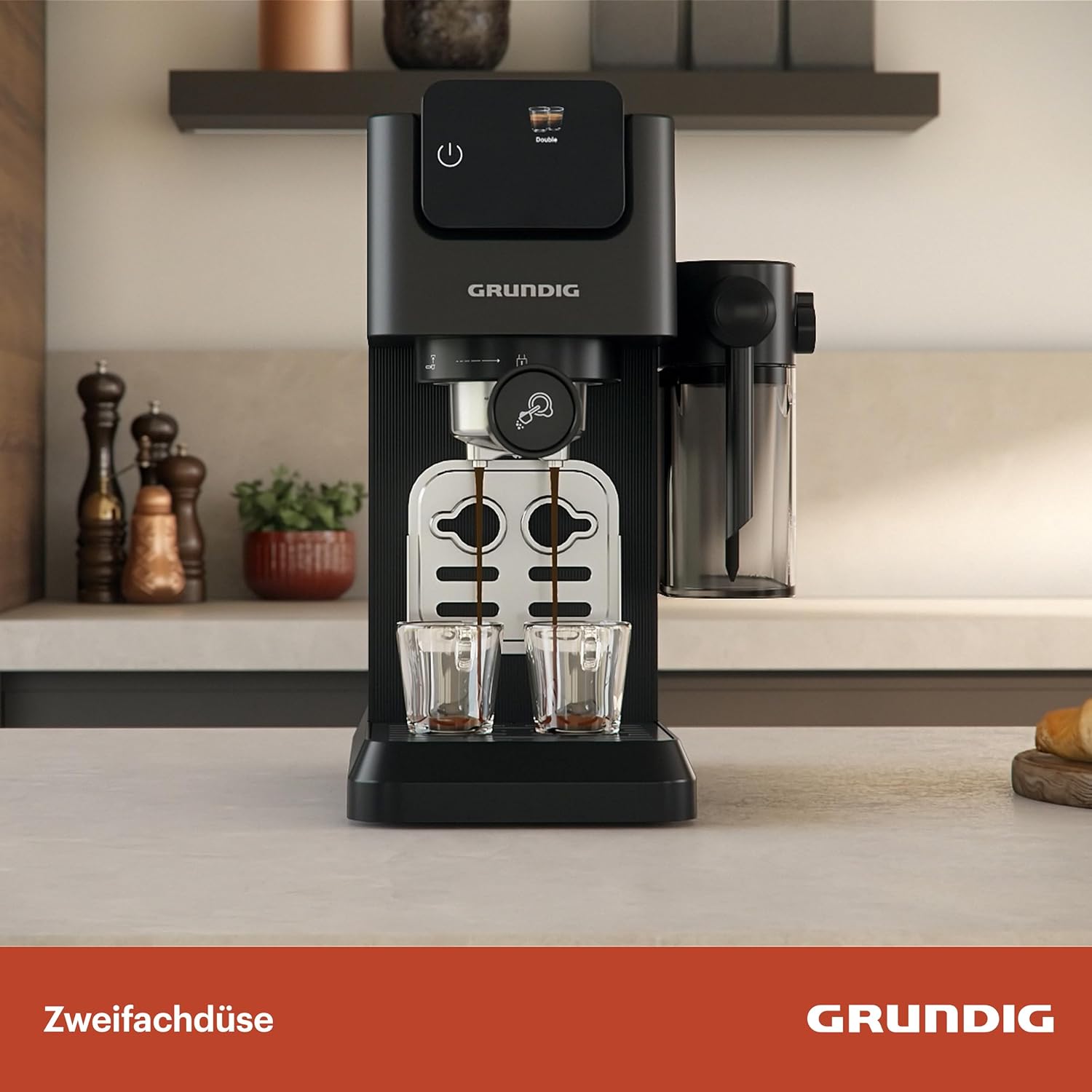

Image 5.3: The machine brewing two espressos simultaneously using its dual coffee spouts.
For Coffee Capsules/Pads:
- Insert the specific filter basket for capsules or pads into the portafilter.
- Place one coffee capsule or pad into the filter basket.
- Attach the portafilter to the brewing head.
- Place your cup under the coffee spout.
- Select 'Espresso' or 'Double' as desired.
5.3 Preparing Milk-Based Beverages (Latte, Cappuccino)
The integrated milk frother allows for convenient preparation of milk-based drinks.
- Fill the milk container with cold milk up to the desired level (MIN/MAX indicators).
- Ensure the milk container is securely attached to the machine.
- Prepare your espresso shot as described above, but do not brew yet.
- Place your cup under both the coffee spout and the milk frother nozzle.
- Select 'Latte' or 'Cappuccino' on the touch display. The machine will first froth the milk, then brew the espresso into the same cup.
Image 5.4: The GRUNDIG KSM 6430 preparing a cappuccino, demonstrating the integrated milk frothing function.
Adjusting Milk Foam Density:
You can adjust the milk foam density by turning the knob on the milk container. Rotate it to achieve your preferred level of foam, from warm milk to dense froth.
Image 5.5: Illustrates the milk foam adjustment feature and the various accessories included with the machine.
6. Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the lifespan of your machine.
6.1 Daily Cleaning
- Drip Tray: Empty and clean the drip tray daily. It can be removed by pulling it forward. Wash with warm soapy water.
- Portafilter: After each use, remove the portafilter and discard the used coffee grounds/capsule/pad. Rinse the portafilter and filter basket under running water.
- Milk Container: After preparing milk-based drinks, detach the milk container and rinse all parts that came into contact with milk. The milk container can be stored in the refrigerator.
- Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners.
6.2 Descaling
The GRUNDIG KSM 6430 features an automatic descaling function. The machine will indicate when descaling is required. Follow the instructions in the display or refer to the detailed descaling procedure in the full manual (if available).
- Use a suitable descaling solution recommended for espresso machines.
- Follow the instructions on the descaling solution packaging carefully.
- Ensure the water tank is filled with the descaling solution as instructed.
- Run the descaling program until complete, then perform several rinse cycles with fresh water.
Image 6.1: Highlights the machine's easy cleaning features and compact design, making it suitable for various kitchen spaces.
7. Troubleshooting
If you encounter issues with your GRUNDIG KSM 6430, consult the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No coffee is dispensed. | Water tank empty; machine not primed; coffee too finely ground or tamped too hard. | Fill water tank; perform a rinse cycle; use coarser grind or less pressure when tamping. |
| Coffee is too weak. | Insufficient coffee grounds; coffee too coarsely ground; brewing time too short. | Increase coffee amount; use finer grind; check selected coffee program. |
| No milk foam or poor foam quality. | Milk container not clean; milk type unsuitable; milk too warm; frother nozzle blocked. | Clean milk container and nozzle; use cold, fresh, full-fat milk; ensure milk is cold. |
| Water leaks from machine. | Water tank not correctly inserted; drip tray full; seals damaged. | Ensure water tank is secure; empty drip tray; contact customer support if seals are damaged. |
| Machine not turning on. | Power cord not plugged in; power outlet faulty. | Check power connection; try a different outlet. |
If the problem persists after attempting these solutions, please contact Grundig customer support.
8. Technical Specifications
- Brand: Grundig
- Model Name: KSM 6430
- Model Number: 4013833070382
- Color: Stainless Steel
- Product Dimensions: 42.5 x 20.5 x 31 cm (Depth x Width x Height)
- Weight: 4 Kilograms
- Water Tank Capacity: 1.1 Liters
- Power/Wattage: 1628 Watts
- Voltage: 240 Volts
- Material: Stainless Steel
- Special Features: Milk Frother, 20 Bar Brewing Pressure, Automatic Descaling
- Coffee Types: 4 (Espresso, Double Espresso, Latte, Cappuccino)
- Coffee Output: 2 cups simultaneously
Image 8.1: Diagram illustrating the professional 20 Bar pump pressure system, ensuring optimal coffee extraction.
9. Warranty and Support
Your GRUNDIG KSM 6430 Delisia Coffee Series DC5300 Espresso Machine comes with a manufacturer's warranty. Please refer to the warranty card included in the product packaging for specific terms and conditions.
For technical support, spare parts, or service inquiries, please contact Grundig customer service. Contact details can typically be found on the Grundig official website or on your product's warranty documentation.
