1. Introduction
Thank you for choosing the COMFEE' CIH351D215K1 Induction Hob. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.
2. Important Safety Instructions
To ensure safe operation, please observe the following precautions:
- Child Lock: Activate the child lock function to prevent accidental activation by children. This feature is designed to protect curious hands from burns and injuries.
- Over-Temperature Protection: The hob is equipped with a system that automatically shuts off in case of excessive internal temperatures, preventing damage and ensuring safety.
- Residual Heat Indicator: An indicator light will remain on after cooking to warn that the cooking zone is still hot, reducing the risk of burns.
- Compatible Cookware: Only use cookware with a magnetic base and a diameter of 12cm or greater. Non-magnetic or irregularly shaped cookware will not activate the heating function.
- Do not place metallic objects such as knives, forks, spoons, and lids on the hob surface as they can become hot.
- Ensure proper ventilation around the appliance.
- Do not operate the appliance with wet hands.
Figure 1: Illustration of the hob's safety features, including child lock, overheat protection, and residual heat indicator, emphasizing family safety.
3. Product Overview
The COMFEE' CIH351D215K1 is a 2-zone induction hob designed for efficient and precise cooking. It features flexible cooking zones, 9 power levels, a Boost function for rapid heating, and intuitive touch controls.

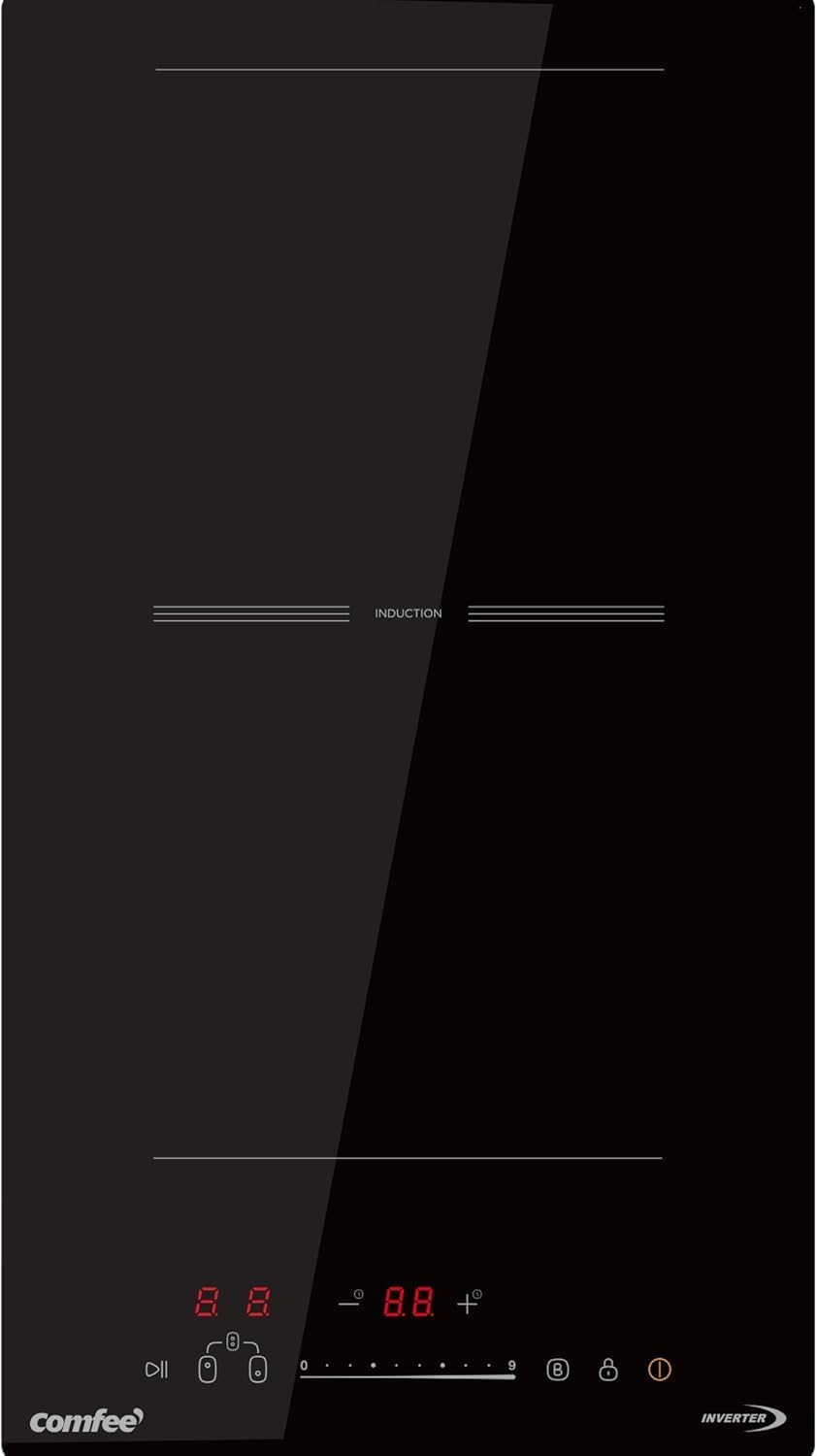

Figure 2: Top view of the COMFEE' CIH351D215K1 Induction Hob, showing the two cooking zones and touch control panel.
3.1 Control Panel
The hob is operated via a sensitive touch control panel. Key functions include:
- Power On/Off: To switch the hob on or off.
- Zone Selection: To select the desired cooking zone.
- Power Level Adjustment: Slide or tap to adjust between 9 power levels.
- Boost Function: For instant maximum heating.
- Timer: Set cooking duration for precise results.
- Child Lock: To lock the control panel.
Figure 3: Detailed view of the touch control panel, indicating functions such as heating zone selection, timer, boost, and child lock.
4. Installation and Setup
The COMFEE' induction hob is designed for easy installation. It comes with a pre-installed connector, simplifying the wiring process.
4.1 Dimensions
Ensure your countertop cutout matches the following dimensions for proper fitting:
- Product Dimensions: 52 cm (Length) x 28.8 cm (Width) x 5.9 cm (Height)
- Cutout Dimensions: Approximately 50 cm (Length) x 26.8 cm (Width)

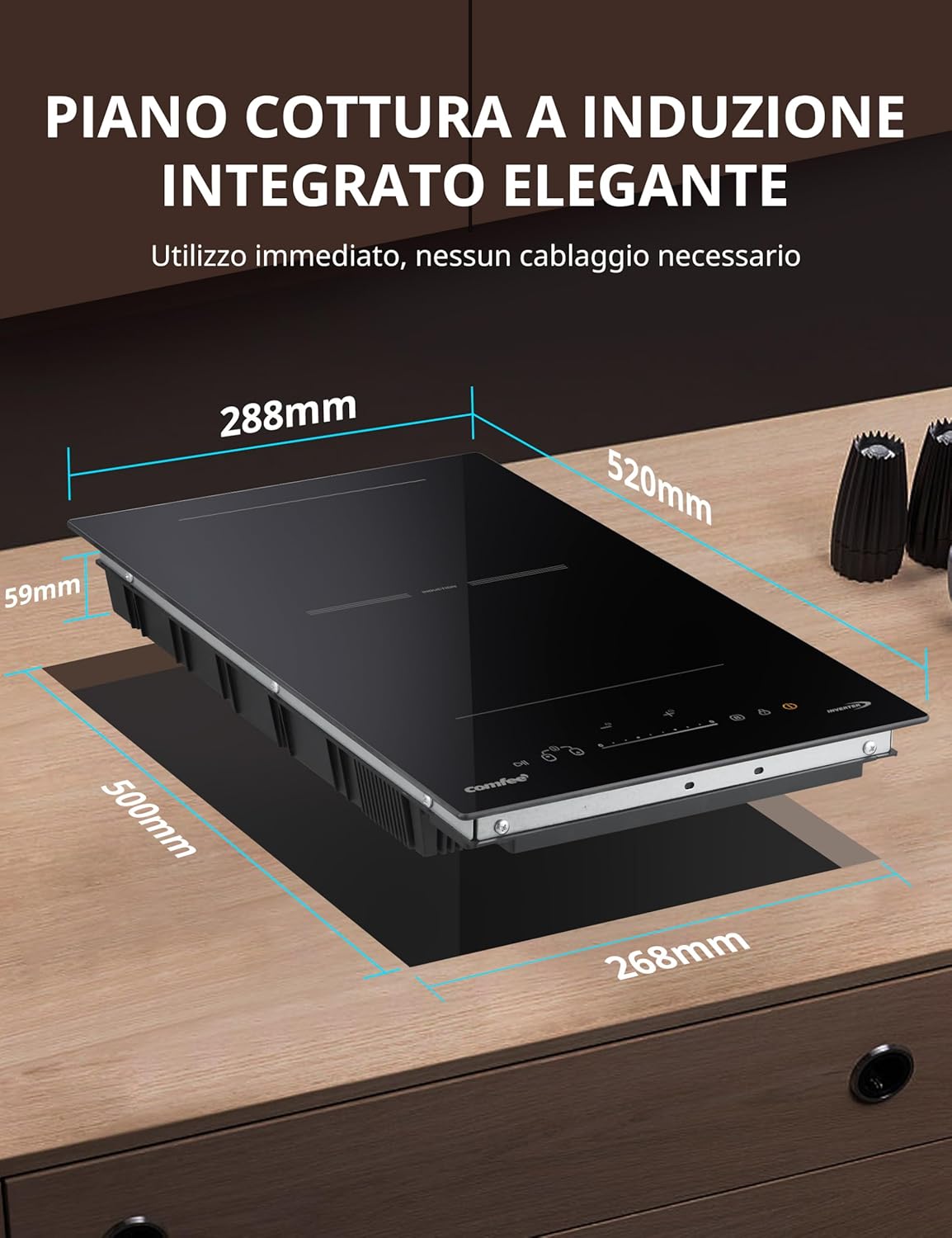

Figure 4: Installation diagram with product and cutout dimensions for the induction hob.
4.2 Electrical Connection
The hob requires a wired electrical connection. Consult a qualified electrician for installation to ensure compliance with local electrical codes and safety standards.
5. Operating Instructions
5.1 Power Levels
The hob offers 9 adjustable power levels, from P1 (melting) to P9 (boiling), allowing for precise temperature control for various cooking tasks. Each zone can operate independently.
Figure 5: Overview of the 9 power levels and their recommended uses, from gentle melting to rapid boiling.
5.2 Boost Function
Activate the Boost function for instant maximum heating, ideal for quickly boiling water or searing food. Both flexible zones can operate simultaneously, reaching up to 3500W with Boost engaged.
Figure 6: The Boost function provides rapid heating for tasks like boiling water quickly.
5.3 Timer Function
Use the independent timer for each cooking zone to set precise cooking durations, up to 99 minutes. The hob will automatically switch off the zone once the set time expires.
6. Compatible Cookware
Induction hobs require specific types of cookware. Your COMFEE' hob will only function with pots and pans that have a magnetic base. The minimum recommended diameter for cookware is 12 cm.
6.1 Compatible Materials
- Stainless steel pots
- Enameled cast iron pots
- Cast iron pans
- Iron woks
6.2 Non-Compatible Materials
- Glass pots
- Ceramic pots
- Aluminum pots
- Copper pots
- Pots with irregular bottoms
Figure 7: Visual guide to compatible and non-compatible cookware for induction cooking.
7. Cleaning and Maintenance
The ceramic glass surface of your COMFEE' induction hob is designed for easy cleaning. Its enhanced impact resistance (30% more resistant) ensures durability.
- Always ensure the hob is cool before cleaning.
- Wipe the surface with a soft cloth and mild detergent.
- For stubborn stains, use a ceramic hob scraper.
- Avoid abrasive cleaners or scouring pads that could scratch the surface.
- Dry the surface thoroughly after cleaning to prevent water marks.
Figure 8: Cleaning the ceramic glass surface of the induction hob, highlighting its ease of maintenance.
8. Troubleshooting
If you encounter issues with your induction hob, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not turn on. | No power supply; Child lock activated. | Check power connection; Deactivate child lock. |
| Cooking zone not heating. | Incompatible cookware; Cookware not centered; Cookware too small. | Use magnetic cookware; Center cookware; Ensure diameter is at least 12cm. |
| Display shows an error code. | Internal fault; Overheating. | Refer to specific error code in full manual (if available); Allow hob to cool down. |
| Unusual noise during operation. | Normal operation (fan noise); Cookware resonance. | This is usually normal; Try different cookware if noise is excessive. |
If the problem persists after attempting these solutions, please contact customer support.
9. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | COMFEE' |
| Model Number | MC-ID3592-A1C |
| Product Dimensions | 52 x 28.8 x 5.9 cm |
| Weight | 5.33 kg |
| Power Output | 3500W (with Boost) |
| Power Levels | 9 |
| Special Features | Adjustable Temperature, Automatic Shut-Off, Safety Lock (Child Lock, Over-temperature Protection, Residual Heat Indicator) |
| Surface Material | Ceramic Glass |
| Burner Type | Induction |
| Power Source | Corded Electric |
| Country of Origin | China |
10. Warranty and Support
For information regarding warranty, returns, or customer support, please refer to the purchase documentation or contact your retailer. Amazon's return policy allows for product returns within 30 days of receipt if you change your mind. For defective or damaged products, please consult Amazon's help page on returns. Specific information for Marketplace purchases is also available on Amazon's help pages.
For further assistance, please visit the official COMFEE' website or contact their customer service directly.
