1. Introduction
Welcome to the user manual for your new BOSGAME P2 Mini PC. This compact yet powerful computer is designed to meet a wide range of computing needs, from everyday tasks to demanding multimedia and professional applications. Equipped with an Intel Core i7-12700H processor, ample memory, and high-speed storage, the P2 offers exceptional performance in a small form factor. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your device.
Image: Front and rear view of the BOSGAME P2 Mini PC, showcasing its compact design and various ports.
2. Product Overview
The BOSGAME P2 Mini PC is engineered for high performance and versatility. Key features include:
- Intel Core i7-12700H Processor: A 12th generation Intel Core i7-12700H processor with 14 Cores and 20 Threads, capable of boosting up to 4.7GHz, providing robust performance for multitasking and demanding applications.
- Intel Iris Xe Graphics: Integrated graphics supporting multiple video encoding formats, ideal for high-quality video streams and conferencing.
- Ample Memory & Storage: Pre-installed with dual-channel 32GB DDR4 3200MHz SODIMM RAM and a 512GB M.2 NVMe PCIe 3.0 x4 2280 SSD, expandable up to 64GB memory and 2TB SSD.
- Triple Display Support: Connect up to three displays simultaneously via Thunderbolt 4 (8K@60Hz), DP 1.2 (4K@60Hz), and HDMI 2.0 (4K@60Hz) for enhanced productivity.
- High-Speed Connectivity: Equipped with Wi-Fi 6E for faster wireless speeds and broader coverage, Bluetooth 5.2 for seamless peripheral connections, and dual 2.5G RJ45 LAN ports for reliable wired networking.
- Efficient Cooling: Features advanced copper tube cooling technology for effective heat dissipation and quiet operation.
Image: Diagram highlighting key features including Intel Iris Xe Graphics, DDR5 4800MHz, NVMe PCIe 3.0x4 SSD, Intel Core i7-12700H, Triple Screen Display support, Wi-Fi 6, Bluetooth 5.2, and 2.5G RJ45 LAN.
Image: Detailed view of the rich interfaces on the BOSGAME P2 Mini PC, including USB 3.2 Gen2, Thunderbolt 4, Audio Jack on the front, and DC-in, 2.5G RJ45 LAN, HDMI 2.0, DP 1.2, and additional USB 3.2 Gen2 ports on the rear.
Video: An official overview of the BOSGAME P2 Mini PC, showcasing its design, internal components, and various connectivity options.
3. Setup
3.1 Unboxing and Package Contents
Carefully unpack your BOSGAME P2 Mini PC. The package should contain the following items:
- BOSGAME Mini PC P2
- HDMI cable
- Power Adapter
- User Manual
- Wall Mount (VESA mount with screws)
Image: A visual representation of the accessories included with the BOSGAME P2 Mini PC: the mini PC unit, power adapter, HDMI cable, user manual, and VESA mount with screws.
3.2 Connecting Peripherals
- Connect Display: Connect your monitor(s) to the HDMI, DisplayPort (DP), or Thunderbolt 4 ports on the rear of the Mini PC using appropriate cables.
- Connect Keyboard & Mouse: Plug your USB keyboard and mouse into any of the available USB 3.2 Gen2 ports on the front or rear of the Mini PC.
- Connect Network (Optional): For a wired connection, connect an Ethernet cable from your router or modem to one of the 2.5G RJ45 LAN ports on the rear. For wireless, ensure Wi-Fi is enabled during initial setup.
- Connect Power: Plug the power adapter into the DC-in port on the rear of the Mini PC, then plug the adapter into a power outlet.
3.3 Initial Power On and Windows Setup
Press the power button on the front of the Mini PC. The system will boot up, and you will be guided through the Windows 11 Pro setup process. Follow the on-screen instructions to configure your language, region, network, and user account settings.
3.4 VESA Mount Installation
The BOSGAME P2 Mini PC can be mounted to the back of a compatible monitor using the included VESA mount. This saves desk space and provides a clean setup.
- Attach the VESA bracket to the Mini PC using the provided screws.
- Securely fix the bracket (with the Mini PC attached) to the VESA mounting holes on the back of your display using the appropriate screws.
Image: Illustration demonstrating the easy installation of the BOSGAME P2 Mini PC using the VESA mount, attaching it to the back of a monitor.
4. Operating
4.1 Power On/Off and Restart
- Power On: Press the power button on the front of the device.
- Power Off: Click the Start button in Windows, then select Power > Shut down. Alternatively, press and hold the power button for 5 seconds to force a shutdown (use only when necessary).
- Restart: Click the Start button in Windows, then select Power > Restart.
4.2 Network Connectivity
- Wi-Fi: Navigate to Windows Settings > Network & Internet > Wi-Fi. Select your desired network and enter the password to connect. The P2 supports Wi-Fi 6E for optimal wireless performance.
- Wired LAN: If an Ethernet cable is connected, the system will automatically detect and use the wired network connection. The dual 2.5G RJ45 LAN ports offer superior speed compared to traditional Gigabit ports.
Image: Close-up of the dual 2.5G RJ45 LAN ports on the BOSGAME P2 Mini PC, illustrating their high-speed capability.
4.3 Multiple Display Setup
The BOSGAME P2 supports connecting up to three independent displays simultaneously, allowing for extended desktop space and enhanced productivity. Connect your monitors to the available HDMI, DisplayPort, and Thunderbolt 4 ports. Windows will automatically detect the displays. You can configure display settings (resolution, orientation, extension/duplication) via Windows Settings > System > Display.

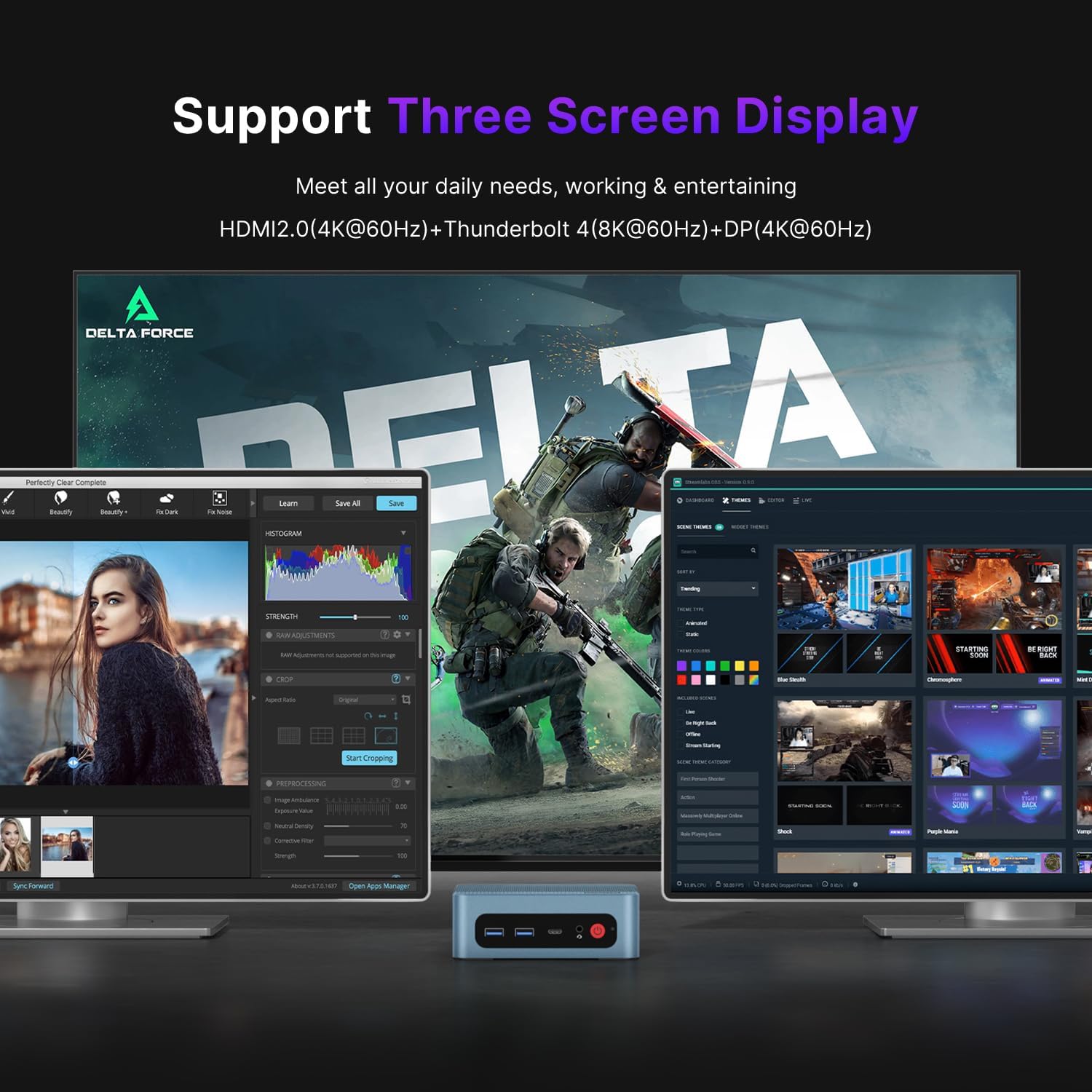

Image: A setup showing the BOSGAME P2 Mini PC connected to three monitors, demonstrating its triple screen display capability for work and entertainment.
4.4 Thunderbolt 4 Functionality
The Thunderbolt 4 port on the front of the Mini PC offers versatile functionality:
- PD 3.0 Power Supply: Can provide power delivery to compatible devices.
- 40Gbps Data Transmission: High-speed data transfer for external drives and peripherals.
- 8K Video Output: Supports high-resolution video output to compatible displays.
Image: The BOSGAME P2 Mini PC connected via its Thunderbolt 4 port to an external portable monitor, illustrating its multi-functional capabilities including PD 3.0 power supply, 40Gbps data transmission, and 8K video output.
4.5 Quiet Operation and Heat Dissipation
The BOSGAME P2 is designed for quiet operation, even under load, thanks to its efficient copper tube cooling system. This system effectively transfers heat away from the CPU and GPU, reducing fan noise and ensuring stable performance. The noise level is comparable to quiet environments, making it suitable for audio-visual entertainment or silent office use.
Image: An illustration depicting the outstanding quietness of the BOSGAME P2 Mini PC, with noise levels indicated as being very low, suitable for quiet environments.
Image: An exploded view illustrating the highly efficient heat dissipation system of the BOSGAME P2 Mini PC, showing the internal cooling components.
5. Maintenance
5.1 Cleaning
To maintain optimal performance and longevity, regularly clean your Mini PC:
- Use a soft, dry cloth to wipe the exterior.
- Use compressed air to clear dust from ventilation grilles and ports. Ensure the device is powered off and unplugged before cleaning.
5.2 Storage and Memory Upgrades
The BOSGAME P2 Mini PC supports upgrades for both RAM and SSD storage:
- RAM: The device comes with dual-channel 32GB DDR4 3200MHz SODIMM. It supports up to 64GB of memory. Ensure any new RAM modules are compatible SODIMM DDR4.
- SSD: The pre-installed storage is a 512GB M.2 NVMe PCIe 3.0 x4 2280 SSD. This can be upgraded to a larger capacity SSD, up to 2TB.
For upgrades, it is recommended to consult a professional or refer to detailed technical guides to avoid damaging the components.
Image: Visual representation of the DDR5 SODIMM memory modules and the M.2 NVMe PCIe 3.0 SSD, highlighting the speed and capacity of the components.
5.3 Software Updates
Regularly update your Windows operating system and drivers to ensure optimal performance, security, and compatibility. You can check for Windows updates via Settings > Windows Update. For specific driver updates, visit the official BOSGAME website.
6. Troubleshooting
If you encounter issues with your BOSGAME P2 Mini PC, refer to the following common troubleshooting steps:
- No Power: Ensure the power adapter is securely connected to both the Mini PC and a working power outlet. Try a different outlet.
- No Display: Verify that the monitor is powered on and correctly connected to the Mini PC's video output ports (HDMI, DP, Thunderbolt 4). Try a different cable or monitor if possible. Ensure the correct input source is selected on your monitor.
- Network Connectivity Issues: For Wi-Fi, ensure the correct password is entered and the signal is strong. For wired connections, check the Ethernet cable and router status. Restarting your router/modem can often resolve network problems.
- System Unresponsive: If the system freezes, press and hold the power button for 5 seconds to force a shutdown, then restart the device.
- Peripheral Not Detected: Try connecting the peripheral to a different USB port. Ensure drivers for the peripheral are installed if required.
If the issue persists, please refer to the Warranty and Support section for contact information.
7. Specifications
Detailed technical specifications for the BOSGAME P2 Mini PC:
| Feature | Specification |
|---|---|
| Brand | BOSGAME |
| Model | P2 |
| Processor | Intel Core i7-12700H (14 Cores/20 Threads, up to 4.7GHz) |
| Graphics | Intel Iris Xe Graphics (Integrated) |
| RAM | 32GB DDR4 3200MHz SODIMM (Dual Channel, Max 64GB) |
| Storage | 512GB NVMe PCIe 3.0 x4 2280 SSD (Max 2TB) |
| Operating System | Windows 11 Pro |
| Video Output | HDMI 2.0 (4K@60Hz), DP 1.2 (4K@60Hz), Thunderbolt 4 (8K@60Hz) |
| USB Ports | 4 x USB 3.2 Gen2, 1 x Thunderbolt 4 (USB-C) |
| Network | Wi-Fi 6E (802.11ax), Bluetooth 5.2, 2 x 2.5G RJ45 LAN |
| Audio | 3.5mm Combo Jack |
| Dimensions | 129 x 123 x 44 mm (approx. 5.08 x 4.84 x 1.73 inches) |
| Weight | Approx. 2.68 pounds |
| Power Adapter | 19V-6.3A |
Image: A visual table summarizing the product specifications of the BOSGAME P2 Mini PC.
8. Warranty and Support
BOSGAME is committed to providing excellent customer service and support for your P2 Mini PC.
8.1 Warranty Information
All BOSGAME products come with a 3-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures your device functions as intended under normal use. Please retain your proof of purchase for warranty claims.
8.2 Technical Support
BOSGAME offers lifetime technical support services for the P2 Mini PC. If you encounter any technical issues or have questions regarding your product, please contact our support team through the following channels:
- Email Support: support@bosgamepc.com
- Official Website: For drivers, FAQs, and additional resources, visit https://www.bosgamepc.com/
When contacting support, please provide your product model (P2) and a detailed description of the issue to help us assist you more efficiently.
Image: Contact information for BOSGAME support, including email and official website, for assistance with product questions.
