1. Introduction and Overview
Thank you for choosing the PowMr LiFePO4 200 Ah 12.8 V Battery. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your battery. This high-performance lithium iron phosphate battery is designed for various applications, including RVs, boats, home energy storage, and solar panel systems, offering a reliable and long-lasting power solution.
The battery features an integrated 200A Battery Management System (BMS) that provides comprehensive protection, ensuring optimal performance and extended lifespan.
Figure 1: PowMr LiFePO4 200 Ah 12.8 V Battery. This image shows the compact black battery unit with PowMr branding and specifications clearly visible on the front label.
2. Safety Information
Please read and understand all safety instructions before installing or operating the battery. Failure to follow these instructions may result in serious injury, property damage, or battery damage.
- Do Not Short Circuit: Avoid connecting the positive and negative terminals directly. This can cause severe damage to the battery and pose a fire hazard.
- Do Not Open Battery: The battery casing should not be opened. There are no user-serviceable parts inside. Opening the battery voids the warranty and can expose you to hazardous components.
- Do Not Expose to Fire or Excessive Heat: Keep the battery away from open flames, heaters, and direct sunlight. High temperatures can cause the battery to overheat, rupture, or explode.
- Recharge Immediately After Discharge: For optimal battery health and longevity, recharge the battery promptly after it has been discharged. Avoid leaving the battery in a fully discharged state for extended periods.
- Use Appropriate Charger: Only use a charger specifically designed for LiFePO4 batteries with the correct voltage and current ratings.
- Proper Ventilation: Ensure adequate ventilation around the battery during charging and discharging to prevent heat buildup.
- Handle with Care: Despite its robust design, avoid dropping or subjecting the battery to severe impacts.
3. Product Features
The PowMr LiFePO4 200 Ah 12.8 V Battery is engineered with advanced features for superior performance and reliability:
- Compact Size and Lightweight: With dimensions of L 48.5 x W 17 x H 24 cm and a weight of only 19 kg, this battery saves significant installation space and is easy to handle, making it ideal for mobile and space-constrained applications.
- Comprehensive BMS Protection: An integrated 200A Battery Management System (BMS) provides robust protection against:
- Overcharge
- Over-discharge
- Overcurrent
- Short circuits
- Low and high temperatures
- High Capacity and Endurance: Offers a substantial 2560 Wh energy capacity and supports up to 2560 W of continuous discharge power, capable of powering multiple loads simultaneously. With over 6000 cycles at 0.2C discharge, 25°C, and 80% Depth of Discharge (DOD), the battery is designed for a lifespan exceeding 10 years.
- Flexible Configuration: Highly scalable, supporting up to 4 batteries in parallel and 4 in series (Max 4P4S) to create a battery system of up to 51.2 V 800 Ah, with a maximum energy capacity of 40.96 kWh. This flexibility allows for custom system designs to meet diverse energy needs.
- Efficient Charging: Capable of accepting a maximum charge current of 200 A, allowing for a full charge in approximately 1 hour.
Figure 2: A-Grade Cells & Integrated BMS. This graphic illustrates the internal structure of the battery, highlighting the high-quality cells and the integrated Battery Management System (BMS) that provides protection against overvoltage, undervoltage, overcurrent, short circuit, and overheating.
Figure 3: Large Capacity, Long Runtime. This image demonstrates the 2560 Wh energy capacity and shows examples of how long the battery can power common appliances like a TV (100W for 25.6 hours), refrigerator (150W for 17 hours), microwave (500W for 5.12 hours), and lighting (10W for 256 hours).
4. Specifications
| Specification | Value |
|---|---|
| Model Number | POW-200AH-12.8V |
| Brand | PowMr |
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 200 Ah |
| Energy Capacity | 2560 Wh |
| Integrated BMS | 200 A |
| Max Continuous Charge Current | 200 A |
| Max Continuous Discharge Current | 200 A |
| Max Continuous Load Power | 2560 W |
| Cycle Life | 6000+ cycles (at 0.2C, 25°C, 80% DOD) |
| Dimensions (L x W x H) | 48.5 x 17 x 24 cm |
| Weight | 19 kg |
| Terminal Type | M8 Terminal Screws |
Figure 4: Product Specifications Overview. This image visually represents the battery's dimensions (485mm length, 170mm width, 240mm height) and weight (19kg), along with a close-up of the M8 terminal screws.
5. Setup and Installation
Proper installation is crucial for the performance and safety of your battery. Always ensure all connections are secure and correctly polarized.
5.1 Unpacking and Inspection
- Carefully remove the battery from its packaging.
- Inspect the battery for any visible damage during shipping. If damage is found, contact your supplier immediately.
- Verify that all accessories, such as M8 terminal screws, are included.
5.2 Connection (Series and Parallel)
The PowMr LiFePO4 battery supports flexible configurations to meet various voltage and capacity requirements:
- Parallel Connection: Up to 4 batteries can be connected in parallel to increase total capacity while maintaining the nominal 12.8V. Ensure all batteries are at a similar state of charge before connecting in parallel.
- Series Connection: Up to 4 batteries can be connected in series to increase the total voltage (e.g., 25.6V, 38.4V, 51.2V). When connecting in series, it is critical that all batteries have the same capacity and are at a similar state of charge.
- Combined Series-Parallel: A maximum configuration of 4P4S (4 in parallel, 4 sets in series) is supported, allowing for a system up to 51.2V 800Ah (40.96 kWh).
Important: Always use appropriate gauge cables and ensure all connections are tight and secure to prevent voltage drop and overheating. Consult a qualified electrician if you are unsure about complex wiring configurations.
5.3 Mounting
Mount the battery in a clean, dry, and well-ventilated area. Ensure the mounting surface is sturdy enough to support the battery's weight. Avoid locations exposed to direct sunlight, extreme temperatures, or moisture.
6. Operating Instructions
6.1 Charging the Battery
The PowMr LiFePO4 battery can be charged quickly and efficiently:
- Charger Compatibility: Use a dedicated LiFePO4 battery charger with a voltage output compatible with 12.8V LiFePO4 batteries.
- Charging Current: The battery supports a maximum continuous charge current of 200 A. For optimal battery lifespan, a recommended charge current of 0.5C (100 A) is advised.
- Charging Time: A full charge can be achieved in approximately 1 hour with the maximum charge current.

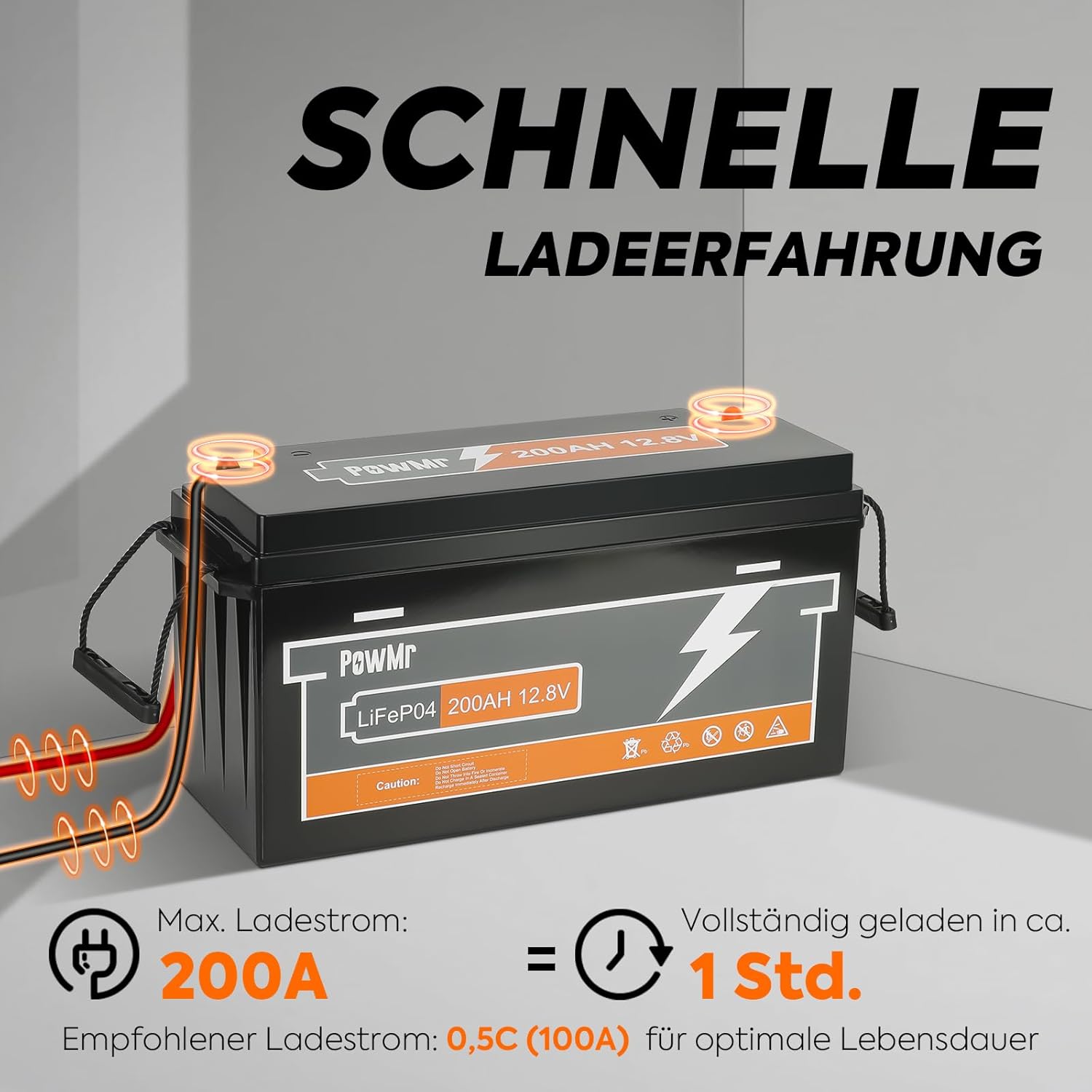

Figure 5: Fast Charging Experience. This image illustrates the battery being charged, highlighting its capability to achieve a full charge in approximately 1 hour with a maximum charging current of 200A. It also recommends a 0.5C (100A) charging current for optimal lifespan.
6.2 Discharging the Battery
The battery is designed to provide stable power for various applications:
- Continuous Discharge: The battery can deliver up to 2560 W of continuous power.
- Multiple Loads: It is capable of powering multiple devices simultaneously, such as TVs, refrigerators, microwaves, and lighting.
- Low Temperature Performance: The integrated BMS includes low-temperature protection, preventing charging below 0°C (32°F) to protect the battery cells.
7. Maintenance
The PowMr LiFePO4 battery is largely maintenance-free due to its robust design and integrated BMS. However, following these guidelines will help ensure its longevity:
- Regular Inspection: Periodically check the battery terminals for corrosion or loose connections. Clean terminals if necessary.
- Keep Clean and Dry: Ensure the battery surface is clean and free from dust and moisture.
- Temperature Control: Operate and store the battery within its recommended temperature range. Avoid extreme heat or cold.
- Storage: If storing the battery for an extended period, ensure it is charged to approximately 50-70% State of Charge (SOC) and stored in a cool, dry place. Recharge every 3-6 months to prevent self-discharge.
- Avoid Deep Discharge: While the BMS protects against over-discharge, consistently avoiding full discharge cycles can further extend the battery's life.
8. Troubleshooting
This section addresses common issues you might encounter with your PowMr LiFePO4 battery. The integrated BMS is designed to prevent most critical failures by activating protection modes.
8.1 Battery Not Charging
- Check Connections: Ensure all charging cables are securely connected to the battery terminals and the charger.
- Charger Functionality: Verify that your charger is working correctly and is compatible with LiFePO4 batteries.
- BMS Protection: The BMS may have activated over-discharge protection if the battery voltage is too low. Try using a charger with a 'wake-up' function or a lower current to initiate charging.
- Temperature: If the ambient temperature is below 0°C (32°F), the BMS will prevent charging. Move the battery to a warmer environment.
8.2 Battery Not Discharging / No Power Output
- Check Connections: Ensure all load connections are secure and correctly polarized.
- Battery Voltage: Check the battery voltage. If it's too low, the BMS may have activated low-voltage cut-off protection. Recharge the battery.
- Overcurrent Protection: If the load draws too much current, the BMS will activate overcurrent protection. Reduce the load or check for short circuits in your system.
- Over-temperature Protection: If the battery temperature is too high, the BMS will cut off discharge. Allow the battery to cool down in a well-ventilated area.
8.3 Reduced Capacity or Runtime
- Charging Habits: Ensure the battery is being fully charged regularly.
- Load Demands: Verify that the total power draw of your devices does not exceed the battery's continuous discharge rating.
- Age and Cycles: While designed for 6000+ cycles, all batteries will eventually experience a gradual reduction in capacity over time and extensive use.
If you encounter issues not covered here or require further assistance, please contact PowMr customer support.
