1. Introduction
1.1 Product Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your new Newparts Halogen Headlight Assemblies for the Mercedes W447 Metris. This set includes both the left driver side and right passenger side headlight assemblies, designed to be a direct replacement for your vehicle's original halogen headlights.
1.2 Safety Information
- Always disconnect the vehicle's battery before beginning any electrical work to prevent electrical shock or damage.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Ensure the vehicle is parked on a level surface with the parking brake engaged before starting work.
- If you are unsure about any step of the installation process, it is recommended to seek professional assistance.
- Handle headlight bulbs with care. Avoid touching the glass portion of the bulb with bare hands, as oils can reduce bulb life.
2. Package Contents
Please verify that all components are present and undamaged before proceeding with installation.
- 1 x Halogen Headlight Assembly - Left Driver Side
- 1 x Halogen Headlight Assembly - Passenger Right Side
3. Installation Guide
3.1 Tools Required
- Screwdriver Set (Phillips and Flathead)
- Socket Wrench Set
- Trim Removal Tools (plastic pry tools)
- Safety Glasses
- Gloves
3.2 Installation Steps
The following steps outline a general procedure for headlight assembly replacement. Specific vehicle configurations may vary. Refer to your Mercedes W447 Metris service manual for precise details.
- Preparation: Park the vehicle on a level surface, turn off the engine, and engage the parking brake. Open the hood and disconnect the negative terminal of the vehicle's battery.
- Access Headlight: Depending on your vehicle's design, it may be necessary to partially remove the front bumper, grille, or fender liner to gain full access to the headlight assembly mounting bolts and electrical connectors. Use trim removal tools to carefully detach plastic clips and fasteners.
- Remove Old Headlight: Locate and remove all mounting bolts securing the existing headlight assembly. Carefully disconnect the electrical connectors from the headlight bulbs and the main harness. Gently pull the old headlight assembly out of its housing.
- Install New Headlight: Position the new Newparts headlight assembly into the vehicle's housing. Ensure it seats correctly. Connect all electrical connectors firmly. Secure the new headlight assembly with the mounting bolts removed earlier. Do not overtighten.
- Reassemble: Reinstall any bumper, grille, or fender liner components that were removed to access the headlight. Ensure all clips and fasteners are securely reattached.
- Test Functionality: Reconnect the vehicle's battery. Turn on the vehicle's ignition and test all headlight functions: low beam, high beam, turn signals, and parking lights.
- Aiming: After installation, it is highly recommended to have the headlight beams professionally aimed to ensure proper illumination and to avoid blinding oncoming traffic.

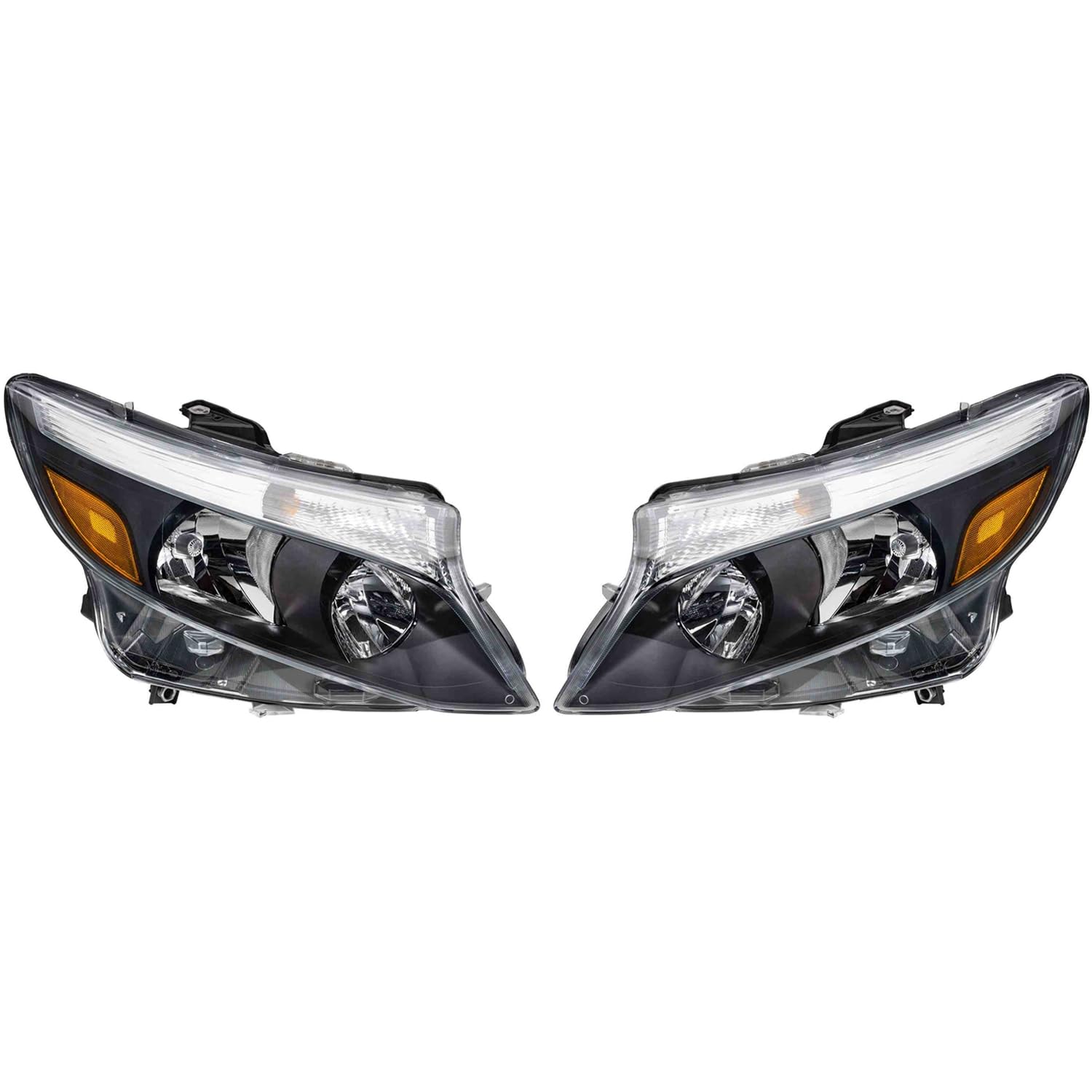

Image: Newparts Halogen Headlight Assembly. This image illustrates the general appearance of the product.
4. Operating Instructions
The Newparts Halogen Headlight Assemblies operate in conjunction with your vehicle's existing lighting control system. Refer to your Mercedes W447 Metris owner's manual for specific instructions on how to operate your vehicle's headlights, including:
- Turning headlights ON/OFF
- Switching between low beam and high beam
- Using parking lights and turn signals
- Adjusting headlight aim (if your vehicle has manual adjustment features)
5. Maintenance and Care
5.1 Cleaning
To maintain optimal light output and appearance, regularly clean the exterior lens of the headlight assemblies. Use a soft cloth, mild automotive soap, and water. Avoid abrasive cleaners, harsh chemicals, or rough brushes, as these can scratch or damage the lens surface.
5.2 Bulb Replacement
These headlight assemblies utilize halogen bulbs. If a bulb burns out, it can be replaced. Refer to your Mercedes W447 Metris owner's manual for the correct bulb type and specific replacement procedures. When replacing bulbs:
- Ensure the vehicle's lights are off and the ignition is off.
- Allow bulbs to cool down before handling.
- Wear gloves or use a clean cloth to handle new bulbs to avoid transferring oils from your skin to the glass.
- Ensure the replacement bulb is of the correct wattage and type as specified by your vehicle manufacturer.
6. Troubleshooting
This section addresses common issues you might encounter with your headlight assemblies.
| Issue | Possible Cause | Solution |
|---|---|---|
| Headlight not illuminating | Blown fuse, faulty bulb, loose electrical connection, faulty wiring. | Check vehicle's fuse box and replace any blown fuses. Replace the headlight bulb. Inspect and secure all electrical connections. Consult a professional if wiring issues are suspected. |
| Headlight is dim | Aging bulb, poor electrical connection, dirty lens. | Replace the headlight bulb. Check and clean electrical connections. Clean the exterior lens of the headlight assembly. |
| Headlight flickers | Loose electrical connection, faulty bulb, intermittent wiring issue. | Inspect and secure all electrical connections. Replace the headlight bulb. If flickering persists, consult a qualified automotive technician. |
| Moisture inside headlight | Condensation (normal in some conditions), seal integrity issue. | Small amounts of condensation often dissipate naturally. If excessive moisture or water pooling occurs, inspect the headlight's seals and housing for damage. Contact Newparts support if a defect is suspected. |
7. Product Specifications
- Brand: Newparts
- Color: Black (Housing), Clear (Lens)
- Specific Uses For Product: Head Lights
- Light Source Type: Halogen
- Special Feature: Halogen Headlights
- Voltage: 12 Volts
- Lens Color: Clear
- Lens Material: Glass
- Item Dimensions (L x W x H): 5 x 10 x 5 inches (per assembly, approximate)
- Manufacturer: Newparts
8. Warranty and Support
Newparts products are manufactured to high-quality standards. For specific warranty information regarding your Halogen Headlight Assemblies, please refer to the warranty documentation included with your purchase or visit the official Newparts website. If you encounter any issues or require technical assistance, please contact Newparts customer support through their official channels.
