ASD 2 Pack 2x4 Smart RGBW LED Flat Panel Light Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, setup, operation, and maintenance of your ASD 2 Pack 2x4 Smart RGBW LED Flat Panel Lights. Please read this manual thoroughly before installation and retain it for future reference.

The ASD Smart RGBW LED Flat Panel Light offers versatile lighting solutions with selectable color temperatures (3500K, 4000K, 5000K), full RGB color control, and smart app integration for convenient management via Wi-Fi, Alexa, and Google Assistant.

2. Safety Information

• Electrical Safety: Installation must be performed by a qualified electrician in accordance with national and local electrical codes. Ensure power is disconnected at the circuit breaker before installation or maintenance.
• Voltage: This fixture operates on 120-277V. Verify your supply voltage matches the fixture's requirements.
• Indoor Use Only: This product is designed for indoor use in dry and damp locations. Do not expose to water or excessive moisture.
• Handling: Handle the LED panel with care to avoid damage to the light source or housing.
• Heat: Do not cover the fixture with insulating material. Ensure adequate ventilation around the fixture.

3. Package Contents

Your package should contain the following items:

• 2 x ASD 2x4 Smart RGBW LED Flat Panel Lights
• 1 x Instruction Manual
• Necessary mounting hardware for recessed installation

Note: Additional accessories for surface mount or suspended installation (e.g., ASD Surface Mounting Frame, suspension kits) are sold separately.

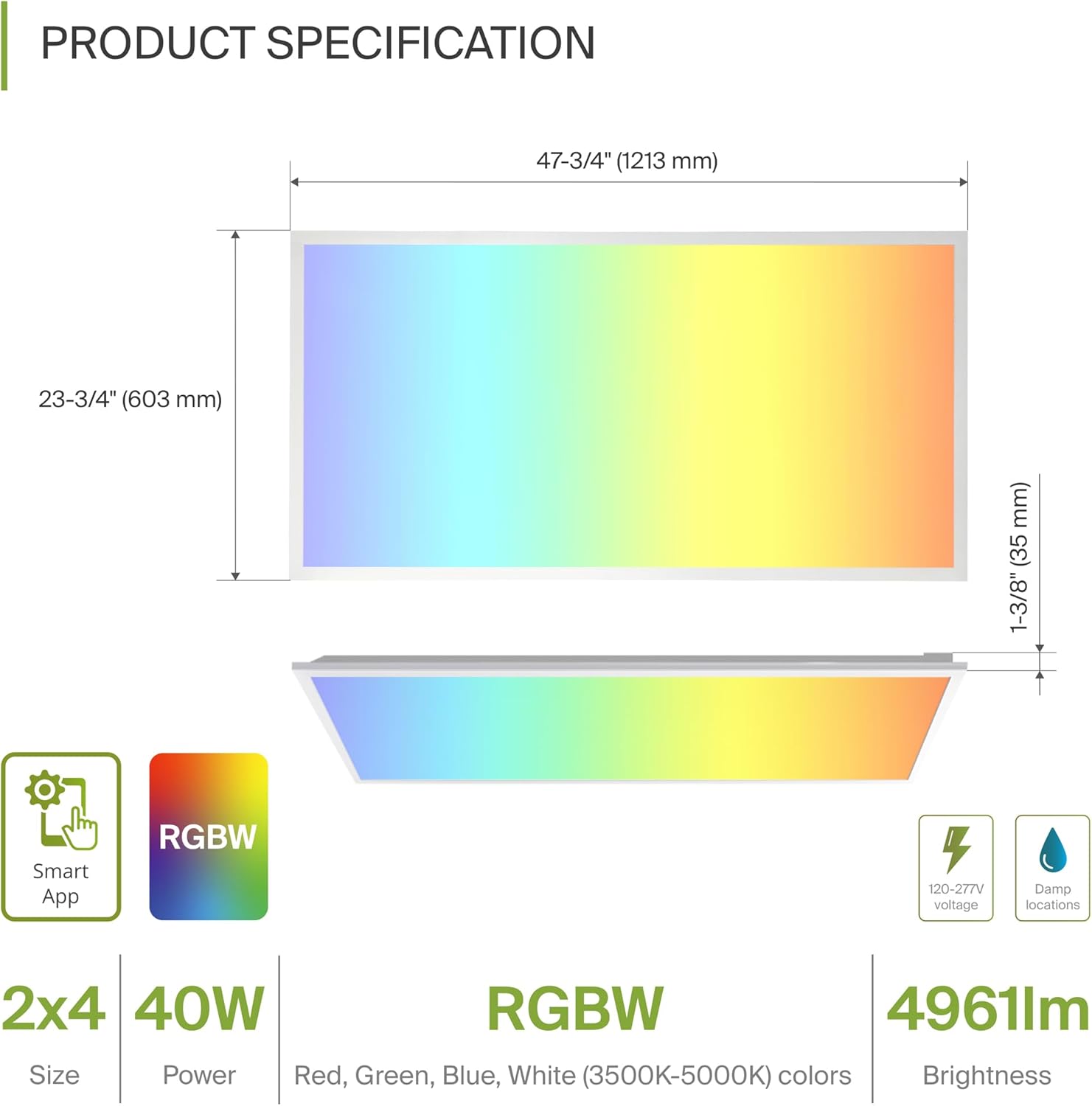

4. Specifications

5. Installation

The ASD Smart RGBW LED Flat Panel Light supports three primary mounting options: recessed, surface, and suspended. Ensure all electrical connections are made safely and securely.

5.1 Mounting Options Overview

• Recessed Mount: For installation into standard T-bar grid ceilings.
• Surface Mount: Requires an ASD Surface Mounting Frame (ASIN: B07GGMMJCV), sold separately.
• Suspended Mount: Requires a suspension kit (e.g., ASD-CHS4), sold separately.

5.2 Recessed Installation Steps

Follow these steps for recessed installation in a T-bar grid ceiling:

1. Prepare the Opening: Ensure the ceiling grid opening is appropriate for a 2x4 panel.
2. Lift Mounting Clips: Lift all mounting clips along the edges of the panel. Turn the mounting clip head outwards.
3. Connect Wiring: Connect the electrical wires (Neutral, Live, Ground) from your building's power supply into the junction box on the back of the panel. Ensure wire colors match (N, L, G) and use appropriate wire nuts for secure connections.
4. Position Panel: Carefully place the panel into the ceiling grid opening.
5. Secure Clips: Adjust the panel into place, ensuring the mounting clips are securely fastened to the ceiling's T-bar grid.

6. Setup: Smart App Control

The ASD Smart RGBW LED Flat Panel Light is controlled via the ASD Smart App, compatible with Wi-Fi, Alexa, and Google Assistant.

6.1 Download the ASD Smart App

Scan the QR codes below or visit your app store to download the ASD Smart App:

• Android: Google Play Store
• iOS: Apple App Store

6.2 Wi-Fi Connection and Pairing

After downloading the app, follow the in-app instructions to create an account and connect your LED panel to your Wi-Fi network. A stable 2.4GHz Wi-Fi connection is required for smart functionality.

6.3 Voice Assistant Integration

The fixture is compatible with Alexa and Google Assistant. Refer to the ASD Smart App's integration guide to link your lighting system with your preferred voice assistant for voice control.

7. Operating Instructions

Utilize the ASD Smart App to access the full range of features for your LED panel.

7.1 Color Changing and CCT Tuning

• RGB Colors: Select from 16.7 million colors to create custom ambiances.
• White Light (CCT): Adjust the white light color temperature between 3500K (Warm White), 4000K (Cool White), and 5000K (Daylight).

7.2 Dimming

Smoothly dim the light output from 0-100% using the app or voice commands to achieve desired brightness levels.

7.3 Fixture Grouping and Scheduling

• Grouping: Combine multiple ASD Smart LED panels to control them simultaneously.
• Scheduling: Set automated on/off times, color changes, and dimming levels based on your daily routine or specific events.

8. Maintenance

To ensure optimal performance and longevity of your LED panel, follow these simple maintenance guidelines:

• Cleaning: Disconnect power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface of the panel. Avoid abrasive cleaners or solvents that could damage the finish or lens.
• Inspection: Periodically inspect the wiring and mounting for any signs of wear or damage. Address any issues promptly.

9. Troubleshooting

If you encounter issues with your ASD Smart RGBW LED Flat Panel Light, refer to the following common troubleshooting steps:

• Light Not Turning On:
  • Check the circuit breaker to ensure power is supplied to the fixture.
  • Verify all wiring connections are secure and correct.
  • Ensure the light switch (if applicable) is in the ON position.
• App Connectivity Issues:
  • Ensure your Wi-Fi network is active and stable (2.4GHz band).
  • Restart your Wi-Fi router and the LED panel (by cycling power).
  • Confirm your smartphone is connected to the same Wi-Fi network as the light.
  • Try re-pairing the device through the ASD Smart App.
• Inconsistent Color/Brightness:
  • Ensure the app is updated to the latest version.
  • Check for any interference with the Wi-Fi signal.
  • If controlling multiple lights, verify they are correctly grouped in the app.

For further assistance, please contact ASD customer support.

10. Warranty and Support

ASD provides a 5-year limited warranty for this product, covering defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or additional information, please visit the official ASD website or contact their customer service department.
