Important Safety Instructions
Please read and understand all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
- Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
- Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
- Do not use outdoors.
- To disconnect heater, turn controls to OFF, then remove plug from outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- This appliance has an automatic overheat protection feature. If the heater overheats, it will automatically shut off. To reset, unplug the heater from the electrical outlet, wait 5-10 minutes for the unit to cool, then plug it back in.
Product Overview
The HOMCOM Electric Fireplace Heater (Model ND-180ML) is a freestanding unit designed to provide supplemental heat and a realistic flame effect for indoor spaces. It features adjustable heat settings and flame brightness, along with built-in safety mechanisms.
Front view of the HOMCOM Electric Fireplace Heater, showcasing its gray finish and realistic LED flame display.
Key Components
- Tempered Glass: Front viewing window for flame effect.
- Plastic Door: Provides access to controls.
- Steel Main Frame: Durable construction of the unit.
- Control Panel: Located behind the door for power, heat, and brightness adjustments.
- Heating Vent: Located at the bottom front for heat output.

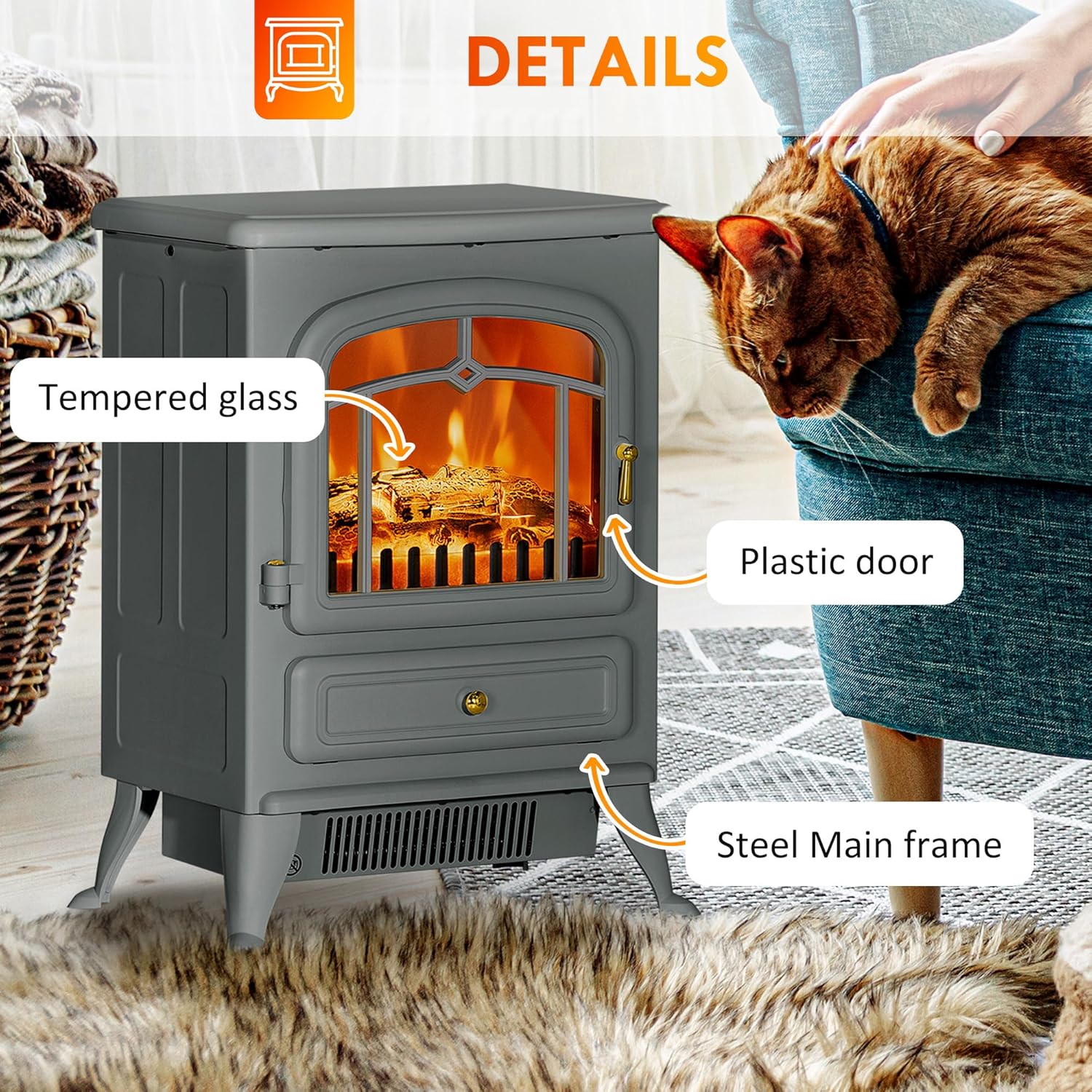

An annotated image pointing out key components: tempered glass for the viewing window, a plastic door, and a steel main frame, indicating the materials used in construction.
Specifications
| Feature | Specification |
|---|---|
| Brand | HOMCOM |
| Model Name | Electric Fireplace (ND-180ML) |
| Power Source | Corded Electric |
| Product Dimensions | 16.25" W x 11" D x 21.5" H |
| Material | Metal |
| Finish Type | Powder Coated |
| Installation Type | Freestanding |
| Heat Output | 5120 BTU per Hour |
| Power Consumption | 750W / 1500W |
| Heating Coverage | Up to 216 sq ft (15-20 m²) |
| Item Weight | 16 Pounds |
| Color | Gray |
| Special Feature | Overheating Protection, Realistic LED Flames |
A size comparison image showing the fireplace heater's dimensions (16.3" W x 11" D x 21.6" H) next to a human silhouette for scale.
Setup and Installation
Unpacking
- Carefully remove the appliance from the box.
- Remove all packaging materials, including any plastic wraps or protective foam.
- Inspect the unit for any signs of damage. If damage is found, do not operate and contact customer support.
Placement
- Place the electric fireplace on a firm, level surface.
- Ensure there is at least 3 feet (0.9 m) of clearance from combustible materials such as curtains, furniture, bedding, and paper.
- Do not place the unit directly below a power outlet.
- Ensure the power cord is not pinched or placed under the unit.
Operating Instructions
The control panel for the HOMCOM Electric Fireplace Heater is located behind the front door. Open the door to access the controls.
A detailed view of the control panel, showing the adjustable thermostat control, on/off switch, two power settings (750W/1500W), and adjustable brightness knob.
Control Panel Functions
- Main Power Switch (On/Off): Toggles the entire unit on or off.
- Heat Setting Switches (I / II):
- Switch 'I' activates the 750W heat setting.
- Switch 'II' activates the 1500W heat setting.
- Both 'I' and 'II' switches must be ON for 1500W output.
- Adjustable Thermostat Control: Rotates to set the desired room temperature. The heater will cycle on and off to maintain this temperature.
- Adjustable Brightness Control: Rotates to adjust the intensity of the LED flame effect.
Operation Steps
- Plug the power cord into a grounded 120V AC outlet.
- Open the front door to access the control panel.
- Turn the Main Power Switch to the 'ON' position. The flame effect will activate.
- Adjust the flame brightness using the 'Adjustable Brightness Control' knob to your preference.
- To activate heating, select the desired heat setting using the 'Heat Setting' switches (I for 750W, I and II for 1500W).
- Set the desired room temperature using the 'Adjustable Thermostat Control' knob. The heater will operate until the set temperature is reached, then cycle off. It will turn back on when the temperature drops.
- To turn off the heater, turn the Main Power Switch to the 'OFF' position and unplug the unit from the wall outlet.
An image highlighting the realistic LED flame effect of the fireplace, with an overlay indicating a heating coverage area of 15-20 square meters (approximately 216 sq ft).
Maintenance
Regular maintenance ensures optimal performance and longevity of your electric fireplace heater.
Cleaning
- Always disconnect the appliance from the power supply before cleaning.
- Do not immerse the appliance in water.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Gently wipe the glass viewing window with a soft cloth. For stubborn marks, use a mild glass cleaner and dry thoroughly.
- Periodically vacuum the air intake and exhaust vents to remove dust and debris.
Storage
- When not in use, store the heater in a cool, dry place.
- If storing for an extended period, it is recommended to place the unit back in its original packaging to protect it from dust and damage.
Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power to the unit, main power switch off, or overheat protection activated. | Check if the unit is plugged in securely. Ensure the main power switch is ON. If the unit overheated, unplug it for 5-10 minutes to reset, then plug back in. Check household circuit breaker. |
| No heat output, but flames work. | Heat setting switches are off, or thermostat is set too low. | Ensure heat setting switches (I or I & II) are ON. Increase the thermostat setting. |
| Flame effect is not working. | Main power switch is off, or brightness control is set to minimum. | Ensure the main power switch is ON. Adjust the brightness control knob. |
| Unit makes unusual noises. | Dust or debris in the fan, or internal component issue. | Unplug the unit and clean the vents. If noise persists, discontinue use and contact customer support. |
A visual representation of the fireplace heater with a protective bubble, symbolizing its built-in overheat protection feature that automatically shuts off the unit if it gets too hot.
Warranty and Support
This HOMCOM Electric Fireplace Heater (Model ND-180ML) comes with a Limited Warranty. Please refer to the warranty documentation included with your purchase for specific terms and conditions.
For technical support, parts, or warranty claims, please contact the manufacturer, Aosom LLC, or your retailer.
Manufacturer: Aosom LLC
UPC: 196393043004
