1. Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your SIEMENS iQ700 SN87TX02CE fully integrated dishwasher. Designed for efficiency and quiet performance, this appliance features advanced technologies such as Zeolite drying, Home Connect integration, and flexible basket systems to ensure optimal cleaning results and user convenience.
Please read this manual thoroughly before using the appliance for the first time to ensure safe and correct operation.
Image 1.1: The SIEMENS iQ700 SN87TX02CE fully integrated dishwasher.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance:
- Electrical Safety: Ensure the dishwasher is properly grounded. Do not use extension cords. Disconnect power before any maintenance or repair.
- Water Safety: The AquaStop® system provides protection against water damage. Regularly check hoses for leaks or damage.
- Child Safety: This appliance includes a child safety lock. Keep children away from the dishwasher, especially when it is operating or contains detergent.
- Detergent and Rinse Aid: Use only detergents and rinse aids specifically designed for automatic dishwashers. Store them out of reach of children.
- Sharp Objects: Load sharp items (knives, forks) with handles up to prevent injury.
- Installation: Installation must be performed by a qualified professional.
3. Setup and Installation
The SIEMENS iQ700 SN87TX02CE is a fully integrated dishwasher designed to blend seamlessly with your kitchen cabinetry. Professional installation is highly recommended to ensure correct fitting, electrical connection, and water supply/drainage.
3.1 Dimensions and Placement
- Height: 81.5 cm
- Width: 59.8 cm
- Depth: 55.0 cm
Ensure adequate space for ventilation and access for maintenance. The appliance should be installed on a stable, level surface.
3.2 Initial Checks
- Verify all transport packaging has been removed.
- Check that the water inlet and drain hoses are securely connected and free from kinks.
- Ensure the electrical connection meets local regulations and the appliance's requirements (240 Volts).
- Fill the salt reservoir and rinse aid dispenser as per the instructions in the full user manual.
4. Operating Instructions
Your dishwasher features intuitive touch controls and smart functionalities for effortless operation.
4.1 Control Panel Overview
Image 4.1: Touch control panel with program selection and display.
The touch control panel allows you to select programs, adjust settings, and monitor the cycle status. The high-resolution TFT display provides clear text information.
4.2 Loading the Dishwasher
The flexComfort Pro basket system, vario Pro drawer, and rackMatic adjustable upper basket provide maximum flexibility for loading various types of dishes.

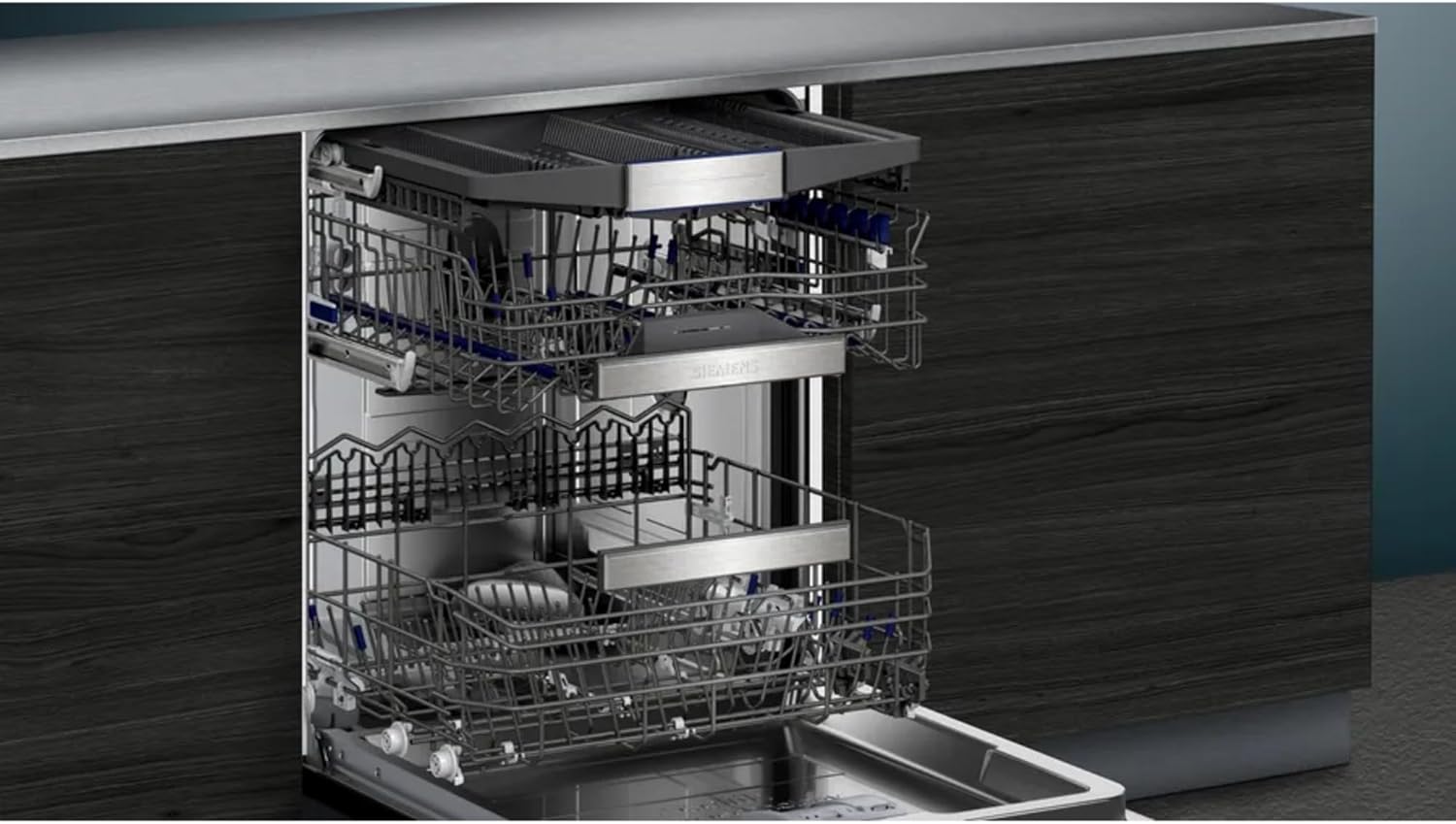

Image 4.2: Flexible basket system with adjustable upper basket.
- Vario Pro Drawer: Use this dedicated drawer for cutlery, small cups, and utensils.
- RackMatic: The upper basket can be adjusted to three different heights to accommodate taller items in either the upper or lower basket.
- GlassZone: This area in the lower basket features special non-slip elements to securely hold delicate glasses.
- Lower Basket: Load larger plates, bowls, and pots. Foldable tines allow for flexible loading.
Image 4.3: Vario Pro cutlery drawer.
Image 4.4: GlassZone for secure glass placement.

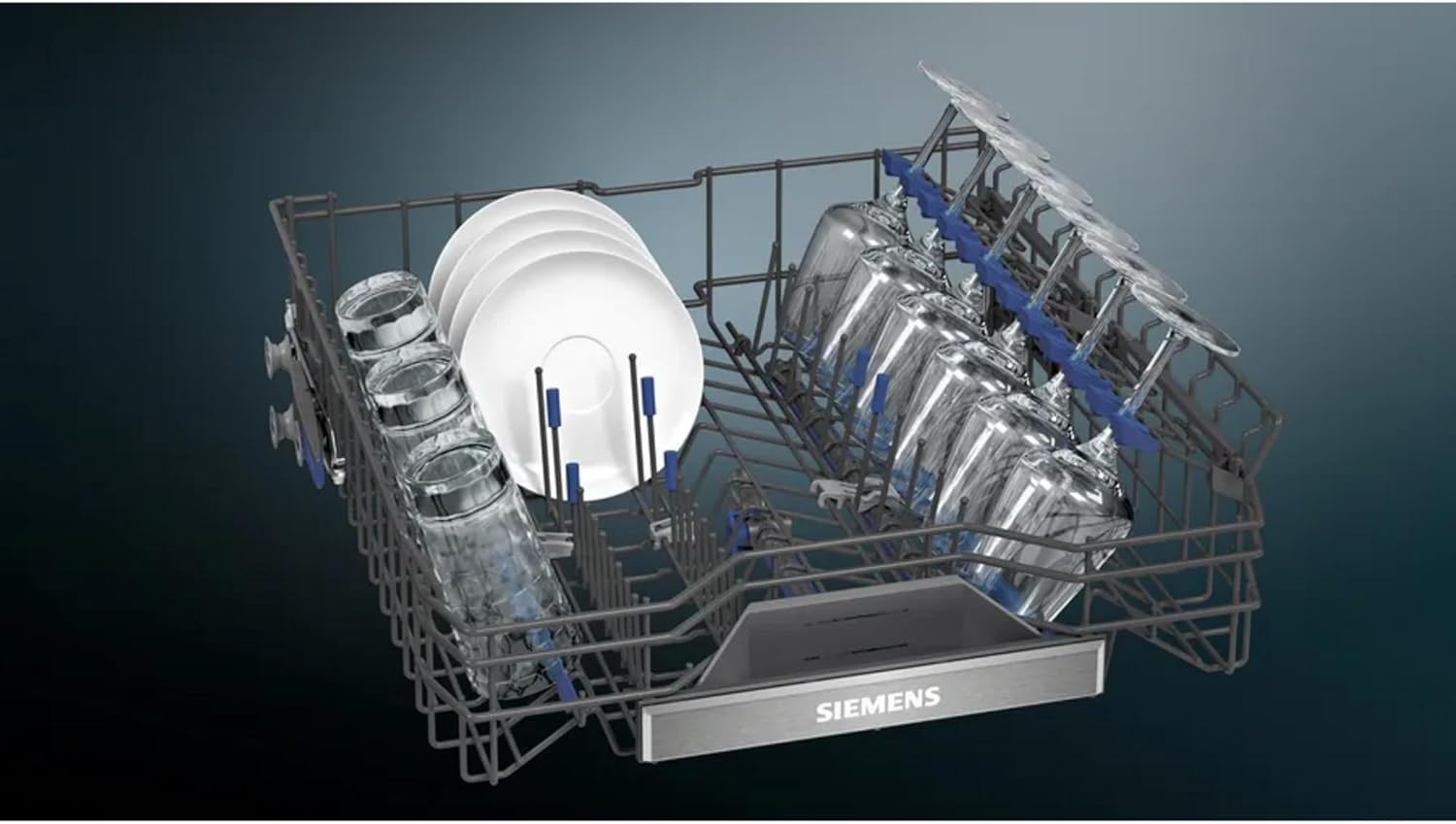

Image 4.5: Lower basket with flexible loading options.
4.3 Program Selection and Smart Features
Select from various wash programs, including a sensor wash option. The dishwasher offers 12 optional cycles.
- Home Connect App: Control your dishwasher remotely, select programs, and activate special functions like Quick S (for faster cycles) and Silence on Demand (to reduce noise levels) via your smartphone.
- AutoOpen Dry: This feature, combined with the heat exchanger, ensures efficient and gentle drying, even for plastic items.
- Dosage Assistant & Automatic Cleaner: These functions ensure optimal detergent distribution for superior cleaning results.
- AquaSensor & iQdrive Motor: Innovative technology and a durable motor ensure powerful cleaning, tackling even stubborn stains.
Image 4.6: TimeLight projection on the floor.
Image 4.7: Dishwasher interior during a wash cycle.
5. Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your SIEMENS dishwasher.
- Cleaning the Interior: Periodically wipe down the interior with a damp cloth. For stubborn stains, use a dishwasher cleaner.
- Filter System: Check and clean the filter system regularly to prevent blockages and ensure effective cleaning. Refer to the full manual for detailed instructions on filter removal and cleaning.
- Salt and Rinse Aid: Monitor the indicator lights for salt and rinse aid. Refill as needed to ensure proper water softening and streak-free drying.
- Spray Arms: Ensure the spray arm nozzles are not blocked by food particles. Clean them if necessary.
- Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners.
6. Troubleshooting
Before contacting customer service, consult this section for common issues and their solutions.
- Dishes Not Clean: Check filter cleanliness, ensure spray arms are not blocked, verify proper loading, and confirm sufficient detergent and rinse aid.
- Dishes Not Dry: Ensure rinse aid dispenser is full. Select a program with Zeolite drying or activate the autoOpen Dry function. Avoid overloading.
- Unusual Noise: Check for items obstructing the spray arms or loose dishes in the baskets. Ensure the dishwasher is level.
- Error Codes: If an error code appears on the display, refer to the comprehensive troubleshooting guide in the full user manual or contact customer support.
- Water Leakage: Check hose connections and the AquaStop® system. If leakage persists, disconnect power and water supply and contact service.
7. Specifications
Key technical specifications for the SIEMENS iQ700 SN87TX02CE dishwasher:
| Feature | Specification |
|---|---|
| Model Number | SN87TX02CE |
| Installation Type | Fully Integrated |
| Dimensions (H x W x D) | 81.5 cm x 59.8 cm x 55.0 cm |
| Weight | 42.6 kg |
| Energy Efficiency Class | A |
| Noise Level (Standard Program) | 42 dB(A) |
| Capacity | 14 Place Settings |
| Drying Technology | Zeolite Drying, autoOpen Dry |
| Control Type | Touch |
| Display | LED / TFT with clear text |
| Connectivity | Home Connect App |
| Water Consumption per Cycle | 9.5 Liters |
| Energy Consumption per 100 Cycles | 54 kWh |
| Voltage | 240 Volts |
| Included Components | Cutlery drawer, glassZone, openAssist |
8. Warranty Information
Your SIEMENS iQ700 SN87TX02CE dishwasher comes with a manufacturer's warranty. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase and refer to the warranty card included with your appliance or visit the official SIEMENS website for detailed warranty information applicable to your location.
9. Customer Support
For further assistance, technical support, or to schedule a service appointment, please contact SIEMENS customer service. You can find contact details on the official SIEMENS website or in the documentation provided with your appliance.
When contacting support, please have your appliance's model number (SN87TX02CE) and serial number ready. This information is typically found on the rating plate located on the inside of the dishwasher door.
