Cuteam 75.6CC Gas Powered Backpack Leaf Blower User Manual

1. Introduction

Thank you for choosing the Cuteam 75.6CC Gas Powered Backpack Leaf Blower. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new leaf blower. Please read this manual thoroughly before operating the equipment and keep it for future reference.

2. Safety Instructions

Always prioritize safety when operating power equipment. Failure to follow these instructions may result in serious injury or property damage.

• Read the Manual: Understand all instructions and warnings before use.
• Personal Protective Equipment (PPE): Always wear eye protection (safety glasses or goggles), hearing protection, long pants, and sturdy, non-slip footwear. Gloves are recommended.
• Fuel Handling: Handle gasoline with extreme care. Store fuel in approved containers in a well-ventilated area away from ignition sources. Do not refuel while the engine is running or hot.
• Work Area: Clear the work area of people, pets, and loose objects before starting. Be aware of your surroundings.
• Engine Operation: Never operate the engine indoors or in poorly ventilated areas due to carbon monoxide fumes.
• Inspection: Before each use, inspect the blower for loose parts, damage, or leaks. Do not operate if damaged.
• Secure Fit: Ensure all tubes and attachments are securely fastened before operation.
• Avoid Contact: Keep hands, feet, and clothing away from moving parts.
• Children and Bystanders: Keep children and bystanders at a safe distance (at least 50 feet/15 meters) from the operating area.

3. Package Contents

Carefully unpack all items and verify that you have received the following components:

• 1 x Cuteam 75.6CC Gas Powered Backpack Leaf Blower Unit
• 1 x Flexible Blower Tube Assembly
• Various Nozzle Attachments
• 1 x Fuel Mixing Pot
• 1 x Funnel
• 1 x Tool Bag (containing basic assembly tools)
• 1 x User Manual (this document)
• Backpack Harness Straps
• Hose Clamps

Figure 3.1: All components included in the package.

4. Specifications

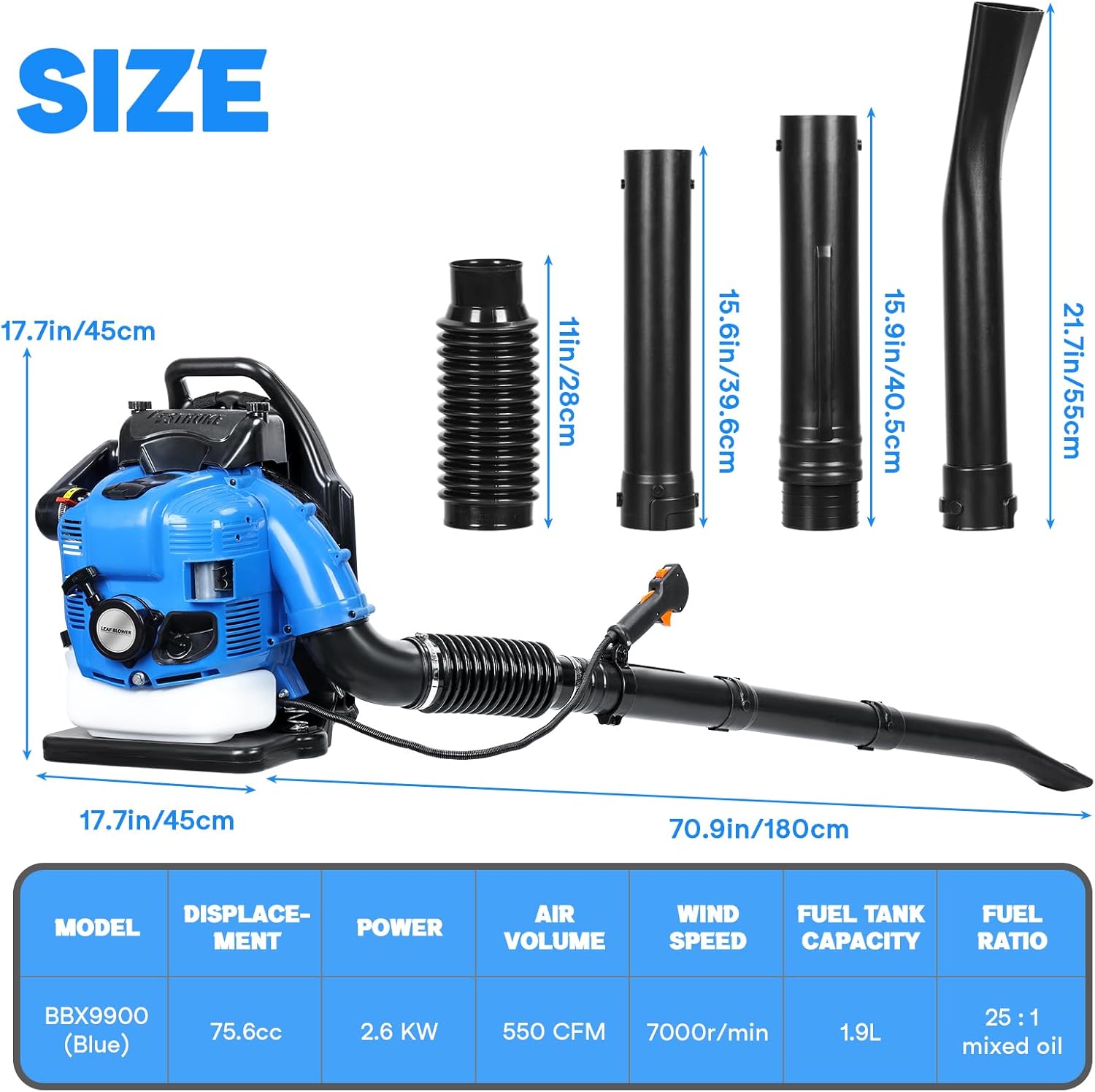

Figure 4.1: Key dimensions and performance metrics.

5. Setup and Assembly

Follow these steps to assemble your leaf blower before initial use.

1. Attach the Flexible Blower Tube: Connect the flexible hose from the main unit to the rigid blower tube. Secure it firmly with the provided hose clamps. Ensure a tight seal to prevent air leakage.
2. Install Nozzle Attachments: Select the desired nozzle (e.g., flat or round) and attach it to the end of the rigid blower tube. Twist or click into place until secure.
3. Attach Backpack Harness: Connect the shoulder straps to the designated attachment points on the main unit. Adjust the straps for a comfortable and secure fit, ensuring the weight is evenly distributed across your shoulders and back.
4. Fueling the Unit:
   • This unit uses a 4-stroke engine. Use unleaded gasoline with an octane rating of 92 or higher. Do NOT mix oil with gasoline.
   • Locate the fuel tank cap on the main unit.
   • Using the provided funnel, carefully fill the fuel tank with gasoline. Do not overfill. Leave a small air gap to allow for fuel expansion.
   • Securely replace the fuel tank cap. Wipe up any spilled fuel immediately.
5. Check Engine Oil: Ensure the engine oil level is correct before starting. Refer to the engine oil filling port design for location.

Figure 5.1: The 4-stroke engine and fuel tank are key components for operation.

Figure 5.2: Key features for ease of use and comfort, including the oil filling port and pull-start mechanism.

6. Operating Instructions

Familiarize yourself with the controls and starting procedure before operating the leaf blower.

6.1. Starting the Engine

1. Place the blower on a flat, stable surface.
2. Ensure the ignition switch is in the 'ON' position.
3. Engage the choke (if applicable, refer to engine specific instructions).
4. Press the primer bulb several times until fuel is visible in the return line.
5. Pull the starter rope firmly and smoothly until the engine starts. Do not pull the rope to its full extension.
6. Once the engine starts, gradually disengage the choke. Allow the engine to warm up for a few moments before operating at full throttle.

6.2. Using the Controls

Figure 6.1: Control handle featuring ignition switch and variable speed control.

• Ignition On/Off Switch: Located on the control handle. Move to 'ON' to start and 'OFF' to stop the engine.
• Variable Speed Control: A trigger on the handle allows you to adjust the air speed. Squeeze for more power, release for less.
• Cruise Control: This feature allows you to set a constant engine speed for extended operation, reducing hand fatigue. Engage the cruise control lever or button (refer to specific design) to maintain a desired speed.

6.3. Operation

• Wear the backpack unit comfortably, ensuring the straps are adjusted to distribute weight evenly.
• Direct the blower tube towards the debris you wish to clear.
• Start at a lower speed and increase as needed.
• Use a sweeping motion to move leaves and debris efficiently.
• Be mindful of dust and debris being blown into unwanted areas or towards people.

Figure 6.2: Proper technique for operating the backpack leaf blower.

Figure 6.3: The ergonomic backpack design allows for comfortable use during extended periods.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your leaf blower.

• Air Filter: Check and clean the air filter regularly, especially in dusty conditions. Replace if damaged or excessively dirty.
• Spark Plug: Inspect the spark plug periodically. Clean or replace if fouled or worn.
• Fuel Filter: Check the fuel filter for clogs and replace as needed.
• Engine Oil: For a 4-stroke engine, regularly check and change the engine oil according to the manufacturer's recommendations (typically after a certain number of operating hours or annually).
• Cleaning: Keep the exterior of the blower clean, especially cooling fins, to prevent overheating.
• Storage: For long-term storage, drain the fuel tank or use a fuel stabilizer. Store the unit in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

8. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact customer support.

9. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Specific warranty terms and conditions may vary. For technical support or service inquiries, please contact the Cuteam customer service department through your purchase platform or the official Cuteam website.
