HOMCOM King Size Ottoman Bed Frame with Hydraulic Lifting Storage - Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your HOMCOM King Size Ottoman Bed Frame. Designed for comfort and practicality, this bed frame features a hydraulic lifting mechanism for under-bed storage, a wheeled drawer, and an adjustable velvet upholstered headboard. Please read these instructions carefully before assembly and use to ensure safe and correct operation.

Safety Information

• Always follow assembly instructions precisely. Incorrect assembly can lead to instability and injury.
• Ensure all bolts and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not allow children to play on or around the hydraulic lifting mechanism. Keep hands clear when operating the lift.
• Distribute weight evenly when utilizing the under-bed storage. Do not overload the storage area or the bed frame. The maximum load capacity is 500kg.
• This product is certified to BS5852 standards for fire resistance.

Image Description: A graphic indicating "FIRE-RETARDANT CERTIFIED" and "BS5852" with details about fire-resistance testing and flame-retardant coating. This confirms the product meets safety standards.

Package Contents

Before beginning assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Bed Frame Components (Side rails, end rails, center support)
• Adjustable Upholstered Headboard
• Hydraulic Lifting Mechanism
• Wooden Slats and Retainers
• Wheeled Storage Drawer
• Assembly Hardware (Bolts, screws, washers, Allen key)
• Instruction Manual

Setup and Assembly

Assembly typically requires two adults. Ensure you have ample space and the necessary tools (usually an Allen key, provided, and possibly a Phillips head screwdriver, not included).

Step 1: Unpack and Identify Components

Carefully unpack all boxes and lay out the components on a clean, soft surface to prevent scratches. Refer to the parts list (if provided in packaging) to identify each piece.

Step 2: Assemble the Bed Frame Base

Connect the side rails and end rails to form the main bed frame. Secure them using the provided bolts and an Allen key. Do not fully tighten all bolts until the frame is completely assembled to allow for minor adjustments.

Image Description: An illustration showing the fully assembled bed frame with key dimensions: 157.5cm width, 203.5cm length, 33cm base height, and adjustable headboard height of 95/104cm. This provides a visual guide for the overall structure.

Step 3: Install the Hydraulic Lifting Mechanism

Attach the hydraulic lifting mechanism to the bed frame according to the diagrams in your specific assembly guide. Ensure the mechanism is correctly oriented and securely fastened. This system allows for easy access to the under-bed storage.

Image Description: A view of the bed frame with the mattress platform lifted, revealing the spacious under-bed storage area. The hydraulic lift assistant mechanism is visible, demonstrating its function for easy access. Various storage boxes are placed inside.

Step 4: Attach the Headboard

Secure the upholstered headboard to the bed frame. The headboard is adjustable to two different height levels (95cm or 104cm) to accommodate various mattress heights. Choose your desired height and fasten it firmly.

Image Description: A close-up of the upholstered headboard, highlighting its two-level adjustability. Arrows indicate the upward and downward movement, and a measurement of 25-34cm is shown, referring to the adjustable range. The velvet-like fabric with thick foam is also noted.

Step 5: Install the Wooden Slats

Place the wooden slats across the bed frame. These slats are designed for quick installation and provide support for your mattress. Pin them into the pre-drilled holes on the frame. Ensure they are evenly spaced and securely seated.

Image Description: A close-up view of the wooden slats installed on the bed frame, emphasizing their quick-to-install design. The slats are evenly spaced and secured within the frame, ready to support a mattress.

Step 6: Assemble and Insert the Wheeled Drawer

Assemble the wheeled drawer according to its specific instructions. Once assembled, slide the drawer into the designated space at the front of the bed frame. The wheels allow for smooth and easy access.

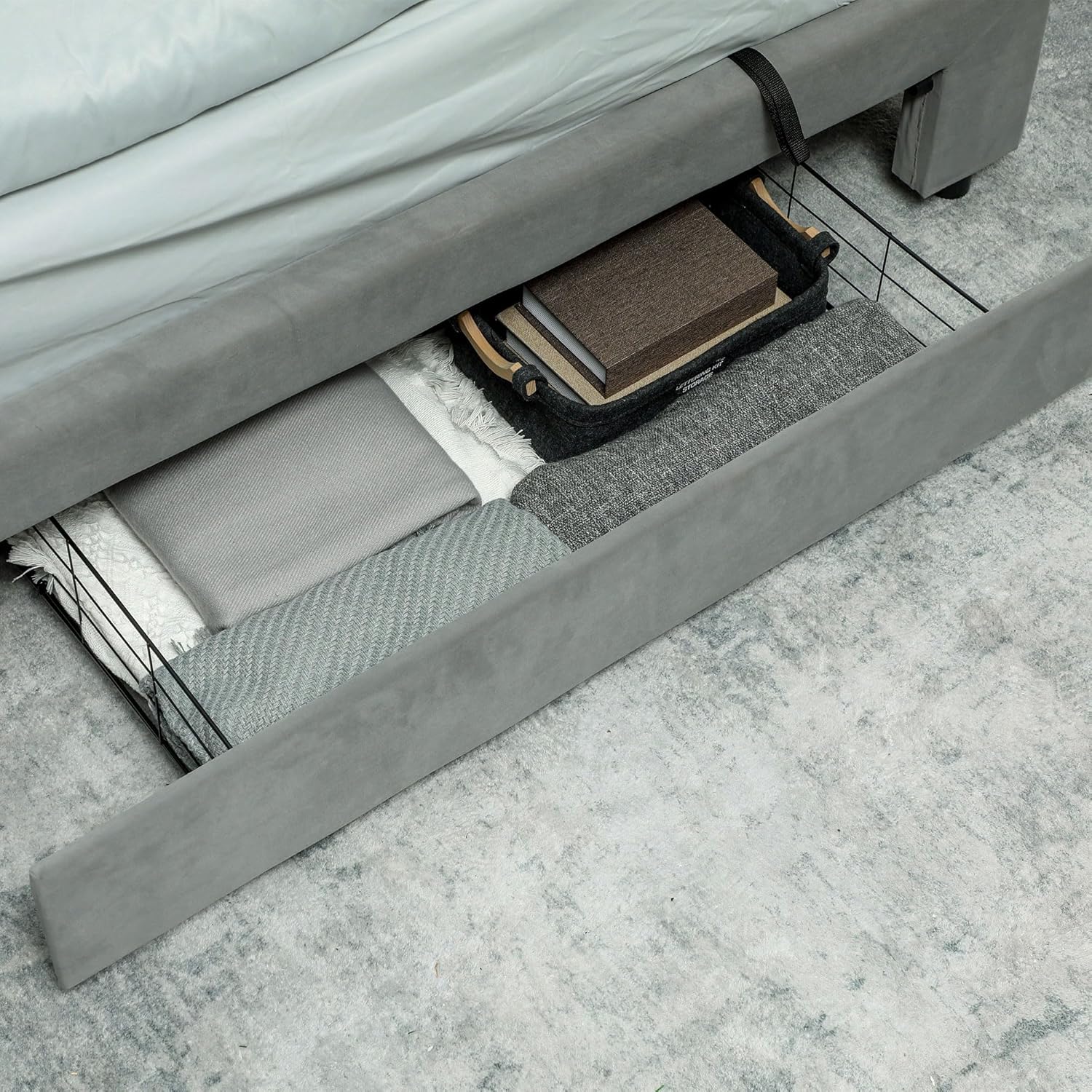

Image Description: A top-down view of the wheeled storage drawer pulled out from the bed frame, filled with various items like books and blankets. This illustrates the practical use and accessibility of the drawer.

Step 7: Final Tightening and Inspection

Once all components are in place, go back and fully tighten all bolts and fasteners. Ensure the bed frame is stable and level. Place your mattress on the installed slats.

Image Description: An illustration demonstrating the bed frame's robust construction, highlighting the steel legs and wooden slats. A large "500KG" graphic indicates the maximum load capacity the bed can support, emphasizing its durability.

Operating Instructions

Using the Hydraulic Lifting Storage

1. To Open: Remove any items from the top of the bed that might obstruct the lift. Grasp the handle or edge of the mattress platform firmly. Gently lift the platform upwards. The hydraulic mechanism will assist in raising and holding the platform in the open position.
2. To Close: Ensure no items are obstructing the closing mechanism. Grasp the handle or edge of the mattress platform and gently pull it downwards. The hydraulic mechanism will control the descent, allowing for a smooth and controlled closure.
3. Storage Area: The under-bed storage area measures approximately 157.5 x 203.5cm, providing ample space for linens, clothing, or other items.

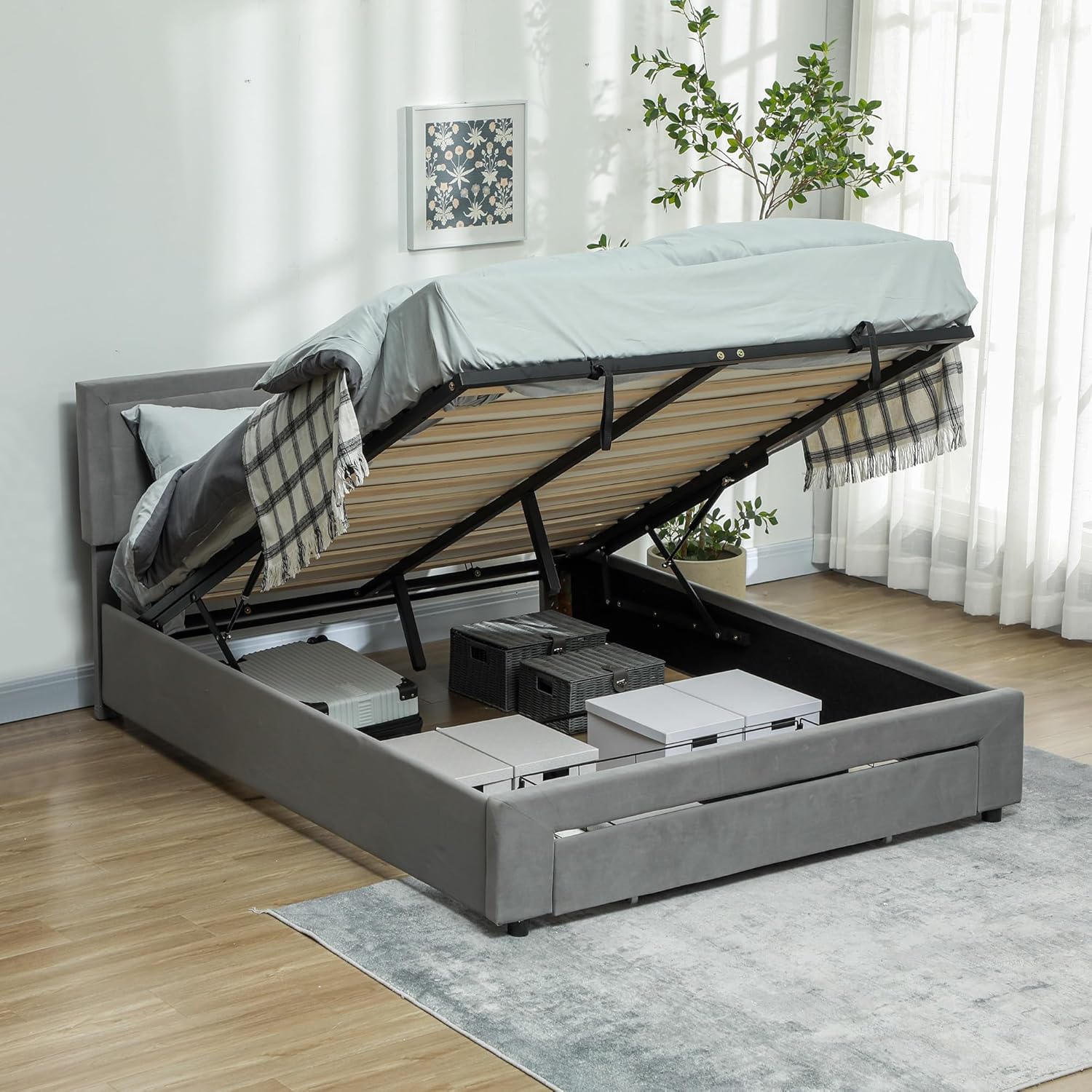

Image Description: The HOMCOM King Size Ottoman Bed Frame with its mattress platform fully lifted, showcasing the large storage compartment underneath. Various storage containers are visible within the compartment, demonstrating its capacity.

Using the Wheeled Front Drawer

• The front drawer is designed for quick and easy access to frequently used items.
• Simply pull the drawer outwards from the front of the bed frame. The integrated wheels ensure smooth operation.
• Push the drawer back into the frame until it is flush with the bed base for a tidy appearance.

Adjusting the Headboard Height

• The headboard can be set at two different heights (95cm or 104cm from the floor) during assembly.
• If you wish to change the height after initial assembly, you will need to partially disassemble the headboard attachment points, adjust to the desired height, and re-secure all fasteners.

Maintenance

• Cleaning: For general cleaning, wipe the bed frame surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the velvet upholstery or finish.
• Upholstery Care: For velvet upholstery, gently vacuum with an upholstery attachment to remove dust and debris. Spot clean any spills immediately with a clean, damp cloth and mild soap, blotting gently. Do not rub.
• Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners to maintain the bed frame's stability and safety.
• Hydraulic Mechanism: The hydraulic mechanism is designed for long-term use and generally requires no special maintenance. If you notice any issues with lifting or lowering, ensure there are no obstructions. Do not attempt to lubricate or disassemble the hydraulic cylinders yourself.

Troubleshooting

If you encounter any issues with your HOMCOM Ottoman Bed Frame, please refer to the following common solutions:

• Bed Frame Feels Unstable/Wobbly:
  • Ensure all assembly bolts are fully tightened.
  • Verify that the bed frame is on a level surface.
• Hydraulic Lift Not Working Smoothly:
  • Check for any obstructions in the lifting mechanism or storage area.
  • Ensure the mattress is properly seated and not interfering with the lift.
  • The mechanism is designed to lift a mattress. If attempting to lift without a mattress, it may feel stiff.
• Drawer Not Sliding Smoothly:
  • Inspect the wheels for any debris or obstructions.
  • Ensure the drawer is correctly aligned within its runners.
• Squeaking Noises:
  • Re-tighten all bolts and connections.
  • Check if the wooden slats are properly seated and not rubbing against the frame.

If these steps do not resolve the issue, please contact HOMCOM customer support.

Specifications

Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact HOMCOM customer service. You can find more information and contact details on the official HOMCOM website or through your retailer.

Visit the official HOMCOM store: HOMCOM Store on Amazon
