1. Introduction
This manual provides essential information for the Goodman 4 Ton 13.4 SEER2 R-32 AC Only System, which includes the GLXS3BN4810 outdoor condenser unit and the CAPTA6030D3 vertical evaporator coil. This system is designed for residential cooling applications and is AHRI certified under certificate number 215271992. Please note that this is a partial system and requires a compatible furnace or modular blower for complete operation. For detailed installation procedures, refer to the dedicated installation manual.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read these instructions thoroughly before installing or servicing this equipment.
- Installation and service must be performed by a qualified installer or service agency.
- Always disconnect power before servicing the unit.
- This system uses R-32 refrigerant. Handling of refrigerants should only be done by certified technicians.
- Ensure proper ventilation during installation and service.
- Adhere to all local and national electrical and safety codes.
Federal Regulations: This system does not comply with Federal regulations for certain states and cannot be shipped to or installed in: AL, AR, AZ, CA, DE, FL, GA, KY, LA, MD, MS, NC, NM, NV, OK, SC, TN, TX, and VA. Installation in these states is prohibited by federal law.
Video: Information about refrigerant regulations. This video provides important details regarding the regulations surrounding refrigerants used in AC systems.
3. Product Overview
The Goodman AC Only System consists of two primary components:
- GLXS3BN4810 Outdoor Condenser Unit: This unit is responsible for releasing heat from your home to the outside air.
- CAPTA6030D3 Vertical Evaporator Coil: Located indoors, this coil absorbs heat from your home's air and transfers it to the refrigerant.
Image: The Goodman GLXS3BN4810 outdoor condenser unit shown alongside the CAPTA6030D3 vertical evaporator coil, forming the complete AC system.
Image: Close-up view of the Goodman GLXS3BN4810 outdoor condenser unit, highlighting its design and components.

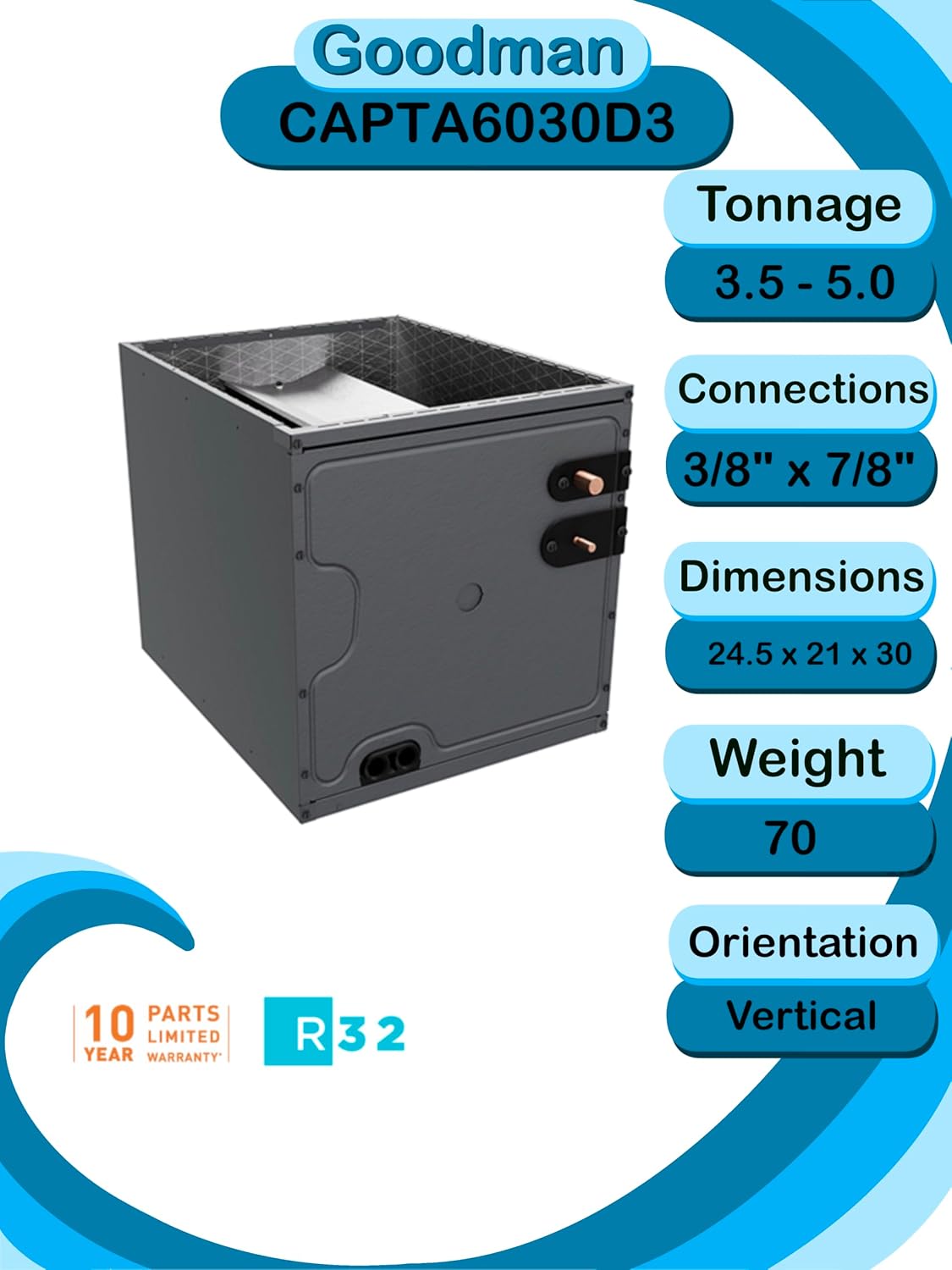

Image: The Goodman CAPTA6030D3 vertical evaporator coil, designed for indoor installation with a compatible furnace or air handler.
Video: Condenser with Coil Combination. This video illustrates the components of an AC system, specifically the condenser and coil combination.
Video: R-32 Fact vs Fiction. Learn more about R-32 refrigerant, its properties, and common misconceptions.
4. Setup and Installation
This Goodman AC system requires professional installation by a qualified HVAC technician. Attempting to install this system without proper training, tools, and certification can result in property damage, serious injury, or death, and will void the product warranty.
- Professional Installation Required: Ensure installation is performed by a certified HVAC professional.
- System Compatibility: This system is a partial unit. A compatible furnace or modular blower is required for complete functionality.
- State Regulations: Verify that installation is permitted in your state. Refer to the EnergyGuide label for specific state restrictions.
- Refrigerant Handling: The system uses R-32 refrigerant, which requires specialized handling and equipment.
For detailed installation instructions, please refer to the official Installation Manual (PDF).
Image: EnergyGuide label for the Goodman GLXS3BN4810 condenser, indicating a 13.4 SEER2 efficiency rating and a map detailing states where installation is allowed.
Video: What type of system do you have? This video helps identify different types of HVAC systems, which is crucial for proper installation and compatibility.
5. Operating Instructions
Once professionally installed, your Goodman AC system operates to maintain your desired indoor temperature. The system is controlled via an app or remote control, depending on your specific thermostat and setup.
- Thermostat Settings: Set your thermostat to the desired cooling temperature. Ensure the system mode is set to "Cool" or "Auto".
- Fan Operation: The fan can be set to "Auto" (runs only when cooling) or "On" (runs continuously). Continuous fan operation can help with air circulation.
- Temperature Range: Avoid setting the thermostat to extreme temperatures, as this can reduce efficiency and strain the system.
- Airflow: Ensure all supply and return air vents are unobstructed for optimal performance.
For detailed operation specific to your thermostat model, refer to your thermostat's user manual.
6. Maintenance
Regular maintenance is crucial for the efficient and long-lasting operation of your Goodman AC system. Always ensure power is disconnected before performing any maintenance.
- Air Filter Replacement: Check and replace your furnace or air handler's air filter monthly, or as recommended by the filter manufacturer. A dirty filter restricts airflow and reduces efficiency.
- Outdoor Unit Cleaning: Keep the outdoor condenser unit clear of debris, leaves, and grass clippings. Periodically rinse the outdoor coil with a garden hose to remove dirt buildup.
- Indoor Coil Inspection: The indoor evaporator coil should be inspected and cleaned annually by a qualified technician.
- Drain Line Clearing: Ensure the condensate drain line is clear and free of blockages to prevent water overflow.
- Professional Tune-up: Schedule annual professional maintenance with a qualified HVAC technician to inspect, clean, and tune your system.
7. Troubleshooting
Before calling for service, review these common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| System not cooling | Thermostat set incorrectly, dirty air filter, tripped circuit breaker, outdoor unit obstructed. | Check thermostat settings, replace air filter, reset circuit breaker, clear obstructions around outdoor unit. |
| No airflow | Blower motor off, clogged air filter, closed vents. | Check thermostat fan setting, replace air filter, open all vents. |
| Unusual noises | Loose parts, debris in fan, refrigerant issues. | Turn off unit and inspect for loose parts or debris. If noise persists, contact a qualified technician. |
| Water leakage | Clogged condensate drain line, frozen evaporator coil. | Clear drain line. If coil is frozen, turn off AC and let it thaw, then check airflow and refrigerant levels. |
If these steps do not resolve the issue, contact a qualified HVAC service technician.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Goodman |
| Model Number | GLXS3BN4810 (Condenser), CAPTA6030D3 (Coil) |
| Capacity | 4 Tons |
| Cooling Power | 48000 British Thermal Units (BTU) |
| Seasonal Energy Efficiency Ratio 2 (SEER2) | 13.4 |
| Refrigerant Type | R-32 |
| Power Source | Corded Electric |
| Form Factor | Split System |
| Control Method | App, Remote Control |
| Inverter Type | No Inverter |
| Compressor Type | Reciprocating |
| Outdoor Unit Required | Yes |
| Application | Residential |
| Wattage | 5.41 KW |
| BEE Star Rating | 3 Star |
Video: SEER2 Regulations. This video explains the SEER2 regulations and their impact on AC system efficiency ratings.
9. Warranty Information
This Goodman AC system comes with a 10-year parts limited warranty. To qualify for the full warranty, the system must be installed by a qualified installer and registered online within 60 days of installation. Online registration is not required in California.
For complete warranty details, terms, and conditions, please refer to the official Warranty Document (PDF).
Image: A shield graphic indicating a 10-year limited warranty, highlighting the product's coverage.
10. Support
For further assistance, technical support, or service inquiries, please contact your installing dealer or a qualified HVAC service professional. You can also refer to the comprehensive User Manual (PDF) for additional information.
For general product information, visit the Goodman Store on Amazon.
