ROADOM Desktop CD Player with Speakers, Model KC-805 User Manual

1. Introduction

Thank you for choosing the ROADOM Desktop CD Player with Speakers, Model KC-805. This device is designed to provide a comprehensive audio experience with multiple playback options. Please read this manual thoroughly before use to ensure proper operation and to maximize your enjoyment of the product.

The ROADOM KC-805 offers 8 versatile functions:

• CD Playback (CD, CD-R, CD-RW, MP3, WMA formats)
• Bluetooth Transmission
• Bluetooth Reception
• FM Radio
• USB Drive Playback
• AUX Input/Output
• Timer Function
• Repeat Modes

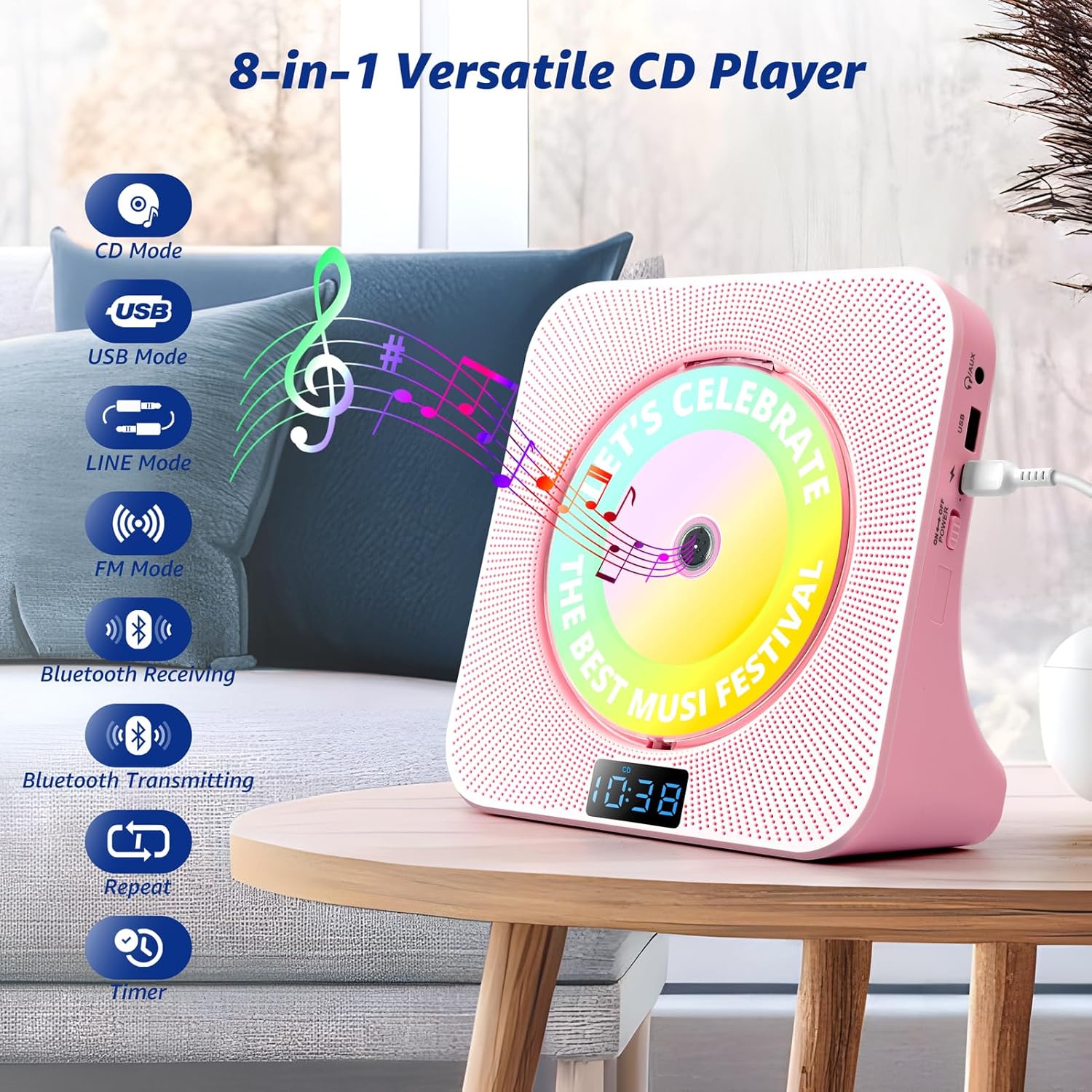

Image 1.1: Overview of the 8-in-1 functions of the ROADOM KC-805 CD Player.

2. Package Contents

Please check the package for the following items:

• ROADOM CD Player × 1
• USB - Type C Power Cable × 1
• Remote Control × 1 (Requires 2 AAA batteries, not included)
• 5V/2A Power Adapter × 1
• 3.5 mm Male to Male AUX Cable × 1

3. Product Overview

Familiarize yourself with the components of your ROADOM CD Player.

3.1 Front Panel

Image 3.1: Front view of the ROADOM KC-805 CD Player with remote control.

• CD Compartment: Transparent cover for CD insertion.
• Digital Display: Shows time, mode, track number, and other information.
• Built-in Speakers: Integrated stereo speakers for audio output.

3.2 Side Panel

Image 3.2: Side view of the ROADOM KC-805 CD Player showing connectivity ports.

• USB Port: For USB drive playback and charging external devices.
• AUX Input/Output: 3.5mm jack for connecting external audio sources or outputting audio to headphones/speakers.
• DC 5V Power Input: For connecting the power adapter.

4. Setup

4.1 Power Connection

1. Connect the USB-Type C Power Cable to the DC 5V input port on the side of the CD player.
2. Plug the other end of the USB cable into the provided 5V/2A Power Adapter.
3. Insert the power adapter into a standard wall outlet.
4. The device will power on automatically or can be turned on using the power button on the unit or remote control.

4.2 Remote Control Battery Installation

The remote control requires 2 AAA batteries (not included). Open the battery compartment on the back of the remote and insert the batteries, ensuring correct polarity.

5. Operating Instructions

5.1 CD Mode

1. Gently open the transparent dust cover on the front of the player.
2. Place a CD (CD, CD-R, CD-RW, MP3, WMA) onto the spindle, ensuring it is seated correctly.
3. Close the dust cover. The player will automatically detect the CD and begin playback.
4. Use the Play/Pause, Next/Previous Track, and Volume buttons on the unit or remote control to manage playback.

5.2 Bluetooth Transmit Mode

This mode allows the CD player to send audio to Bluetooth headphones or speakers.

Image 5.1: The CD player transmitting audio to various Bluetooth devices.

1. Ensure the CD player is in a playback mode (e.g., CD, USB, AUX).
2. Press the Bluetooth Transmit button (often labeled 'BT TX' or similar) on the unit or remote. The display will indicate Bluetooth transmitting mode.
3. Put your Bluetooth headphones or speaker into pairing mode.
4. The CD player will automatically search for and connect to nearby Bluetooth devices. Once connected, audio will play through your external Bluetooth device.

5.3 Bluetooth Receive Mode

This mode allows the CD player to act as a Bluetooth speaker for your smartphone, tablet, or computer.

Image 5.2: The CD player receiving audio from a smartphone via Bluetooth.

1. Press the Mode button on the unit or remote until the display shows 'BLUE' or indicates Bluetooth receiving mode.
2. On your smartphone, tablet, or computer, enable Bluetooth and search for available devices.
3. Select 'ROADOM KC-805' (or similar name) from the list of devices to pair.
4. Once connected, you can play audio from your device through the CD player's speakers.

5.4 FM Radio Mode

Image 5.3: The CD player in FM Radio mode.

1. Press the Mode button until 'FM' appears on the display.
2. Press the Scan button (or Play/Pause button) to automatically scan and save available FM stations.
3. Use the Next/Previous Track buttons to navigate through the saved stations.
4. Adjust volume using the volume controls.

5.5 USB Mode

Image 5.4: The CD player operating in USB mode.

1. Insert a USB flash drive containing MP3 or WMA audio files into the USB port on the side of the player.
2. Press the Mode button until 'USB' appears on the display.
3. The player will automatically detect and begin playing audio files from the USB drive.
4. Use the Play/Pause, Next/Previous Track, and Volume buttons to control playback.
5. The USB port can also be used to charge compatible smartphones or tablets.

5.6 AUX Mode

1. Connect one end of the 3.5mm AUX cable to the AUX port on the CD player.
2. Connect the other end to the headphone jack or audio output of an external device (e.g., smartphone, computer, MP3 player).
3. Press the Mode button until 'LINE' or 'AUX' appears on the display.
4. Play audio from your external device. The sound will be output through the CD player's speakers.
5. Alternatively, you can connect headphones or external speakers to the AUX port to output audio from the CD player.

5.7 Timer Function (Sleep Timer)

Image 5.5: Setting the sleep timer on the CD player.

1. While the player is on, press the Timer button on the remote control.
2. Repeatedly press the Timer button to cycle through available sleep timer durations (e.g., 30, 60, 90 minutes).
3. The player will automatically turn off after the selected time period.

5.8 Repeat Modes

Image 5.6: Available repeat and playback options.

1. During CD or USB playback, press the Repeat button on the remote control.
2. Each press will cycle through different repeat modes:
• SFL (Shuffle Play): Plays tracks in a random order.
• ONE (Repeat One): Repeats the current track.
• A-B (A-B Repeat): Repeats a specific segment of a track.
• ALL (Repeat All): Repeats all tracks on the disc/USB.
• Normal Play: Disables repeat function.

5.9 Remote Control Usage

Image 5.7: The remote control for the CD player.

The remote control provides convenient access to all functions. Point the remote control directly at the front of the CD player for optimal response. Ensure batteries are correctly installed.

6. Maintenance

6.1 Cleaning the Unit

• Wipe the exterior of the player with a soft, dry cloth.
• Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
• For the CD lens, use a specialized CD lens cleaner disc if necessary. Do not touch the lens directly.

6.2 Dust Cover

Image 6.1: The transparent dust cover in action.

Keep the transparent dust cover closed when not inserting or removing a CD to protect the disc and internal components from dust. The player is designed to automatically stop playback if the cover is opened during operation.

7. Troubleshooting

If you encounter any issues, please refer to the following table for common problems and solutions.

8. Specifications

Image 8.1: Physical dimensions and weight of the CD player.

9. Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or contact ROADOM customer service through the retailer where the product was purchased. Please retain your proof of purchase for warranty claims.
