YZONA Rear Bumper Installation and User Manual for 2022-2025 Toyota Tundra
Model: Y-XBCB-0087-FBM
Product Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your YZONA Rear Bumper, designed for 2022, 2023, 2024, and 2025 Toyota Tundra models. This bumper is engineered for durability and functionality, featuring integrated LED lights, sensor holes, license plate lights, a trailer plug hole, and D-rings.

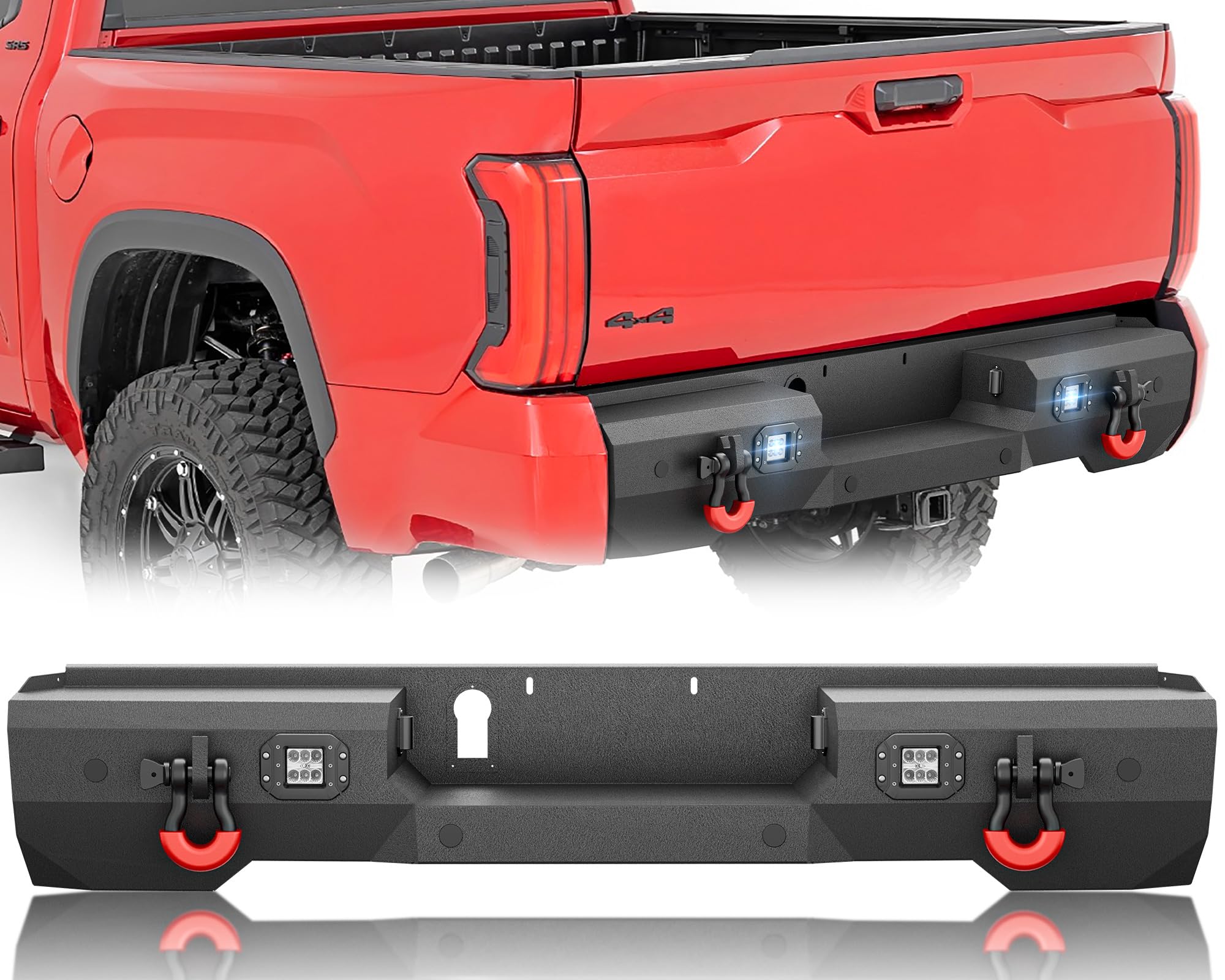

The YZONA Rear Bumper, compatible with 2022-2025 Toyota Tundra models, shown installed on a vehicle.
Key Features:
- Compatibility: Specifically designed for 2022-2025 Toyota Tundra models.
- Integrated Lighting: Includes two high-powered 18W LED spotlights and license plate lights.
- Sensor Integration: Features four sensor holes for parking sensors (note: original sensors are not supported; extension harnesses and sensors must be purchased separately).
- Recovery Points: Equipped with two 4.75-ton D-rings for recovery operations.
- Trailer Ready: Designed with a pre-drilled trailer plug hole.
- Durable Construction: Made from high-strength carbon steel with a two-stage textured black powder coating for rust resistance and enhanced aesthetics.
- Easy Installation: Bolt-on design requires no cutting or modifications to your vehicle.
Visual confirmation of the YZONA Rear Bumper's compatibility with Toyota Tundra models from 2022 to 2025.
An illustration detailing the premium materials, including 5/32" (3mm) durable carbon steel, pre-treatment, anti-corrosion primer, and powder coating, used in the YZONA bumper construction.
Installation Instructions
This section outlines the general steps for installing the YZONA Rear Bumper. Professional installation is recommended for optimal safety and performance.
Required Tools (Not Included):
- Socket Wrench Set
- Torque Wrench
- Drill (if applicable for specific accessories, though bumper itself is bolt-on)
- Safety Glasses and Gloves
Step-by-Step Installation:
- Unpack Components: Carefully open the packaging and remove all bumper components and hardware. Lay them out in an organized manner to ensure all parts are present and easily accessible.
- Remove Original Bumper: Following your vehicle's service manual, carefully remove the original rear bumper. This typically involves detaching wiring harnesses, unbolting the bumper from the frame, and removing any associated brackets.
- Install New Bumper Brackets: Attach any new mounting brackets provided with your YZONA bumper to the vehicle frame using the specified hardware. Ensure they are securely fastened according to torque specifications.
- Mount YZONA Bumper: Carefully lift the YZONA bumper into position and align it with the newly installed or existing mounting points. Secure the bumper to the brackets using the provided bolts and washers. Do not fully tighten all bolts until the bumper is properly aligned.
- Connect Wiring: Connect the wiring for the LED lights and license plate lights. If your vehicle has parking sensors, install the separately purchased extension harnesses and sensors into the designated sensor holes on the bumper.
- Final Alignment and Tightening: Once the bumper is aligned correctly, tighten all bolts to the manufacturer's recommended torque specifications. Double-check all connections and ensure the bumper is stable and secure.
- Test Functionality: Test all lights (LED spotlights, license plate lights) and, if installed, the parking sensors to ensure they are functioning correctly.
The integrated foot pedal design provides convenient access to the truck bed.
The YZONA bumper features two 18W LED spotlights for enhanced visibility.
Installation Video for Truck Bed Accessories:
While this video demonstrates the installation of retract straps, it provides a visual guide for working with truck bed mounting points, which can be helpful for general accessory installation.
Video: "How to Install Retract Straps Compatible with 22-26 Tundra" by SZYANG. This video illustrates the process of installing truck bed accessories, including bracket placement and securing with bolts.
Operating Instructions
The YZONA Rear Bumper is designed for straightforward use and enhanced vehicle utility.
- LED Spotlights: The integrated 18W LED spotlights can be wired to your vehicle's auxiliary light switch or a dedicated switch for independent operation. Refer to your vehicle's wiring diagram or consult a professional for proper electrical connection.
- D-Rings: The two 4.75-ton D-rings are designed for vehicle recovery. Always use appropriate recovery straps and follow safe recovery procedures. Ensure D-rings are securely fastened before use.
- Foot Pedal: Utilize the integrated foot pedal for easier access to your truck bed. Ensure your footing is secure before stepping.
- Parking Sensors: If aftermarket sensors are installed in the bumper's sensor holes, ensure they are calibrated and functioning correctly according to the sensor manufacturer's instructions.
A close-up view of the YZONA bumper, highlighting the robust D-ring and integrated LED spotlight.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your YZONA Rear Bumper.
- Cleaning: Wash the bumper regularly with mild soap and water to remove dirt, salt, and other debris. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
- Inspection: Periodically inspect all bolts and mounting points for tightness. Re-torque any loose fasteners to prevent vibration and potential damage.
- Coating Care: The two-stage textured black powder coating is designed for durability. If scratches or chips occur, touch up with appropriate rust-inhibiting paint to prevent corrosion.
- Electrical Components: Check LED lights and wiring for any signs of damage or corrosion. Ensure all connections are secure.
- D-Rings: Inspect D-rings for any signs of wear, bending, or damage before each use. Replace if compromised.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| LED Lights Not Working | Loose wiring connection, blown fuse, damaged LED. | Check all wiring connections. Inspect vehicle's fuse box for blown fuses. If LEDs are damaged, contact customer support for replacement. |
| Bumper Feels Loose | Mounting bolts are not sufficiently tightened. | Inspect and re-torque all mounting bolts to specifications. |
| Parking Sensors Malfunctioning | Incorrect installation, sensor damage, incompatible sensors. | Ensure sensors are correctly installed and calibrated. Check for physical damage. Verify sensor compatibility (original sensors are not supported). |
| Corrosion/Rust Spots | Damage to powder coating, exposure to harsh elements. | Clean affected area and apply rust-inhibiting touch-up paint. Regular cleaning can prevent this. |
Specifications
- Brand: YZONA
- Model Number: Y-XBCB-0087-FBM
- Auto Part Position: Rear
- Material: High-Strength Carbon Steel
- Exterior Finish: Two-Stage Textured Black Powder Coated
- Item Weight: 60.5 Pounds
- Product Dimensions (D x W x H): 65.35" x 15.35" x 11.81"
- LED Light Wattage: 18W x 2
- D-Ring Load Capacity: Up to 9,500 lbs
- Sensor Hole Diameter: 1.1" (x4)
- Vehicle Service Type: Compatible with 2022 2023 2024 2025 Toyota Tundra Rear Bumper
Detailed dimensions of the YZONA Rear Bumper.
A detailed view of the bumper's features: trailer plug holes, D-rings with 9500 lbs load bearing, and license plate bracket holes.
Summary of key parameters including item weight, material, LED wattage, D-ring load capacity, and sensor hole details.
The bumper supports sensor mounting with 1.1" (x4) holes. Note that original sensors are not supported.
Warranty and Support
Your YZONA Rear Bumper comes with a 2-year factory warranty. We are committed to providing lifetime customer service support.
If you encounter any issues or have questions regarding your product, please do not hesitate to contact us. When reaching out, please provide the exact year and model of your vehicle, along with photos showing the problematic area if applicable. This will help us resolve your concerns quickly and effectively.
For further assistance, please visit the official YZONA store: YZONA Store on Amazon.
