Ovsuqu Raycus MOPA 60W Fiber Laser Engraver Machine (Model FL-60W) Instruction Manual

1. Product Overview

The Ovsuqu Raycus MOPA 60W Fiber Laser Engraver Machine, Model FL-60W, is a high-precision laser marking and engraving system designed for a wide range of materials. It features a powerful 60W Raycus laser source and is equipped with a red dot pointer for accurate positioning. This machine is suitable for detailed engraving on various metals and certain non-metal materials.

Key Features:

• Laser Class 4: 60,000mW Output Power, FDA Accession Number: 2420799-000.
• Raycus Laser Source: RFL-P60MX, 60W rated output power, 1064 ± 5nm center wavelength.
• Versatile Application: Ideal for metal surface processing, peeling coating, aluminum black marking, semiconductor and electronics industry applications, large area engraving, and excellent marking on plastic or other sensitive materials. Capable of black and color marking on stainless steel.
• Material Compatibility: Engraves on Gold, Silver, Aluminum, Stainless Steel, Brass, Copper, and non-metals such as nylon, light button, ABS, PVC, PES.
• EZCAD Lite Software: Compatible with Windows XP/Vista/7/8/10/11, supporting Coreldraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP, SHX, TTF fonts, and automatic encoding for serial numbers, batch numbers, production dates, barcodes, and QR codes.

2. Setup Instructions

Follow these steps to set up your Ovsuqu Raycus MOPA 60W Fiber Laser Engraver Machine. Ensure all components are present and undamaged before proceeding.

2.1 Unpacking and Component Identification

Carefully unpack all items from the shipping crate. Identify the main unit, laser head, F-theta scan lens, power supply, and any included accessories.

Image: The main unit of the Ovsuqu Raycus MOPA 60W Fiber Laser Engraver Machine, showing the laser head and adjustable column.

Image: The BJJCZ main board, which comes with EZCAD Lite software, and a screenshot of the EZCAD software working page.

Image: Details of the F-theta Scan Lens (Mount: M85, Wavelength: 1064nm) and the Mean Well Power Supply, highlighting its high efficiency and stability.

2.2 Assembly

Assemble the laser engraver according to the following general steps. Refer to the setup video for a visual guide.

1. Place the main base plate on a stable, level surface.
2. Attach the vertical column to the base plate, ensuring it is securely fastened.
3. Mount the laser head assembly onto the vertical column.
4. Install the F-theta scan lens onto the laser head.
5. Connect the necessary cables: power cord, USB cable to your computer, and the cable from the main unit to the laser head.
6. If using a rotary axis, connect it to the designated port on the main unit.

Image: The Ovsuqu Raycus MOPA 60W Fiber Laser Engraver Machine shown with an optional rotary axis attached, ready for engraving cylindrical objects.

3. Operating Instructions

This section outlines the basic steps for operating your fiber laser engraver. Always ensure proper safety precautions are followed, including wearing appropriate laser safety glasses.

3.1 Software Installation and Configuration

Install the EZCAD Lite software on your Windows computer. Follow the on-screen instructions. Once installed, launch the software and configure the laser parameters according to your material and desired engraving effect.

Image: The EZCAD software working page, showing design area and marking parameters. This software is used to control the laser engraver.

3.2 Engraving Process

1. Power On: Turn on the main power switch on the laser unit.
2. Material Placement: Place the material to be engraved on the work platform. Use the red dot pointer to preview the engraving area and adjust the material position as needed.
3. Focus Adjustment: Adjust the height of the laser head until the red dot pointers converge into a single, sharp point on the material surface. This ensures optimal focus.
4. Design Import: In EZCAD Lite, import or create your desired design.
5. Parameter Setting: Set the appropriate laser parameters (power, speed, frequency, pulse width) based on the material type and desired engraving depth/effect. Refer to the software manual for detailed parameter guidance.
6. Start Engraving: Initiate the engraving process from the EZCAD Lite software. Monitor the process closely.

The MOPA laser source allows for various marking effects, including deep carving, black marking on aluminum, and color marking on stainless steel by adjusting pulse width and frequency.

3.3 Choosing the Right Lens and Laser Source

Selecting the correct lens and laser source is crucial for achieving desired results:

• Lens Size: A larger lens provides a larger engraving area but may result in weaker light intensity. A smaller lens offers deeper engraving but with a smaller working area.
• Laser Source: Raycus and MAX sources are effective for deep carving, hollow designs, and cutting. JPT sources are known for delicate touch carving. For metal cutting, a Raycus or MAX source with a smaller lens is recommended. For faster working or deeper results, consider higher power JPT 100W or 200W options.

Image: Informational graphic explaining how to choose the appropriate laser source (Raycus, MAX, JPT) and F-theta scan lens based on desired engraving depth and work area.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your laser engraver.

• Lens Cleaning: Periodically clean the F-theta scan lens with a lens cleaning solution and a soft, lint-free cloth to maintain laser beam quality.
• Work Area Cleanliness: Keep the work platform and surrounding area free of debris and dust, which can interfere with engraving or damage components.
• Cable Inspection: Regularly check all cables for signs of wear or damage. Ensure all connections are secure.
• Ventilation: Ensure the machine's ventilation openings are clear and unobstructed to prevent overheating of internal components.
• Software Updates: Keep your EZCAD Lite software updated to the latest version for improved performance and features.

5. Troubleshooting

If you encounter issues with your laser engraver, refer to the following common troubleshooting steps:

• No Power: Check the power cord connection, ensure the main power switch is on, and verify the power outlet is functional.
• Laser Not Firing: Confirm the laser is enabled in the software, check the emergency stop button is disengaged, and ensure all safety interlocks are correctly closed.
• Poor Engraving Quality:
  • Verify the laser focus is correctly set.
  • Adjust laser parameters (power, speed, frequency) for the specific material.
  • Clean the F-theta scan lens.
  • Ensure the material is flat and securely placed.
• Software Connection Issues: Ensure the USB cable is securely connected to both the machine and the computer. Restart the software and the machine if necessary. Check device manager for proper driver installation.

If problems persist after attempting these steps, contact customer support for further assistance.

6. Technical Specifications

7. Optional Accessories

Enhance the functionality of your laser engraver with these optional accessories:

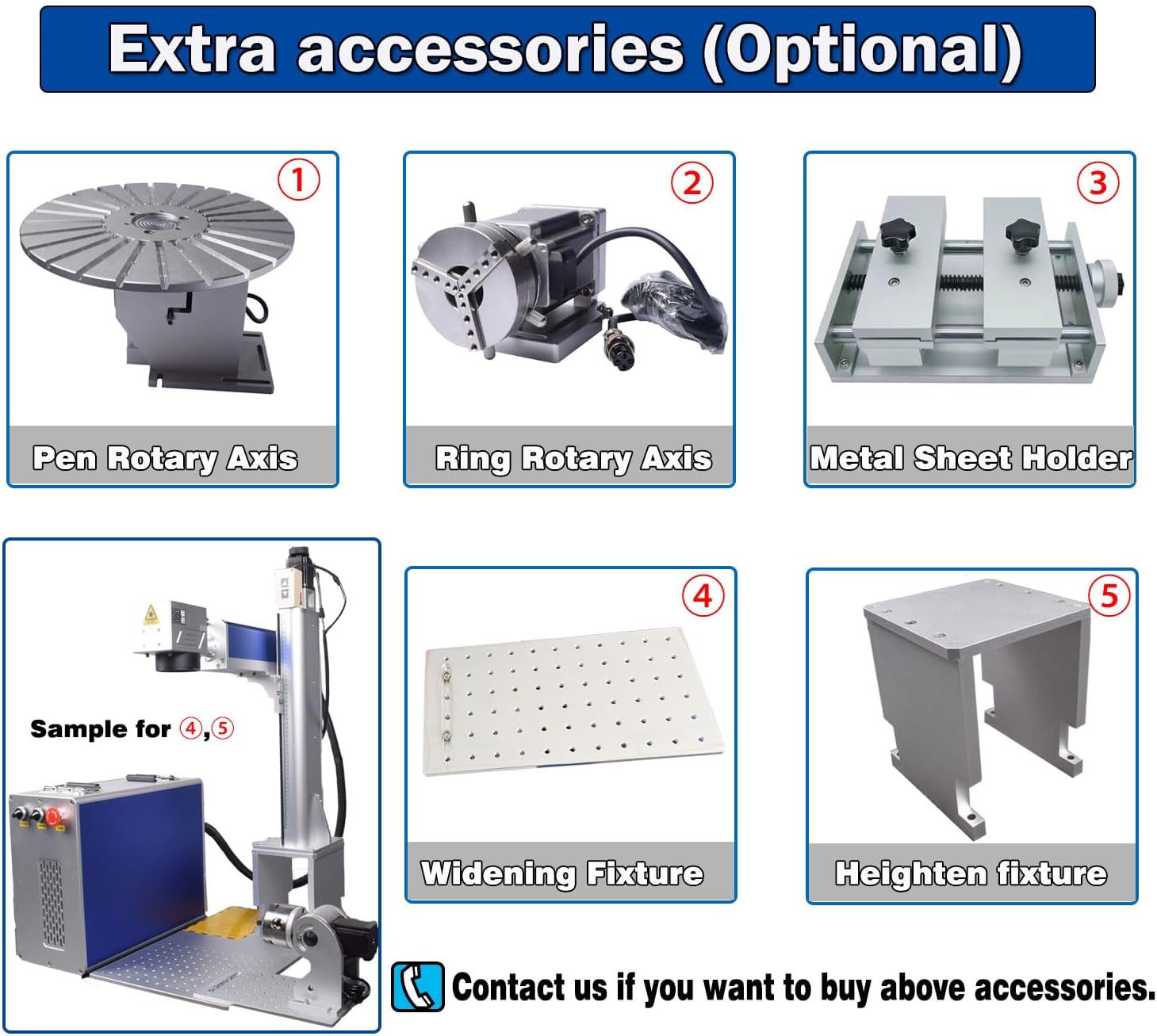

Image: A visual representation of various optional accessories: Pen Rotary Axis, Ring Rotary Axis, Metal Sheet Holder, Widening Fixture, and Heighten Fixture.

• Pen Rotary Axis: For engraving cylindrical objects like pens.
• Ring Rotary Axis: Specialized for engraving rings and other small circular items.
• Metal Sheet Holder: Provides secure clamping for flat metal sheets during engraving.
• Widening Fixture: Expands the work area for larger items.
• Heighten Fixture: Increases the working height for taller objects.

Contact your supplier if you wish to purchase any of these accessories.

8. Warranty and Support

For any technical assistance, operational queries, or warranty-related concerns, please contact Ovsuqu customer support. The manufacturer, ChinaCNCzone, provides support for machine operation if needed.

Please refer to your purchase documentation for specific warranty terms and contact information.
