AFEXOA BL60 Sunrise Wake Up Alarm Clock User Manual

1. Introduction

Thank you for choosing the AFEXOA BL60 Sunrise Wake Up Alarm Clock. This device combines a natural sunrise simulation alarm, a smart Bluetooth speaker, a white noise sleep aid machine, and a versatile night light. Designed to enhance your daily routine, it offers a gentle wake-up experience and a calming environment for sleep. Please read this manual carefully to ensure proper use and optimal performance.

Figure 1: The AFEXOA BL60 Sunrise Wake Up Alarm Clock.

2. Safety Information

• Do not expose the device to water or excessive moisture.
• Avoid dropping or subjecting the device to strong impacts.
• Use only the provided power adapter or a certified 5V power source.
• Keep out of reach of children unless under adult supervision.
• Do not attempt to disassemble or repair the device yourself. Contact customer support for assistance.

3. Package Contents

Please check the package for the following items:

• AFEXOA BL60 Sunrise Wake Up Alarm Clock
• USB Power Cable
• User Manual

4. Product Overview

The AFEXOA BL60 features an intuitive design with controls located on the device's body and base. The digital display shows time and various settings. The astronaut's helmet functions as the light source.

5. Setup

5.1 Power Connection

1. Connect the provided USB power cable to the device's power input port.
2. Plug the other end of the USB cable into a 5V USB power adapter (not included) and then into a wall outlet.
3. The device will power on, and the display will illuminate.

5.2 Initial Time Setting

Upon first power-up or after a power outage, you may need to set the current time. Refer to the 'Operating Instructions' section for detailed steps on setting the time and display brightness.

5.3 Backup Battery (CR2032)

The device requires 1 CR2032 battery (not included) for time backup during power interruptions. Install the battery in the compartment located at the bottom of the device, ensuring correct polarity.

6. Operating Instructions

6.1 Sunrise Wake-Up Light Function

The sunrise simulation gradually brightens your room, mimicking a natural sunrise to help you wake up gently. You can set the duration for the light to increase from 1% to 100% brightness between 10 to 120 minutes before your alarm time.

• Setting Duration: Use the dedicated buttons to adjust the sunrise duration.
• Activation: Ensure the wake-up light feature is enabled when setting your alarm.

Figure 2: Sunrise simulation feature with adjustable duration.

6.2 Night Light Function

The device offers a versatile night light with 22 lighting modes, including 16 fixed colors and 6 dynamic ambient light modes. Brightness is adjustable across 20 levels, and there are 3 dimmer modes (Off, Dim, Bright, Auto) for the time display.

• Color Selection: Use the touch controls or dedicated buttons to cycle through colors and modes.
• Brightness Adjustment: Adjust the light intensity to your preference.
• Display Dimmer: Set the time display brightness to Off, Dim, Bright, or Auto mode.

Figure 3: Color-changing night light with brightness control.

6.3 Alarm Clock Settings

The BL60 features dual alarms, allowing you to set two separate wake-up times. Choose from 7 gentle alarm sounds and adjust the volume across 16 levels, up to 110 dB.

• Setting Alarms: Press the alarm button to enter alarm setting mode. Use the navigation buttons to set the time, alarm sound, and volume.
• Alarm Sounds: Options include birds, ocean, piano, beep, and three soft music melodies.
• Snooze Function: Press the snooze button when the alarm sounds to temporarily silence it for a few minutes.

Figure 4: Wake-up light operation and available alarm sounds.

6.4 Sleep Aid & White Noise Machine

Improve your sleep with 21 soothing sounds, including white noise, pink noise, brown noise, fan sounds, natural sounds, and lullabies. The volume can be precisely adjusted across 16 levels. An optional sleep timer (15, 30, 45, 60, or 90 minutes) automatically turns off sounds and lights.

• Sound Selection: Cycle through the 21 available sounds using the dedicated button.
• Volume Control: Adjust the sound volume to your comfort level.
• Sleep Timer: Set the timer for automatic shut-off.

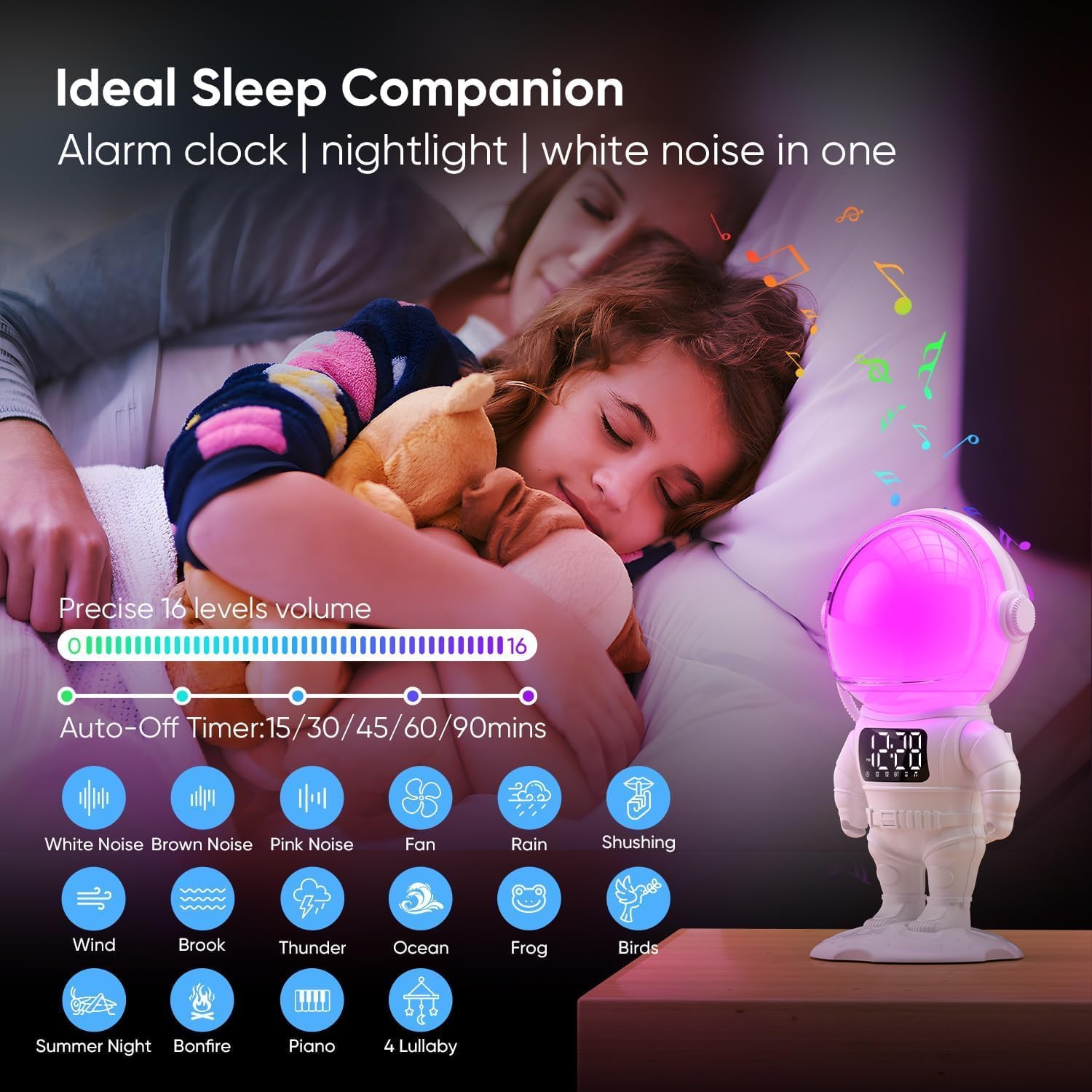

Figure 5: Sleep aid features with white noise and timer options.

6.5 Bluetooth Speaker Mode

Connect your smartphone, tablet, or other Bluetooth-enabled devices to the BL60 to play your favorite audio. The device is compatible with game consoles, MP3 players, desktop computers, laptops, smartphones, and tablets.

1. Enable Bluetooth: Press the Bluetooth button on the device to enter pairing mode. The display will indicate Bluetooth status.
2. Pairing: On your external device, search for 'AFEXOA BL60' (or similar name) in the Bluetooth settings and connect.
3. Audio Playback: Once paired, audio from your device will play through the BL60 speaker.

7. Maintenance

• Cleaning: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the device in a cool, dry place when not in use for extended periods.
• Battery Replacement: If the time backup battery (CR2032) needs replacement, ensure the device is unplugged before opening the battery compartment.

8. Troubleshooting

• Device not powering on: Ensure the USB cable is securely connected to both the device and a working 5V power adapter/outlet.
• Alarm sound is too loud/quiet: Adjust the alarm volume using the dedicated controls in the alarm settings.
• Sunrise light not working: Check if the sunrise simulation feature is enabled in the alarm settings and if the duration is set correctly.
• Bluetooth not connecting: Ensure the device is in Bluetooth pairing mode and your external device's Bluetooth is enabled and searching for new devices. Try restarting both devices.
• Charging cable makes a sound: If the power adapter or cable emits a persistent sound, try using a different certified 5V USB power adapter.

9. Specifications

For detailed product information and energy efficiency, please refer to the EPREL database: EPREL Product Information

10. Warranty and Support

This product comes with a standard manufacturer's warranty. For warranty claims, technical support, or any questions regarding your AFEXOA BL60, please contact your retailer or the manufacturer's customer service. Keep your purchase receipt as proof of purchase.
