Pride Mobility Go-Go Carbon Travel Mobility Scooter User Manual

1. Introduction and Safety Information

This manual provides essential information for the safe and effective operation, maintenance, and care of your Pride Mobility Go-Go Carbon Travel Lightweight Foldable Mobility Scooter. Please read this manual thoroughly before using your scooter to ensure proper understanding of its features and functions.

The Go-Go Carbon Travel Scooter is designed for individuals with mobility impairments, offering a lightweight and portable solution for personal transportation. It features a full carbon fiber frame, NFC ignition, and a compact folding design.

Important Safety Precautions:

• Always ensure the scooter is fully unfolded and locked in place before use.
• Do not exceed the maximum weight capacity of 300 lbs.
• Operate the scooter on stable, level surfaces. Avoid steep inclines or uneven terrain that could compromise stability.
• Keep hands and clothing clear of moving parts.
• Always use caution when operating near pedestrians or in crowded areas.
• For more detailed instructions, consult the user manual or contact the manufacturer, Pride Mobility.

2. Product Overview and Components

Familiarize yourself with the key components of your Go-Go Carbon Travel Scooter.

Figure 2.1: Front view of the Go-Go Carbon Travel Scooter, showcasing its compact design and tiller.

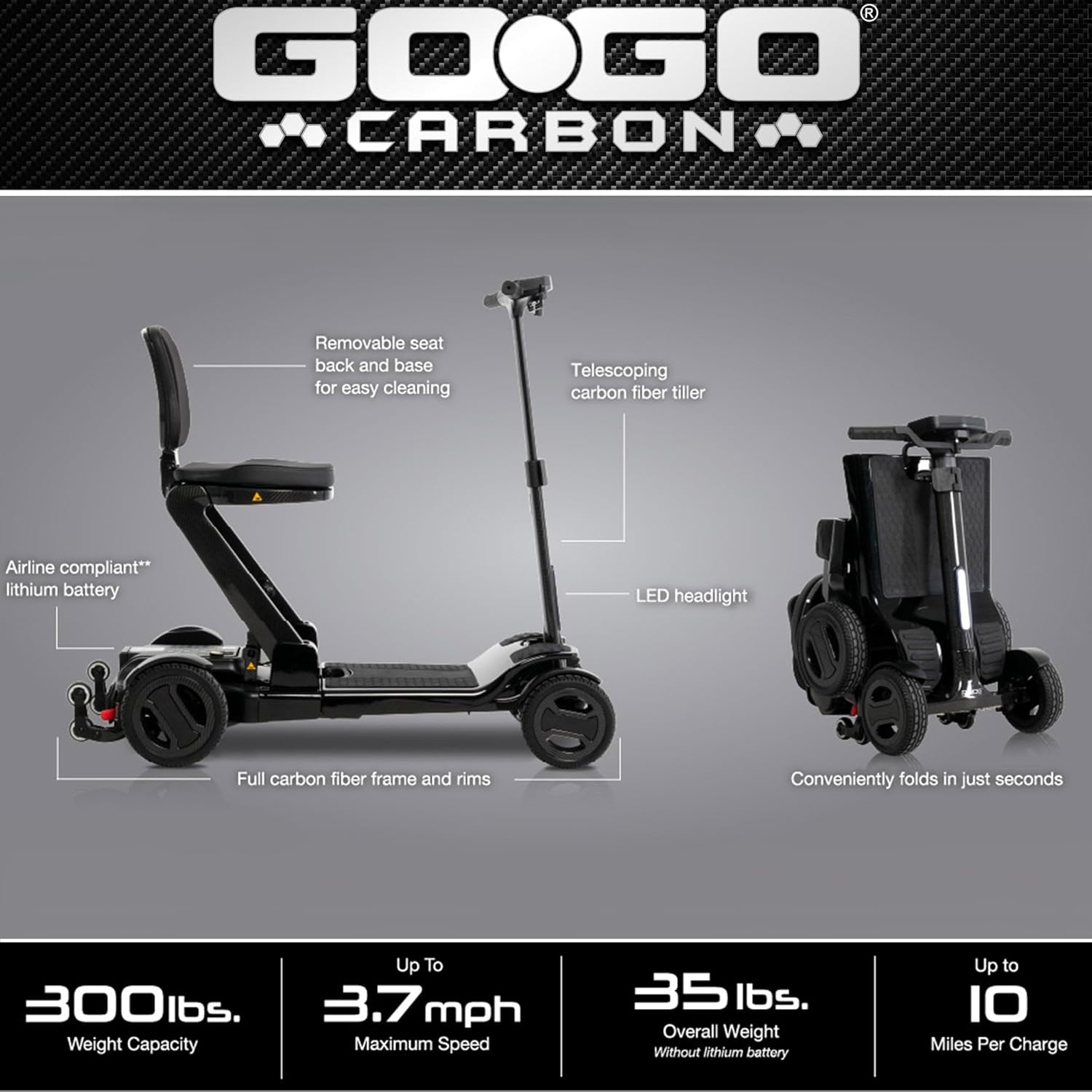

Figure 2.2: Labeled diagram illustrating key components such as the removable seat back and base, telescoping carbon fiber tiller, LED headlight, and full carbon fiber frame and rims.

Figure 2.3: Various detailed views of the scooter, highlighting features like the integrated LED lighting, rear wheel design, compact folded state, and the digital display.

• Telescoping Tiller: Adjustable handlebar for comfortable steering.
• NFC Ignition: Secure keyless ignition system.
• Color Display: Provides essential information including battery level and speed.
• Removable Seat Components: Seat back and base can be removed for easy cleaning and transport.
• LED Lighting: Integrated lighting for improved visibility.
• Carbon Fiber Frame: Lightweight yet durable construction.
• Airline-Compliant Lithium Battery: Designed for travel convenience.

3. Setup and Initial Use

3.1 Unfolding the Scooter

The Go-Go Carbon Travel Scooter is designed for quick and easy unfolding. Follow these steps:

1. Place the folded scooter on a flat, stable surface.
2. Locate the folding release mechanism, typically near the base of the tiller or seat.
3. Carefully unfold the tiller upwards until it locks into place.
4. Extend the seat support frame and ensure the seat is securely positioned.
5. Verify all locking mechanisms are engaged before use.

Figure 3.1: The Go-Go Carbon Travel Scooter in its compact, folded state, ready for transport or storage.

Figure 3.2: Side view of the scooter in its unfolded, operational configuration.

3.2 Battery Installation and Charging

Your scooter comes with two 12V batteries. Ensure they are properly installed and charged before first use.

• Locate the battery compartment, typically under the seat or floorboard.
• Insert the batteries according to the polarity indicators.
• Connect the charger to the charging port on the scooter.
• Plug the charger into a standard electrical outlet.
• Allow the batteries to charge fully before initial operation. Refer to the charger's indicator lights for charging status.

4. Operating the Scooter

4.1 Powering On and Off

• To power on, use the NFC ignition by tapping the provided NFC card to the designated area on the tiller.
• The color display will illuminate, showing battery level, speed, and other operational data.
• To power off, tap the NFC card again or use the designated power button if available.

4.2 Driving Instructions

• Steering: Use the tiller to steer the scooter left or right.
• Speed Control: Adjust the speed using the controls on the tiller. The scooter can reach speeds of up to 3.7 mph.
• Acceleration/Braking: Use the throttle lever for forward and reverse motion. Releasing the throttle will engage the electromagnetic brake, bringing the scooter to a stop.
• Terrain: The scooter is designed for all-terrain mobility, but exercise caution on uneven or soft surfaces.

Figure 4.1: Demonstrates the scooter in use and its ease of folding for placement into a vehicle trunk, highlighting its portability.

5. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your scooter.

5.1 Cleaning

• Wipe down the scooter's frame and components with a damp cloth. Avoid using abrasive cleaners or solvents.
• The seat components are removable for easier cleaning.
• Keep the wheels and undercarriage free of debris.

5.2 Battery Care

• Charge the batteries regularly, even if the scooter is not in frequent use, to maintain battery health.
• Avoid fully discharging the batteries.
• Store the scooter and batteries in a cool, dry place.

5.3 General Inspection

• Periodically check all nuts, bolts, and fasteners for tightness.
• Inspect tires for wear and proper inflation (if applicable).
• Ensure all electrical connections are secure.

6. Troubleshooting

This section addresses common issues you might encounter with your scooter. For problems not listed here, please contact Pride Mobility customer support.

7. Specifications

Detailed technical specifications for the Pride Mobility Go-Go Carbon Travel Scooter.

8. Warranty and Support

For warranty information, technical support, or service inquiries, please contact Pride Mobility directly.

Manufacturer: Pride Mobility

Please refer to the official Pride Mobility website or the documentation included with your purchase for specific warranty terms and contact details.

The Pride Mobility Go-Go Carbon Travel Scooter is an FDA Class II Medical Device, designed to assist individuals with mobility impairments.
