Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your yourheey 48V 15A Golf Cart Battery Charger. Please read this manual thoroughly before using the product to ensure proper function and longevity.
Image: The yourheey 48V 15A Golf Cart Battery Charger, featuring a red casing and a compatible Club Car plug.
Safety Instructions
Adhering to these safety guidelines is crucial to prevent injury and damage to the charger or battery.
- Read All Instructions: Before operating the charger, read all instructions and cautionary markings on the charger, battery, and product using the battery.
- Ventilation: Ensure adequate ventilation during charging. Batteries can produce explosive gases.
- Avoid Sparks and Flames: Do not smoke or allow a spark or flame in the vicinity of the battery or engine.
- Eye and Skin Protection: Wear eye protection and protective clothing when working with batteries.
- Disconnect Power: Always disconnect the AC power cord from the outlet before connecting or disconnecting the DC output cables to the battery.
- Indoor Use: This charger is designed for indoor use. Do not expose it to rain or excessive moisture.
- Children: Keep out of reach of children.
- Damaged Charger: Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged.
- Compatibility: Use this charger only for 48V lead-acid (AGM, Gel) batteries. Do not attempt to charge non-rechargeable batteries.
Product Features
The yourheey 48V 15A Golf Cart Battery Charger offers several key features:
- Compact and Lightweight: Measures 8.6"L x 3.54"W x 2.36"H and weighs approximately 4 lbs, making it portable.
- Fast Charging: 900W full power output for efficient charging, typically achieving a full charge in 4-6 hours.
- Wide Compatibility: Designed for Club Car 48V golf carts, including models like Onward, Villager, Tempo, Carryall, DS, and Precedent.
- Smart Trickle Charge Technology: Utilizes 5th generation trickle charging to reduce Amp output as the battery nears full capacity, preventing overcharging and extending battery life.
- Multiple Protections: Includes safeguards against overvoltage, overcurrent, overheating, short-circuit, reverse-connection, and no-load conditions.
- OBC Bypass Capability: Can operate with or bypass the Onboard Computer (OBC) for Club Car models, allowing direct battery connection if the OBC is faulty.
- Built-in Cooling Fan: Reduces internal temperature during operation for enhanced efficiency and longevity.
Setup Instructions
Follow these steps to set up your charger:
- Unpack: Carefully remove the charger from its packaging and inspect for any damage.
- Placement: Place the charger on a stable, dry, and well-ventilated surface, away from direct sunlight or heat sources.
- OBC Bypass (if applicable): If your Club Car's Onboard Computer (OBC) is suspected to be faulty, use the provided OBC bypass cable to connect directly to the battery terminals. Otherwise, proceed with standard connection.
- Connect to Golf Cart: Ensure the golf cart is turned off. Connect the charger's DC output plug (Club Car style) securely into the golf cart's charging receptacle.
- Connect to Power: Plug the charger's AC power cord into a standard 110V AC electrical outlet.

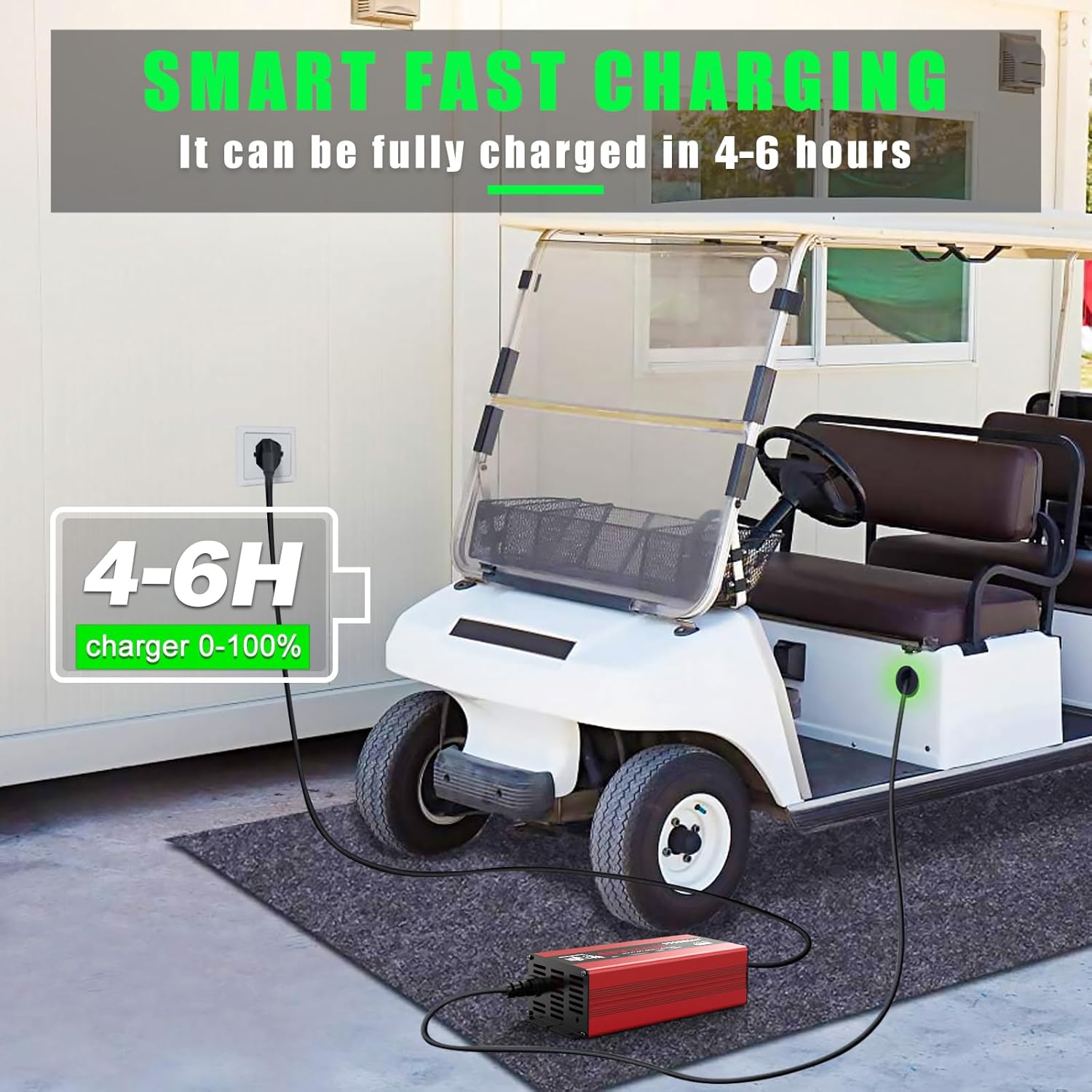

Image: A golf cart connected to the yourheey 48V 15A charger, illustrating the charging setup.
Operating Instructions
Once connected, the charger will automatically begin the charging process.
- Initiate Charging: After connecting the charger to the golf cart and then to the AC power outlet, the charger will automatically detect the battery and begin charging.
- Indicator Lights: Observe the indicator lights on the charger. Typically, a red light indicates charging in progress, and a green light indicates a full charge or trickle charge mode. (Note: Refer to the specific LED indicators on your unit for exact meanings.)
- Charging Time: A full charge typically takes 4-6 hours, depending on the battery's discharge level.
- Trickle Mode: Once the battery is nearly full, the charger will automatically switch to trickle charge mode to prevent overcharging and maintain battery health.
- Completion: When the battery is fully charged, the charger will automatically shut down. Disconnect the AC power cord first, then disconnect the DC output plug from the golf cart.
Image: The yourheey 48V 15A charger highlighting its 5.0 trickle mode feature, which engages when the battery is near full capacity.
Maintenance
Proper maintenance ensures the longevity and performance of your charger and golf cart batteries.
- Cleaning: Keep the charger clean and free from dust and debris. Use a dry cloth for cleaning. Do not use liquids.
- Storage: Store the charger in a cool, dry place when not in use.
- Cable Inspection: Regularly inspect the AC and DC cables for any signs of damage, fraying, or exposed wires. Replace if damaged.
- Battery Care: Ensure golf cart batteries are properly maintained according to the golf cart manufacturer's guidelines, including checking water levels for flooded lead-acid batteries.
- Ventilation: Ensure the charger's cooling fan and vents are not obstructed during operation.
Image: The internal cooling fan of the yourheey 48V 15A charger, illustrating its role in heat dissipation and overall stability.
Troubleshooting
Refer to this section for solutions to common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger not turning on / No indicator lights | No AC power; Faulty outlet; Damaged power cord; Charger malfunction. | Check AC power connection. Test outlet with another device. Inspect power cord for damage. Contact support if issues persist. |
| Charger shows red light but does not turn green (fully charged) | Battery deeply discharged; Battery fault; Charger fault; OBC issue (if not bypassed). | Allow more time for charging. Check battery condition. Ensure OBC bypass is correctly implemented if needed. If the charger runs for an unusually long time without switching to green, disconnect and contact support. |
| Charger automatically stops working | Safety protection activated (overvoltage, overcurrent, overheating, short-circuit, reverse-connection, no-load). | Check for short circuits or incorrect connections. Ensure proper ventilation. Allow charger to cool down if overheated. The charger should resume work automatically once the fault is cleared. |
| Charger does not shut off after battery is full (potential overcharging) | Charger malfunction; Battery fault. | Immediately disconnect the charger. This indicates a potential fault in the charger's automatic shut-off mechanism. Contact customer support for assistance. Continued use may damage batteries. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 48V 15A CLUB CAR |
| Input Voltage | 110 Volts AC |
| Output Voltage | 48 Volts DC |
| Output Current | 15 Amps |
| Power Output | 900W |
| Product Dimensions | 8.6"L x 3.54"W x 2.36"H (22cm x 9cm x 6cm) |
| Item Weight | Approximately 3.52 lbs (1.6 kg) |
| Compatibility | Club Car 48V Golf Carts (DS, Precedent, Onward, Villager, Tempo, Carryall) |
| Battery Types | Lead Acid Battery, AGM, Gel |
| Charging Time | 4-6 hours (0% to full) |
Image: Detailed view of the yourheey 48V 15A charger, showing its compact dimensions and design features.
Warranty and Support
yourheey products are backed by a commitment to quality and customer satisfaction.
- Warranty: All yourheey products come with a 3-year warranty.
- Customer Support: If you have any questions, encounter issues, or require technical assistance, please contact our professional technical team. We aim to reply and resolve your problem within 24 hours.
- Contact Information: Refer to your purchase documentation or the official yourheey website for the most current contact details.
