Avid Power Tire Inflator Portable Air Compressor User Manual

1. Product Overview

The Avid Power Tire Inflator Portable Air Compressor (Model: ACAP332-G) is a versatile device designed for both inflation and deflation tasks. It features dual power supply options, a digital pressure gauge, and multiple working modes to accommodate various items.

Figure 1: Avid Power Tire Inflator Portable Air Compressor and included accessories.

2. Package Contents

Upon opening the package, ensure all components are present and in good condition:

• 1 x Tire Inflator Portable Air Compressor
• 1 x 20V 2000mAh Rechargeable Battery
• 1 x Battery Charger
• 1 x 12V Car Adapter
• 3 x Nozzles (for various inflatables)
• 1 x User Manual (this document)

3. Setup

Before initial use, ensure the battery is fully charged or connect the device to a suitable power source.

3.1 Power Supply Options

The tire inflator offers dual power supply flexibility:

• 20V 2000mAh Rechargeable Battery: For cordless operation. Ensure the battery is securely inserted into the designated slot.
• 12V Car Adapter: For direct power from your vehicle's 12V DC outlet. This serves as a reliable backup power source.

Figure 2: The inflator can be powered by its 20V battery or a 12V DC car adapter.

3.2 Attaching Nozzles

Select the appropriate nozzle for the item you intend to inflate or deflate. The three included nozzles are stored conveniently on the unit.

4. Operating Instructions

The Avid Power Tire Inflator features two primary working modes: High Pressure and High Volume, along with an automatic shut-off system for precise inflation.

4.1 High Pressure Mode

This mode is ideal for inflating items requiring higher pressure, such as car tires, bike tires, motorcycle tires, and sports balls. It utilizes dual solid metal motors for rapid inflation.

• Connect the high-pressure air hose securely to the item's valve.
• Use the '+' and '-' buttons on the digital pressure gauge to set your desired pressure (PSI, KPA, BAR, or KG/CM²).
• Press the 'ON' button to begin inflation. The device will automatically stop once the preset pressure is reached.

Figure 3: Dual metal motors ensure fast and efficient inflation.

Figure 4: The auto shut-off feature prevents over-inflation.

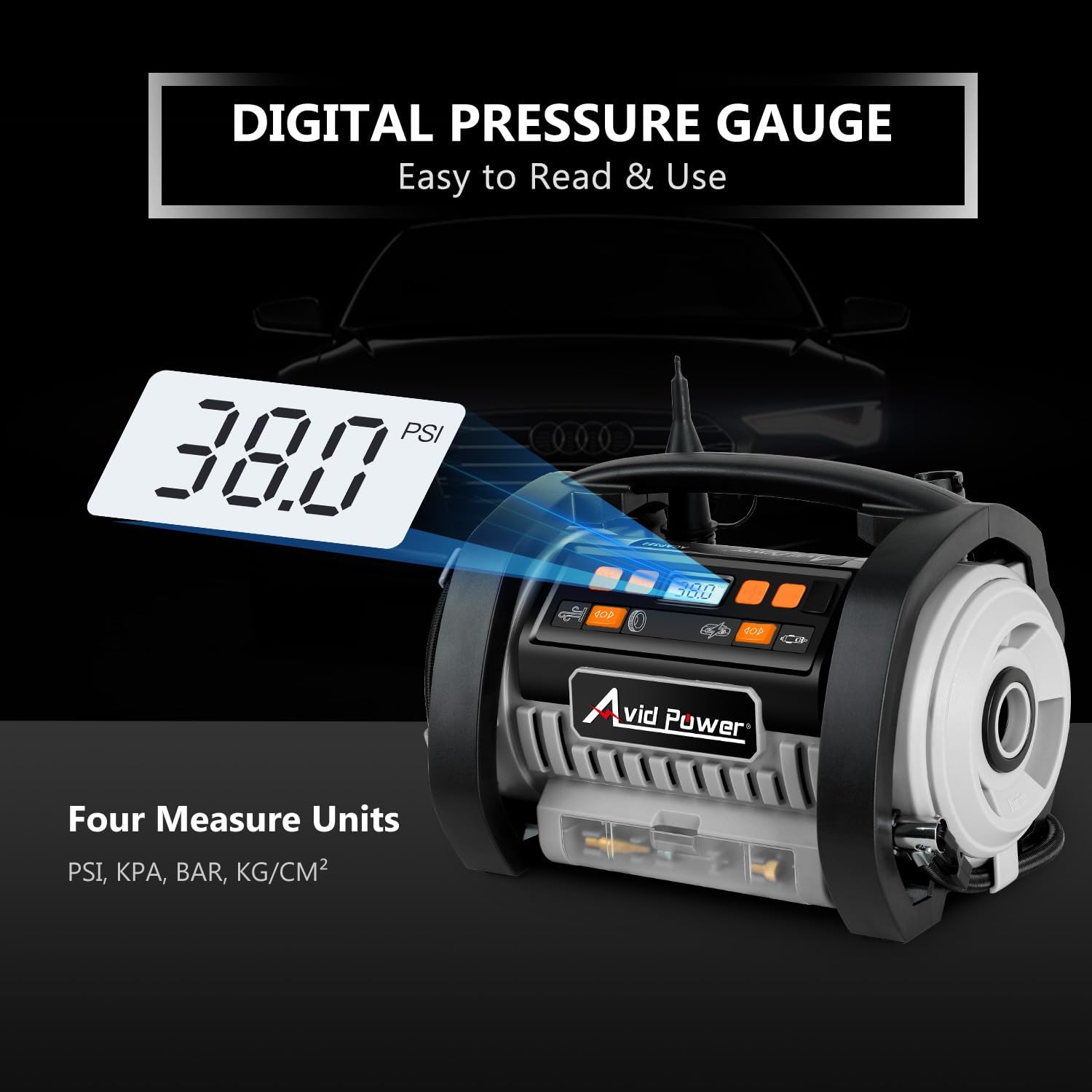

Figure 5: Easy-to-read digital pressure gauge with four measurement units.

4.2 High Volume Mode

This mode is designed for inflating and deflating larger items that require high airflow but lower pressure, such as air rafts, air mattresses, and pool floats.

• Attach the high-volume air hose to the appropriate port on the device.
• Connect the hose to the inflatable item.
• Activate the high-volume mode to begin inflation or deflation.

Figure 6: The inflator supports both high-pressure and high-volume applications.

4.3 Built-in LED Light

The device includes a built-in LED light for improved visibility when operating in low-light conditions or at night.

Figure 7: The integrated LED flashlight provides illumination for nighttime use.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Avid Power Tire Inflator.

• Cleaning: Wipe the exterior of the device with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the inflator in a dry, cool place away from direct sunlight and extreme temperatures. Ensure all hoses and nozzles are properly stored in their designated compartments to prevent damage.
• Battery Care: If using the rechargeable battery, ensure it is charged periodically, even when not in use, to maintain battery health.

6. Troubleshooting

If you encounter issues with your tire inflator, refer to the following common solutions:

• Device Not Turning On: Check the power source. Ensure the battery is charged and properly inserted, or that the 12V car adapter is securely connected and receiving power.
• Slow Inflation: Verify that the correct mode (High Pressure) is selected for tires. Ensure the hose connection to the valve is tight and there are no leaks.
• Inaccurate Pressure Reading: Ensure the hose is fully connected to the valve stem. If discrepancies persist, compare with a known accurate pressure gauge.
• Compatibility Note: This item is NOT compatible with batteries whose ASINs are B07JHZ5CST, B0BGPFWMZ6, and B0DDH6CC11. Its battery is not compatible with chargers whose ASINs are B07P3ZN45Q and B0DDC2B9GJ.

7. Specifications

8. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact Avid Power customer service directly. Refer to the contact details provided on the product packaging or visit the official Avid Power website.
