LivePure Bladeless Portable Neck Fan User Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your LivePure Bladeless Portable Neck Fan. Please read this manual thoroughly before using the device and retain it for future reference.

Image: The LivePure Bladeless Portable Neck Fan in Sage, showcasing its ergonomic, U-shaped design and bladeless air outlets.

Product Features

• Bladeless Design: Ensures safe operation and prevents hair entanglement.
• 360° Surrounding Air Outlet: Provides comprehensive cooling around the neck.
• Brushless Silent Motor: Operates quietly at approximately 35 dB.
• Four Adjustable Speeds: Customize airflow from low to turbo.
• 4000mAh Rechargeable Battery: Offers 4 to 16 hours of cooling depending on speed.
• USB Charging Port: Convenient and easy recharging.
• CocoCarbon Pre-filters: Captures dust, pet hair, and dander for cleaner air.
• Lightweight and Portable: Ergonomic design for comfortable, hands-free use.

Image: A white LivePure Neck Fan with callouts pointing to its key features, including hands-free wearable design, USB-C charging, cleanable CocoCarbon pre-filters, 4-12 hours runtime, and lightweight design.

Setup and First Use

1. Unboxing: Carefully remove the neck fan and all accessories from the packaging. Inspect for any damage.
2. Initial Charge: Before first use, fully charge the device.
   • Locate the USB charging port on the side of the fan.
   • Connect the provided USB charging cable to the fan and a compatible USB power source (e.g., wall adapter, computer USB port).
   • The indicator light will illuminate during charging and change color or turn off when fully charged. A full charge typically takes approximately 4.5 hours.
3. Wearing the Fan: Place the neck fan around your neck with the air outlets facing upwards and towards your neck. The ergonomic design ensures a comfortable and secure fit.

Image: The back view of a grey LivePure Neck Fan, clearly indicating the location of the charging port and the indicator light for charging status.

Operating Instructions

1. Power On/Off: Press and hold the Power/Fan Speed button (usually marked with a power icon) for a few seconds to turn the fan on or off.
2. Adjusting Fan Speed: Once powered on, short press the Power/Fan Speed button to cycle through the four available speeds:
   • Speed 1 (Low)
   • Speed 2 (Medium)
   • Speed 3 (High)
   • Speed 4 (Turbo)
   The indicator lights on the fan will typically show the current speed setting.
3. Battery Life: The 4000mAh rechargeable battery provides varying operating times based on the selected speed:
   • Low Speed: Approximately 12 hours
   • Medium Speed: Approximately 7 hours
   • High Speed: Approximately 5 hours
   • Turbo Speed: Approximately 4 hours

Image: A table detailing the approximate battery running times for the LivePure Neck Fan at different speed settings: Low (~12 hours), Medium (~7 hours), High (~5 hours), and Turbo (~4 hours).

Maintenance

Regular maintenance ensures optimal performance and longevity of your LivePure Neck Fan, especially regarding the CocoCarbon pre-filters.

Cleaning CocoCarbon Pre-filters

The fan includes four cleanable CocoCarbon pre-filters designed to capture larger airborne particles such as dust, pet hair, and dander. A filter cleaning indicator light will notify you when the pre-filters require cleaning.

1. Locate Filters: The pre-filters are located within the air intake grilles on each side of the fan.
2. Remove Filters: Gently open the filter compartments and remove the CocoCarbon pre-filters.
3. Clean Filters: The filters can be cleaned by gently brushing off accumulated dust and debris, or by rinsing them under cool water. If rinsing, ensure they are completely dry before reinserting.
4. Reinstall Filters: Once clean and dry, carefully place the pre-filters back into their compartments and close securely.

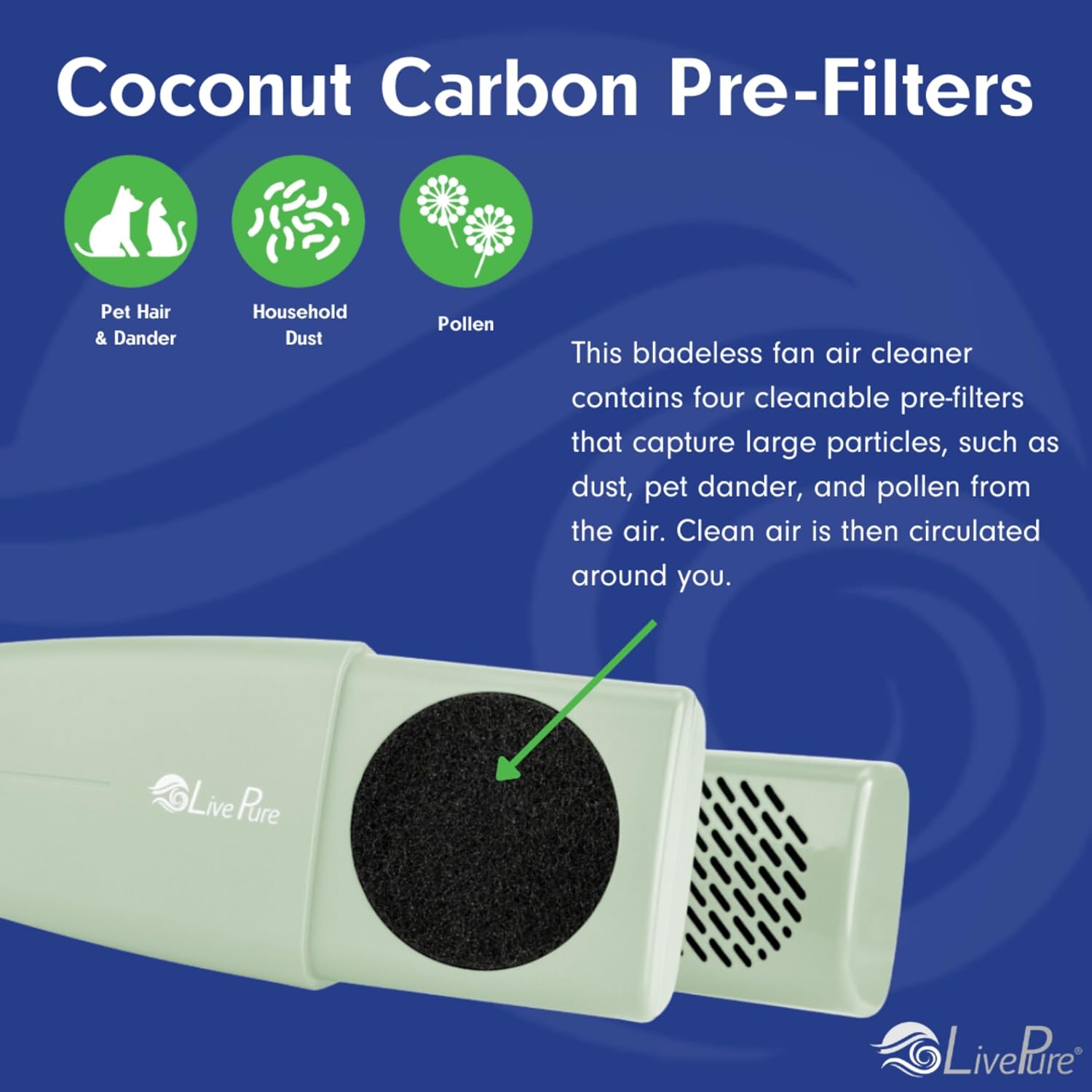

Image: A close-up view of the LivePure Neck Fan's filter compartment, showing the CocoCarbon pre-filter and explaining its function in capturing pet hair, household dust, and pollen.

Image: A side view of the LivePure Neck Fan highlighting the filter indicator light, which signals when the pre-filters need to be cleaned.

General Cleaning

• Wipe the exterior of the fan with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water.
• Ensure the fan is powered off and unplugged before cleaning.

Troubleshooting

If you encounter issues not listed here or if the problem persists after attempting the solutions, please contact LivePure customer support.

Specifications

• Brand: LivePure
• Model: B0DDW9LFXJ
• Color: Sage (as per current product variant)
• Electric Fan Design: Wearable Fan
• Power Source: Battery Powered (Rechargeable)
• Battery Capacity: 4000mAh
• Charging Time: Approximately 4.5 hours
• Operating Time: 4-12 hours (up to 16 hours in sleep mode, 4 hours in turbo)
• Noise Level: Approximately 35 dB
• Special Feature: Bladeless, CocoCarbon Pre-filters
• Indoor/Outdoor Usage: Outdoor
• Manufacturer: LivePure
• UPC: 810067454056
• Country of Origin: China

Image: A blue LivePure Neck Fan shown with its approximate dimensions: 6.7 inches across the neck opening and 7.2 inches in length, with a weight of 10.1 ounces.

Warranty and Support

LivePure products are designed for quality and reliability. For information regarding warranty coverage, product registration, or technical support, please refer to the official LivePure website or contact their customer service department.

Manufacturer: LivePure

Seller: Filter Monster

For further assistance, please visit the LivePure Store on Amazon.
