1. Introduction
Thank you for choosing the COSWHEEL CT20s Electric Bike. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric bike. Please read this manual thoroughly before your first ride and keep it for future reference. Your safety is paramount; always wear appropriate safety gear and adhere to local traffic laws.
Image: The COSWHEEL CT20s Electric Bike, showcasing its robust design and integrated display.
2. Setup and Assembly
Your COSWHEEL CT20s Electric Bike arrives approximately 85% pre-assembled. Follow these steps to complete the assembly and prepare for your first ride:
- Unpacking: Carefully remove the bike and all components from the packaging. Retain the original packaging for potential future transport or returns.
- Handlebar Installation: Attach the handlebar to the stem, ensuring all bolts are securely tightened.
- Pedal Installation: Identify the left (L) and right (R) pedals. Screw them into the crank arms. Note that the left pedal is reverse-threaded.
- Battery Installation & Charging: The 60V 27.5AH removable battery is typically pre-installed or needs to be inserted into its compartment. Connect the charger to the battery and a power outlet. Charge fully before first use (3.5-8 hours).
- Tire Inflation: Inflate the 20" x 5.0 fat tires to the recommended pressure (check tire sidewall for PSI).
- Brake and Gear Check: Verify that the dual hydraulic disc brakes are functioning correctly and the Shimano 7-speed gear system shifts smoothly.
Image: Close-up of the COSWHEEL CT20s electric bike's high-capacity removable battery, highlighting its integration into the frame.
Setup Video Guide
Video: An official COSWHEEL video demonstrating the power and speed features of the CT20s Electric Bike, useful for understanding initial setup and capabilities.
3. Operating the CT20s Electric Bike
The COSWHEEL CT20s offers a versatile riding experience with multiple modes and smart features.
Powering On/Off and Digital Key
To power on the bike, hold the digital key near the display. The bike will activate, and the display will illuminate. To power off, repeat the process or use the power button on the display if available. The digital key also functions as an anti-theft deterrent.
Riding Modes
- Electric Mode: Provides full motor assistance without pedaling. Ideal for cruising or when you need maximum power.
- Pedal-Assist Mode (PAS): The motor provides assistance as you pedal. You can adjust the assistance level via the display. This mode extends battery range significantly.
- Regular Bike Mode: The motor is off, and you pedal the bike like a traditional bicycle.
Smart APP Control & LCD Display
The CT20s features a 3.5" IPS LCD display and smart APP control. The display shows real-time riding data such as speed, mileage, riding time, and remaining battery power. The APP allows you to locate the ebike's position and view various parameters, enhancing your riding experience.
Image: The COSWHEEL CT20s's smart app interface and the 3.5-inch IPS LCD display, showing various riding metrics.
Shimano 7-Speed Gearing
The integrated Shimano 7-speed gear system allows for smooth and efficient shifting, enabling you to adapt to different terrains and inclines with ease. Use the twist grip shifter on the handlebar to change gears.
Image: Detail of the Shimano 7-speed gearing system and comfortable seat on the COSWHEEL CT20s.
Operation Video Guide
Video: An official COSWHEEL video detailing various features of the CT20s Electric Bike, including operational aspects and performance.
4. Safety Features
The COSWHEEL CT20s is equipped with several features designed to enhance rider safety.
Dual Hydraulic Disc Braking System
The bike features front and rear motorcycle-level dual-piston hydraulic oil brakes with 180MM brake discs, providing efficient and reliable stopping power in various conditions.
Image: Illustration comparing hydraulic disc brakes to mechanical brakes, emphasizing the superior stopping power of the CT20s's hydraulic system.
Front and Rear Suspension
Both the front and rear of the bike are equipped with shock absorption systems, providing a smoother and more comfortable ride by absorbing bumps and vibrations from uneven terrain.

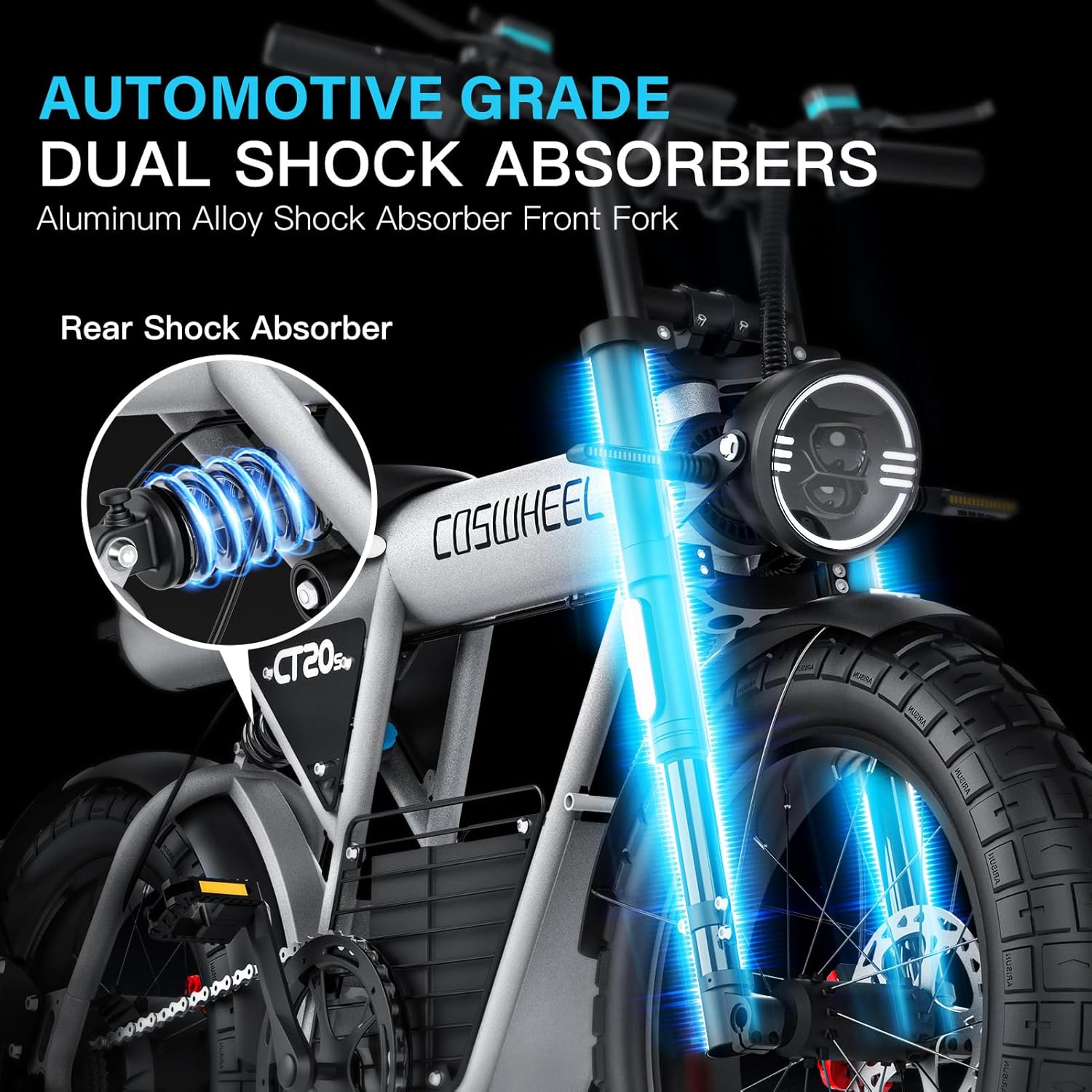

Image: Close-up view of the automotive-grade dual shock absorbers on the COSWHEEL CT20s, highlighting both front fork and rear suspension.
Safety Lighting System
The CT20s includes brighter LED headlights and taillights to ensure visibility and safety during nighttime rides. The classic angel eye LED headlight provides high-luminance illumination.
Anti-Theft Alarm
The bike is equipped with an anti-theft alarm system. If the bike is moved without the digital key, an alarm will sound to deter theft.
5. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your COSWHEEL CT20s Electric Bike.
- Battery Care: Always use the provided charger. Avoid fully discharging the battery and store it in a cool, dry place when not in use. Charge regularly, even if not used frequently.
- Tire Pressure: Regularly check and maintain the correct tire pressure for the 20" x 5.0 fat tires. Proper inflation ensures safety, efficiency, and tire lifespan.
- Brake Inspection: Periodically inspect the brake pads and discs for wear. Ensure brake levers operate smoothly and provide adequate stopping power.
- Chain Lubrication: Keep the chain clean and lubricated to ensure smooth gear changes and prevent wear.
- General Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Fastener Check: Periodically check all bolts and fasteners for tightness, especially after the first few rides.
Image: Illustration of the powerful 2000W high-speed brushless motor, a key component requiring proper maintenance.
6. Troubleshooting
This section addresses common issues you might encounter with your COSWHEEL CT20s Electric Bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on | Low battery; Digital key not detected; Loose connections | Charge battery; Ensure digital key is near display; Check battery connections. |
| Motor not assisting | PAS level too low; Motor connection issue; Brake lever engaged | Increase PAS level; Check motor cable; Ensure brake levers are fully released. |
| Brakes feel spongy or weak | Air in hydraulic line; Worn brake pads; Low fluid level | Bleed brakes (professional service recommended); Replace pads; Refill fluid. |
| Unusual noises during ride | Loose components; Chain issues; Motor/wheel bearing wear | Inspect all fasteners; Clean/lubricate chain; Contact support if persistent. |
For issues not listed here or if solutions do not resolve the problem, please contact COSWHEEL customer support.
7. Specifications
Key technical specifications for the COSWHEEL CT20s Electric Bike:
| Feature | Specification |
|---|---|
| Motor | 2000W (1500W rated) Brushless Motor |
| Battery | 60V 27.5AH Removable Lithium Battery (1650Wh) |
| Max Speed | Up to 40 MPH |
| Max Range (Electric Mode) | Up to 55+ miles |
| Max Range (Pedal-Assist Mode) | Up to 100+ miles |
| Torque | 120 N.m |
| Tires | 20" x 5.0 Fat Tires (All Terrain, Puncture-Resistant) |
| Brakes | Dual Hydraulic Disc Brakes (180MM discs) |
| Suspension | Front and Rear Dual Suspension |
| Gears | Shimano 7-Speed Gear System |
| Frame Material | Aluminum Alloy |
| Max Payload Capacity | 440 lbs |
| Item Weight | 99 Pounds |
| Dimensions (LxWxH) | 70.89 x 26.4 x 45.3 inches |
Image: Detailed diagram showing the dimensions and payload capacity of the COSWHEEL CT20s Electric Bike.
8. Warranty and Support
COSWHEEL is committed to providing excellent customer service and support for your electric bike.
- Technical Support: You will receive lifelong technical support for your COSWHEEL electric bike.
- After-Sales Service: Our professional after-sales service center is available to provide support within 24 hours to address any questions or concerns you may have.
- Returns: In case of any issues requiring a return, please reserve the original packaging.
Image: A representation of the COSWHEEL customer service team, ready to assist with product inquiries and support.
