1. Introduction
Thank you for purchasing the EWKYLSEM V-G-R V-305 Electric Rotary Shaver. This manual provides essential information for the safe and effective use, maintenance, and care of your new shaver. Please read these instructions thoroughly before first use and retain them for future reference.
2. Product Overview
The V-G-R V-305 is a waterproof electric rotary shaver designed for men's facial hair trimming and shaving. It features triple rotary heads for a smooth shave and an integrated pop-up trimmer for detailing.
2.1 Included Components
- 1 x EWKYLSEM V-G-R V-305 Men's Shaver
- 1 x USB Charging Cable
- 1 x Storage Bag
- 1 x Cleaning Brush
- 1 x Protective Cap
- 1 x Instruction Manual (this document)
Image 2.1: The EWKYLSEM V-G-R V-305 electric shaver shown with its included accessories: USB charging cable, cleaning brush, protective cap, and storage bag.
3. Key Features
The V-G-R V-305 shaver incorporates several features designed for convenience and performance:
- IPX7 Waterproof Rating: Allows for easy cleaning under running water and supports wet or dry shaving.
- Triple Rotary Heads: Designed to contour to the face, neck, and chin for a close and comfortable shave.
- Pop-up Trimmer: Integrated for precise trimming of longer beards and sideburns.
- LED Display: Clearly indicates battery percentage and charging status.
- USB Charging: Provides flexible charging options for travel and daily use.

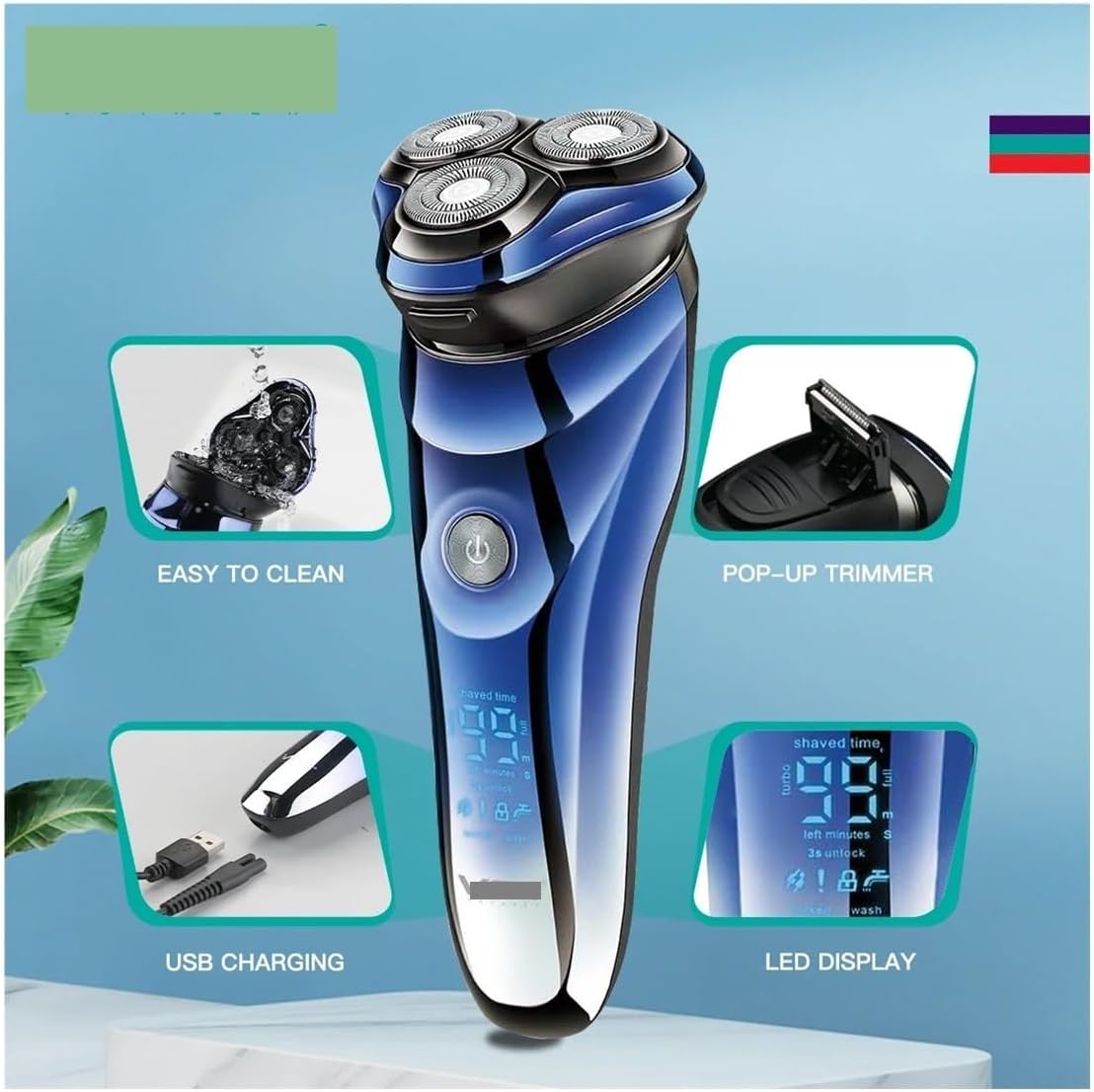

Image 3.1: Visual representation of the shaver's key features: easy cleaning, pop-up trimmer, USB charging, and LED display.
Image 3.2: The shaver head being rinsed under running water, demonstrating its IPX7 waterproof capability for easy cleaning and wet shaving.
Image 3.3: Close-up view of the shaver's three rotary cutting heads, designed for efficient and comfortable shaving.
Image 3.4: Information regarding the shaver's 800mAh Li-ion battery, 1.5 hours quick charge time, and 100 minutes of work time.
4. Setup and Initial Use
4.1 Charging the Shaver
- Before first use, fully charge the shaver.
- Connect the USB charging cable to the shaver's charging port and plug the other end into a compatible USB power source (e.g., computer, wall adapter).
- The LED display will show the charging progress. A full charge typically takes approximately 1.5 hours.
- Once fully charged, the display will indicate 100%. Disconnect the shaver from the power source.
Note: Do not operate the shaver while it is connected to the charging cable.
5. Operating Instructions
5.1 Basic Shaving
- Press the power button to turn on the shaver.
- Hold the shaver at a right angle to your skin.
- Move the shaver in small, circular motions against the direction of hair growth.
- Apply gentle pressure. Do not press too hard, as this can cause irritation and reduce shaving efficiency.
- For a closer shave, stretch your skin with your free hand.
- After shaving, press the power button to turn off the shaver.
5.2 Wet Shaving
The V-G-R V-305 is IPX7 waterproof, allowing for comfortable wet shaving with foam or gel. Apply shaving foam or gel to your face, then proceed with the basic shaving steps outlined above.
5.3 Using the Pop-up Trimmer
- Locate the pop-up trimmer switch on the back of the shaver.
- Slide the switch upwards to activate the trimmer.
- Use the trimmer for shaping sideburns, mustaches, or for pre-trimming longer beard hair before a full shave.
- After use, slide the switch downwards to retract the trimmer.
Image 5.1: A man demonstrating the use of the electric rotary shaver on his beard area.
6. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your shaver.
6.1 Daily Cleaning (After Each Use)
- Turn off the shaver.
- Open the shaver head assembly (refer to the diagram in the Product Overview section if needed).
- Rinse the shaver head thoroughly under running tap water until all hair clippings are removed.
- You may use the included cleaning brush to remove stubborn hair particles from the blades and inner chamber.
- Shake off excess water and allow the shaver head to air dry completely before closing it and attaching the protective cap.
6.2 Deep Cleaning (Weekly)
For a more thorough cleaning, you can detach the individual rotary blades and rinse them separately. Ensure all parts are completely dry before reassembling.
6.3 Storage
Store the shaver in a cool, dry place, away from direct sunlight and extreme temperatures. Use the protective cap to prevent damage to the shaving heads and the included storage bag for travel.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Shaver does not turn on. | Battery is depleted. | Charge the shaver fully. |
| Shaver does not turn on. | Shaver is locked. | Press and hold the power button for 3 seconds to unlock (if applicable, check LED display for lock indicator). |
| Poor shaving performance. | Shaver heads are dirty or clogged. | Clean the shaver heads thoroughly as per maintenance instructions. |
| Poor shaving performance. | Blades are worn. | Consider replacing the shaver heads (replacement parts sold separately). |
| Skin irritation after shaving. | Applying too much pressure. | Use gentle pressure and ensure skin is clean before shaving. |
8. Specifications
- Model: V-305
- Brand: EWKYLSEM
- Battery Type: Li-ion
- Battery Capacity: 800mAh
- Charging Time: Approximately 1.5 hours
- Operating Time: Up to 100 minutes on a full charge
- Waterproof Rating: IPX7
- Item Weight: 50 Grams
- Dimensions: 1.18 x 0.79 x 0.39 inches (Package Dimensions)
9. Warranty and Support
This EWKYLSEM V-G-R V-305 Electric Rotary Shaver comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.
The warranty does not cover damage resulting from misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.
For warranty claims, technical support, or inquiries about replacement parts, please contact the retailer or manufacturer's customer service with your purchase details.
