AZDOME PG17 4K 12" Rear View Mirror Camera User Manual

Hardwire Kit Installation

The included Type-C hardwire kit enables 24-hour parking monitoring and protects your vehicle's battery by automatically halting recording if the battery voltage drops too low. Follow these steps for proper installation:

1. Locate Fuse Box: Identify the fuse box in your vehicle, typically found under the dashboard or in the engine bay.
2. Find Correct Fuse Slot: Using a circuit pen, find the correct fuse slot for ACC (Accessory) / BAT(+) (Battery Positive) that provides power only when the ignition is on, and constant power respectively.
3. Identify Fuse Type: Determine the correct type of fuse for your car to ensure compatibility with the hardwire kit.
4. Connect Cables:
   • Red wire (BAT+): Connect to a constant fuse that provides continuous power.
   • Yellow wire (ACC): Connect to an ACC fuse that provides power only when the ignition is on.
   • Black wire (GND): Connect to a metal bolt or screw on the vehicle's chassis for grounding.
5. Test and Route Cables: After connecting, test the dash cam to ensure it powers on and functions correctly. Carefully route the cables to conceal them and prevent interference with driving.

Image: Visual guide illustrating the six steps for installing the hardwire kit, from locating the fuse box to routing cables.

Image: Detailed wiring diagram for the hardwire kit, showing the red (BAT+), yellow (ACC), and black (GND) wires connecting to the fuse box and a metal ground point, with output to the dash cam.

The hardwire kit intelligently identifies and automatically converts 12V/24V vehicle voltage to 5V/2.5A max output for the dash cam.

SD Card Installation

Your AZDOME PG17 comes with a 256GB Micro SD card, providing ample storage for your recordings. A 64GB card may also be included or pre-installed. Ensure the card is inserted correctly before first use.

1. Locate the Micro SD card slot on the side of the mirror dash cam.
2. Insert the 256GB Micro SD card with the gold contacts facing the back of the camera until it clicks into place.
3. It is recommended to format the SD card within the dash cam's settings upon first use to ensure optimal performance and compatibility.

Parking Monitoring Mode

With the hardwire kit connected, your AZDOME PG17 supports 24-hour parking monitoring. This feature provides continuous surveillance even when your vehicle is parked and turned off. There are two primary parking modes:

• Collision Detection Parking Mode: The built-in G-sensor detects sudden impacts or collisions. Upon detection, the dash cam automatically locks the current video segment to prevent it from being overwritten, ensuring critical event footage is preserved.
• Time-Lapse Parking Mode: This mode allows the dash cam to record continuously for 24 hours at a low frame rate (e.g., 1 frame per second). This compresses long periods of time into short, viewable videos, saving storage space while providing comprehensive coverage of your parked vehicle.

Image: Illustration detailing the 24-hour parking mode, showing both Collision Detection Parking Mode (triggered by impact) and Time-Lapse Parking Mode (continuous recording at 1fps).

Loop Recording

The AZDOME PG17 features loop recording, which ensures continuous recording without manual intervention. When the SD card reaches its full capacity, the dash cam will automatically overwrite the oldest unlocked footage. This means you never have to worry about running out of storage space.

• Video segments are typically recorded in 1, 3, or 5-minute intervals (default is 1 minute).
• In the event of a collision detected by the G-sensor, the current video segment will be locked and protected from being overwritten.

Image: Flowchart demonstrating loop recording: deleting unlocked oldest clips, storing new footage, locking clips upon event, and recording new clips.

SD Card Usage and Compatibility

The included AZDOME 256GB Micro SDXC Card is specifically designed for dash cam use, offering enhanced durability and performance compared to standard memory cards. It provides four times the storage capacity of a typical 64GB card, allowing for longer recording durations.

• Specifications: U3, CLASS 10, A2 rated, ensuring high read (up to 100MB/s) and write (up to 80MB/s) speeds necessary for continuous 4K video recording.
• Durability: Rigorously tested for resistance to temperature (-10°C to 80°C), water (IPX6), shock, and magnetic interference, ensuring reliable performance in various vehicle environments.
• Compatibility: While optimized for AZDOME dashcams, this SD card is widely compatible with most dashcams on the market that support microSDXC cards.

Image: The AZDOME 256GB Micro SD card displayed with several different AZDOME dash cam models, highlighting its wide compatibility.

Image: A visual representation of fast data transfer speeds, showing the AZDOME 256GB Micro SD card with vehicles in motion, symbolizing quick read and write capabilities.

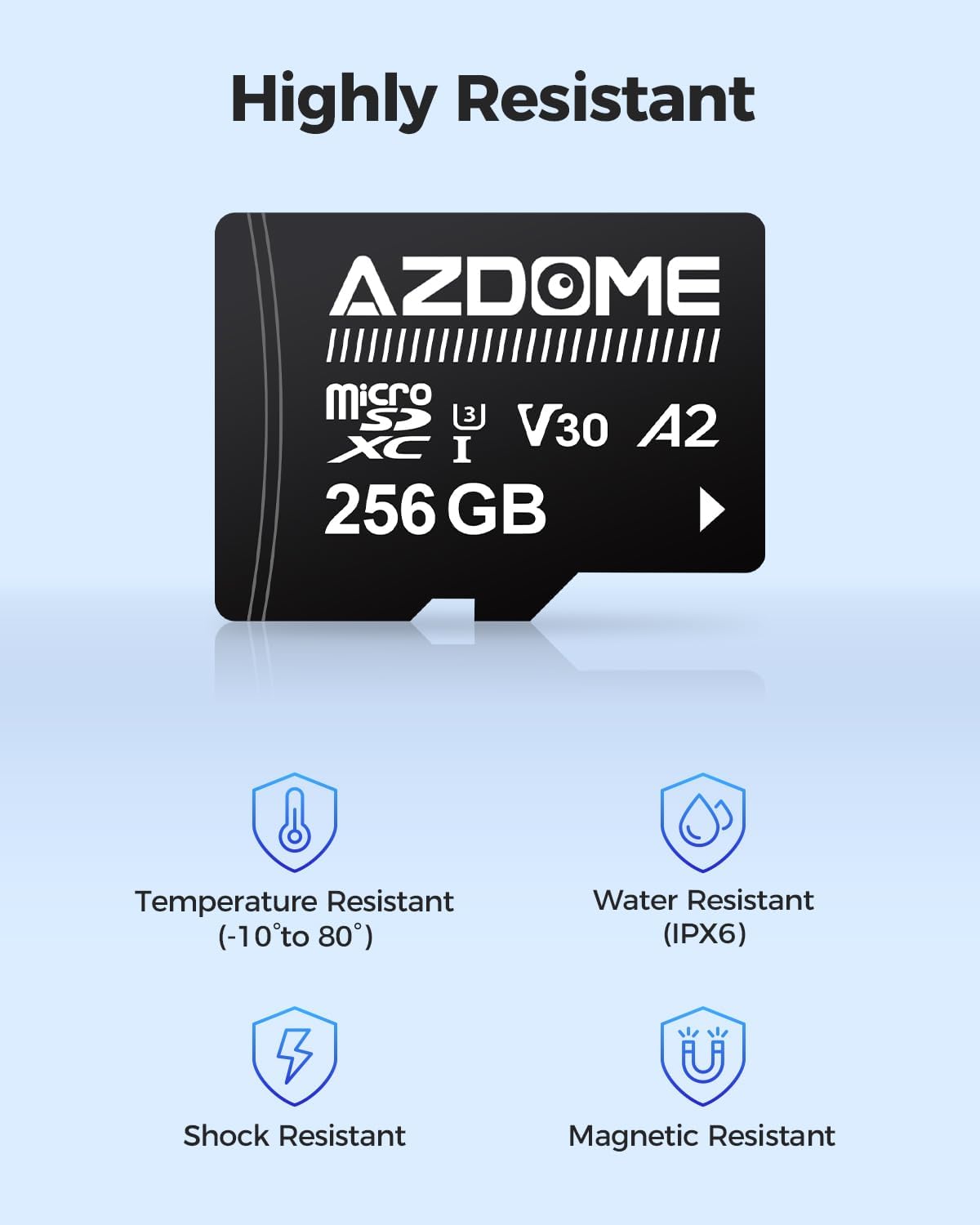

Image: Icons depicting the robust features of the AZDOME Micro SD card, including resistance to temperature, water (IPX6), shock, and magnetic fields.
