1. Introduction
Thank you for choosing the Naturehike TC07 Collapsible Folding Wagon. This manual provides essential information for the safe and efficient use, assembly, operation, and maintenance of your wagon. Please read these instructions thoroughly before first use and retain them for future reference.
The Naturehike TC07 wagon is designed for versatility and convenience, suitable for various outdoor activities such as camping, grocery shopping, gardening, and sporting events. Its robust construction and all-terrain wheels ensure reliable performance across different environments.
2. Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 265 lbs (120 kg). Overloading can cause damage to the wagon and potential injury.
- Children and Pets: This wagon is not designed for transporting children or pets. Always supervise children around the wagon.
- Uneven Terrain: Exercise caution when operating on uneven, sloped, or soft terrain. Ensure the load is balanced to prevent tipping.
- Handle Use: Always maintain a firm grip on the handle. Do not allow the wagon to roll freely on slopes.
- Assembly: Ensure all components are correctly assembled and secured before use.
- Storage: Store the wagon in a dry, cool place away from direct sunlight and extreme temperatures.
3. Product Overview
The Naturehike TC07 Collapsible Folding Wagon features a heavy-duty steel frame, durable 600D Oxford fabric, and all-terrain wheels for smooth mobility. It includes an extendable handle and a removable canopy for added convenience.
Image 3.1: The Naturehike TC07 Collapsible Folding Wagon with its canopy extended.
Key Features:
- Compact and Portable: Lightweight design (20.6 lbs) and foldable dimensions (27.2'' x 19.1'' x 6.9'') for easy transport and storage.
- Smooth Mobility: 360° rotating front wheels with steering and rolling bearings, and an ergonomic extendable handle for effortless control.
- Durable Construction: Heavy-duty 1.2mm thick steel frame and 600D Oxford fabric. Wear-resistant PU wheels suitable for various terrains.
- Extra Large Capacity: 265 lbs (120 kg) weight capacity and 5.16 cu.ft storage space.
- Versatile Use: Ideal for camping, groceries, gardening, sports, beach trips, and shopping.
4. Setup and Unfolding
The Naturehike TC07 wagon is designed for quick and easy setup without additional tools.
- Unpack: Remove the wagon from its packaging. It will be in a folded state.
- Unfold the Frame: Place the folded wagon on a flat surface. Gently pull the sides of the wagon apart until the frame extends fully.
- Secure the Base: Press down firmly on the center of the wagon's base until it locks into place, creating a stable bottom.
- Extend Handle: Locate the handle and extend it to your desired length. Ensure it clicks into position.
- Attach Canopy (Optional): If using the canopy, insert the canopy poles into the designated slots on each corner of the wagon frame. Drape the canopy fabric over the poles and secure it.
Image 4.1: Illustration of attaching the removable canopy to the wagon frame.
5. Operating Instructions
5.1 Loading the Wagon
- Distribute weight evenly within the wagon to maintain balance and stability.
- Do not exceed the maximum weight capacity of 265 lbs (120 kg).
- Utilize the built-in pockets and cup holders for smaller items.
Image 5.1: The wagon demonstrating its extra-large capacity and integrated storage features.
5.2 Maneuvering the Wagon
- The ergonomic handle can be adjusted to a comfortable height for pushing or pulling.
- The 360° rotating front wheels provide excellent maneuverability. Guide the wagon by steering the handle in the desired direction.
- The all-terrain PU wheels are designed to handle various surfaces, including grass, sand, and gravel.
Image 5.2: Detail of the 360° all-terrain wheel design, highlighting its features.
5.3 Folding and Storage
To fold the wagon for storage:
- Empty the Wagon: Ensure the wagon is empty of all contents.
- Remove Canopy (if attached): Detach the canopy and its poles.
- Collapse the Base: Locate the pull tab or handle in the center of the wagon's base and pull upwards. The wagon frame will begin to collapse inwards.
- Compress: Push the sides of the wagon together until it is fully folded into its compact form.
- Secure: Use any integrated straps or clips to secure the wagon in its folded position.
6. Maintenance and Care
- Cleaning: The 600D Oxford fabric can be spot cleaned with mild soap and water. Allow to air dry completely before folding or storing. Do not machine wash.
- Frame: Wipe the steel frame with a damp cloth to remove dirt and debris. Dry thoroughly to prevent rust.
- Wheels: Periodically check the wheels for debris (e.g., mud, sand, small stones) and clean as necessary to ensure smooth operation.
- Storage: Store the wagon in a dry, protected area when not in use to prolong its lifespan.
- Inspection: Regularly inspect the wagon for any signs of wear, loose fasteners, or damage. Do not use if damaged.

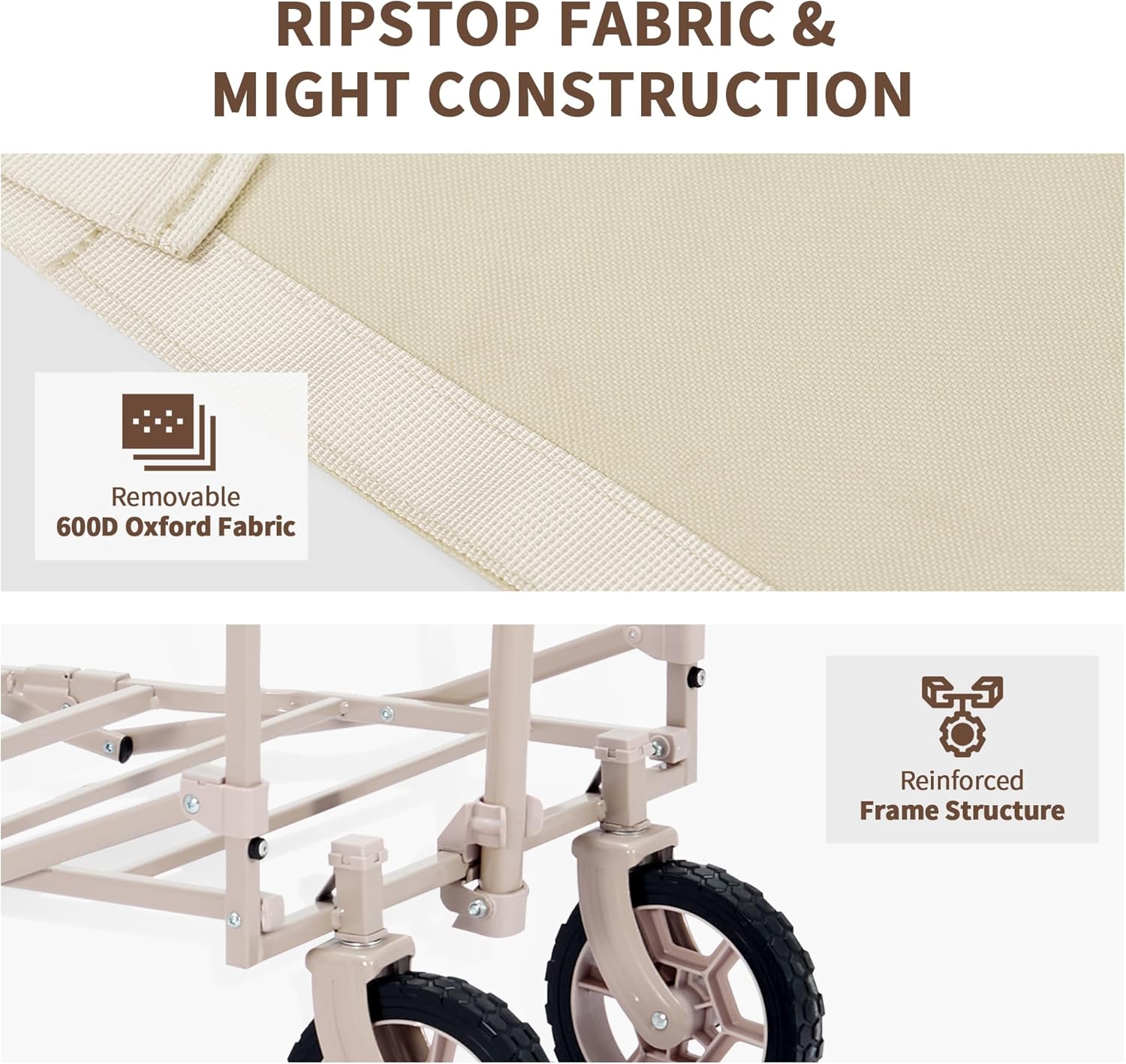

Image 6.1: Detail of the durable 600D Oxford fabric and reinforced frame construction.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Wagon does not unfold or fold smoothly. | Mechanism is stiff or obstructed. | Ensure no debris is caught in the frame. Apply light lubricant to moving joints if necessary. Ensure the base is pulled up/pushed down correctly. |
| Wheels do not rotate freely. | Debris in wheel mechanism or bearings. | Inspect wheels and remove any trapped dirt, sand, or hair. |
| Wagon feels unstable during use. | Overloaded or unevenly distributed weight. | Reduce load to within capacity. Redistribute items evenly to balance the wagon. |
| Handle does not extend or retract. | Locking mechanism engaged or obstructed. | Ensure the release button or lever is fully pressed. Check for any obstructions. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | TC07 |
| Brand | Naturehike |
| Material | Alloy Steel (Frame), 600D Oxford Fabric (Body) |
| Color | White (as per product listing) |
| Product Dimensions (Unfolded) | 33"D x 37"W x 19"H (83.8cm D x 94cm W x 48.3cm H) |
| Folded Dimensions | 27.2'' x 19.1'' x 6.9'' (69.1cm x 48.5cm x 17.5cm) |
| Item Weight | 20.6 lbs (9.34 kg) |
| Weight Capacity | 265 lbs (120 kg) |
| Storage Space | 5.16 Cu.Ft (146 Liters) |
| Wheels | 4 x All-Terrain PU Wheels, 360° Rotating Front Wheels |
| Handle Material | Metal |
| Special Feature | Removable Canopy, Built-in Pockets, Cup Holders |
| Assembly Required | No (minimal setup) |
Image 8.1: Detailed dimensions of the Naturehike TC07 Collapsible Folding Wagon.
9. Warranty and Support
Naturehike products are manufactured to high-quality standards. For warranty information, product support, or to inquire about replacement parts, please contact Naturehike customer service through the retailer where the product was purchased or visit the official Naturehike website.
Please retain your proof of purchase for any warranty claims.
