Product Overview
The BAOFENG 5RH Pro GPS Walkie Talkie is a robust communication device designed for various applications, including outdoor activities and emergency response. It integrates advanced features such as GPS positioning, Automatic Position Reporting System (APRS), and NOAA weather alerts, ensuring reliable performance and enhanced safety. This model features a 1.77-inch TFT color screen, a full keyboard for direct frequency input, and a user-friendly menu system.
Note: The GPS type 5RH Pro model does not include a flashlight feature.
Included Components:
- 1x BAOFENG 5RH Pro GPS Radio
- 1x USB-C Cable
- 1x High Gain Original Antenna
- 1x 2500mAh Enlarge Capacity Battery
- 1x Desktop Charger
- 1x Belt Clip
- 1x Hand Strap
- 1x English Manual
- 1x 771 Antenna
- 1x Shoulder Speaker Microphone

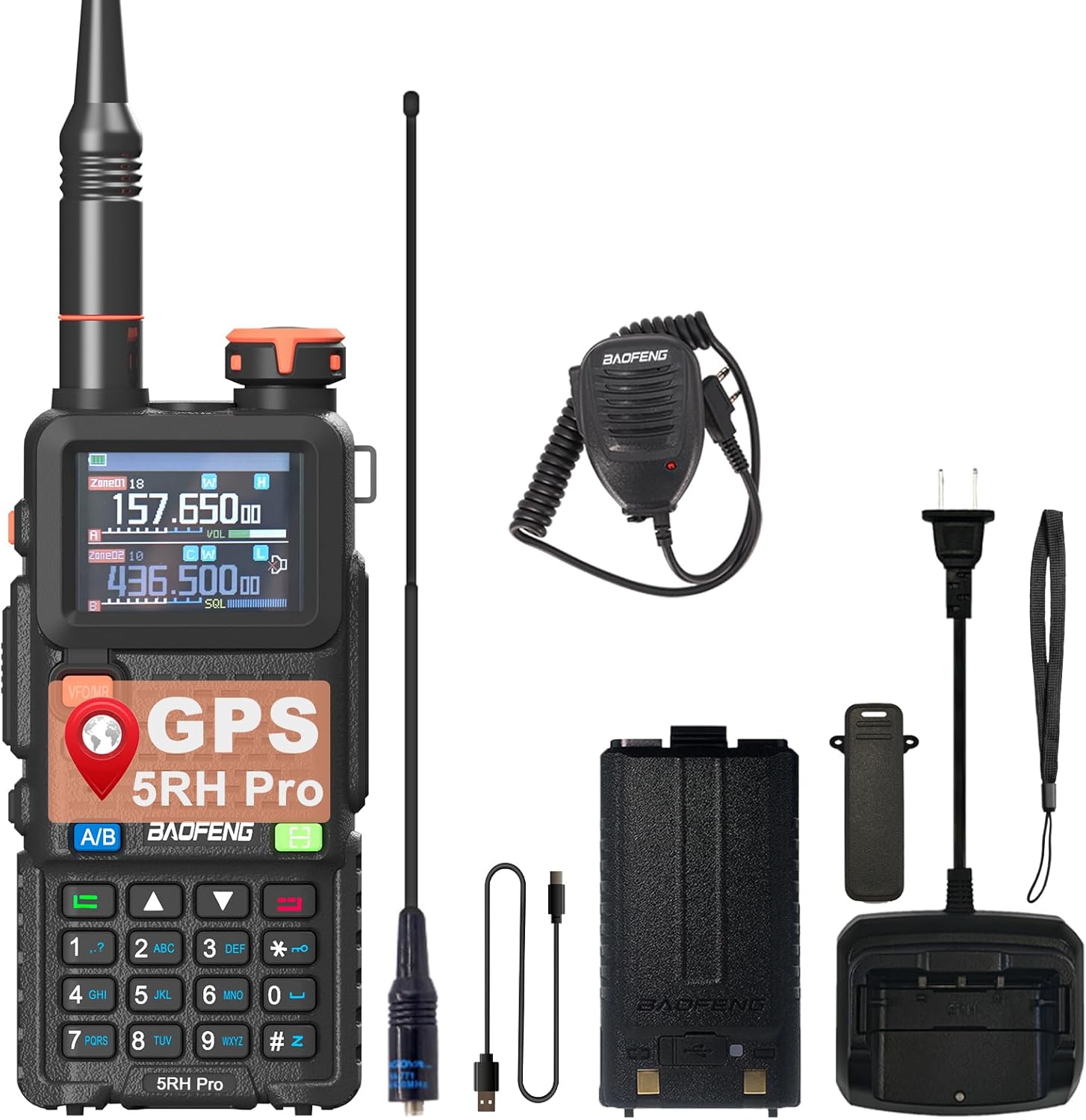

Image: The BAOFENG 5RH Pro GPS Walkie Talkie displayed with all its standard accessories, including the radio unit, antennas, battery, charger, USB-C cable, belt clip, hand strap, and shoulder speaker microphone.
Setup Guide
1. Battery Installation:
- Align the 2500mAh battery with the battery compartment on the back of the radio.
- Slide the battery upwards until it clicks securely into place.
2. Antenna Attachment:
- Screw the desired antenna (High Gain Original or 771 Antenna) clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.
3. Initial Charging:
Before first use, fully charge the battery. The radio supports USB-C direct charging and desktop charger charging.
- Using USB-C Cable: Insert the USB-C cable into the radio's charging port and connect the other end to a compatible USB power source (e.g., laptop, car charger, power bank).
- Using Desktop Charger: Place the radio (with battery installed) into the desktop charging cradle. Ensure the charging indicator light illuminates.
Image: Demonstrates the versatility of USB-C charging for the BAOFENG 5RH Pro, showing connections to a laptop, standard USB adapter, car charger, and power bank, alongside the traditional desktop charging dock.
Operating Instructions
Power On/Off:
Rotate the power/volume knob clockwise to turn the radio on. Continue rotating to adjust the volume. Rotate counter-clockwise until a click is heard to turn the radio off.
Display and Navigation:
The 1.77-inch TFT screen provides clear display of frequencies, channel names, and menu options. Use the navigation keys and full keyboard to access and adjust settings.
Image: Highlights the 1.77-inch LCD screen of the BAOFENG 5RH Pro, emphasizing its clear display, dual display capability, support for 640 channels, and English menu interface.
GPS Positioning Function:
The integrated GPS module allows for accurate real-time positioning. This feature enables location sharing and requesting location information from other compatible devices.
Image: Illustrates the GPS (Global Positioning System) functionality of the BAOFENG 5RH Pro, showing how it ensures accurate real-time positioning and location sharing on a global map background.
APRS (Automatic Position Reporting System):
The APRS feature allows the radio to automatically update your location to companions or rescue teams in real-time, enhancing safety during outdoor activities.
Falling Alarm:
This safety feature can detect if the radio user has fallen and can trigger an alarm, which can be crucial for seeking help in outdoor or emergency situations.
Image: Explains the Falling Alarm feature, indicating its utility for seeking help when injured outdoors, and details the APRS (Automatic Position Reporting System) for real-time location updates to rescue teams.
One Key Copy Frequency:
This function simplifies frequency matching with other radios.
- Step 1: Turn on the radio. Press and hold the designated button (often indicated by a search icon) until the screen displays "SEARCH". The radio will begin seeking a signal.
- Step 2: While the radio is searching, press and hold the transmit button on the other radio you wish to copy the frequency from. Once the 5RH Pro finishes searching and displays the frequency and decode information, press the confirmation button.
- Step 3: Switch to channel mode to select the newly copied channel. The screen will show the frequency of the counterpart, allowing for immediate communication.
Image: Step-by-step guide on how to use the "One Key Match Frequency" feature on the BAOFENG 5RH Pro, illustrating the process of searching, decoding, and confirming frequencies from another radio.
NOAA Weather Channels:
Access NOAA weather channels to receive real-time weather updates and alerts, providing crucial information for safety during severe weather conditions.
VOX (Voice Activated Transmit):
Enables hands-free operation by transmitting automatically when your voice is detected.
Dual Watch:
Allows monitoring of two different frequencies or channels simultaneously.
Other Functions:
- Built-in CTCSS/DCS tones for selective signaling.
- VFO scan range setting.
- Cross band reception.
- Analog signaling: DTMF, 2TONE, 5TONE, BDC1200 codecs.
- Roger Beep (End Transmission Tone).
- TO/CO/SE Scan Resume methods.
- Adjustable Screen Brightness and Backlight Duration.
- Repeater Access Tone (1000/1450/1750/2100Hz).
- One Touch call.
- SOS function.
Maintenance
Cleaning:
Wipe the radio's surface with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the radio is dry before use or charging.
Battery Care:
To prolong battery life, avoid overcharging or completely draining the battery. Store the battery in a cool, dry place when not in use for extended periods.
Storage:
Store the radio in a dry, dust-free environment away from direct sunlight and extreme temperatures. Remove the battery if storing for a long duration.
Troubleshooting
Radio Does Not Power On:
- Ensure the battery is properly installed and fully charged.
- Check the battery contacts for any dirt or corrosion.
Cannot Transmit or Receive:
- Verify that the antenna is securely attached.
- Check if the radio is on the correct frequency or channel.
- Ensure CTCSS/DCS settings match those of the other radio.
- Confirm that the battery has sufficient charge.
Issues with Channel Saving/Programming:
Some users have reported difficulties with programming software or firmware related to saving channels. Ensure you are using the latest official programming software and firmware available from BAOFENG or authorized distributors. Consult online communities or the manufacturer's support for specific programming guidance.
GPS Not Functioning:
- Ensure the radio has a clear view of the sky for satellite acquisition.
- Check GPS settings within the radio's menu to ensure it is enabled.
Specifications
| Feature | Specification |
|---|---|
| Model Number | 5RH Pro GPS |
| Screen Type | 1.77" TFT LCD |
| Number of Channels | 640 |
| Frequency Range | 136-174 MHz, 400-470 MHz |
| Tuner Technology | UHF/VHF |
| Talking Range Maximum | 5 Miles |
| Battery Type | 1 Lithium Ion battery (2500mAh) |
| Charging Type | USB-C, Desktop Charger |
| Voltage | 7.4 Volts (DC) |
| Water Resistance Level | Water Resistant |
| Product Dimensions | 1.57 x 2.36 x 12.79 inches |
| Item Weight | 1.67 pounds |
| Country of Origin | China |
Warranty and Support
Warranty Information:
A 1-year warranty is provided for this product. This warranty is exclusively offered through "Shiqun Electronics Co., Ltd". Please retain your proof of purchase for warranty claims.
Customer Support:
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact the seller or manufacturer directly. Refer to the contact information provided with your purchase or visit the official BAOFENG website for support resources.
