VINZ Arenas Jet Helmet User Manual

1. Safety Information

Your VINZ Arenas Jet Helmet is designed to provide protection for scooter, motorcycle, and moped riders. Adherence to safety guidelines is crucial for your well-being.

1.1 ECE 22.06 Certification

This helmet complies with the latest European safety standard ECE 22.06. This certification sets strict requirements for impact tests, rotational forces, and accessories like visors and sun visors. Helmets with ECE 22.06 approval offer a proven higher level of safety and are mandatory for new type approvals within Europe.

Image: ECE 22.06 certification label, indicating compliance with European safety standards.

1.2 General Safety Warnings

• Always wear your helmet correctly fastened when riding.
• Never modify your helmet in any way, as this may compromise its protective capabilities.
• Do not use solvents, gasoline, or abrasive cleaners on your helmet, as they can damage the shell and internal components.
• If the helmet sustains an impact, even if no visible damage is present, it should be replaced immediately. The protective structure may be compromised.
• Ensure the visor is clean and free from obstructions for clear vision.

2. Product Overview

The VINZ Arenas Jet Helmet is designed for comfort and safety, featuring a durable construction and practical elements for an enhanced riding experience.

Image: Front-side view of the VINZ Arenas Jet Helmet in blue, showcasing its design and clear main visor.

2.1 Key Features

• Superior Quality Construction: The helmet features an ABS (Acrylonitrile Butadiene Styrene) outer shell and an EPS (Expanded Polystyrene) inner shell, providing a lightweight yet highly secure and durable structure.
• Comfortable Fit: A soft inner lining and removable ear pads ensure a snug and comfortable fit, suitable for extended wear.
• Integrated Sun Visor: A practical, retractable sun visor eliminates the need for separate sunglasses on bright days, enhancing safety and convenience.
• Anti-Scratch Main Visor: The main visor is treated to resist scratches, maintaining clear visibility.
• Convenient Quick Release Buckle: The chin strap features a quick-release mechanism for easy and secure fastening and removal.

Image: Detailed diagram highlighting key features such as the flip-up sun visor, anti-scratch main visor, ECE 22.06 approval, and the convenient quick-release buckle.

Image: Diagram detailing internal features including the ABS outer shell for durability, comfortable inner lining, and removable ear pads for a perfect fit.

3. Setup

3.1 Determining Your Size

To ensure optimal protection and comfort, select the correct helmet size. Measure the circumference of your head approximately 2.5 cm (1 inch) above your eyebrows and ears. Refer to the size chart below.

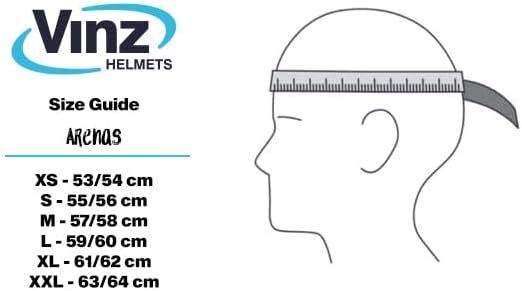

Image: Size guide for VINZ Arenas helmets, illustrating how to measure head circumference and listing corresponding sizes (XS-53/54 cm, S-55/56 cm, M-57/58 cm, L-59/60 cm, XL-61/62 cm, XXL-63/64 cm).

If you are between sizes, it is generally recommended to choose the larger size for comfort, or try both to ensure a snug fit without excessive pressure points.

3.2 Fitting the Helmet

1. Put on the Helmet: Hold the helmet by the chin straps, with the open part facing you. Expand the opening slightly with your hands and slide the helmet onto your head.
2. Check the Fit: The helmet should fit snugly around your head, cheeks, and jaw. It should not move freely when you shake your head. There should be no excessive pressure points.
3. Fasten the Chin Strap: Secure the quick-release buckle. Adjust the strap so it is tight enough that you cannot pull the helmet off your head, but not so tight that it causes discomfort or restricts breathing. The strap should sit firmly under your chin.
4. Final Check: With the strap fastened, try to roll the helmet forward and backward. It should not move significantly.

4. Operating Instructions

4.1 Main Visor Operation

The main visor protects your eyes from wind, dust, and debris. It is designed to be anti-scratch.

• Opening: Gently lift the visor from the bottom edge. It will click into various open positions.
• Closing: Pull the visor down until it securely latches into the closed position.
• Removal/Installation: Refer to the specific instructions provided with your helmet for visor removal and installation, typically involving a quick-release mechanism on the side pivots.

4.2 Integrated Sun Visor Operation

The integrated sun visor provides protection from glare on sunny days.

• Deploying: Locate the lever or slider on the side of the helmet (usually on the left). Push or slide it forward/down to lower the sun visor.
• Retracting: Push or slide the lever/slider backward/up to retract the sun visor back into the helmet shell.

5. Maintenance

Proper maintenance extends the life of your helmet and ensures its continued protective function.

5.1 Cleaning the Helmet Exterior

• Use a soft cloth dampened with mild soap and lukewarm water.
• Gently wipe the exterior shell. Avoid harsh scrubbing.
• Rinse with a clean, damp cloth and dry with a soft, lint-free cloth.
• Do not use chemical cleaners, solvents, or abrasive materials.

5.2 Cleaning the Visors

• Remove the main visor if possible (refer to section 4.1 for removal).
• Wash visors with lukewarm water and a small amount of mild soap.
• Use a soft cloth or sponge. Do not use abrasive materials that could scratch the anti-scratch coating.
• Rinse thoroughly and dry with a soft, clean microfiber cloth.

5.3 Cleaning the Interior Lining

The ear pads are removable for cleaning.

• Carefully detach the removable ear pads.
• Hand wash the ear pads with mild soap and lukewarm water.
• Rinse thoroughly and allow them to air dry completely before reattaching.
• For non-removable parts of the lining, gently wipe with a damp cloth and mild soap, then wipe with a clean damp cloth and allow to air dry.

5.4 Storage

• Store your helmet in a cool, dry place, away from direct sunlight and extreme temperatures.
• Use the provided helmet bag to protect it from scratches, dust, and dirt when not in use or during transport.

6. Troubleshooting

This section addresses common issues you might encounter with your helmet.

6.1 Helmet Feels Loose or Too Tight

• Loose Fit: Re-check your head measurement against the size chart. Ensure the chin strap is properly adjusted and snug. If the helmet still feels loose, it may be too large and should be replaced with a smaller size.
• Too Tight: Re-check your head measurement. Ensure the removable ear pads are correctly seated. If discomfort persists, the helmet may be too small and should be replaced with a larger size.

6.2 Visor Not Moving Smoothly

• Main Visor: Check for any dirt or debris in the visor mechanism. Clean the pivot points. If the issue persists, the visor may need to be reinstalled or replaced.
• Sun Visor: Ensure the operating lever/slider is clean and free from obstruction. Do not force the mechanism.

6.3 Excessive Noise While Riding

• Ensure all visors are fully closed and sealed.
• Check for any gaps or loose components.
• A snug fit is essential for reducing wind noise. Refer to the sizing guide.

7. Specifications

Image: Visual representation of the helmet's dimensions and weight, indicating its compact and lightweight design.

8. Warranty

The VINZ Arenas Jet Helmet comes with a 1-year product warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from accidents, misuse, unauthorized modifications, or normal wear and tear.

For warranty claims, please retain your proof of purchase and contact your retailer or the VINZ customer service.

9. Support

For further assistance, questions, or concerns regarding your VINZ Arenas Jet Helmet, please refer to the following:

• Retailer: Contact the store or online platform where you purchased the helmet.
• Manufacturer Website: Visit the official VINZ Helmets website for FAQs, additional resources, or contact information.
• Included Manual: Always keep this manual for future reference.
