Corberó CLT712VIN Front Load Washing Machine User Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Corberó CLT712VIN Front Load Washing Machine. Please read this manual thoroughly before using the appliance and keep it for future reference.

The Corberó CLT712VIN is a 7 kg capacity front-load washing machine featuring a 1200 RPM inverter motor, 16 wash programs, anti-allergic steam function, delayed start (3-24h), quick wash (15-30 min), and an XXL door for convenient loading and unloading. It is designed for efficient and quiet operation, optimizing energy consumption.

Setup and Installation

Unpacking

Carefully remove the washing machine from its packaging. Ensure all packing materials, including the transit bolts at the rear of the machine, are removed before installation. Failure to remove transit bolts can cause severe damage to the appliance during operation.

Placement

Place the washing machine on a firm, level surface. Adjust the leveling feet to ensure the machine is stable and does not wobble. Proper leveling reduces vibration and noise during operation.

Water and Electrical Connections

Connect the water inlet hose to a cold water tap. Ensure connections are tight to prevent leaks. Connect the drain hose to a suitable drain pipe or sink. Plug the power cord into a grounded electrical outlet. The product includes a power cable for connection.

Image: The Corberó CLT712VIN washing machine, white, with its front-load door and control panel visible, is shown installed under a countertop in a modern kitchen environment. This illustrates a typical installation setup.

Operating Instructions

Loading Laundry

Open the XXL door and load laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The machine has a 7 kg capacity.

Image: A close-up view inside the stainless steel drum of the Corberó CLT712VIN washing machine, showing the internal paddles designed to agitate laundry during a wash cycle. The large opening of the XXL door is visible.

Adding Detergent

Pull out the detergent drawer located on the top left of the machine. Add appropriate amounts of detergent and fabric softener to the designated compartments. Refer to detergent packaging for recommended dosages.

Image: A close-up of the open detergent dispenser drawer of the Corberó CLT712VIN washing machine, showing compartments for pre-wash, main wash, and fabric softener. The model number CLT712VIN is visible on the machine's body.

Program Selection

Turn the program selector dial to choose one of the 16 available wash programs. Programs include options for delicate fabrics, cottons, synthetics, and specialized cycles like anti-allergic and quick wash.

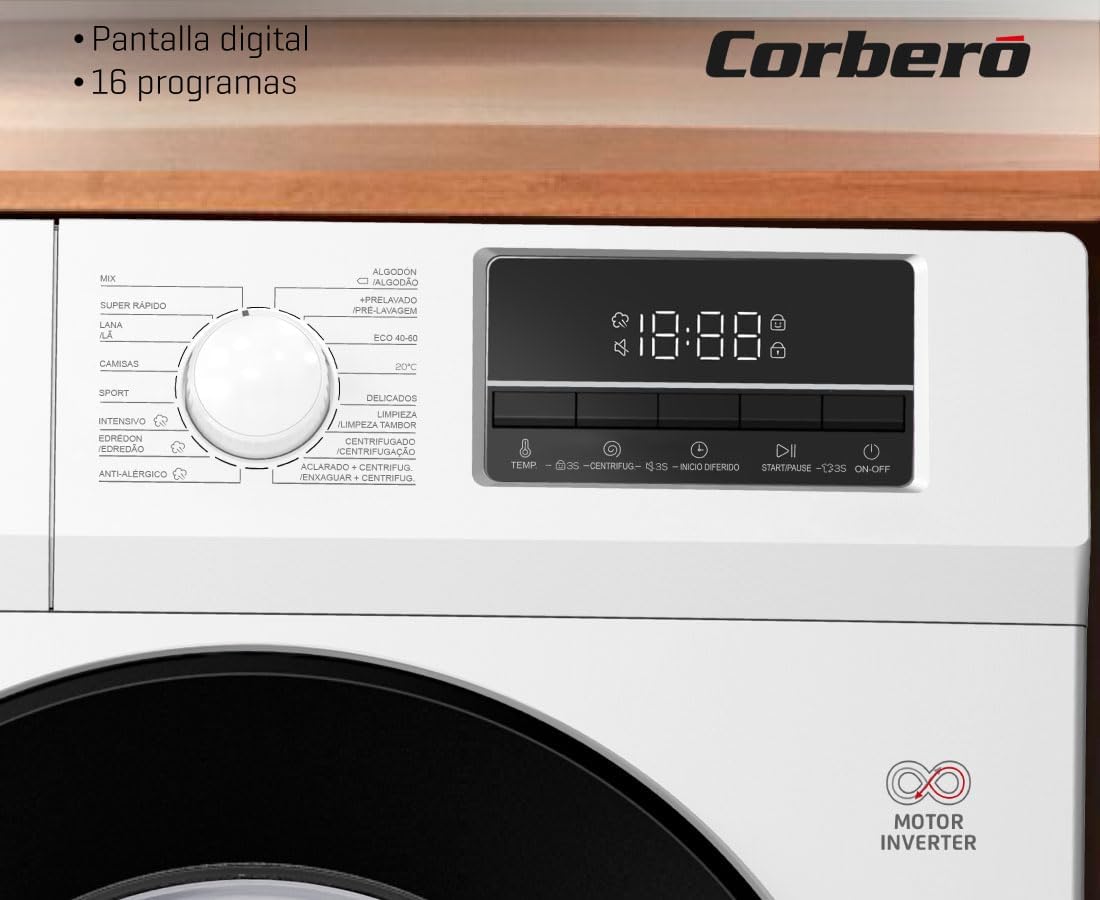

Image: A detailed view of the control panel of the Corberó CLT712VIN washing machine. It features a central program selector dial with various wash cycles labeled (e.g., Mix, Super Rápido, Lana, Camisas, Sport, Intensivo, Edredón, Anti-alérgico, Algodón, Prelavado, Eco 40-60, 20°C, Delicados, Limpieza Tambor, Centrifugado, Aclarado + Centrifugado). To the right, a digital display shows time, and touch buttons for temperature, spin speed, delayed start, and start/pause are visible.

Special Functions

• Anti-Allergic Steam Function: This function uses steam to help eliminate allergens and refresh clothes, ideal for sensitive skin or households with children.
• Delayed Start (3-24h): Allows you to program the wash cycle to start at a later time, fitting your schedule and potentially optimizing energy consumption during off-peak hours.
• Quick Wash (15-30 min): Provides fast washing cycles for lightly soiled items, available in 15 or 30-minute options.

Image: The open door of the Corberó CLT712VIN washing machine, with text overlays highlighting "Lavado rápido 15 a 30 minutos" (Quick wash 15 to 30 minutes) and "Inicio diferido" (Delayed start), indicating these key operational features.

Starting a Cycle

Press the Start/Pause button to begin the selected wash cycle. The display will show the remaining time.

Maintenance

Cleaning the Detergent Drawer

Regularly remove and clean the detergent drawer to prevent residue buildup. Rinse it under running water and use a brush if necessary to remove any hardened detergent.

Cleaning the Drum

Periodically run a drum cleaning cycle (if available) or a hot wash cycle with no laundry and a descaling agent to remove detergent residues and prevent odors.

Cleaning the Filter

Locate the drain pump filter, usually at the bottom front of the machine. Open the cover, place a shallow container underneath to catch water, and carefully unscrew the filter. Clean any lint or debris and reinsert it securely.

Exterior Cleaning

Wipe the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the surface.

Troubleshooting

This section provides solutions to common issues you might encounter. For problems not listed here, please contact customer support.

Specifications

• Model: CLT712VIN
• Brand: Corberó
• Type: Front Load Washing Machine
• Capacity: 7 Kilograms
• Spin Speed: 1200 RPM
• Motor Type: Inverter Motor
• Number of Programs: 16
• Special Functions: Anti-Allergic Steam, Delayed Start (3-24h), Quick Wash (15-30 min)
• Door Type: XXL Door
• Color: White
• Energy Efficiency Class: C
• Dimensions (D x W x H): 47 x 59.5 x 85 cm
• Product Weight: 6 kg (Note: This weight appears unusually low for a washing machine, please verify with product packaging if concerned.)
• Controls Type: Push Button
• Recommended Use: Residential

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Corberó website. Keep your purchase receipt as proof of purchase for any warranty claims.

Contact Information: Please refer to the contact details provided in your product packaging or on the official Corberó website for technical assistance and service requests.
