RYER Premium Carpet Cleaner Wet-Dry Vacuum User Manual

Introduction

This user manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your RYER Premium Carpet Cleaner Wet-Dry Vacuum. Please read this manual thoroughly before first use and keep it for future reference.

Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is for household use only. Do not immerse the appliance in water. Keep away from children. Use only as described in this manual.

Product Overview and Components

The RYER Premium Carpet Cleaner is a versatile wet-dry vacuum designed for deep cleaning of various textile surfaces. It features a dual water tank system for separating clean and dirty water, ensuring efficient cleaning.

Image: The RYER Premium Carpet Cleaner Wet-Dry Vacuum with its hose and cleaning nozzle.

Key Components:

• Main Unit: Houses the motor and dual water tanks.
• Clean Water Tank: For fresh water and cleaning solution.
• Dirty Water Tank: Collects extracted dirty water.
• Flexible Hose: Connects the main unit to the cleaning nozzle.
• Cleaning Nozzle: Sprays water and suctions liquid from surfaces.

Image: Illustration of the dual tank system, showing the 0.8L clean water tank and 0.5L dirty water tank, designed for separation of clean and dirty water.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Assemble: Connect the flexible hose to the main unit and the cleaning nozzle to the hose. Ensure all connections are secure.
3. Fill Clean Water Tank: Remove the clean water tank (0.8L capacity). Fill it with clean water and, if desired, a suitable carpet or upholstery cleaning solution according to the solution's instructions. Do not overfill. Reinsert the tank securely.
4. Empty Dirty Water Tank: Ensure the dirty water tank (0.5L capacity) is empty and properly seated before starting operation.
5. Power Connection: Plug the power cord into a grounded electrical outlet.

Operating Instructions

The RYER Carpet Cleaner is designed for effective stain removal and deep cleaning on various surfaces.

Image: The cleaning nozzle shown cleaning various surfaces including car seats, textiles, sofas, and carpets, demonstrating its versatility as an all-surface cleaner.

1. Pre-test: Before cleaning, always test a small, inconspicuous area of the surface for colorfastness and material compatibility.
2. Power On: Turn on the appliance using the power switch.
3. Spray Solution: Press the spray trigger on the cleaning nozzle to dispense the cleaning solution onto the soiled area. Allow the solution to penetrate for a few moments, as recommended by your cleaning solution's instructions.
4. Scrub and Suction: Gently scrub the soiled area with the brush on the cleaning nozzle. Then, apply downward pressure and slowly pull the nozzle across the wet area to suction up the dirty water. Overlap strokes slightly to ensure thorough cleaning.
5. Repeat if Necessary: For heavily soiled areas, you may need to repeat the spray and suction process.
6. Rinse (Optional): For best results, after cleaning with solution, you may rinse the area by filling the clean water tank with plain water and repeating the suction process without adding more cleaning solution.
7. Monitor Tanks: Keep an eye on the clean water tank to refill it as needed and the dirty water tank to empty it before it reaches its maximum level.

Image: The cleaning nozzle effectively removing embedded dirt and stains from a carpet, demonstrating its powerful cleaning capability.

Maintenance

Regular maintenance ensures optimal performance and longevity of your RYER Carpet Cleaner.

1. Empty and Rinse Dirty Water Tank: After each use, immediately empty the dirty water tank. Rinse it thoroughly with clean water to remove any residue and prevent odors.
2. Clean Nozzle and Hose: Detach the cleaning nozzle and rinse it under running water. Check the hose for any blockages and clear them if necessary.
3. Wipe Down Unit: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners.
4. Air Dry: Allow all components to air dry completely before reassembling or storing the unit.
5. Storage: Store the appliance in a cool, dry place, away from direct sunlight and extreme temperatures. The compact design allows for space-saving storage.

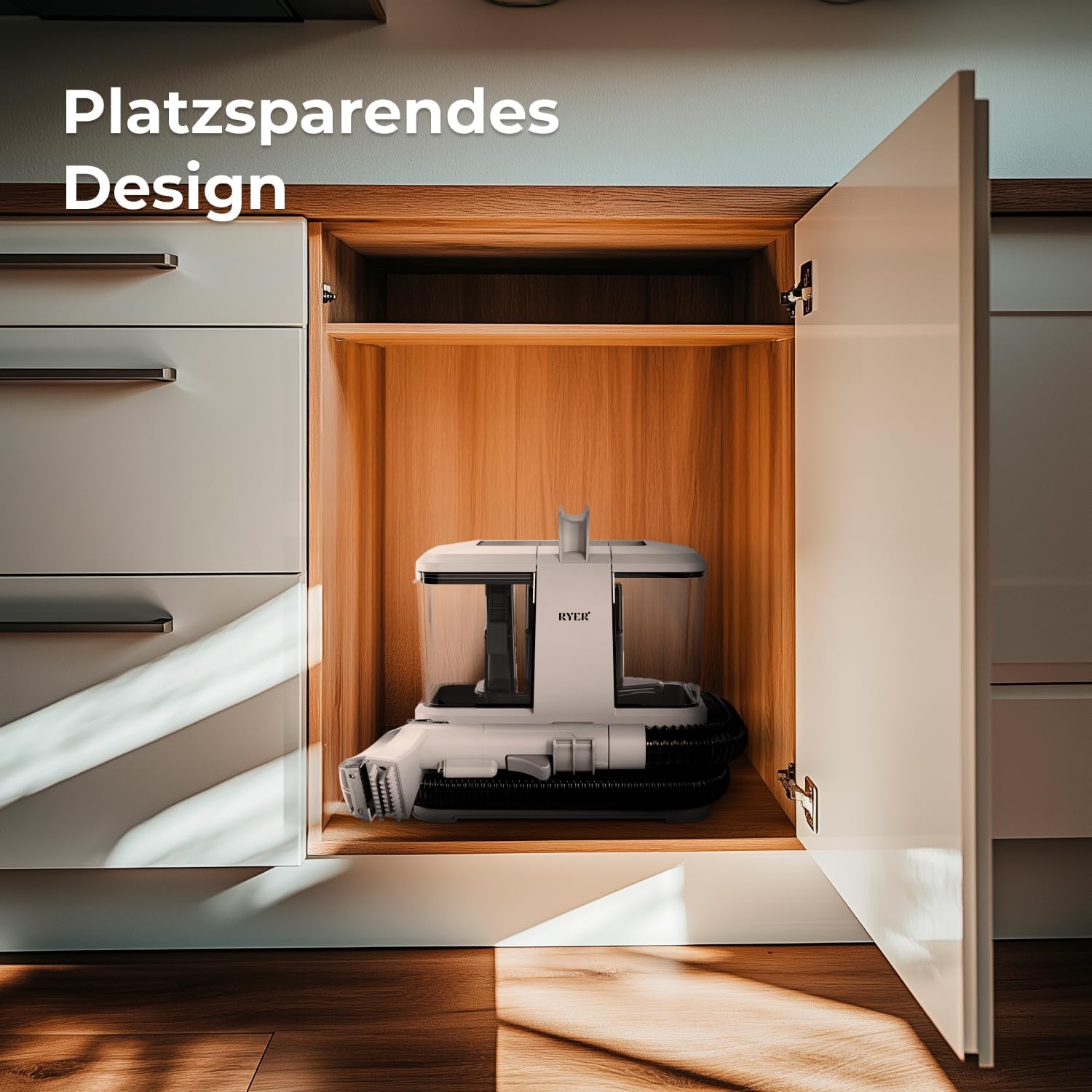

Image: The RYER Carpet Cleaner stored neatly inside a cabinet, highlighting its compact and space-saving design.

Troubleshooting

If you encounter issues with your RYER Carpet Cleaner, refer to the following common problems and solutions:

Specifications

Warranty and Support

For warranty information or technical support, please contact RYER customer service through the retailer where the product was purchased or visit the official RYER website. Please have your model number (B0DDKSN4L4) and purchase date available when contacting support.
