Introduction
Thank you for purchasing the PHORUS 52 Inch Tropical Ceiling Fan. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before installation and keep it for future reference.
Figure 1: PHORUS 52 Inch Tropical Ceiling Fan (Dark Brown)
This image shows the complete PHORUS 52 Inch Tropical Ceiling Fan, featuring five dark brown palm leaf-shaped blades and a central integrated LED light. A remote control and a smartphone displaying the control app are also visible, indicating multiple control options.
Important Safety Information
Always follow basic safety precautions when installing and operating this appliance to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions before beginning installation.
- Ensure the power is turned off at the circuit breaker before wiring.
- All wiring must be in accordance with national and local electrical codes.
- The mounting structure must be capable of supporting the fan's weight (16 pounds).
- Do not operate the fan with damaged blades.
Setup and Installation
This section details the steps for assembling and installing your ceiling fan. Refer to the provided video for visual guidance.
Package Contents
Verify all parts are present before beginning assembly.
Video 1: Installation Guide for 52 Inch Outdoor Tropical Ceiling Fan
This video provides a comprehensive guide for the installation of the 52-inch tropical ceiling fan, covering all assembly steps from unboxing to final mounting and wiring. It is an official seller video.
The installation video (Video 1) provides a detailed visual walkthrough of the assembly process. Key components include the fan body assembly, mounting bracket, downrod, hanger ball, blades, lamp shade, LED light source, receiver, and remote control.
Assembly Steps
- Blade Assembly: Attach the palm leaf blades to the blade holders using the provided screws. Ensure all screws are tightened securely.
- Light Kit Installation: Secure the LED light source to the fan body. Connect the wiring as instructed in the manual and video. Attach the lampshade.
- Downrod and Mounting Bracket: Assemble the downrod with the hanger ball and attach it to the fan motor. Secure the mounting bracket to your ceiling's electrical box. The fan supports both flat and angled ceiling mounts (up to 15°).
- Wiring: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the video. Ensure all connections are secure and properly insulated.
- Final Assembly: Lift the fan assembly and hang it on the mounting bracket. Secure the canopy to cover the wiring.
Figure 2: Detailed view of a palm leaf fan blade.
This image shows a close-up of one of the unique palm leaf-shaped fan blades, highlighting its textured surface and the attachment points for the blade holder.
Figure 3: LED Light Source and Lampshade.
This image provides a detailed view of the fan's integrated LED light source, showing the individual LED chips and the large luminous area of the lampshade, which is 11.61 inches in diameter.
Figure 4: Fan Dimensions and Mounting Options.
This image also contains the dimensions and mounting options, indicating suitability for rooms between 256-387 sq.ft.
Operating Instructions
Your PHORUS ceiling fan can be controlled via the included remote control or a smartphone application.
Remote Control Functions
The remote control allows for comprehensive control over the fan and light features.
Figure 5: Remote Control Layout.
This image displays the remote control for the PHORUS ceiling fan, with various buttons labeled for functions such as power on/off, fan speed control (1-6), light on/off, brightness adjustment, color temperature adjustment, 2-hour timer, night mode, and reverse function. It also shows a QR code for the companion app.
- Power On/Off: Turns the fan and light on or off.
- Fan Speed (1-6): Adjusts the fan speed from gentle breeze (1-2) to strong airflow (5-6).
- Light Control: Turn the light on/off, adjust brightness (stepless dimming), and change color temperature (3000K Warm Light, 4500K Natural Light, 6000K White Light).
- Timer (2H): Sets the fan to turn off automatically after 2 hours.
- Reverse Function: Changes the direction of the fan blades for summer (downward airflow) or winter (upward airflow for heat distribution).
Figure 6: Customizable Light Effect.
This image demonstrates the fan's customizable light effect, showing three different color temperatures: 3000K Warm Light, 4500K Natural Light, and 6000K White Light. It also indicates that the color temperature and dimming range (10% to 100%) can be adjusted.
Figure 7: Downdraft and Updraft Modes.
This diagram illustrates the two operational modes of the fan: Summer Mode (strong wind, rapid cooling) with downdraft airflow, and Winter Mode (balance indoor heating and cooling) with updraft airflow. It also highlights the 6 adjustable wind speeds.
Remote Code Pairing
If your remote control is not responding, you may need to pair it with the fan.
Video 2: Remote Code Pairing Guide
This video demonstrates the steps to pair the remote control with the 52-inch palm leaf ceiling fan. It shows how to turn off and on the main power supply and long-press the code key on the remote for successful pairing.
- Turn off the main power supply to the fan for one minute.
- Turn on the main power supply and simultaneously long-press the "code key" on the remote control for 3-5 seconds.
- When the fan light blinks for 2-3 times, it indicates successful code matching. The remote control can now be operated normally.
Smartphone App Control
Control your fan conveniently from your smartphone. Scan the QR code on the remote control (Figure 5) or visit jasonghost.com/fanlamppro to download the "Fan Lamp Pro" app.
Video 3: App Setting Guide
This video provides a guide for setting up and using the smartphone application to control the fan. It demonstrates how to connect the fan to the app, adjust fan speeds, change light color temperature, and utilize the reverse function via the app interface.
The app allows for similar control as the remote, including 6 wind speeds, 3 light colors, stepless dimming, and reverse function. Ensure your phone's Bluetooth is enabled for connection.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your ceiling fan.
- Cleaning: To avoid damage to the finish, clean the fan only with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Blade Care: Periodically check the blade attachments for tightness. Loose blades can cause wobbling and noise.
- Motor: The DC motor is designed for high efficiency and low noise. It requires no lubrication.
Troubleshooting
If you experience issues with your fan, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote not paired. | Check circuit breaker and wall switch. Verify all wire connections are secure. Perform remote code pairing (refer to Operating Instructions). |
| Fan wobbles | Loose blade screws; Improperly balanced blades; Loose mounting bracket. | Tighten all blade screws. Ensure blades are balanced (balancing kit not included, but can be purchased). Verify mounting bracket is securely fastened to the ceiling. |
| Light does not work | Loose wire connection; Faulty LED light source. | Check light kit wiring connections. Contact customer support for LED light source replacement if necessary. |
| Remote control not working | Dead batteries; Remote not paired; Obstruction between remote and receiver. | Replace AAA batteries (2 required, included). Re-pair the remote control. Ensure clear line of sight to the fan's receiver. |
Specifications
| Feature | Detail |
|---|---|
| Brand | PHORUS |
| Model Name | 8909 |
| Size | 52 Inch |
| Color | Dark Brown |
| Material | Plastic, Iron, Acrylic |
| Style | Tropical |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Power Source | DC (90~265 volt) |
| Wattage | 50 watts (Motor) |
| Light Source | LED (28W, 3640LM) |
| Control Method | App, Remote Control |
| Special Features | Remote Controlled, LED Light, Timer, App Operable, Dimmable, 6 Speeds, Reversible |
| Item Weight | 16 Pounds |
| Product Dimensions | 52 x 52 x 16.33 inches |
| Recommended Room Size | 256-387 sq.ft. |

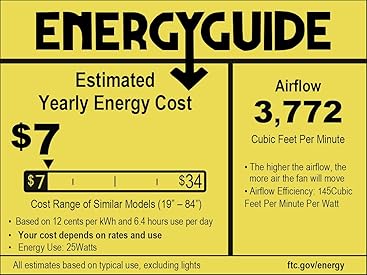

Figure 8: Energy Guide Information.
This image displays the Energy Guide label for the fan, indicating an estimated yearly energy cost of $7 based on 12 cents per kWh and 6.4 hours use per day. It also shows an airflow of 3,772 Cubic Feet Per Minute and an airflow efficiency of 145 Cubic Feet Per Minute Per Watt.
Warranty
PHORUS provides a one-year quality warranty for this product. We offer free replacement service for any damage and quality problems within this period.
Customer Support
If you have any questions or require assistance, please feel free to contact us. We aim to provide a satisfactory answer within 24 hours.
For online installation video guides and app downloads, please refer to the links provided in the Operating Instructions section or scan the QR code on your remote control.
