Important Safety Information
Please read all instructions carefully before using the Mayer MMIWD3800C Instant Hot & Cold Water Dispenser. Retain this manual for future reference.
- Ensure the appliance is placed on a stable, flat surface away from heat sources and direct sunlight.
- Do not immerse the appliance, cord, or plug in water or any other liquid.
- Keep out of reach of children. The hot water function includes a child lock for safety.
- Always unplug the dispenser before cleaning or maintenance.
- Do not operate the appliance if the power cord or plug is damaged.
- This appliance is for household use only.
- Do not block ventilation openings.
- Use only potable water in the water tank.
Product Overview
The Mayer MMIWD3800C is an instant hot and cold water dispenser designed for convenience and efficiency. It features instant heating technology, efficient refrigeration, and a built-in filter system.

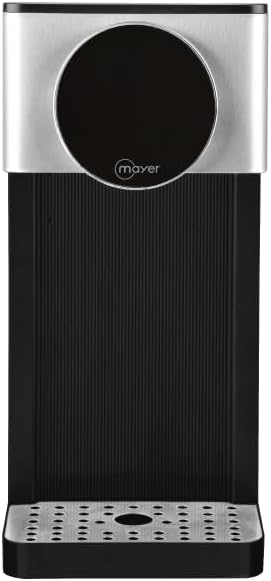

Image 1: Front view of the Mayer MMIWD3800C Instant Hot & Cold Water Dispenser, showing the control panel and dispensing area.

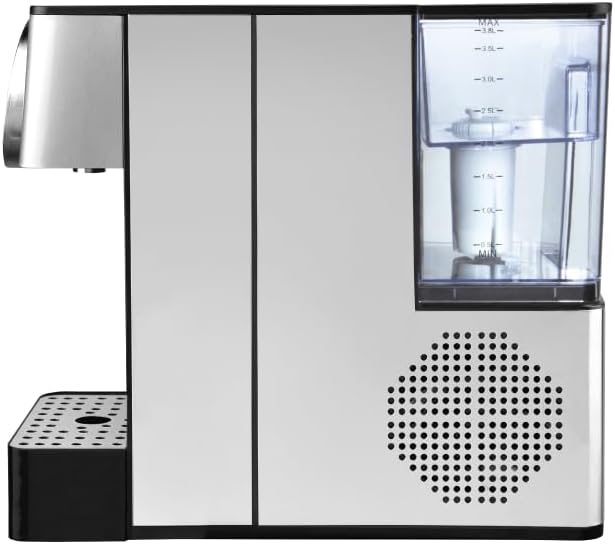

Image 2: Side view of the Mayer MMIWD3800C Instant Hot & Cold Water Dispenser, highlighting the detachable 3.8L water tank and cooling vents.
Key Features:
- Instant hot and cold water on-demand.
- Instant heating technology for consistent desired water temperature.
- High-efficiency refrigeration compressor cooling (3°C to 15°C).
- 8 preset water temperatures: Cold, Room Temperature, 45°C, 55°C, 65°C, 75°C, 85°C & 100°C.
- 5 preset cup size water volumes: 100ml, 200ml, 300ml, 400ml, and continuous flow.
- Two detachable drip tray heights.
- Installation-free operation with detachable water tank.
- Reminder indicators for low water level, filter replacement, and descaling.
- Child lock safety feature for hot water.
- Boil-dry and overheating protection.
- UK Aqua Optima (Strix) filter for water purification.
Setup
- Unpacking: Carefully remove the dispenser from its packaging. Retain packaging for future transport or storage.
- Placement: Place the dispenser on a stable, level, and dry surface. Ensure there is adequate space around the unit for ventilation. Avoid placing near direct sunlight or heat sources.
- Initial Cleaning: Before first use, wipe the exterior with a damp cloth. Remove the water tank and drip trays, wash them with mild soap and water, then rinse thoroughly.
- Install Filter: Insert the provided Aqua Optima (Strix) filter into the designated slot within the water tank according to the filter's instructions.
- Fill Water Tank: Fill the 3.8L detachable water tank with potable water. Do not exceed the maximum fill line. Reattach the water tank securely to the dispenser.
- Connect Power: Plug the power cord into a grounded electrical outlet (220V-240V, 50Hz/60Hz). The dispenser will power on and initiate its self-check.
- Initial Flush: For first-time use or after filter replacement, dispense several cups of water (both hot and cold) to flush the system and remove any air or carbon dust from the filter. Discard this water.
Operating Instructions
The control panel allows selection of temperature and volume. Refer to the display for current settings and indicators.
- Power On: Once plugged in, the dispenser is in standby mode. Press the power button (if available, or touch the display) to activate.
- Select Temperature: Use the temperature selection buttons to choose from: Cold, Room Temperature, 45°C, 55°C, 65°C, 75°C, 85°C, or 100°C.
- Select Volume: Use the volume selection buttons to choose from: 100ml, 200ml, 300ml, 400ml, or Continuous Flow.
- Child Lock (Hot Water): For hot water temperatures, the child lock feature will automatically engage. Press and hold the child lock button (or follow on-screen prompts) to unlock before dispensing hot water.
- Dispense Water: Place a cup on the drip tray. Press the dispense button. The dispenser will heat/cool and dispense the selected volume of water. For continuous flow, press the dispense button again to stop.
- Low Water Level Indicator: The dispenser will indicate when the water level in the tank is low, prompting for refilling.
Maintenance
Regular maintenance ensures optimal performance and longevity of your water dispenser.
- Cleaning the Exterior: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Cleaning the Water Tank: Remove the water tank and wash it with mild soap and water. Rinse thoroughly to remove all soap residue. Dry completely before reattaching.
- Cleaning Drip Trays: Empty and clean the detachable drip trays regularly to prevent overflow and bacterial growth.
- Filter Replacement: The dispenser will provide a reminder for filter replacement. Replace the Aqua Optima (Strix) filter according to the manufacturer's instructions, typically every 1-2 months depending on water usage and quality. Refer to the filter packaging for specific guidance.
- Descaling: The dispenser will indicate when descaling is required. Follow the descaling instructions provided in the full product manual or contact customer support for guidance. Descaling helps remove mineral buildup, especially in hard water areas.
- Storage: If storing the dispenser for an extended period, drain all water from the tank and internal components. Clean and dry all parts thoroughly. Store in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Power cord unplugged; power outlet faulty. | Ensure the power cord is securely plugged in. Test the outlet with another appliance. |
| No water dispensed | Water tank empty; tank not properly seated; child lock engaged (for hot water). | Refill the water tank. Ensure the tank is correctly installed. Disable child lock for hot water. |
| Water not hot/cold enough | Initial heating/cooling cycle not complete; temperature setting incorrect. | Allow time for the dispenser to reach the set temperature. Verify the selected temperature setting. |
| Slow water flow | Clogged filter; mineral buildup. | Replace the water filter. Perform a descaling cycle. |
| Leakage | Water tank not properly installed; drip tray full. | Re-seat the water tank correctly. Empty and clean the drip tray. |
If the problem persists after attempting these solutions, please contact Mayer customer support.
Specifications
| Model: | MMIWD3800C |
| Water Tank Capacity: | 3.8 Liters |
| Cold Water Tank Capacity: | 1 Liter |
| Voltage: | 220V-240V |
| Frequency: | 50Hz/60Hz |
| Wattage: | 2200-2600W |
| Cold Current: | 0.7A |
| Product Dimensions (L*W*H): | 435mm * 185mm * 395mm |
| Net Weight: | 8.5 KGS |
| Cooling Temperature Range: | 3°C to 15°C |
| Heating Temperature Range: | Up to 100°C |
| Filter Type: | UK Aqua Optima (Strix) filter |
Warranty and Support
Warranty:
This Mayer MMIWD3800C Instant Hot & Cold Water Dispenser comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal household use. Please retain your proof of purchase for warranty claims.
The warranty does not cover damage resulting from misuse, neglect, unauthorized repairs, or failure to follow instructions in this manual.
Customer Support:
For technical assistance, warranty claims, or inquiries regarding your Mayer MMIWD3800C water dispenser, please contact Mayer customer support. Refer to the official Mayer website or your purchase documentation for contact details.
When contacting support, please have your model number (MMIWD3800C) and proof of purchase readily available.
