1. Important Safety Information
Read all instructions before operating this electric ride-on toy. Failure to follow these instructions may result in injury or damage. Keep this manual for future reference.
- Age Recommendation: Suitable for children aged 3+ years old.
- Adult Supervision: Constant adult supervision is required during operation.
- Weight Capacity: Do not exceed the maximum weight capacity of 66 lbs (30 kg).
- Safety Belt: Always ensure the child is securely fastened with the safety belt.
- Operating Environment: Use on flat, dry surfaces away from traffic, swimming pools, or steep inclines.
- Battery Safety: Only use the provided charger and battery. Do not modify the electrical system.
- Compliance: This product complies with ASTM and CPSIA standards for toy safety.
2. What's in the Box
Verify that all components are present before assembly.
- 1 x Kids Ride on Truck
- 1 x Remote Control
- 1 x Charger
- 1 x Instruction Manual
3. Setup and Initial Charge
Follow these steps for assembly and initial battery preparation.
- Unpacking: Carefully remove all parts from the packaging.
- Assembly: Refer to the detailed assembly instructions provided in the included manual. Ensure all screws and connections are secure.
- Remote Control Batteries: Insert 2 AAA batteries (not included) into the remote control.
- Initial Battery Charge: Before first use, fully charge the 12V battery for 8-12 hours using the provided charger. The charging port is integrated into the vehicle. Do not overcharge.

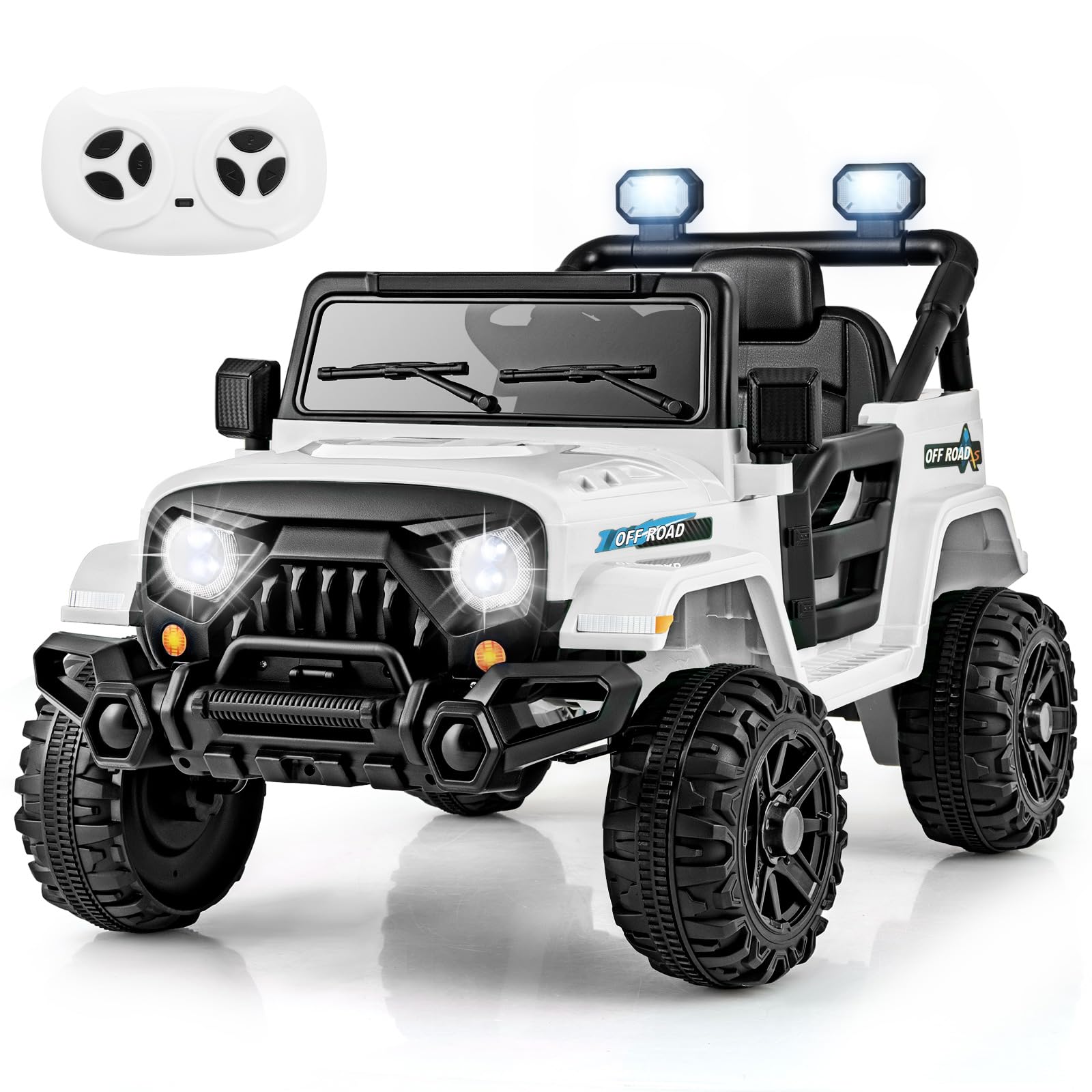

Image: The Costzon 12V Kids Ride on Truck Car, ready for assembly and use.
Image: Close-up of the integrated charging port and battery level indicator.
4. Operating Instructions
This ride-on truck offers two driving modes for versatile play.
Driving Modes
- Kids Driving Mode: The child can operate the vehicle using the steering wheel and foot pedal.
- Parental Remote Control Mode: An adult can control the vehicle's movement (forward, backward, left, right) and adjust speeds (3 settings) using the remote control. An emergency brake function is also available via the remote.
Features
- Soft Start Function: Ensures smooth acceleration for a comfortable ride.
- LED Lights: Bright LED headlights and individual searching lights enhance visibility and realism. (Note: Headlights require 2 AA batteries, not included).
- Interactive Entertainment: Built-in music, horn sound, and engine sound. Wireless connection allows playing external audio.
- All-Terrain Wheels: Wear-resistant, anti-skid, and puncture-free wheels allow operation on various surfaces including asphalt, cement, cobbled roads, and grassland.
- Safety Design: Features openable doors with locks and a spacious seat with an adjustable safety belt.
Image: Illustration of both Kids Driving Mode and Parental Remote Control Mode.
Image: View of the dashboard highlighting interactive entertainment features.
Image: Diagram explaining the smooth acceleration provided by the soft start function.
Image: Detail of the all-terrain wheels and various surfaces they can traverse.
Video: An overview of the Costzon 12V Kids Ride on Truck Car in operation, demonstrating its features.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your ride-on truck.
- Cleaning: Wipe the vehicle with a damp cloth. Do not use abrasive cleaners or submerge in water.
- Battery Care: Charge the battery after each use. If storing for an extended period, charge the battery once a month to maintain its life.
- Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture.
- Inspections: Periodically check all nuts, bolts, and electrical connections to ensure they are tight and secure.
6. Troubleshooting
If you encounter issues, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Low battery; Loose connection; Motor issue | Charge battery; Check all wiring connections; Contact customer support if motor is faulty. |
| Remote control not working | Dead batteries in remote; Remote not paired | Replace AAA batteries; Refer to remote pairing instructions in the full manual. |
| Lights not working | Loose wiring; Blown bulb (if applicable); No AA batteries for headlights | Check connections; Replace AA batteries for headlights. |
If problems persist after attempting these solutions, please contact Costzon customer support.
7. Specifications
Detailed technical specifications for the Costzon 12V Kids Ride on Truck Car.
- Model Number: BBH-038
- Product Dimensions: 39" (L) x 24.4" (W) x 24.4" (H)
- Item Weight: 28.6 lbs
- Motor: 2 x 35W
- Battery: 12V, 4.5 AH
- Speed Range: 1.9-4 mph (3-6 km/h)
- Charging Time: 8-12 hours
- Weight Capacity: 66 lbs
- Suitable Ages: 3+ years old
- Remote Control Battery: 2 AAA Batteries (Not Included)
- Headlight Battery: 2 AA Batteries (Not Included)
Image: Product dimensions, suitable ages, and load capacity details.
8. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Costzon website. Keep your purchase receipt as proof of purchase.
