Welcome
Thank you for choosing the Briidea Water Descaler. This electronic water conditioner is designed to effectively reduce limescale buildup in your home's water system without the need for chemicals, salt, or filters. By preserving beneficial minerals, it helps improve water quality for various household uses and extends the lifespan of your appliances. Please read this manual thoroughly before installation and operation to ensure optimal performance and safety.
Product Features
- Efficient Limescale Reduction: Effectively removes limescale while preserving beneficial minerals in your water.
- Dual-Wire Technology: Generates a larger electromagnetic waveform for more efficient descaling, handling water hardness up to 25 GPG (425 ppm).
- Chemical-Free Operation: No chemicals, salt, or filters required, eliminating concerns about harmful additives.
- Health Benefits: Enhances soap lathering, reduces skin issues, and improves hair quality by maintaining essential minerals.
- Appliance Protection: Reduces energy consumption and extends the life of water-using appliances by preventing scale buildup.
- Universal Compatibility: Works with all types of piping materials.
- Easy Installation & Low Maintenance: Simple setup without special tools or professional assistance, requiring minimal ongoing care.

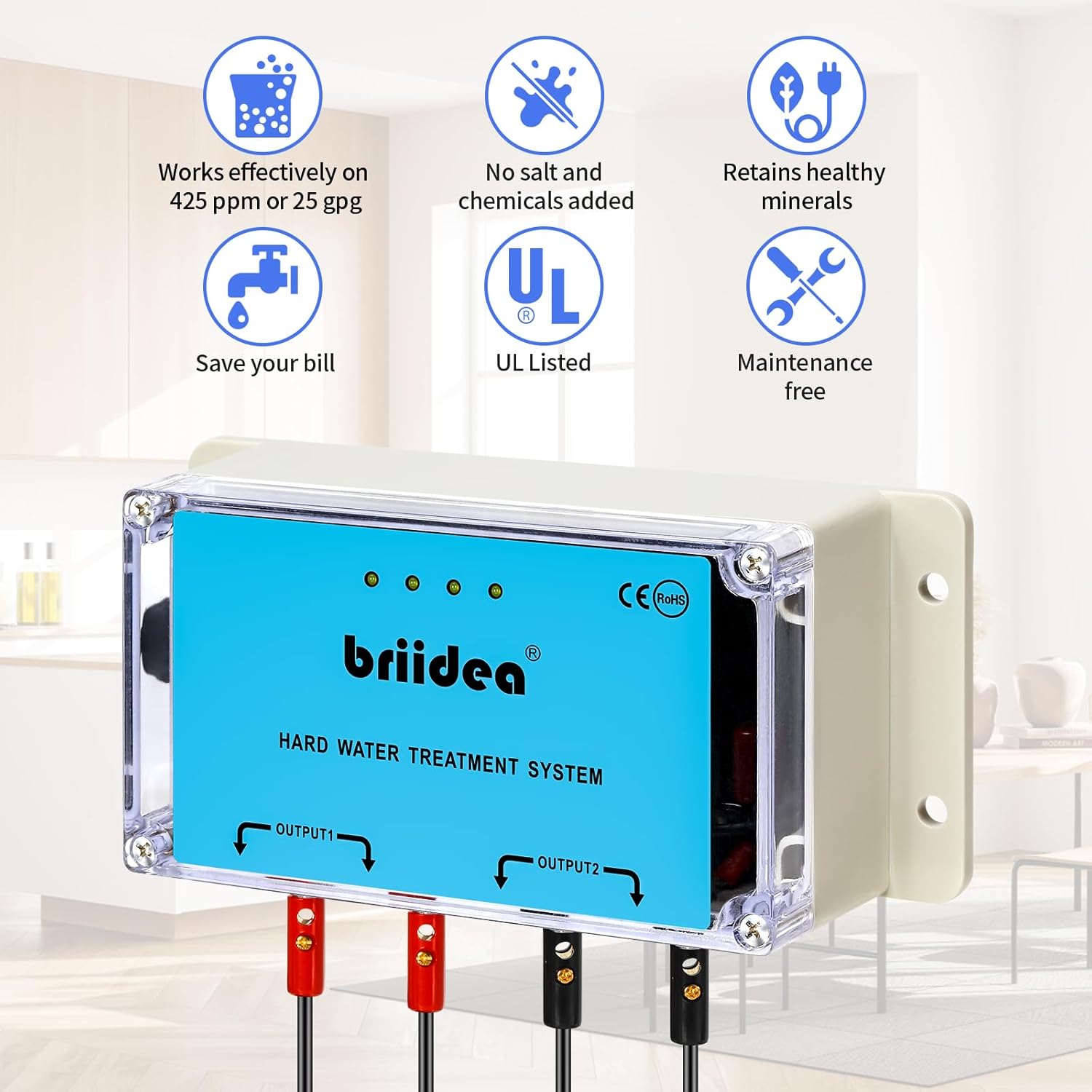

Image: Overview of the Briidea Water Descaler's key features, including its effectiveness on hard water, chemical-free operation, mineral retention, UL listing, and maintenance-free design.
Important Safety Instructions
- Read all instructions before operating the device.
- Do not expose the unit to water or excessive moisture.
- Ensure the power supply matches the unit's requirements.
- Do not attempt to open or repair the unit yourself. Refer all servicing to qualified personnel.
- Keep out of reach of children.
- Install in a dry, protected area, away from direct sunlight or extreme temperatures.
Setup & Installation
The Briidea Water Descaler is designed for straightforward installation. No plumbing modifications or special tools are required.
- Choose Installation Location: Select a location on your main water supply line where the unit can be easily mounted and has access to a power outlet. Ensure there is enough straight pipe section for coil wrapping.
- Mount the Unit: Securely mount the main descaler unit to a wall or stable surface near the chosen pipe section using appropriate fasteners.
- Wrap the Coils: Identify the red and black output cables. Wrap the red coil OVER the pipe and the black coil UNDER the pipe, as illustrated in the diagram below. Ensure the coils are tightly wrapped around the pipe for optimal contact. The direction of water flow should be considered for proper coil orientation.
- Connect to Power: Plug the power adapter into the descaler unit and then into a standard electrical outlet. The indicator lights on the unit will illuminate, indicating it is powered on and operating.

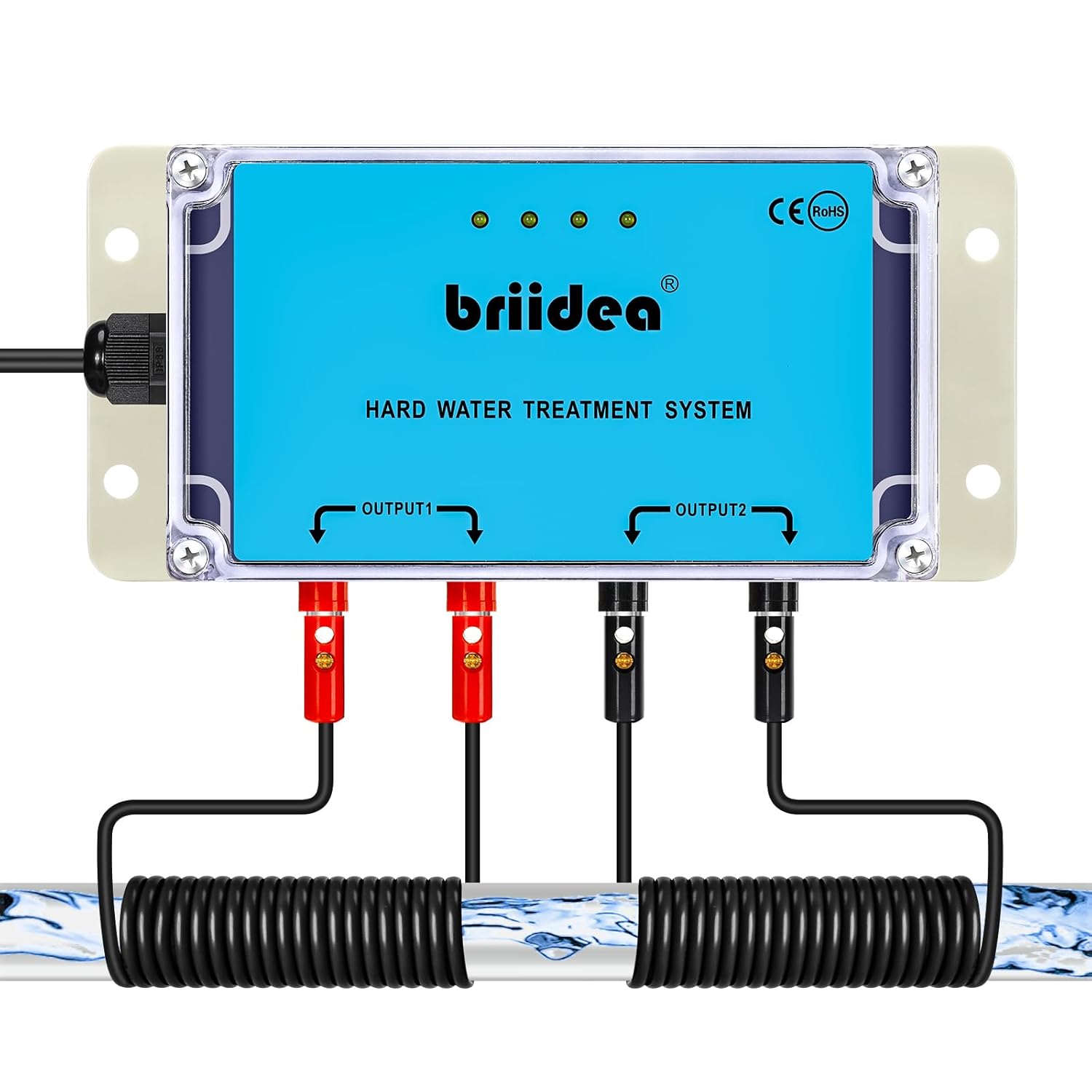

Image: The Briidea Water Descaler unit with its two output cables connected to coils wrapped around a water pipe, illustrating the overall setup.

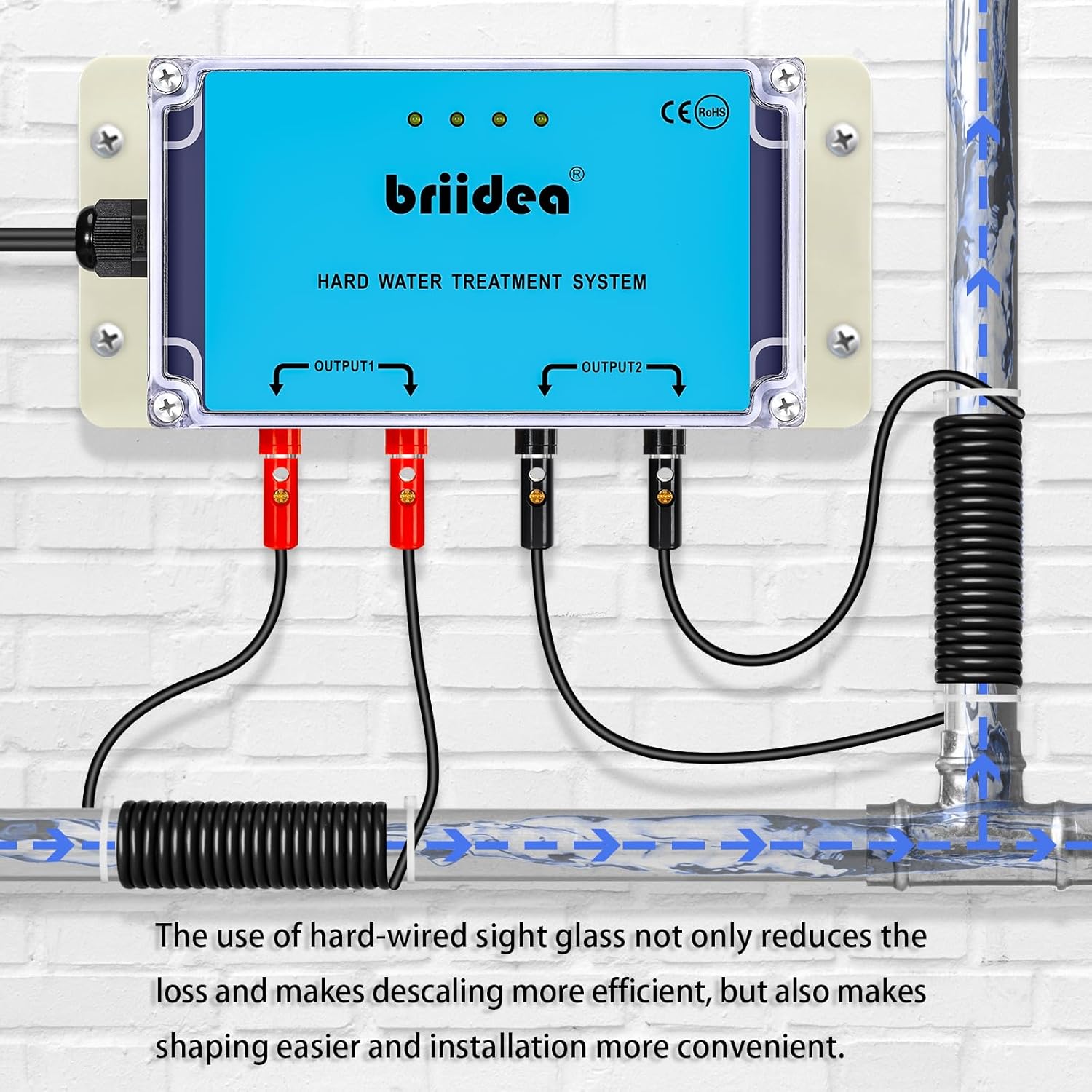

Image: A diagram showing the Briidea Water Descaler connected to a pipe, with arrows indicating water flow and highlighting the dual-coil setup for efficient descaling.

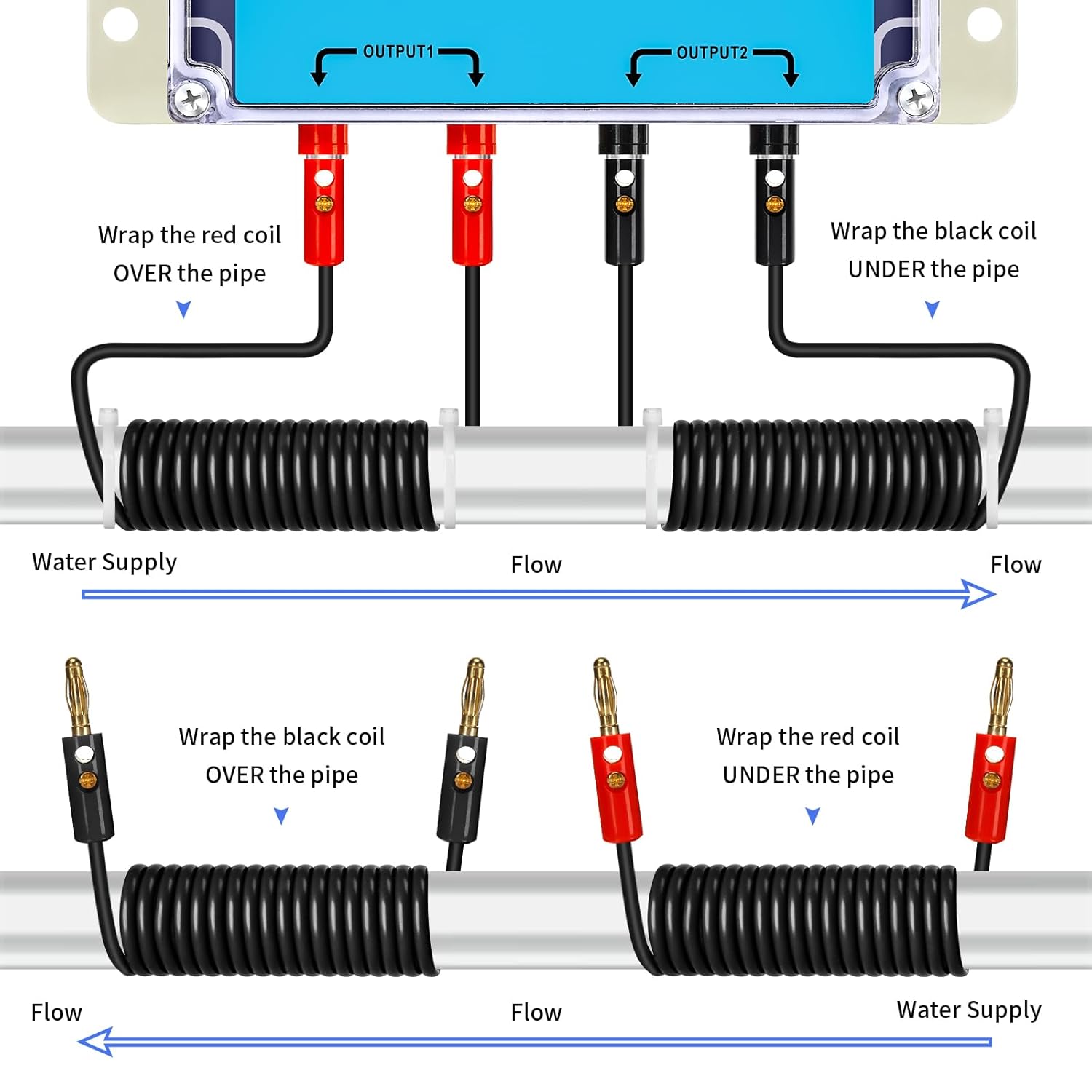

Image: Detailed instructions on how to wrap the red and black coils around the pipe, specifying 'OVER the pipe' and 'UNDER the pipe' for correct installation, along with water flow direction.

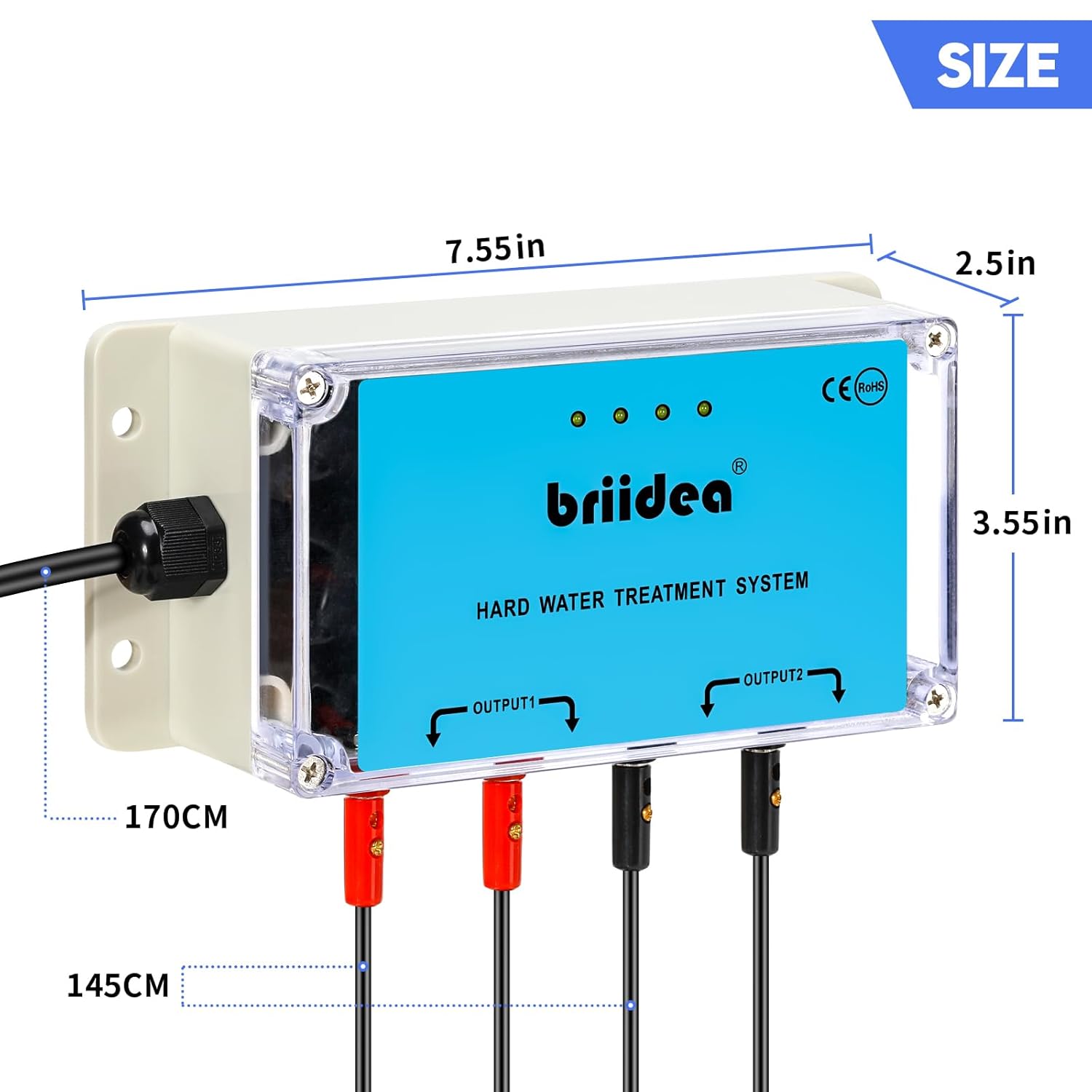

Image: A diagram illustrating the physical dimensions of the Briidea Water Descaler unit and the lengths of its connecting cables.
Operation
Once installed and powered on, the Briidea Water Descaler operates continuously. It uses electromagnetic fields to alter the physical properties of hard water minerals, preventing them from forming hard scale deposits. Over time, existing scale deposits will also begin to dissolve.
- The unit works silently in the background.
- Results may vary depending on water hardness and usage, with noticeable improvements typically seen within weeks to a few months.
- You may observe increased soap lathering, softer skin and hair, and reduced spotting on dishes and fixtures.
Image: A collage illustrating the various benefits of using the Briidea Water Descaler, including improved skin and hair, better soap lathering, resolution of hard water problems, and protection for appliances.
Image: A visual comparison showing the 'BEFORE' state with significant limescale buildup on faucets, showerheads, and inside pipes, contrasted with the 'AFTER' state where these components are clean and free of scale.
Maintenance and Care
The Briidea Water Descaler is designed to be maintenance-free. There are no filters to change or salt to add.
- Periodically check the unit and coil wraps to ensure they remain securely in place.
- Wipe the unit with a dry cloth if it becomes dusty. Do not use liquid cleaners.
- Ensure the power cord is not damaged or pinched.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not powering on | No power to outlet; loose connection; faulty power adapter. | Check outlet with another device; ensure all connections are secure; contact customer support if power adapter is suspected faulty. |
| No noticeable change in water quality | Insufficient time for results; improper coil installation; extremely high water hardness. | Allow more time (up to several months for full effect); re-check coil wrapping as per instructions; ensure coils are tightly wrapped. |
| Indicator lights off | Unit not receiving power. | Refer to "Unit not powering on" solutions. |
Product Specifications
| Specification | Detail |
|---|---|
| Model Name | MK-146 |
| Product Dimensions | 4"L x 3"W x 3"H (Unit) |
| Item Weight | 1.69 Pounds |
| Manufacturer | briidea |
| Special Feature | Portable |
| Compatibility | All types of piping materials |
| Max Water Hardness | Up to 25 GPG (Grains Per Gallon) |
Warranty and Customer Support
Briidea products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your Briidea Water Descaler, please refer to the contact information provided with your purchase or visit the official Briidea website. Please have your model number (MK-146) and purchase details ready when contacting support.
