LGHM 72-Inch Electric Fireplace with Mantel and TV Stand Instruction Manual

Introduction

Thank you for choosing the LGHM 72-Inch Electric Fireplace with Mantel and TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new farmhouse-style entertainment center. Designed to accommodate TVs up to 80 inches, this unit features a 23-inch electric fireplace insert with realistic 3D flame effects, 16-color LED lighting, efficient heating capabilities, and ample storage space. Please read these instructions thoroughly before assembly and use.

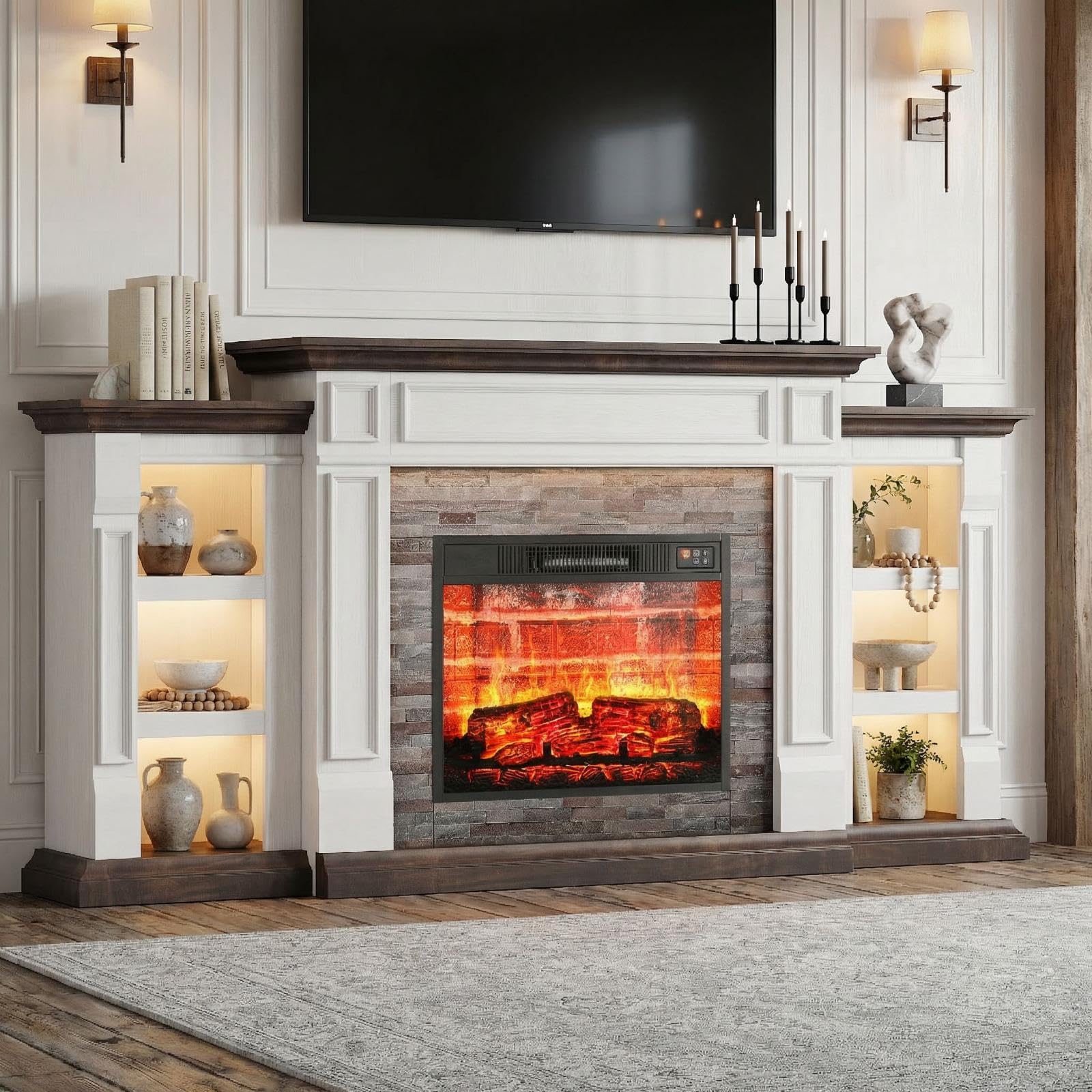

Image: The LGHM 72-inch Electric Fireplace with Mantel and TV Stand, showcasing its farmhouse design and integrated electric fireplace.

Safety Information

Important Safety Precautions:

• Exercise caution around sharp edges during assembly and handling.
• Keep small parts and hardware away from children to prevent choking hazards.
• Do not leave the remote control within reach of children.
• Assemble the unit strictly according to the provided instructions to avoid injury.
• Ensure the TV is securely placed on the stand to prevent tipping. Consider using anti-tip straps if necessary.
• Do not place excessively heavy objects on top of the fireplace mantel or shelves.
• Always unplug the electric fireplace insert before cleaning or performing maintenance.
• Do not block the air vents of the fireplace insert.
• Keep flammable materials at least 3 feet (0.9 meters) away from the front of the fireplace heater.

Package Contents

Your LGHM Electric Fireplace with Mantel and TV Stand is delivered in three reinforced packages to ensure maximum protection during transit. Please verify that all components are present and undamaged before beginning assembly.

Included Components:

• 1 x 23-inch Electric Fireplace Heater Insert
• 1 x 72-inch TV Stand (consisting of multiple panels and hardware)
• Assembly Hardware Kit
• Instruction Manual

Image: A diagram illustrating the dimensions of the 72-inch TV stand and the 23-inch fireplace insert, along with a visual representation of the three-box delivery for the product.

Setup and Assembly

Assembly of this unit requires careful attention to the provided step-by-step instructions. It is recommended to have two people for assembly.

1. Unpack Components: Carefully open all three boxes and lay out all panels and hardware on a clean, soft surface (e.g., a blanket or carpet) to prevent scratches. Identify each part using the labels and the parts list in the manual.
2. Assemble Base and Side Sections: Follow the detailed diagrams in the included user manual to connect the base panels and construct the side storage sections. Ensure all cam locks, screws, and dowel pins are securely fastened.
3. Install Fireplace Mantel Structure: Assemble the central mantel structure that houses the electric fireplace insert.
4. Integrate Electric Fireplace Insert: Carefully slide the 23-inch electric fireplace heater insert into the designated opening in the mantel. Ensure it fits snugly and is properly aligned.
5. Attach Top Panel: Secure the top panel of the TV stand to the assembled base and mantel structure.
6. Install Shelves: Place the adjustable shelves into the side storage compartments. The shelves offer 3 adjustable heights to fit items of various sizes.
7. Connect LED Lighting (if applicable): If your model includes LED lighting, follow the instructions to connect the LED strips and power supply.
8. Final Placement: Position the assembled TV stand in your desired location. Ensure it is on a level surface.

Note: Boxes may arrive separately. Refer to the detailed user manual included in your package for specific assembly steps and diagrams.

Image: The assembled LGHM Electric Fireplace TV Stand in a living room setting, with a television mounted above it, demonstrating its functional use.

Operating Instructions

Your electric fireplace and LED lighting system offer various settings for ambiance and comfort.

Electric Fireplace Operation

The 1400W fireplace heater provides efficient heating for rooms up to 400 square feet with a high power output of 5,000 BTU.

• Power On/Off: Use the power button on the control panel or remote to turn the fireplace insert on or off.
• Flame Effect: The fireplace features realistic 3D flame effects. You can enjoy the flame-only mode for ambiance without heat, suitable for year-round use.
• Flame Brightness: Adjust the 3-level flame brightness (L1-L3) to your preference using the controls.
• Heater Control: Activate the 1400W heater to warm your room. The temperature can be adjusted between 62°F and 82°F.
• Timer Function: Program the built-in timer for automatic shut-off, with settings ranging from 1 to 6 hours.

Image: A detailed view of the fireplace insert's control panel, highlighting the buttons for adjusting flame brightness, setting the timer, controlling the heater, and the main power switch.

LED Lighting Effects

The integrated LED lighting system allows you to customize the ambiance of your living space.

• Color Selection: Choose from 16 vibrant LED colors to match your mood or decor.
• Dynamic Modes: Explore over 20 dynamic lighting modes for various effects.
• Adjustable Brightness: Control the brightness of the LED lights via the dedicated app control.
• App Control: Utilize the smartphone application to manage colors, modes, and brightness settings for a personalized experience.

Image: The LGHM Electric Fireplace TV Stand displaying its LED lighting feature, with the side shelves illuminated in different colors, demonstrating the customizable ambiance.

Maintenance

Proper care and maintenance will ensure the longevity and optimal performance of your electric fireplace TV stand.

• Cleaning: Wipe the surfaces of the TV stand with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Fireplace Insert: Ensure the fireplace insert is unplugged before cleaning. Gently wipe the glass and exterior surfaces with a soft, dry cloth. Do not spray liquids directly onto the unit.
• Ventilation: Periodically check that the air vents on the fireplace insert are clear of dust and debris to maintain proper airflow and prevent overheating.
• Electrical Cord: Inspect the power cord regularly for any signs of damage. If damaged, discontinue use and contact customer support.

Troubleshooting

If you encounter any issues with your electric fireplace TV stand, refer to the following common troubleshooting tips:

• No Power:
  • Check if the power cord is securely plugged into a working electrical outlet.
  • Ensure the main power switch on the fireplace insert is in the "ON" position.
  • Verify that the circuit breaker has not tripped.
• No Heat Output:
  • Confirm that the heater function is activated on the control panel or remote.
  • Check the temperature setting; ensure it is set above the current room temperature.
  • Ensure the air vents are not obstructed.
• Flame Effect Not Working:
  • Ensure the flame effect button is pressed.
  • Adjust the flame brightness settings.
• LED Lights Not Working:
  • Check the power connection for the LED strip.
  • Ensure the app control is properly connected and functioning.

If problems persist after attempting these steps, please contact customer support for further assistance.

Specifications

Warranty and Support

LGHM offers a 30-day easy return policy for this product. For any questions, concerns, or assistance with assembly or operation, please contact LGHM Customer Support.

For detailed warranty information or to reach customer service, please refer to the contact information provided in your purchase documentation or visit the official LGHM website.
