1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Dyonery Split King Adjustable Bed Frame with a 14-inch Gel Memory Foam Mattress. This advanced sleep system is designed to enhance your comfort and well-being through customizable head and foot inclines, a zero-gravity preset, and a supportive, CertiPUR-US certified mattress.
Please read this manual thoroughly before setup and use to ensure proper function and safety.

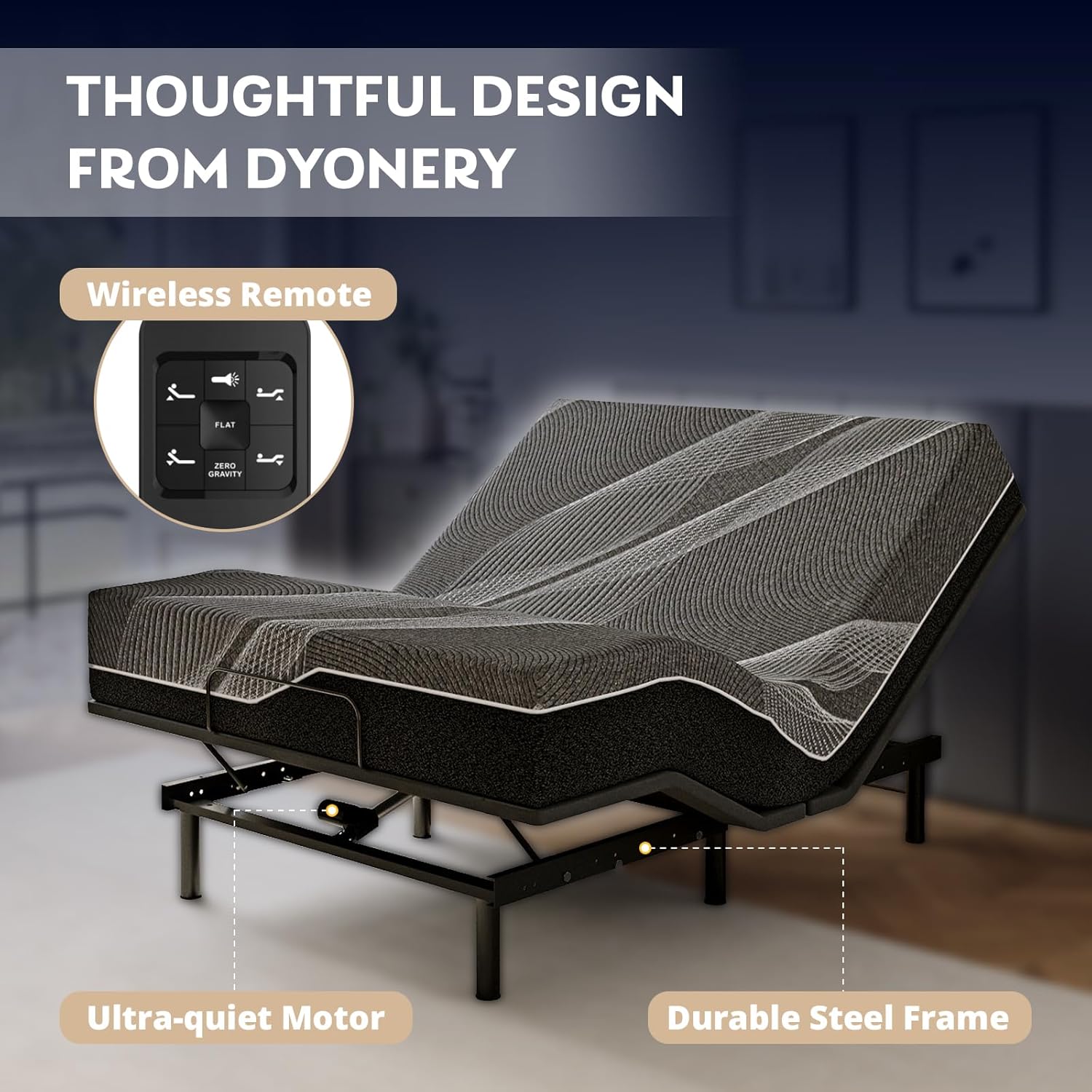

Figure 1.1: Dyonery Split King Adjustable Bed Frame and Mattress in an inclined position.
2. Safety Information
Adherence to the following safety guidelines is crucial for safe operation and to prevent injury or damage to the product.
- Maximum Weight Capacity: The bed frame has a maximum weight capacity of 700 lbs. Do not exceed this limit.
- Pinch Points: Be aware of potential pinch points within the adjustable mechanism. Keep hands, feet, and pets clear of moving parts during operation.
- Proper Assembly: Ensure all components are correctly assembled and secured according to the instructions to prevent instability.
- Power Cord: Do not place the power cord in areas where it can be pinched or damaged. Ensure it is not a tripping hazard.
- Children and Pets: Keep children and pets away from the adjustable bed mechanism during operation.
- Maintenance: Handle the bed with care during maintenance or relocation. Always unplug the unit before performing any cleaning or service.
- Mattress Handling: The mattress cannot be returned once opened. Handle with care during unboxing and placement.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact Dyonery customer support.
- Adjustable Bed Frame (Split King, 2 units)
- 14-inch Gel Memory Foam Mattress (Split King, 2 units)
- Wireless Remote Control
- Power Adapter and Cord
- Legs for Bed Frame
- Retainer Bar(s)
- User Manual (this document)
4. Setup and Assembly
The Dyonery adjustable bed frame is designed for quick and straightforward assembly. It is recommended to have two people for assembly due to the weight of the components.
- Unbox: Carefully remove all components from the packaging. Place the folded bed frame on a clean, flat surface.
- Unfold the Frame: Gently unfold the adjustable bed frame. Ensure it is fully extended and locked into place.
- Assemble the Legs: Screw the provided legs into the designated threaded holes on the underside of the frame. Tighten securely.
- Position the Frame: Carefully flip the assembled frame onto its legs in the desired location.
- Install Retainer Bar: Attach the mattress retainer bar(s) at the foot of the bed to prevent the mattress from sliding.
- Plug In: Connect the power cord to the bed frame and then to a grounded electrical outlet.
- Put the Mattress On: Carefully unroll and place the 14-inch Gel Memory Foam Mattress onto the adjustable bed frame. Allow the mattress to fully expand for 24-48 hours before use.
Figure 4.1: Quick Assembly Steps.
Figure 4.2: Split King Bed Frame Dimensions.
5. Operating Instructions
Your Dyonery adjustable bed is controlled by a user-friendly wireless remote. Familiarize yourself with the remote's functions for optimal comfort.
5.1 Wireless Remote Control
Figure 5.1: Wireless Remote Control Functions.
- Head Up/Down: Press and hold to raise or lower the head section of the bed. The head incline can go up to 57°.
- Foot Up/Down: Press and hold to raise or lower the foot section of the bed. The foot incline can go up to 38°.
- Flat: Press this button to return both the head and foot sections to a completely flat position.
- Zero Gravity (ZG): Press this button to move the bed to the pre-programmed zero-gravity position. This position elevates the head and feet to create a feeling of weightlessness, which can relieve pressure and improve circulation.
- Light: Activates the flashlight function on the remote.
5.2 Adjustable Modes and Benefits
Figure 5.2: Various Adjustable Bed Positions.
- Head-Up: Ideal for reading, watching TV, or working in bed. A slight tilt can also help alleviate snoring.
- Foot-Up: Elevating the feet can help relax leg muscles, reduce swelling, and boost circulation.
- Flat: The standard sleeping position, suitable for most users.
- Zero-Gravity: This position mimics the posture astronauts assume during launch, distributing body weight evenly to reduce pressure on the spine and improve blood flow. Benefits include pressure relief, reduced snoring, and enhanced sleep quality.
Figure 5.3: Health Benefits of an Adjustable Bed.
6. Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your adjustable bed system.
- Cleaning the Frame: Wipe the bed frame with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents. Ensure the frame is dry before plugging it back in.
- Mattress Care: The 14-inch Gel Memory Foam Mattress features a Jacquard Fabric Cover. Spot clean as needed with a mild soap and water solution. Do not saturate the mattress. Allow to air dry completely.
- Motor and Mechanism: The ultra-quiet motor and durable steel frame require minimal maintenance. Periodically check for any loose connections or unusual noises. Do not attempt to lubricate or disassemble the motor.
- Remote Control: Keep the wireless remote clean and dry. Replace batteries as needed.
- Relocation: If relocating the bed, ensure it is in the flat position and unplugged. Disassemble the legs if necessary for easier movement.
Figure 6.1: Premium Mattress Construction.
7. Troubleshooting
If you encounter issues with your Dyonery adjustable bed, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed does not respond to remote. | No power, remote batteries low/dead, remote not paired. | Check power connection. Replace remote batteries. Refer to remote pairing instructions (if applicable, usually automatic). |
| Motor makes unusual noise. | Obstruction, loose component. | Check for any objects under the bed or within the mechanism. Ensure all legs and frame components are securely tightened. |
| Bed moves unevenly or gets stuck. | Weight distribution, obstruction. | Ensure weight is evenly distributed. Check for any obstructions preventing smooth movement. |
| Mattress slides on the frame. | Retainer bar not installed or loose. | Ensure the mattress retainer bar(s) are properly installed and secured at the foot of the bed. |
If the problem persists after attempting these solutions, please contact Dyonery customer support.
8. Specifications
Detailed specifications for the Dyonery Split King Adjustable Bed Frame and Mattress:
| Size | Split King (80"L x 76"W x 14"H) |
| Special Feature | Head and Foot Adjustment, Zero Gravity, Wireless Remote |
| Color | Black |
| Brand | Dyonery |
| Included Components | Wireless Remote, Adjustable Bed Frame, Gel Memory Foam Mattress |
| Assembly Required | Yes |
| Form Factor | Adjustable Bed |
| Manufacturer | Dyonery |
| Item Weight | 80 pounds (frame only, mattress weight separate) |
| UPC | 840418642184 |
| Mattress Certification | CertiPUR-US Certified, Oeko-Tex Standard 100 Certified |
9. Warranty and Support
Dyonery is committed to providing high-quality products and customer satisfaction.
- Warranty: The product comes with a Full Warranty, including a 1-year manufacturing warranty. Please refer to your purchase documentation for specific terms and conditions.
- Customer Support: For any questions, concerns, or warranty claims, please contact Dyonery customer support. Contact information can typically be found on the product packaging or the official Dyonery website.
- Returns: Please note that mattresses cannot be returned once opened, as stated in the product features.
