pealiritansemen Electric Vegetable Dicer (600W) Instruction Manual

Introduction

Thank you for choosing the pealiritansemen Electric Vegetable Dicer. This manual provides essential information for the safe and efficient use of your new appliance. Please read all instructions carefully before operation and retain this manual for future reference.

Image: The pealiritansemen Electric Vegetable Dicer, showcasing its design and the result of dicing carrots.

This 3-in-1 appliance is designed for dicing, slicing, and shredding various fruits and vegetables, making it suitable for home kitchens, restaurants, bakeries, and cafes. It features a powerful 600W motor and a 5-liter capacity for efficient food processing.

Important Safety Instructions

• Always unplug the appliance from the power outlet before cleaning, assembling, or disassembling parts.
• Keep hands and utensils away from moving blades during operation to prevent injury.
• Ensure all parts are correctly assembled and locked in place before operating the machine. The double lock design prevents operation if components are not secured.
• Do not immerse the motor base in water or any other liquid. Clean with a damp cloth.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Supervise children to ensure they do not play with the appliance.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only manufacturer-recommended attachments and accessories.

Product Components

Familiarize yourself with the parts included in your package:

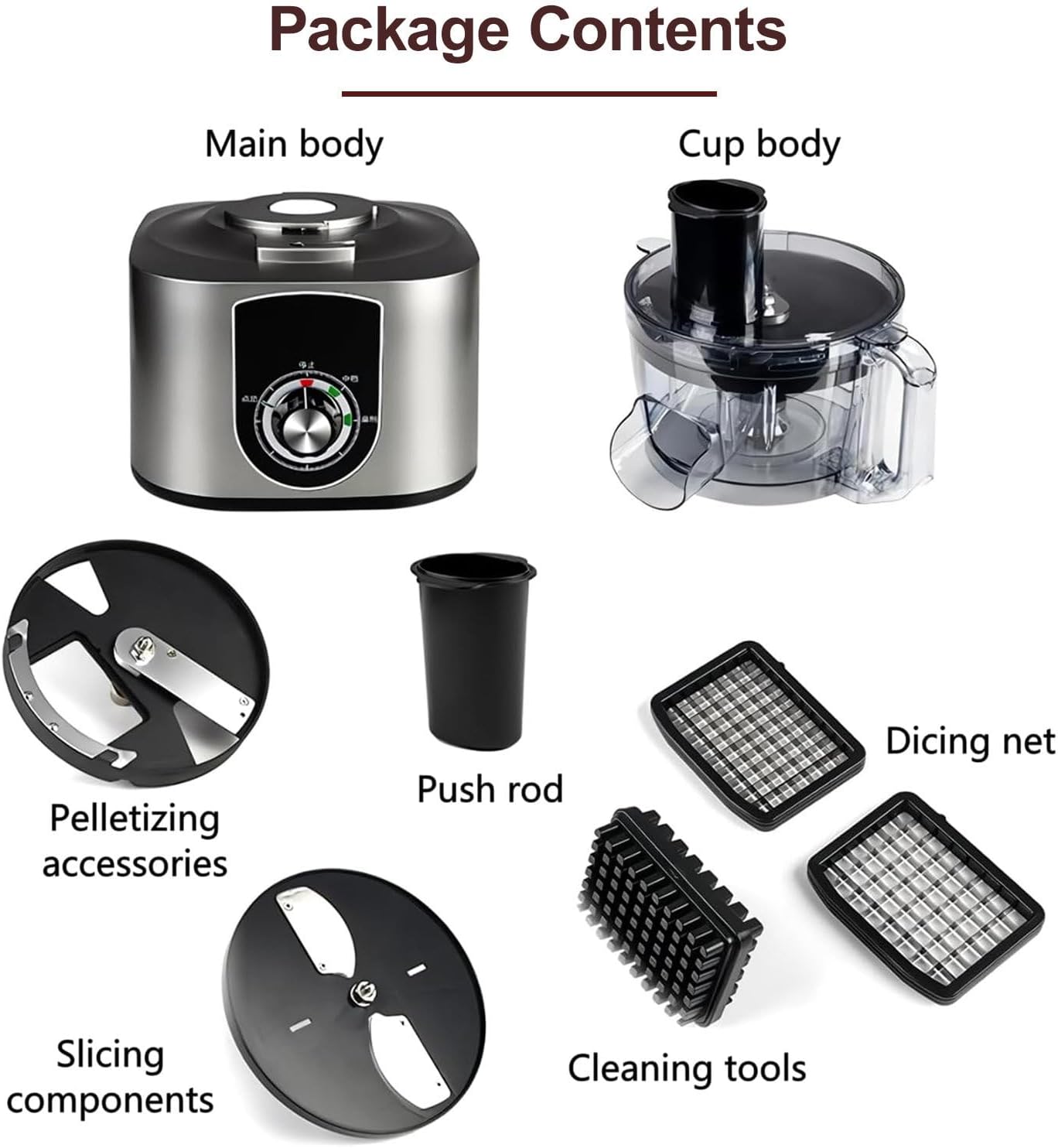

Image: An exploded view of the product components, including the main body, processing cup, various blades (pelletizing, slicing, dicing), push rod, and cleaning tools.

• Main Body: Contains the motor and control knob.
• Processing Cup: The transparent container where food is processed.
• Processing Cup Cover: Secures the processing cup and has the food inlet.
• Push Rod: Used to guide food into the inlet.
• Pelletizing Accessories: Blades for specific cutting tasks.
• Slicing Components: Blades for slicing.
• Dicing Net (8mm & 10mm): Interchangeable grids for dicing.
• Cleaning Tools: For maintaining the dicing nets.

Image: Close-up of the two interchangeable dicing nets (8mm and 10mm) and the specialized cleaning tool for removing food residue.

Setup and Assembly

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Before first use, wash all removable parts (processing cup, cover, blades, push rod) with warm soapy water. Rinse thoroughly and dry. The main body should be wiped with a damp cloth.
3. Assemble Processing Cup: Place the processing cup onto the main body, ensuring it clicks securely into place.
4. Insert Blade/Dicing Net: Select the desired blade or dicing net (8mm or 10mm) for your task. Carefully place it onto the central shaft within the processing cup.
5. Attach Cover: Place the processing cup cover onto the processing cup and rotate it until it locks securely. The machine will not operate if the cover is not properly locked (double lock design).
6. Position Push Rod: Insert the push rod into the food inlet on the cover.
7. Connect Power: Plug the appliance into a suitable power outlet.

Operating Instructions

This appliance features a dual-speed control for optimal processing of various food types.

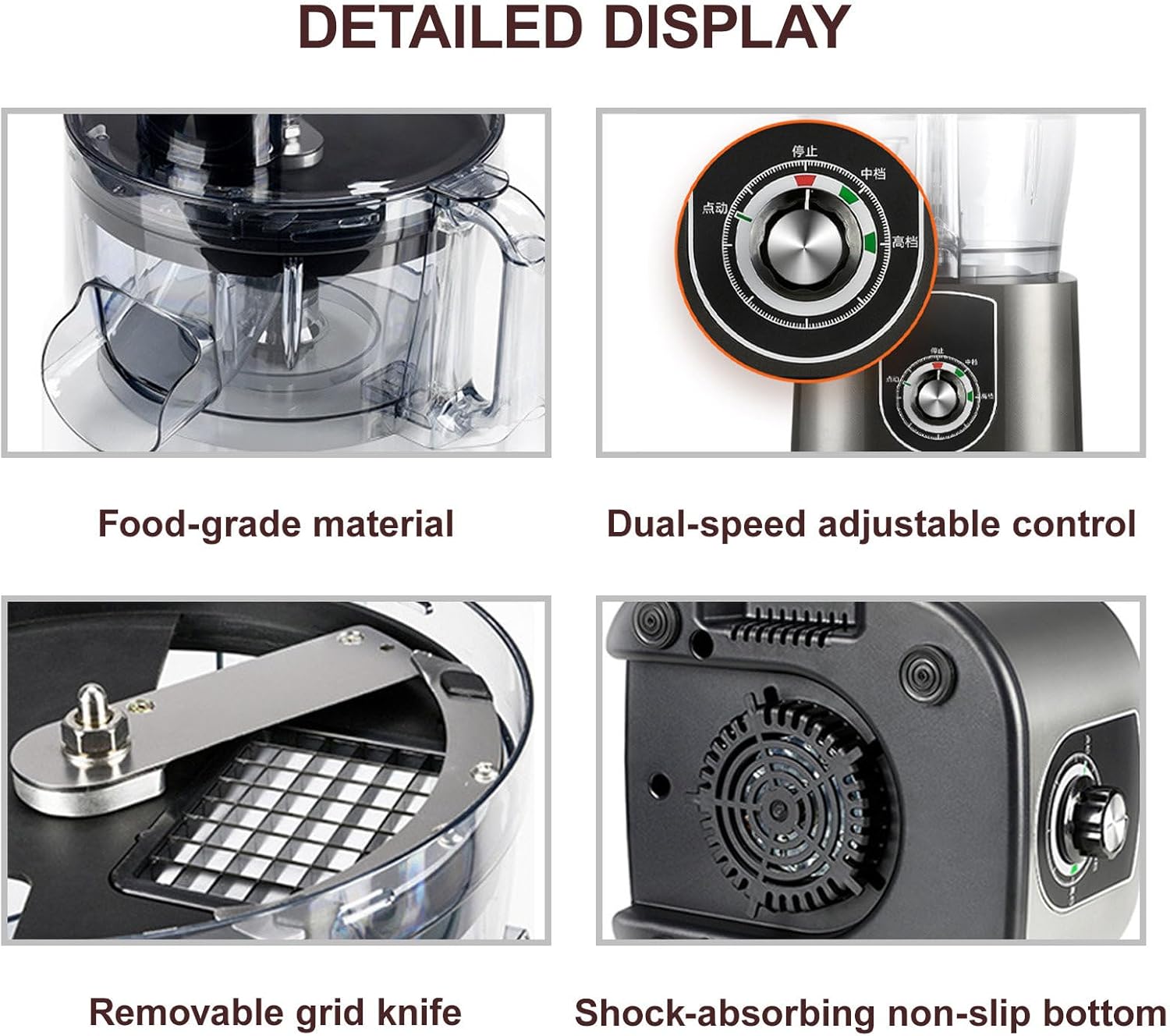

Image: A close-up view highlighting key features: the food-grade material of the processing cup, the dual-speed control knob, the removable dicing blade, and the non-slip base for stability.

1. Prepare Ingredients: Wash and peel fruits or vegetables as needed. Cut larger items into pieces that fit comfortably into the food inlet.
2. Load Food: Place the prepared food into the large-diameter feed port. Do not overfill the processing cup.
3. Select Speed: Turn the control knob to select the desired speed:
   • Speed 1 (Slow): Ideal for softer foods such as dragon fruit, eggplant, or ham.
   • Speed 2 (Fast): Suitable for harder foods like radish, sweet potato, or lotus root.


   Image: Visual guide for speed selection, showing examples of soft foods suitable for slow speed and hard foods for fast speed.

4. Start Processing: The machine will automatically feed the food once the speed is selected and the safety locks are engaged. Use the push rod to gently guide food if necessary, but avoid forcing it.
5. Monitor: Observe the food processing through the transparent cup. Stop the machine once the desired consistency is achieved.
6. Stop: Turn the control knob to the "OFF" position.
7. Unload: Unplug the appliance. Carefully remove the processing cup cover, then the blade/dicing net, and finally the processed food from the cup.

This appliance is versatile and can process a wide range of ingredients for various culinary needs:

Image: A collage demonstrating the variety of ingredients that can be processed, including diced onions, radishes, cucumbers, pumpkins, potatoes, mushrooms, fruits, capsicums, and eggplants.

Image: The machine in action, illustrating its capability to dice fruits like mango and prepare ingredients for beverages.

Care and Maintenance

Proper cleaning and maintenance will ensure the longevity and optimal performance of your appliance.

1. Unplug: Always ensure the appliance is unplugged from the power outlet before cleaning.
2. Disassemble: Carefully disassemble all removable parts: processing cup, cover, blades/dicing nets, and push rod.
3. Wash Removable Parts: Wash these parts with warm, soapy water. Use the provided cleaning tools to remove any food residue from the dicing nets. Rinse thoroughly under running water.
4. Clean Main Body: Wipe the main body with a damp cloth. Do not immerse the main body in water.
5. Dry: Ensure all parts are completely dry before reassembling or storing.
6. Storage: Store the appliance in a clean, dry place.

Troubleshooting

If the problem persists after attempting these solutions, please contact customer support.

Product Specifications

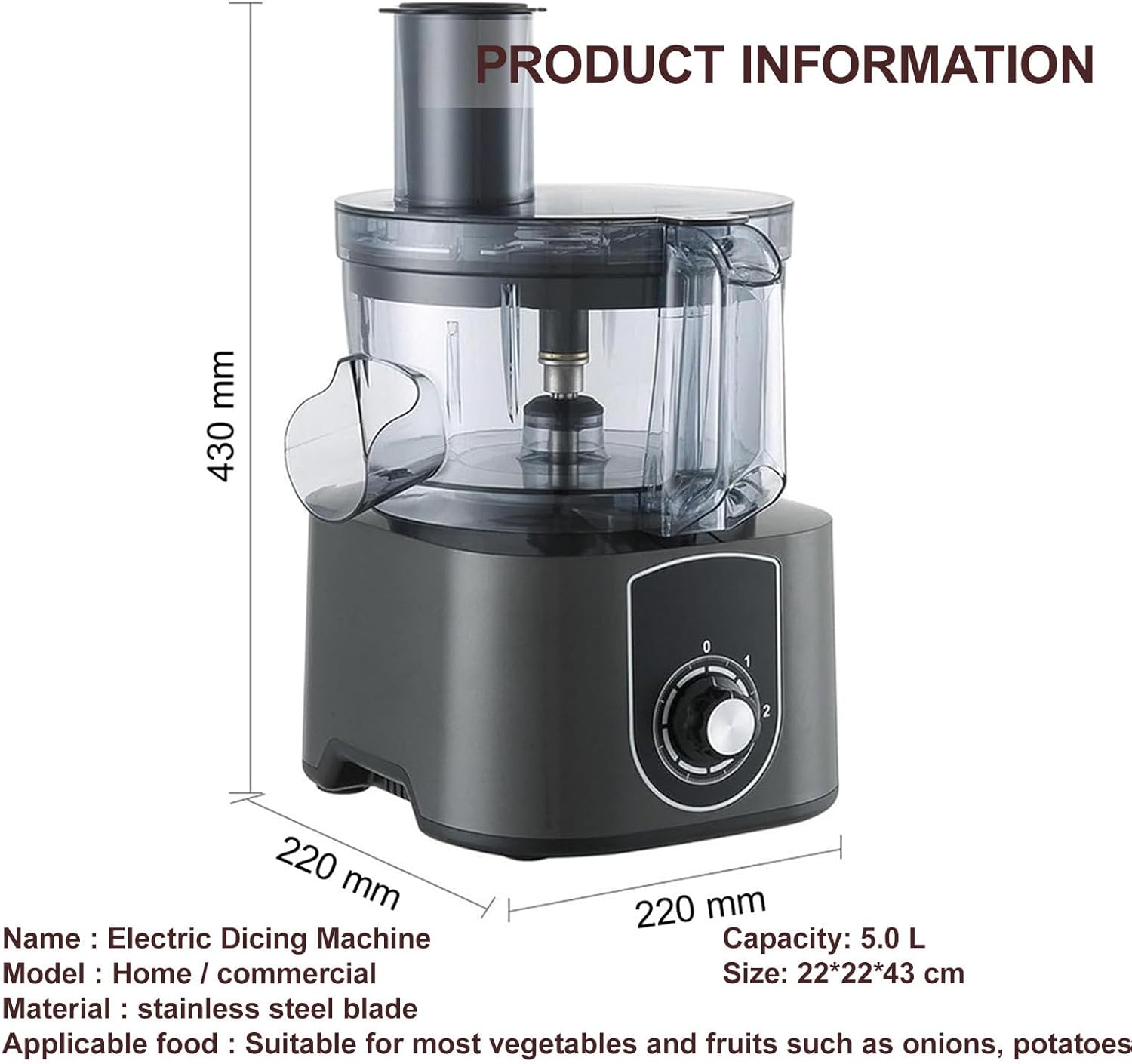

Image: Diagram illustrating the physical dimensions of the Electric Vegetable Dicer.

Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
