Moni i-Size Start Child Car Seat User Manual

Introduction

This manual provides essential information for the correct installation, use, and maintenance of your Moni i-Size Start Child Car Seat. Designed for children with a body height between 76 and 150 cm (approximately 15 months to 12 years) and a maximum weight of 36 kg, this car seat ensures safe and comfortable travel. Please read these instructions carefully before first use and keep them for future reference.

Key Features:

• i-Size certified for enhanced safety.
• Suitable for children 76-150 cm (Group 1/2/3).
• Installation using the vehicle's 3-point seat belt and top tether anchorage.
• 5-point safety harness with soft padding for younger children.
• 13-position adjustable headrest to adapt to your child's growth.
• Soft head and body cushions for comfort.
• Removable and washable cover for easy cleaning.

Safety Information

Always prioritize your child's safety. Failure to follow these instructions can result in serious injury or death.

• Read the Manual: Always read and understand the entire instruction manual before installing or using the car seat.
• Correct Installation: Ensure the car seat is correctly installed according to the instructions using the vehicle's 3-point seat belt and top tether. A loose car seat can be dangerous.
• Harness Usage: Always secure your child with the 5-point harness (for appropriate height/weight) or the vehicle's 3-point seat belt, ensuring straps are snug and not twisted.
• Headrest Adjustment: Adjust the headrest so that the shoulder straps are at or slightly above your child's shoulders when using the 5-point harness, or so the vehicle belt rests correctly on the shoulder.
• Vehicle Compatibility: This car seat is designed for use in vehicles equipped with a 3-point seat belt system and top tether anchorage points. Consult your vehicle's owner's manual for car seat compatibility.
• Never Leave Unattended: Never leave your child unattended in the car seat, even for a short period.
• Damage: Do not use the car seat if it has been involved in an accident, even if there is no visible damage. Replace it immediately.
• Modifications: Do not make any modifications to the car seat. Use only original parts and accessories.
• Temperature: In hot weather, check the car seat surface temperature before placing your child in it.

Components

Familiarize yourself with the various parts of your Moni i-Size Start Child Car Seat.

• Adjustable Headrest
• 5-point Safety Harness (with shoulder pads and buckle pad)
• Seat Base
• Backrest
• Infant Head Cushion
• Infant Body Cushion
• Top Tether Strap
• Vehicle Belt Guides
• Harness Adjustment Button
• Harness Release Buckle

Image: Full view of the Moni i-Size Start Child Car Seat, showing the adjustable headrest, 5-point harness, and infant insert in place.

Image: Close-up of the removable head and body cushions, designed for infant comfort and support.

Image: Included plush toy and comfort blanket, which are accessories for the child.

Installation

The Moni i-Size Start car seat is installed using the vehicle's 3-point seat belt and the top tether system. Always refer to your vehicle's owner's manual for specific instructions on top tether anchorage points.

Step-by-Step Installation:

1. Position the Car Seat: Place the car seat on the desired vehicle seat, ensuring it sits flat against the vehicle's backrest.
2. Route the Vehicle Seat Belt:
   • Pull the vehicle's 3-point seat belt around the child car seat.
   • Thread the lap portion of the seat belt through the designated blue belt guides on the car seat base.
   • Thread the shoulder portion of the seat belt through the red belt guide near the headrest.
   • Buckle the vehicle seat belt.
3. Tighten the Vehicle Seat Belt: Press down firmly on the car seat while pulling the vehicle's shoulder belt to remove all slack. Ensure the car seat is securely installed and does not move more than 2.5 cm (1 inch) side-to-side or front-to-back at the belt path.
4. Attach the Top Tether:
   • Locate the top tether anchorage point in your vehicle (refer to your vehicle's manual).
   • Attach the top tether hook from the car seat to the vehicle's top tether anchorage point.
   • Tighten the top tether strap until it is taut, removing any slack.

Image: Side view of the car seat, illustrating the path of the vehicle's 3-point seat belt and the top tether strap extending from the back.

Infant Insert Usage:

For younger children within the specified height range, use the included head and body cushions to provide additional support and a snug fit. Remove these inserts as your child grows and no longer requires them.

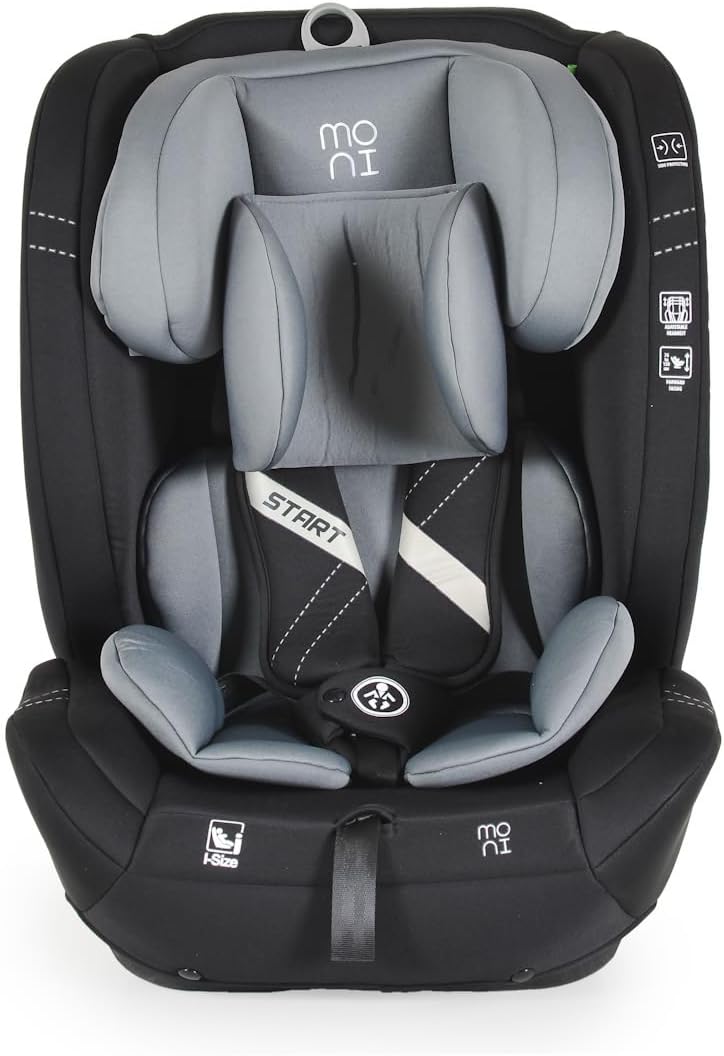

Image: Front view of the car seat with the infant head and body cushions installed, providing extra padding for smaller children.

Operation

Securing Your Child (5-point harness for younger children):

1. Place Child: Sit your child in the car seat with their back flat against the backrest.
2. Fasten Harness: Bring the two buckle tongues together and insert them into the central buckle until you hear a click.
3. Tighten Harness: Pull the harness adjustment strap located at the front of the seat until the harness is snug against your child's body. You should not be able to pinch any slack at the shoulder.
4. Adjust Headrest: Adjust the headrest height so that the shoulder straps are at or slightly above your child's shoulders. The headrest has 13 adjustable positions.

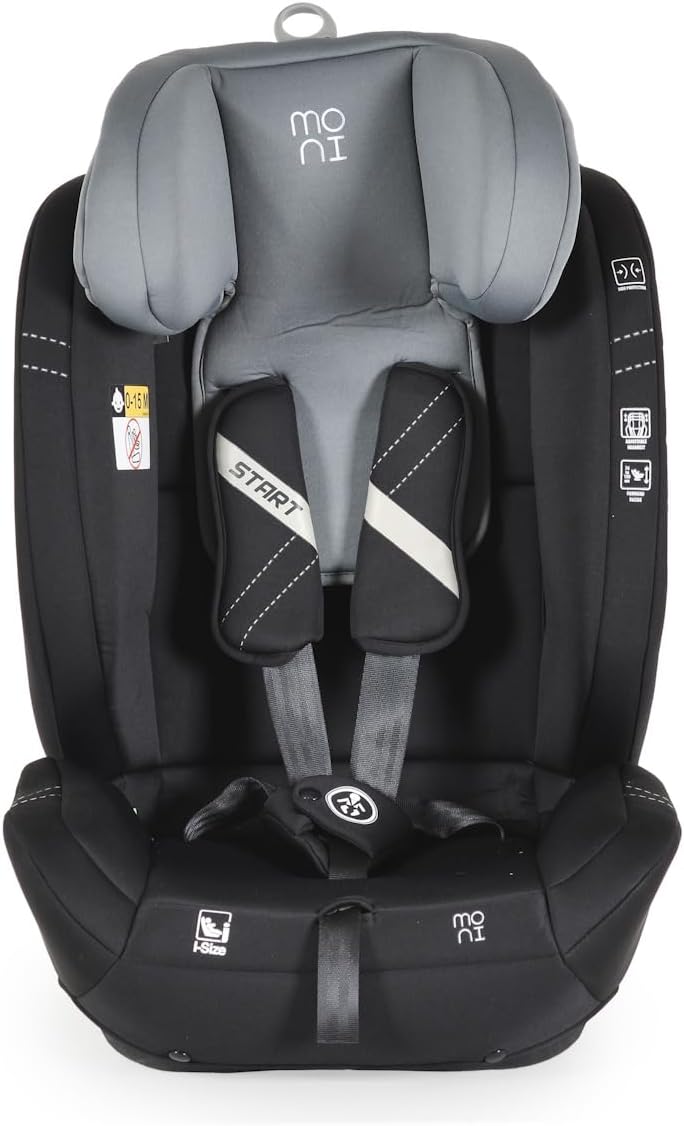

Image: Front view of the car seat showing the 5-point harness system, ready to secure a child.

Image: Front view of the car seat demonstrating the adjustable headrest, which moves up and down to accommodate growing children.

Securing Your Child (Vehicle's 3-point seat belt for older children):

Once your child outgrows the 5-point harness (check height/weight limits in specifications), the car seat transitions to a high-back booster using the vehicle's 3-point seat belt.

1. Remove Harness: Follow instructions in the maintenance section to remove the 5-point harness.
2. Position Child: Sit your child in the car seat.
3. Route Vehicle Belt: Guide the vehicle's 3-point seat belt across your child and through the red belt guide near the headrest. The lap belt should sit low across the hips, and the shoulder belt should rest across the center of the shoulder and chest, not on the neck or off the shoulder.
4. Buckle and Tighten: Buckle the vehicle seat belt and ensure it is snug and properly positioned.

Maintenance

Cleaning the Cover:

The car seat cover is removable and washable (100% polyester). Follow these steps:

1. Carefully unfasten all clips, elastic loops, and Velcro attachments to remove the fabric cover from the car seat frame.
2. Machine wash the cover on a gentle cycle with cold water and mild detergent. Do not use bleach.
3. Air dry the cover completely. Do not tumble dry or iron.
4. Reattach the cover to the car seat frame, ensuring all parts are correctly secured.

Cleaning the Harness and Plastic Parts:

• Wipe plastic parts with a damp cloth and mild soap.
• Clean the harness straps with a damp cloth and mild soap. Do not immerse the harness in water or use harsh chemicals, as this can weaken the webbing.
• Allow all parts to air dry completely before reassembly or use.

Removing the 5-Point Harness:

When your child is ready to transition to using the vehicle's 3-point seat belt with the car seat as a high-back booster, the 5-point harness can be removed. Consult the detailed diagrams in the full product manual for specific steps. Generally, this involves unthreading the shoulder straps from the back of the seat and detaching the crotch buckle from the seat base.

Troubleshooting

Specifications

Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For product support, questions, or to report any issues, please contact Moni customer service through their official website or the contact details provided with your product.

Manufacturer: Moni
