Original Upright Vinyl Turntable

1. Introduction

Thank you for purchasing the COOLGEEK Upright Vinyl Turntable. This manual provides essential information for the safe and efficient operation of your new record player. Please read this manual thoroughly before use and retain it for future reference.

This innovative turntable features an upright design, a high-quality AT-3600L stylus, integrated hybrid mid/treble drivers and a powerful subwoofer, along with Bluetooth 5.0 connectivity for versatile audio playback.

Important Safety Information

• Do not expose the unit to rain or moisture.
• Do not disassemble the unit. Refer all servicing to qualified personnel.
• Ensure proper ventilation around the unit.
• Use only the provided power adapter.
• Keep the unit away from direct sunlight, heat sources, and strong magnetic fields.

2. Package Contents

Please check that all items listed below are included in your package:

• COOLGEEK Upright Vinyl Turntable
• Power Adapter
• Instruction Manual (this document)

3. Product Features

Vertical Record Player Design

The unique upright design of this turntable allows for an unobstructed view of your records while playing. This vertical placement also minimizes the surface area where dust can settle on the record and drive shaft, contributing to a more stable needle performance and purer sound reproduction.

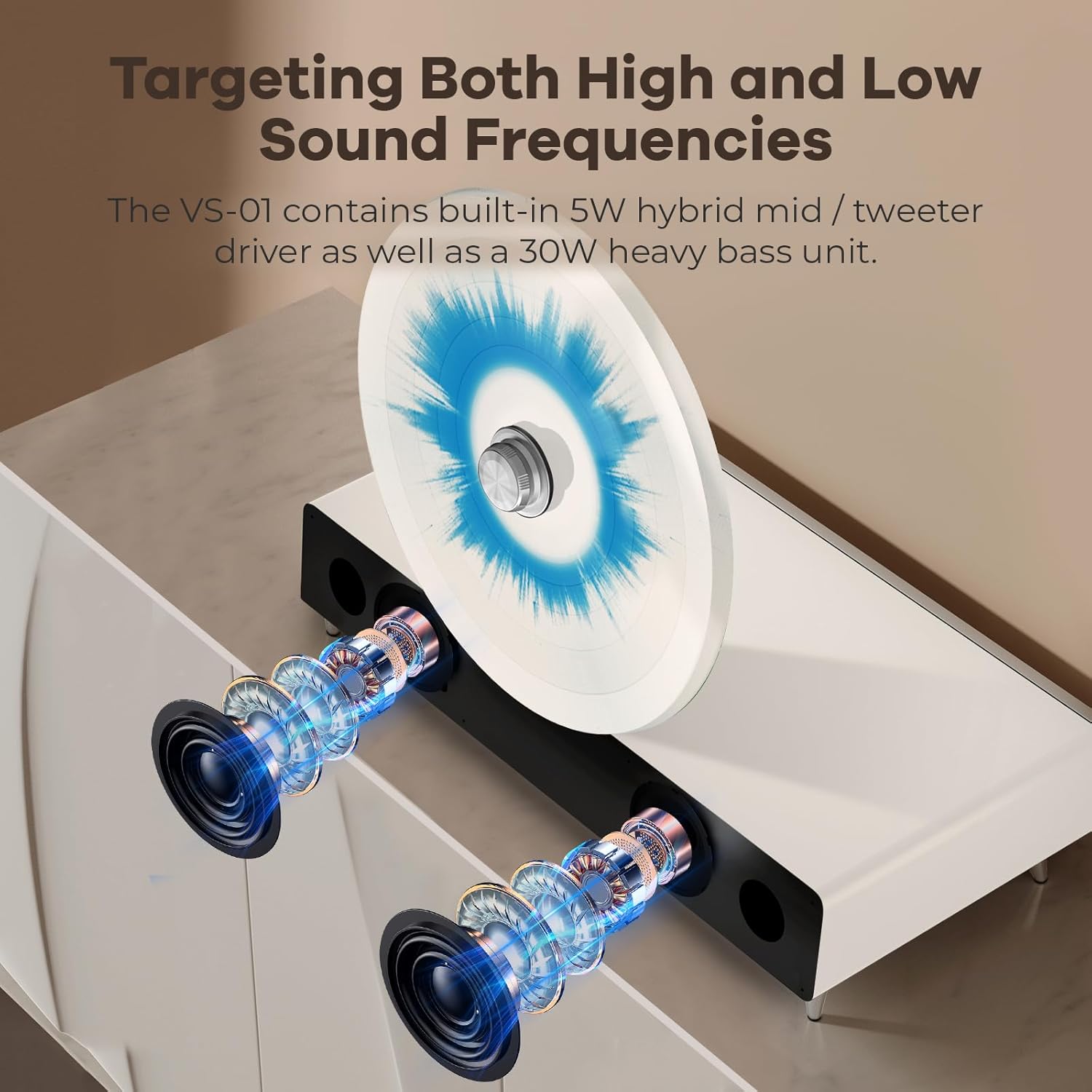

Professional-Grade Sound Quality

Equipped with a built-in 5-watt hybrid mid/treble driver and a powerful 30-watt subwoofer, the turntable delivers a full range of sound. This configuration ensures excellent audio quality, providing an immersive Hi-Fi listening experience.

Cushioning Shock Absorption System

The turntable incorporates three distinct shock absorbers to maintain stability during playback. These include a rotation axis shock absorber to prevent record movement, foot nail shock absorbers to absorb vibrations from the surface, and silicon seismic material shock absorbers for overall dampening. This system ensures the needle remains stable and the sound quality is clear.

AT-3600L Stylus Head

The turntable is equipped with a high-quality Audio-Technica AT-3600L cartridge and stylus head, known for its reliable performance and clear audio reproduction.

Bluetooth 5.0 Connectivity

The unit supports Bluetooth 5.0, allowing for wireless connection to your PC, tablet, or smartphone. This advanced engineering ensures a stable and high-quality audio streaming experience.

Adjustable Rotation Speed (33.3/45 RPM)

Equipped with a silent high-speed motor and closed-loop control technology, the VS-01 can play records at both 33.3 and 45 RPM. You can adjust the speed without impacting the needle or your records.

Needle Protection with Auto-Stop Function

The turntable includes a fail-stop function that automatically stops playback when the needle approaches the center of the record. This feature helps protect the needle from friction damage, extending its lifespan and ensuring consistent music playback.

4. Setup

4.1 Unpacking and Placement

1. Carefully remove the turntable and all accessories from the packaging.
2. Place the turntable on a stable, level surface, away from direct sunlight, heat sources, and excessive dust. Ensure there is adequate space around the unit for ventilation.
3. Remove any protective packaging materials from the tonearm and platter.

4.2 Power Connection

1. Connect the provided power adapter to the DC input port on the back of the turntable.
2. Plug the power adapter into a suitable wall outlet.

4.3 Stylus Protection Removal

1. Gently remove the clear plastic stylus protector from the needle before playing a record. Be careful not to bend the stylus.

5. Operating Instructions

5.1 Playing a Vinyl Record

1. Place a vinyl record onto the upright platter.
2. Select the appropriate speed (33.3 RPM or 45 RPM) using the speed selector switch, typically located near the platter or control knob.
3. Gently lift the tonearm using the cueing lever.
4. Position the stylus over the desired starting groove of the record.
5. Slowly lower the tonearm using the cueing lever. The stylus will make contact with the record, and playback will begin.
6. Adjust the volume using the main control knob.
7. When the record finishes, the auto-stop function will engage, and the platter will stop spinning. Gently lift the tonearm and return it to its rest.

5.2 Bluetooth Mode

1. Turn on the turntable. The unit will automatically enter Bluetooth pairing mode, indicated by a flashing light (refer to specific indicator light in product for exact behavior).
2. On your Bluetooth-enabled device (smartphone, tablet, PC), enable Bluetooth and search for available devices.
3. Select "COOLGEEK Turntable" (or similar name) from the list of devices to pair.
4. Once paired, the indicator light will become solid, and you can now stream audio wirelessly to the turntable's speakers.
5. Adjust the volume on both your connected device and the turntable for optimal sound.

6. Maintenance

6.1 Cleaning the Stylus

A clean stylus is crucial for optimal sound quality and to prevent damage to your records. Use a soft brush designed for stylus cleaning, brushing gently from back to front (in the direction of the tonearm's movement).

6.2 Cleaning Records

Always handle records by their edges. Use a carbon fiber brush or a record cleaning solution with a microfiber cloth to remove dust and debris before each play. This helps preserve both your records and the stylus.

6.3 Cleaning the Unit

Wipe the turntable's surface with a soft, dry, lint-free cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.

7. Troubleshooting

8. Specifications

9. Warranty and Support

This product comes with a manufacturer's warranty. Please refer to the warranty card or documentation included in your product packaging for specific terms and conditions, including warranty period and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact COOLGEEK customer service. Contact information can typically be found on the manufacturer's official website or on the product packaging.
