HEBEOT Replacement Silicone Gasket User Manual

Introduction

This manual provides essential information for the HEBEOT silicone replacement gasket, designed for Nuova Simonelli Appia 1, Appia 2, and Appia Life espresso machine brewing groups. This high-quality silicone gasket offers superior performance compared to traditional rubber gaskets, being odorless, tasteless, and easier to install and remove. It ensures a strong, effortless seal for optimal espresso extraction.

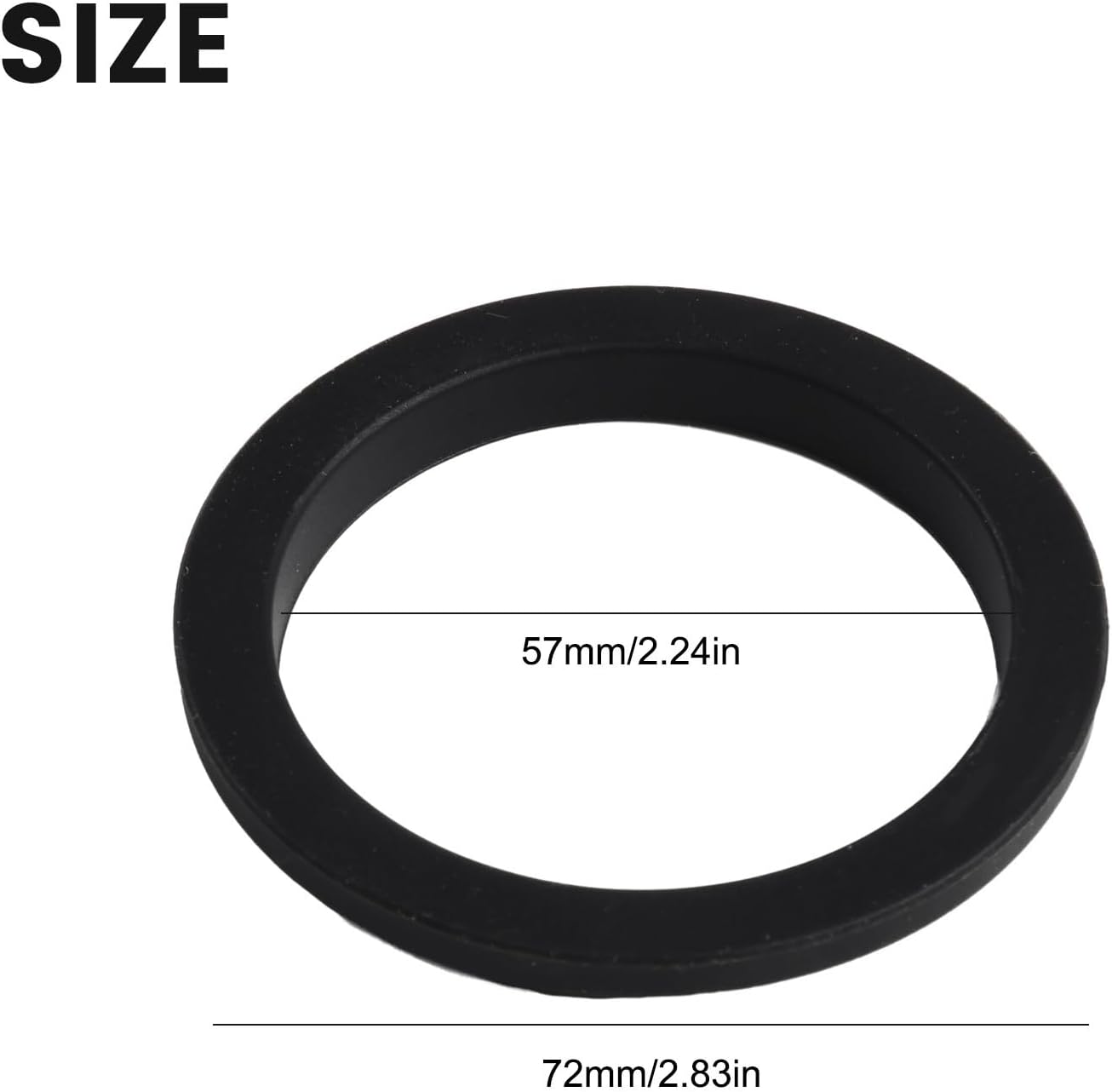

Product Specifications

Compatibility

This HEBEOT silicone replacement gasket is specifically designed for use with the following Nuova Simonelli espresso machine models:

• Nuova Simonelli Appia 1
• Nuova Simonelli Appia 2
• Nuova Simonelli Appia Life

Setup and Installation

Replacing the brewing group gasket is a routine maintenance task for espresso machines. Follow these general steps for installation:

1. Safety First: Ensure the espresso machine is turned off and unplugged from the power outlet. Allow the machine to cool down completely.
2. Remove Portafilter: Detach the portafilter from the brewing group.
3. Remove Old Gasket: Carefully use a pick tool or a flat-head screwdriver to pry out the old gasket from the group head. Be gentle to avoid scratching the metal.
4. Clean Group Head: Thoroughly clean the groove where the gasket sits, removing any coffee residue or debris. A group head brush can be useful.
5. Install New Gasket: Insert the new HEBEOT silicone gasket into the groove. Ensure it sits flush and evenly. Silicone gaskets are generally more flexible, making installation easier.
6. Test Fit: Reattach the portafilter and lock it into place. It should lock smoothly and securely. Run a blank shot (without coffee) to check for leaks.

Operating Principles: Portafilter Lock Position

The thickness of the brewing group gasket directly influences the "lock" position of your portafilter handle when inserted into the group head. An ideal lock position is typically between the 5 and 7 o'clock positions (pointing slightly to the left or right of directly forward).

• Too Thin Gasket: If the gasket is too thin, the portafilter handle will lock too far to the right (e.g., 8 or 9 o'clock position). This can make it difficult to remove and may indicate an insufficient seal.
• Too Thick Gasket: If the gasket is too thick, the portafilter handle will not lock far enough (e.g., 3 or 4 o'clock position), or it may be difficult to lock at all. This can lead to leaks during brewing.

The HEBEOT silicone gasket is engineered to provide the correct thickness for a proper seal and optimal portafilter locking position on compatible Nuova Simonelli Appia models.

Maintenance

To prolong the life of your HEBEOT silicone gasket and ensure consistent performance:

• Regular Cleaning: Backflush your espresso machine regularly according to the manufacturer's instructions. This helps remove coffee oils and grounds that can degrade the gasket over time.
• Inspect for Wear: Periodically inspect the gasket for signs of wear, cracking, or hardening. Silicone gaskets are more durable than rubber but will eventually require replacement.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals on the gasket, as this can damage the silicone material.

Troubleshooting

If you experience issues after replacing your gasket, consider the following:

• Leaks from Group Head: If water leaks around the portafilter during brewing, ensure the gasket is seated correctly and there are no coffee grounds or debris preventing a proper seal. If the leak persists, the gasket might be faulty or the group head itself may have issues.
• Portafilter Too Loose/Tight: Refer to the "Operating Principles" section regarding the portafilter lock position. If the portafilter locks too far or not far enough, double-check the gasket installation. Ensure you have the correct gasket for your specific machine model.
• Difficulty Installing Gasket: Ensure the groove is clean and dry. A small amount of food-grade lubricant (like silicone grease) can sometimes help, but typically silicone gaskets are easy to install dry.

Warranty and Support

HEBEOT stands behind the quality of its products. If you encounter any issues or have questions regarding your HEBEOT silicone replacement gasket, please do not hesitate to contact us.

You can reach our support team via the customer Q&A section on the product page or by sending an email. We are committed to assisting you within 24 hours and providing a satisfactory resolution.
