PONNOR Money Counter Machine User Manual

Model: US0720-N

Introduction

The PONNOR Money Counter Machine (Model US0720-N) is designed for efficient and accurate counting of banknotes, featuring advanced counterfeit detection and multiple operating modes. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

PONNOR Money Counter Machine with external display and stacks of money

Image: The PONNOR Money Counter Machine, showcasing its compact design with an external LCD display and banknotes being processed.

Safety Information

  • Ensure the machine is connected to a 110V power outlet, as it is designed for American standard voltage. Use a voltage converter if operating in regions with different voltage standards to prevent damage.
  • Always insert bills correctly into the hopper to avoid error reports and potential jams.
  • Keep hands and loose clothing away from moving parts during operation.

Package Contents

Your PONNOR Money Counter Machine package includes the following items:

  • 1 x Bill Counter Machine
  • 1 x Power Cord
  • 1 x Cleaning Brush
  • 1 x External Display
  • 1 x User Manual

For your privacy and security, the outer box does not contain information about the cash counting machine.

Privacy package for PONNOR Money Counter Machine

Image: A delivery person holding a discreetly packaged box for the money counter, emphasizing privacy.

Setup

Follow these steps to set up your money counter machine:

  1. Unpack: Carefully remove all components from the packaging.
  2. Connect Power: Plug the power cord into the machine's power input and then into a compatible 110V power outlet.
  3. Connect External Display: Connect the external LCD display to the designated port on the machine.
  4. Power On: Flip the ON/OFF switch located at the rear of the machine to the 'ON' position. The LCD screen will illuminate, indicating the machine is ready for use.
Easy operation of PONNOR Money Counter Machine with large LCD screen

Image: Close-up view of the machine's control panel and large LCD screen, highlighting its user-friendly interface.

Operating Modes

The PONNOR Money Counter Machine supports various modes for different counting needs:

  • COUNT Mode: Counts the number of bills.
  • ADD Mode: Adds the count of multiple batches together.
  • BATCH Mode: Counts bills into preset batches.
  • AUTO Mode: Automatically starts counting when bills are placed in the hopper.
  • MANUAL Mode: Requires manual start of counting.
Multiple operating modes displayed on the money counter screen

Image: Visual representation of various operating modes on the machine's display.

Value Counting Mode

In ADD mode, you can select different currency denominations to calculate the total number and total value of bills. Note: This mode does not calculate the total of a mixed bunch of banknotes simultaneously.

Instructions for Value Counting mode on the money counter

Image: Detailed instructions for using the Value Counting mode, showing denomination selection.

Silent Mode

To minimize noise, activate the silent setting. Press and hold the ST/CL button, then switch off the ON/OFF button at the rear of the machine. While still holding ST/CL, switch the machine back on. Release the button once the machine powers up in silent mode. Repeat the same steps to return to sound mode.

Video: Demonstrates how to activate and deactivate the silent mode, showing the ST/CL button and power switch interaction.

Instructions for activating Silent Mode on the money counter

Image: Visual guide for enabling silent mode by pressing ST/CL and cycling power.

Counterfeit Bill Detection

The money counter utilizes advanced UV (Ultraviolet), MG (Magnetic), IR (Infrared), MT (Magnetic Thread), and DD (Dimensional Detection) technologies to accurately identify counterfeit or damaged bills. When a suspicious bill is detected, the LCD display will show a red error code and sound an alarm. Remove the defective bill, and the machine will resume counting.

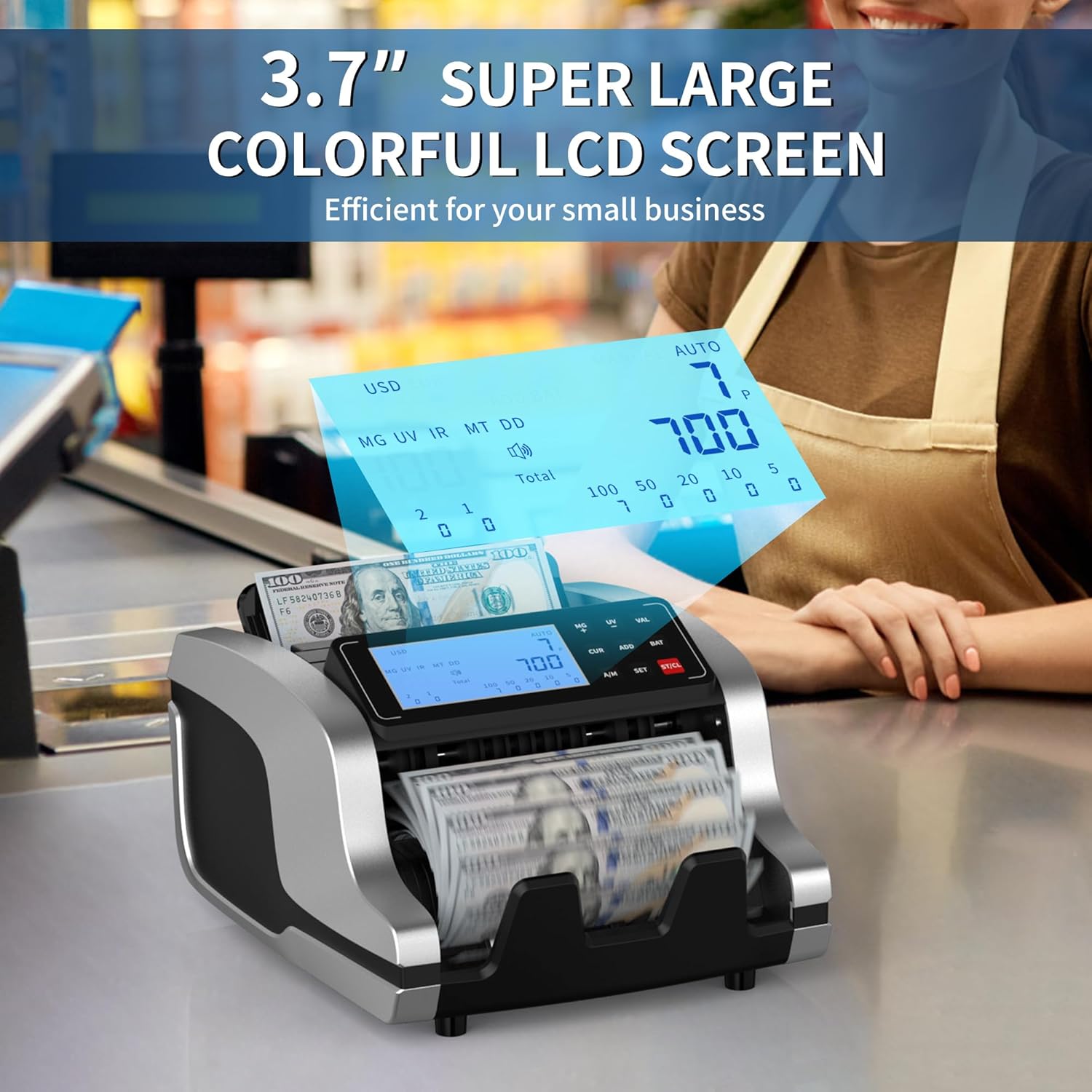

Bank grade counterfeit detection features of the money counter

Image: Illustrates the various detection methods (UV, MG, IR, DD) used by the machine.

Red error screen indicating counterfeit or damaged bill detection

Image: The machine's screen displaying a red warning and error code when a counterfeit bill is detected.

Troubleshooting

Bill Jamming

If a bill jams, take it out and check the feeding gap. Adjust the adjustment knob (located under the top cover) to tighten or loosen the gap. A feeding gap that is too tight or too loose can cause jams.

Instructions for adjusting the feeding gap to prevent bill jamming

Image: Visual guide on how to adjust the feeding gap to resolve bill jamming issues.

Video: Demonstrates how to address common machine problems, including bill jamming and error resolution.

Maintenance

Regular cleaning ensures the machine's accuracy and extends its lifespan. Use the provided brush to clean the feeding sensors and remove any dust or debris from the internal mechanisms.

Cleaning the money counter machine with a brush

Image: A hand using a brush to clean the internal components of the money counter.

Specifications

FeatureDetail
BrandPONNOR
Model NumberUS0720-N
Item Weight8.5 pounds
Package Dimensions14.25 x 11.3 x 7.17 inches
ColorBlack
Number of Items1
SizeMedium
Voltage110V (American Standard)

Warranty & Support

Your PONNOR Money Counter Machine comes with a 2-year service warranty. For any questions or technical assistance, please do not hesitate to reach out to us through the support options provided. We offer 24/7 technical support to ensure your satisfaction.

Customer support representative assisting with product queries

Image: A customer support representative ready to assist with product inquiries.
