Product Overview
The COWSAR Ice Maker Countertop is designed for efficient and convenient ice production in your home. It features a durable stainless steel construction, rapid ice-making capabilities, and a user-friendly self-cleaning function.
Image: The COWSAR Ice Maker Countertop in stainless steel black, shown with a glass of iced beverage and an ice scoop.
What's in the Box:
- Ice Maker Unit
- Ice Scoop
- Ice Basket
The ice maker is compact, with dimensions of 11.2"D x 8.6"W x 11.7"H, making it suitable for various countertop spaces.
Image: A visual representation of the ice maker's dimensions: 11.2 inches deep, 8.6 inches wide, and 11.7 inches high.
Setup
- Unpacking: Carefully remove the ice maker and all accessories from the packaging.
- Placement: Place the ice maker on a stable, level surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
- Initial Cleaning: Before first use, clean the interior of the ice maker, including the water reservoir and ice basket, with a soft cloth and mild detergent. Rinse thoroughly.
- Fill Water Reservoir: Open the lid and remove the ice basket. Fill the water reservoir with clean, potable water up to the "MAX" fill line. Do not overfill.
- Replace Ice Basket: Place the ice basket back into its position and close the lid.
Image: A detailed view of the ice maker's control panel and the transparent lid, showing the ice basket and water reservoir below.
Operating Instructions
- Power On: Plug the ice maker into a grounded electrical outlet. Press the "ON/OFF" button on the control panel to turn the unit on. The "POWER" indicator light will illuminate.
- Ice Production: The ice maker will automatically begin the ice-making cycle. It produces 9 bullet-shaped ice cubes in approximately 6 minutes.
- Daily Capacity: The unit has a daily ice production capacity of up to 26.5 pounds. The ice storage capacity is up to 60 ice cubes.
- Indicator Lights:
- "ADD WATER" light: Illuminates when the water reservoir needs refilling.
- "ICE FULL" light: Illuminates when the ice basket is full, and the ice-making process will pause.
- Serving Ice: Use the provided ice scoop to retrieve ice from the basket.
Image: An illustration highlighting the ice maker's efficiency, showing its internal compressor and indicating "Ready in 6 Mins" and "26.5 lbs/24h".

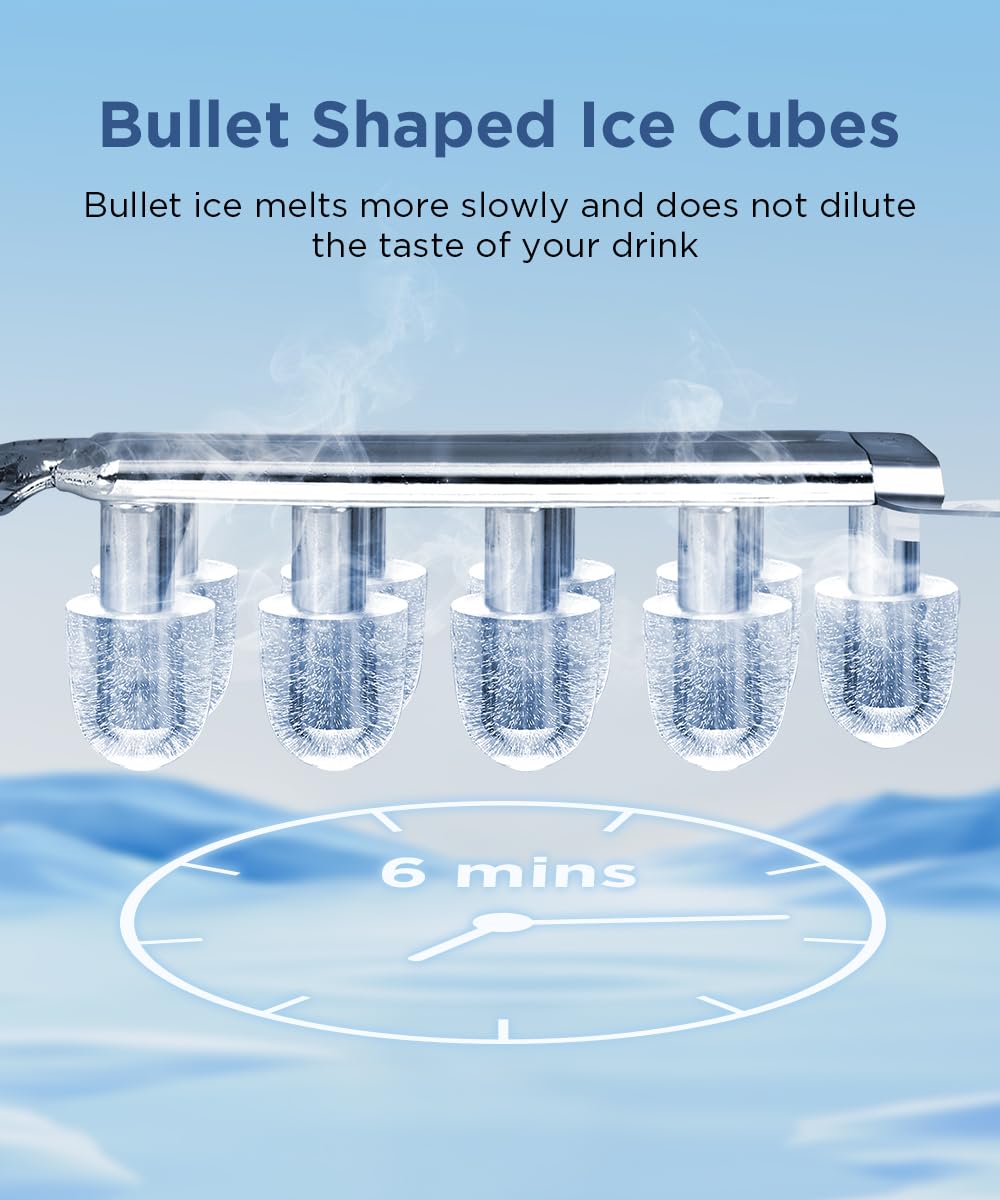

Image: A close-up view of the ice maker's mechanism forming bullet-shaped ice cubes, emphasizing the 6-minute production time.
The ice maker operates at a low noise level, below 42 decibels, ensuring a quiet environment.
Image: The ice maker positioned on a countertop, with a graphic indicating its low noise level of less than 42 decibels, suggesting it won't disturb quiet time.
Maintenance
Self-Cleaning Mode
The COWSAR Ice Maker features a convenient one-touch automatic cleaning function. It is recommended to clean the machine once a month to prevent limescale buildup and ensure fresh-tasting ice.
- Ensure the water reservoir is filled with clean water.
- Press and hold the "ON/OFF" button for 5 seconds to initiate the 30-minute automatic cleaning cycle.
- Once the cycle is complete, drain any remaining water from the reservoir.
Image: An internal view of the ice maker with water circulating, illustrating the self-cleaning process to remove limescale.
General Cleaning
- Regularly wipe the exterior of the unit with a soft, damp cloth.
- For thorough cleaning, unplug the unit and remove the ice basket. Clean the interior with a mild detergent and warm water. Rinse well and dry completely before reassembling.
- Do not use abrasive cleaners or solvents, as these may damage the unit's finish.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Ice maker not producing ice. | "ADD WATER" indicator is on. | Refill the water reservoir with potable water. |
| Ice production has stopped. | "ICE FULL" indicator is on. | Empty the ice basket. The unit will resume ice making automatically. |
| Ice cubes are too small or not fully formed. | Water temperature is too high or ambient temperature is too warm. | Use colder water. Ensure the unit is in a cool, well-ventilated area. Allow more time for initial cycles. |
| Unusual noise during operation. | Unit is not level or internal components are settling. | Ensure the ice maker is on a flat, stable surface. Minor noises are normal during operation. If noise persists or is excessive, contact customer support. |
For issues not listed above, please refer to the Warranty & Support section for assistance.
Specifications
- Brand: COWSAR
- Model Name: Z5812SH
- Item Model Number: Z5812SH-Black
- Product Dimensions (D x W x H): 11.2" x 8.6" x 11.7"
- Weight: 14.56 Pounds
- Ice Production Capacity: 26.5 Pounds per 24 Hours
- Ice Cube Shape: Bullet
- Ice Production Time: 9 cubes in 6 minutes
- Noise Level: Below 42 decibels
- Wattage: 250 watts
- Construction Material: Stainless Steel
- Manufacturer: COWSAR
- Date First Available: March 10, 2023
Warranty & Support
COWSAR is committed to providing high-quality products and a good user experience. This product may be eligible for extended protection plans.
Protection Plans Available:
- 2-Year Protection Plan
- 3-Year Protection Plan
- Complete Protect: One plan covers all eligible past and future purchases (monthly billing)
For detailed information regarding these protection plans, please refer to the product's purchase page or contact your retailer.
Customer Support:
For any inquiries, technical assistance, or warranty claims, please contact COWSAR customer support. While specific contact details are not provided in this manual, general support is available to ensure a good user experience.
Please visit the official COWSAR website or refer to your purchase documentation for the most up-to-date contact information and support resources.
