1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your new Senhozi 2-Handle 3-Hole Brushed Nickel Centerset Bathroom Sink Faucet. Please read these instructions carefully before beginning installation to ensure proper function and longevity of your product. Keep this manual for future reference.
Safety Information:
- Always turn off the main water supply before installing or performing any maintenance on the faucet.
- Wear appropriate personal protective equipment, such as safety glasses, during installation.
- If you are unsure about any part of the installation process, it is recommended to consult a qualified plumber.
2. Package Contents
Verify that all components are present before beginning installation:
- 360-degree swivel spout faucet body
- Mounting hardware
- Valve
- Pop-up drain
- Deck plate
- 23.6-inch hot and cold water supply hoses
Figure 2.1: Included Components
3. Specifications
| Feature | Description |
|---|---|
| Brand | Senhozi |
| Model Name | SE-0048-BN |
| Mounting Type | Deck Mount, Centerset |
| Finish Type | Brushed Nickel |
| Material | Stainless Steel (SUS304) |
| Number of Handles | 2 |
| Spout Design | Waterfall, 360-degree Swivel |
| Spout Height | 5.4 Inches |
| Spout Reach | 5 Inches |
| Product Dimensions | 6.5"D x 6"W x 7.62"H |
| Item Weight | 3.23 pounds |
| Sink Hole Requirement | 0.8-1.5 inch (25-35mm) |
| Max Countertop Thickness | 1.06 inch (35mm) |
Figure 3.1: Installation Dimensions
Figure 3.2: Faucet and Drain Dimensions
4. Installation
This faucet is designed for 2 or 3-hole, 4-inch centerset installations. Ensure your sink's hole size is between 0.8-1.5 inches and the maximum countertop thickness is 1.06 inches.
- Prepare the Sink: Turn off the water supply to the sink. Clear the area under the sink and remove any old faucet components.
- Install the Faucet Body: Place the deck plate and faucet body onto the sink holes. Secure it from underneath the sink using the provided mounting hardware. Ensure the faucet is centered and stable.
- Connect Water Supply Lines: Attach the hot and cold water supply hoses to the corresponding inlets on the faucet body and then to your hot and cold water supply valves. Hand-tighten first, then use a wrench for a quarter turn. Do not overtighten.
- Install the Pop-up Drain: Follow the instructions provided with the pop-up drain for proper installation into the sink drain opening. Ensure a watertight seal.
- Test for Leaks: Once all connections are secure, slowly turn on the main water supply. Check all connections for any leaks. If leaks occur, tighten the connections as needed.
Video 4.1: Overview of a 4-inch centerset bathroom faucet installation. This video demonstrates the general process for installing a similar faucet model.
5. Operation
Your Senhozi faucet features a unique waterfall design and a 360-degree swivel spout for enhanced functionality and aesthetic appeal.
- Water Flow: Turn the left handle for hot water and the right handle for cold water. Adjust both handles to achieve your desired water temperature and flow rate.
- Waterfall Spout: The wide, flat spout delivers a gentle waterfall stream of water.
- 360-Degree Swivel: The spout can be rotated 360 degrees, providing flexibility for various sink tasks.
- Pop-up Drain: The included pop-up drain is operated by pressing down to close and pressing again to open, allowing for easy filling and draining of the sink.

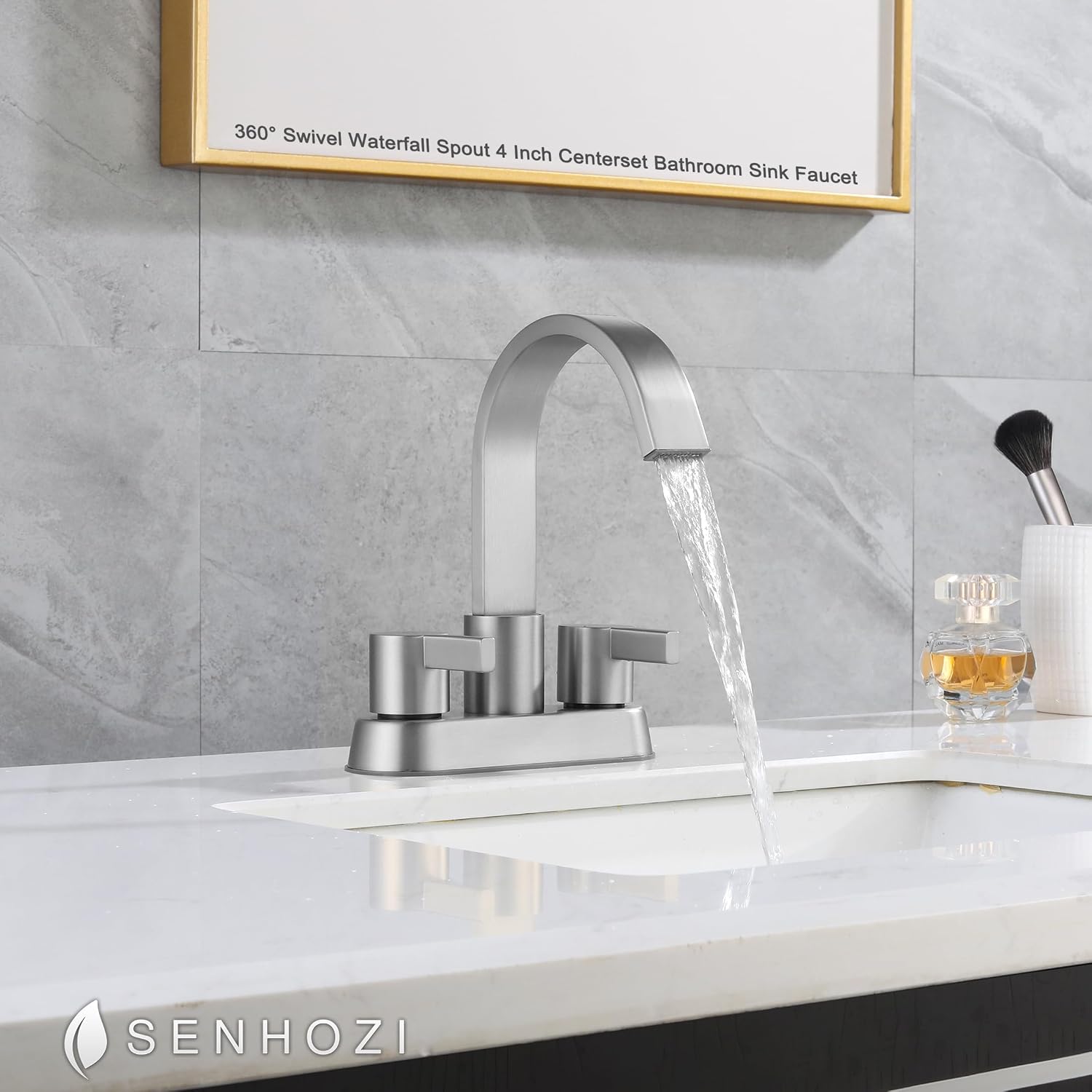

Figure 5.1: Faucet in operation, demonstrating the waterfall flow.
Figure 5.2: Faucet design emphasizing the 360-degree swivel and waterfall spout.
Figure 5.3: Key features of the Senhozi faucet.
6. Maintenance
Proper care and maintenance will help preserve the finish and functionality of your faucet.
- Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish.
- Water Spots: To prevent water spots, wipe the faucet dry after each use.
- Material: The faucet is constructed from durable SUS304 stainless steel, which offers good corrosion resistance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged aerator or partially closed water supply valves. | Clean the aerator at the spout. Ensure both hot and cold water supply valves are fully open. |
| Leaks from Faucet Base | Loose mounting nuts or worn O-rings. | Tighten mounting nuts under the sink. If problem persists, inspect and replace O-rings if necessary. |
| Leaks from Supply Hoses | Loose connections or defective hoses. | Ensure all hose connections are tight. If hoses are defective, replace them with new ones. |
| Water Temperature Issues | Incorrect handle adjustment or issues with water heater. | Adjust hot and cold handles. Check your water heater settings if hot water is consistently too cold. |
8. Warranty and Support
Senhozi is committed to providing professional service. If you encounter any issues with your bathroom sink faucet, please feel free to contact us. Refer to your purchase documentation for specific warranty details and contact information.
For further assistance, please visit the Senhozi Store on Amazon.
