Varpoolfaye 2.5HP Variable Speed Pool Pump Instruction Manual

Model: XKP1807BP

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Varpoolfaye 2.5HP Variable Speed Pool Pump. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your pump.

2. Safety Information

WARNING: Electrical Hazard. Risk of electric shock. Ensure power is disconnected before installation or maintenance.

  • Always disconnect power to the pump before performing any service or maintenance.
  • Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
  • Ensure the pump is properly grounded.
  • Do not operate the pump if it is damaged or has exposed wiring.
  • Keep children away from the pump and pool equipment.
  • This pump is designed for use with swimming pools, spas, and aquaculture systems. Do not use for other purposes.

3. Product Overview

The Varpoolfaye 2.5HP Variable Speed Pool Pump is designed for high performance and energy efficiency, suitable for both inground and above ground pools. Key features include:

  • 2.5HP Permanent Magnet Motor: Operates on 220-240V/60Hz, providing stable, high performance, and quiet operation. Includes built-in overload protection and anti-dry spin protection.
  • Variable Speed Technology: Reduces operating and maintenance costs by up to 80% compared to traditional single-speed pumps.
  • Smart Speed Adjustment: Offers low-speed mode for daily circulation and filtration, and high-speed mode for quick cleaning.
  • Oversized Filter Basket: Extends cleaning intervals and simplifies maintenance.
  • Removable Rain Cover: Protects the motor from rainwater erosion, prolonging pump life.
  • Wide Compatibility: Includes two adapter ports (Inner diameter 2 in and 2.5 in) for easy installation with various pipe sizes.
Varpoolfaye 2.5HP Variable Speed Pool Pump with components

Image: Overview of the Varpoolfaye 2.5HP Variable Speed Pool Pump, showing the main unit, control panel, filter basket, and included pipe adapters.

4. Components and Specifications

Included Components:

  • Varpoolfaye 2.5HP Variable Speed Pool Pump
  • 2x 2'' Connectors for swimming pool pump
  • Installation & Operation Manual

Technical Specifications:

SpecificationValue
BrandVarpoolfaye
Model NumberXKP1807BP
Horsepower2.5HP
Voltage220-240V (AC)

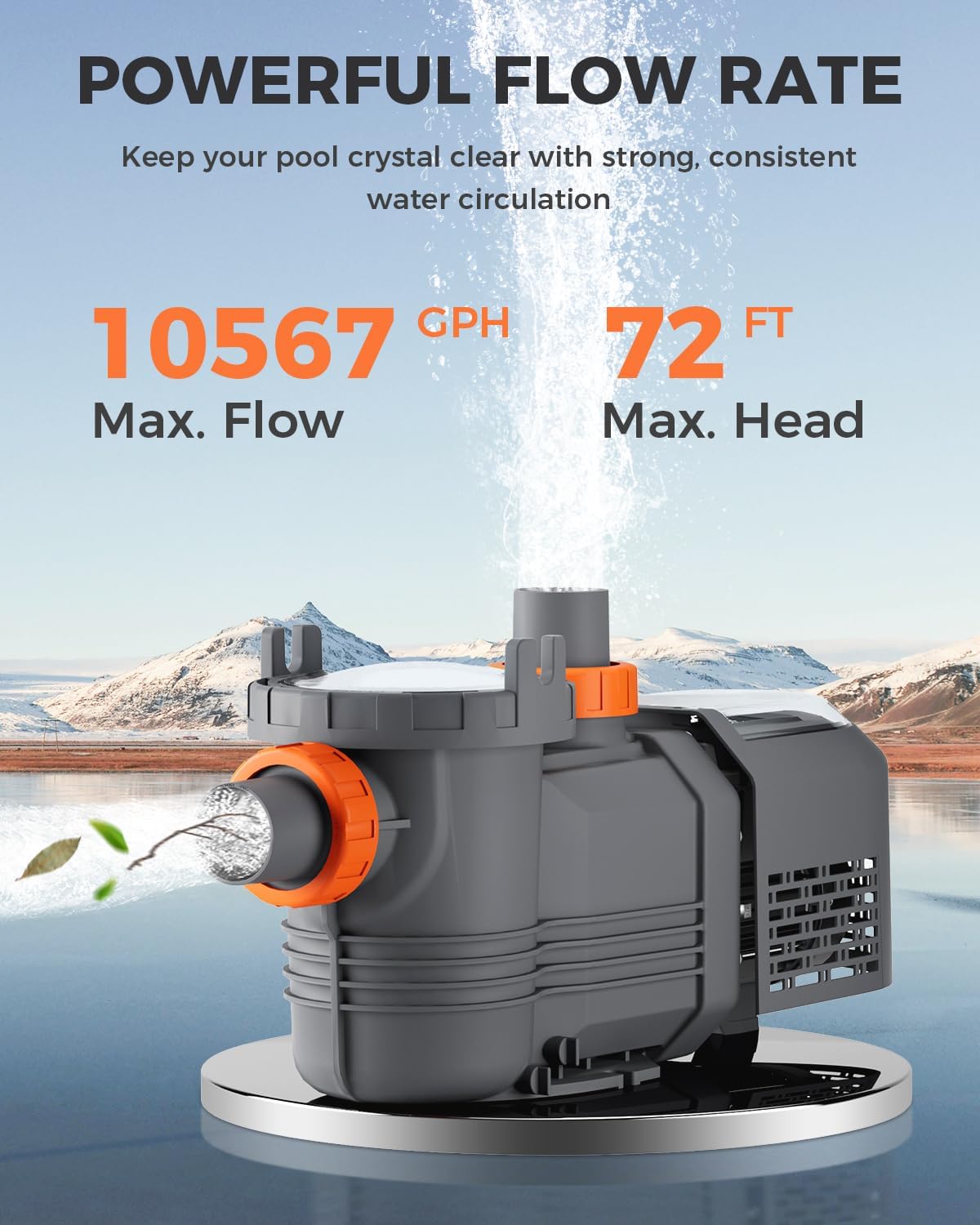

Maximum Flow Rate10567 GPH (176.12 Gallons Per Minute)
Maximum Head72 FT
MaterialStainless Steel, PP plastic, Copper Motor
Item Weight17.15 Kilograms (37.7 pounds)
Product Dimensions24.72 x 8.35 x 13.21 inches
Detailed specifications of the Varpoolfaye pool pump including horsepower, voltage, and dimensions.

Image: Visual representation of the pump's specifications, including horsepower, voltage, and physical dimensions.

Plumbing adapter dimensions for 2-inch and 2.5-inch PVC pipes.

Image: Illustration of the plumbing adapter dimensions, showing compatibility with 2-inch and 2.5-inch Schedule 40/80 PVC pipes.

5. Setup and Installation

5.1 Placement

Place the pump on a solid, level surface near the pool, ensuring adequate ventilation and protection from direct sunlight and extreme weather conditions. The removable rain cover should be utilized to protect the control panel and motor.

5.2 Plumbing Connections

The pump comes with two adapter ports (2-inch and 2.5-inch inner diameter) to match your existing pool piping. Ensure a secure, watertight connection to prevent leaks and maintain optimal flow.

Diagram showing the inlet and outlet connections of the pool pump with 2-inch or 2.5-inch adapters.

Image: Diagram illustrating the easy connection points for the pump's inlet and outlet, compatible with 2-inch or 2.5-inch pipes.

5.3 Electrical Wiring

Connect the pump to a dedicated 220-240V/60Hz power supply. Follow the wiring instructions carefully, ensuring proper grounding. Consult a qualified electrician if you are unsure about the wiring process.

Pool pump wiring instructions showing connections for hot wire, ground wire, and user power inlet.

Image: Detailed wiring instructions for the pool pump, showing connections for black (hot), white (hot), and green (ground) wires to the user power inlet.

Video: This video demonstrates the rainproof cover for the control panel and motor, highlighting its protective features.

5.4 Priming the Pump

Before first use, manually fill the filter basket with water to prime the pump. Ensure the cap is tightened and the seal is secure before starting the pump.

6. Operating Instructions

6.1 Control Panel Overview

The pump features a digital control panel with four speed settings, a menu for programming, and start/stop buttons. The clear cover protects the panel from elements while allowing visibility.

Programmable and automated control panel with digital display and speed settings.

Image: Close-up of the programmable control panel, highlighting the digital display, speed settings (1-4), menu, enter, ESC, start, and stop buttons.

6.2 Adjusting Speed and Setting Schedules

Utilize the variable speed settings to optimize performance and energy consumption. Lower speeds are ideal for daily circulation, while higher speeds are effective for cleaning or when the pool is in heavy use. The built-in timer allows for scheduled operation.

  1. Press the MENU button to access settings.
  2. Navigate to Schedules using the arrow keys and press ENTER.
  3. Select a schedule (e.g., Schedule 1) and set the Time On and Time Off.
  4. Select the desired Speed for that schedule (Speed 1-4).
  5. Ensure the function is Enabled.
  6. Press ESC to exit and save settings.

Video: This video demonstrates how to set the time and speed schedules on the variable speed pool pump's control panel.

Video: This video provides a general overview of the Varpoolfaye Variable Speed Pool Pump in operation.

7. Maintenance

7.1 Filter Basket Cleaning

The oversized filter basket is designed for extended cleaning intervals. Regularly check and clean the basket to ensure optimal water flow and prevent debris buildup.

  1. Turn off the pump and disconnect power.
  2. Remove the clear lid of the filter basket.
  3. Lift out the basket and empty any collected debris.
  4. Rinse the basket thoroughly with water.
  5. Replace the basket and secure the lid, ensuring a tight seal.
Oversized filter basket for easy debris collection and cleaning.

Image: The pump's extra-large filter basket, designed to capture leaves, hair, and other debris, reducing cleaning frequency.

7.2 Motor Protection

The unique removable rain cover helps protect the motor and control panel from rainwater and other environmental factors. Ensure it is properly installed to prolong the life of your pump.

Video: This video demonstrates the rainproof cover for the control panel and motor, highlighting its protective features.

8. Troubleshooting

If you encounter issues with your Varpoolfaye pool pump, refer to the following common troubleshooting steps:

  • Pump not starting: Check power connections, circuit breaker, and ensure the control panel is not displaying any error codes.
  • Low water flow: Inspect the filter basket for debris, check for blockages in plumbing, and ensure the pump is properly primed.
  • Unusual noise: Turn off the pump immediately. Check for foreign objects in the impeller or motor, and ensure all connections are secure.
  • Water leaks: Inspect all pipe connections and O-rings for proper seating and damage.

For persistent issues, please contact Varpoolfaye customer support.

9. Warranty and Support

Your Varpoolfaye 2.5HP Variable Speed Pool Pump is backed by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical assistance, replacement parts, or warranty claims, please contact Varpoolfaye customer support through their official channels or visit their Amazon Brand Store.
