Introduction
This manual provides essential instructions for the assembly, operation, and maintenance of your Housoul 71-inch Tall Pantry Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image: The Housoul 71-inch Tall Pantry Cabinet in black, featuring four doors with gold handles, shown in a kitchen setting.
Safety Information
To ensure safe use of this product, please observe the following guidelines:
- Anti-Tipping Device: Ensure the cabinet is securely anchored to the wall using the provided anti-tipping device to prevent tipping over. This is especially important if installing in a location accessible to children or pets.
- Weight Distribution: Distribute weight evenly across shelves. Avoid placing heavy items on upper shelves exclusively.
- Assembly: Follow all assembly instructions precisely. Do not skip steps or use unapproved parts.
- Placement: Place the cabinet on a flat, stable surface.
Image: A close-up view of the anti-tipping device, demonstrating its secure attachment to the cabinet and the wall for enhanced stability.
Package Contents
Before assembly, verify that all components are present and undamaged. The package typically includes:
- Cabinet panels (top, bottom, side, back)
- Four cabinet doors
- Adjustable shelves (3 total)
- Gold handles (4 sets)
- Hinges and associated screws
- Shelf pins
- Anti-tipping device with hardware
- Assembly hardware (screws, dowels, cam locks, etc.)
- Instruction manual
All hardware components are individually packaged and labeled for easy reference during assembly.
Image: Gold Handles
Image: Cabinet Hinges
Setup and Assembly Instructions
Assembly typically requires two people. Ensure you have a clear, spacious area for assembly. A Phillips head screwdriver and a hammer may be required (not included).
- Unpack and Identify: Carefully unpack all components and hardware. Refer to the parts list in your included manual to identify each piece.
- Assemble Frame: Begin by connecting the side panels to the base and top panels using the provided hardware (dowels, cam locks, screws). Follow the numerical or alphabetical labels on the parts and diagrams.
- Install Back Panel: Secure the back panel to the assembled frame.
- Attach Hinges: Install hinges onto the cabinet doors and the cabinet frame as per the diagrams.
- Mount Doors: Carefully attach the doors to the cabinet frame. Adjust hinges as needed to ensure doors align and close flush.
- Install Handles: Attach the gold handles to the cabinet doors.
- Insert Shelves: Place shelf pins into the desired holes and then position the adjustable shelves.
- Secure Anti-Tipping Device: Attach the anti-tipping device to the top rear of the cabinet and then secure it to a wall stud or appropriate wall anchor. This step is crucial for safety.
Operating Instructions
The Housoul Pantry Cabinet is designed for versatile storage in various rooms.
Adjusting Shelves
The cabinet features two adjustable shelves, allowing for customization of storage space. The shelves can be adjusted to three different height levels.
- Empty Shelf: Remove all items from the shelf you wish to adjust.
- Remove Shelf: Carefully lift the shelf and remove the four shelf pins from their current positions.
- Reposition Pins: Insert the shelf pins into the desired new set of holes. Ensure all four pins are at the same height level for stability.
- Replace Shelf: Place the shelf back onto the repositioned pins, ensuring it is level and secure before placing items on it.

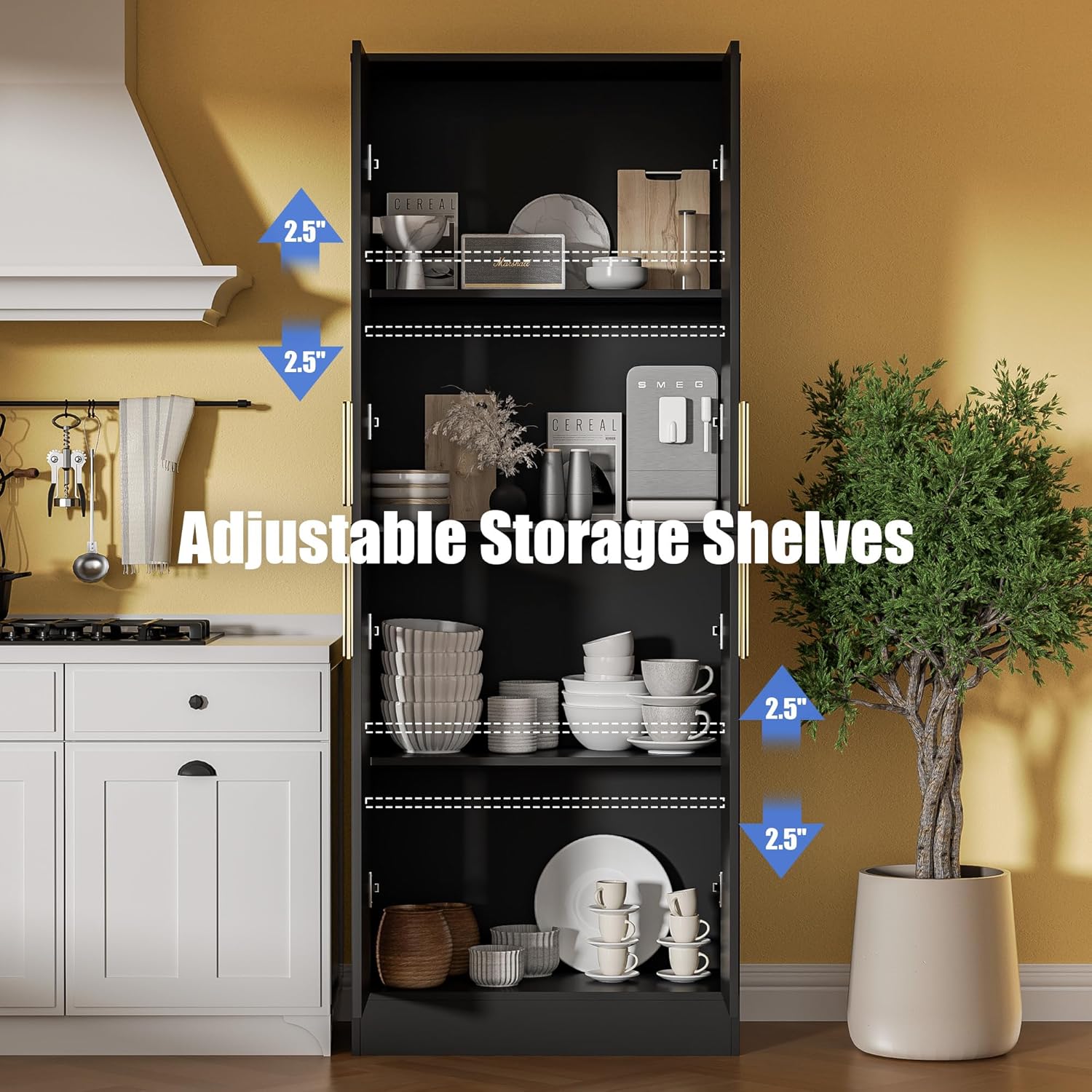

Image: The interior of the cabinet showing adjustable shelves with items, highlighting the 2.5-inch adjustment increments.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your cabinet.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Spills: Clean spills immediately to prevent staining or damage to the engineered wood.
- Hardware Check: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Door Alignment: If doors become misaligned, adjust the hinges as needed to restore proper closure.
Troubleshooting
Refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly or unstable. | Uneven floor; loose connections; anti-tipping device not installed or secured. | Ensure cabinet is on a level surface. Check and tighten all assembly screws. Verify the anti-tipping device is correctly installed and anchored to the wall. |
| Doors do not close flush or are misaligned. | Hinges are not properly adjusted or installed. | Adjust the screws on the hinges to align the doors. Refer to the hinge adjustment section in the full assembly manual if available. |
| Handles are loose or wobble. | Screws attaching handles are loose or incorrect length. | Tighten the handle screws. If screws are too long, ensure they are fully seated or contact customer support for assistance. |
| Missing parts or damaged components. | Packaging error or shipping damage. | Contact Housoul customer service immediately with your purchase details. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Housoul |
| Model Name | HS-PUSMG-W |
| Color | Black |
| Product Dimensions (D x W x H) | 13.4" x 27.6" x 70.9" |
| Item Weight | 95 Pounds |
| Material | Engineered Wood |
| Number of Doors | 4 |
| Number of Shelves | 3 (2 adjustable) |
| Special Features | Adjustable Shelf, Anti-Tipping Device |
| Mounting Type | Floor Mount (Freestanding) |
| Assembly Required | Yes |
| UPC | 795276459231 |
Image: Detailed dimensions of the Housoul pantry cabinet, including overall height, width, depth, and internal shelf spacing.
Image: Material layers demonstrating the CARB/EPA certified engineered wood construction.
Warranty Information
Specific warranty details for the Housoul 71-inch Tall Pantry Cabinet are typically provided with the product packaging or can be obtained directly from the manufacturer. Please refer to the documentation included with your purchase for comprehensive warranty terms and conditions.
Customer Support
If you have any questions regarding the assembly, operation, or maintenance of your Housoul pantry cabinet, or if you encounter any issues, please do not hesitate to contact our professional customer service team. We are committed to assisting you and ensuring a satisfactory solution.
Manufacturer: Housoul
For support, please refer to the contact information provided on your purchase receipt or visit the official Housoul store page on Amazon: Housoul Amazon Store
