1. Introduction
Thank you for choosing the TIDRADIO TD-H8 Ham Handheld Radio. This manual provides essential information for the safe and efficient operation of your device. The TD-H8 is a high-performance dual-band radio featuring 10 watts of output power, a large color screen, and innovative wireless programming capabilities via a smartphone application. It is designed for reliable communication in various environments.
2. Package Contents
Upon unpacking, please verify that all items listed below are included in your package:
- 2 × TIDRADIO TD-H8 Ham Radios
- 2 × 2500mAh Li-ion Batteries
- 2 × Desktop Chargers
- 2 × USB-C Charging Cables
- 2 × Wall Adapters
- 2 × Antennas
- 2 × Belt Clips
- 1 × User Manual

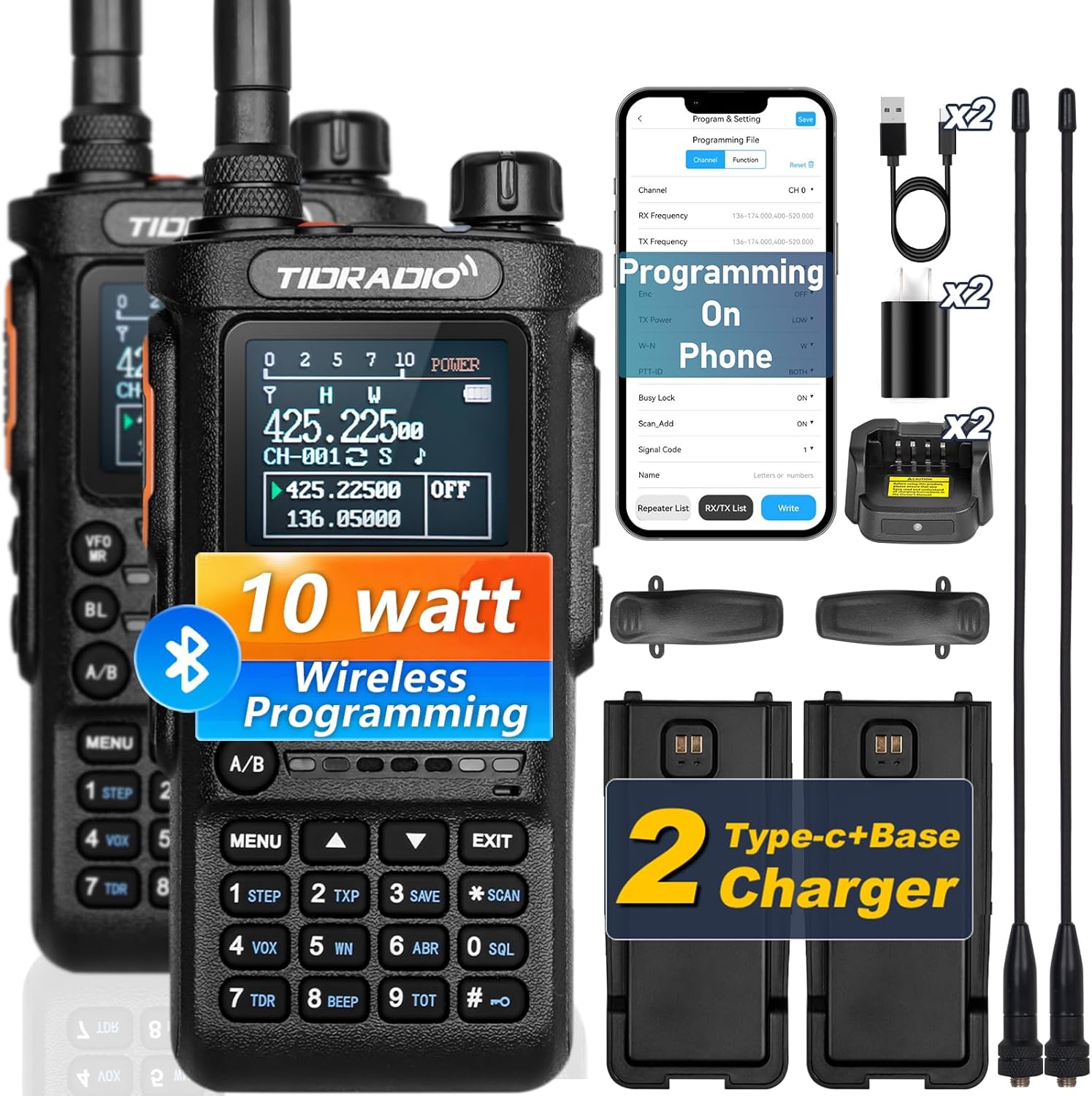

Image: Contents of the TIDRADIO TD-H8 Full Kit, showing two radios and their accompanying accessories.
3. Product Features
The TIDRADIO TD-H8 offers a range of advanced features for enhanced communication:
- Real 10 Watt Output Power: Provides extended communication range compared to lower wattage radios.
- 2500mAh Type-C Rechargeable Battery: Offers long operational and standby times.
- 1.77" Large Color Screen: Clear and intuitive display of radio information.
- Wireless Programming: Program your radio directly from your smartphone via the Odmaster app (Bluetooth connection).
- Version Switching & Updatable Firmware: Ensures your radio stays current with the latest features and improvements.
- Dual Band & Dual Watch: Monitor two frequencies simultaneously.
- NOAA Weather Radio: Stay informed about weather alerts.
- VOX Function: Voice-activated transmission for hands-free operation.
- CTCSS/DCS Codes: For private group communication.
- Multiple Programming Options: Supports Odmaster app, Chirp, and CPS software.

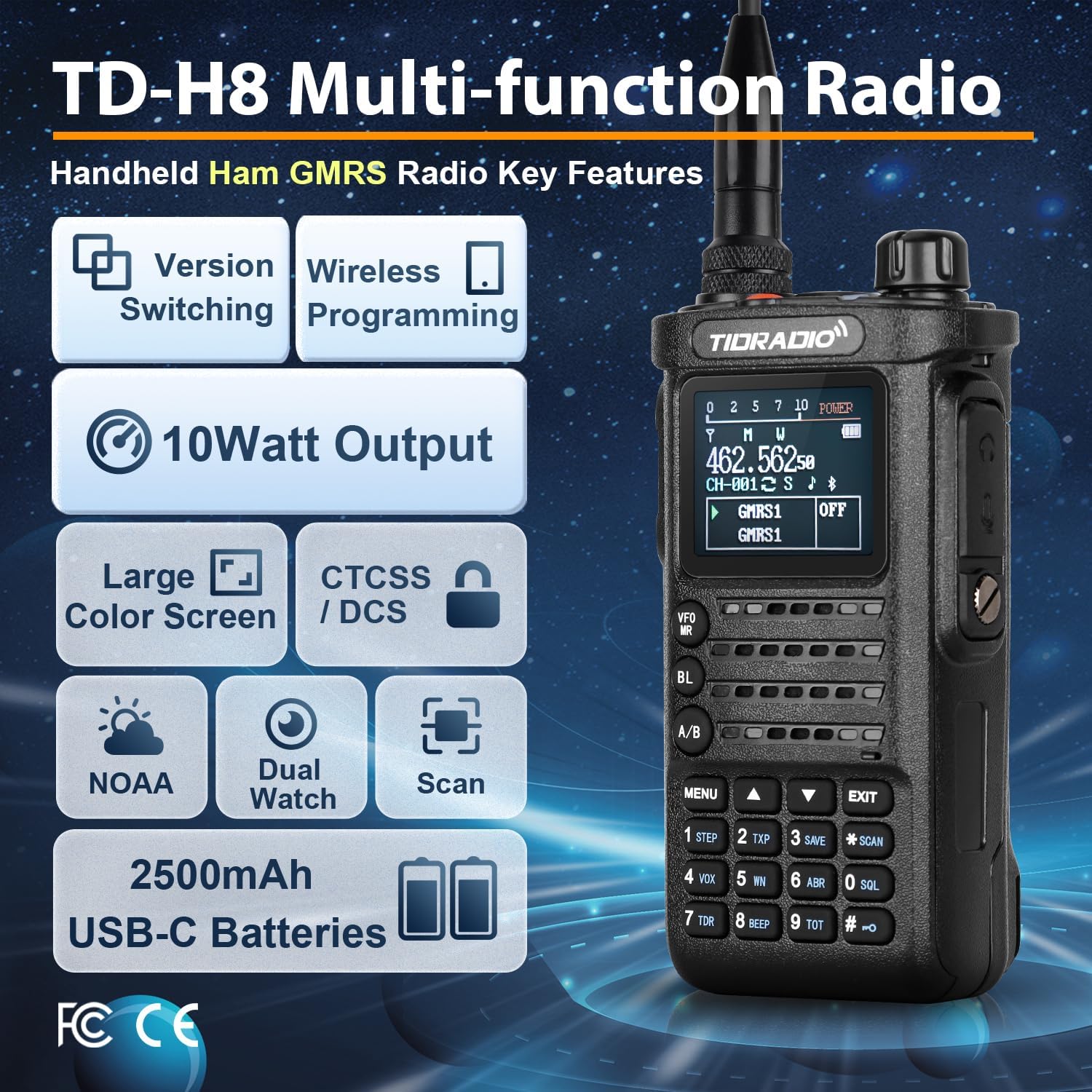

Image: Overview of the TIDRADIO TD-H8's multi-function capabilities and key features.
4. Setup Guide
4.1 Battery Installation and Charging
- Align the battery pack with the grooves on the back of the radio.
- Slide the battery upwards until it clicks securely into place.
- To charge, connect the USB-C cable to the battery directly or place the radio in the desktop charger. Connect the charger to a power source using the provided wall adapter.
- The charging indicator light will show charging status (e.g., red for charging, green for fully charged).
Image: The TD-H8 radio connected for USB-C charging, emphasizing its powerful 2500mAh Li-ion battery.
Image: Illustration of the two available charging methods for the TD-H8 radio: direct USB-C connection and using the desktop charging cradle.
4.2 Antenna Attachment
Screw the antenna clockwise onto the antenna connector on top of the radio until it is finger-tight. Do not overtighten.

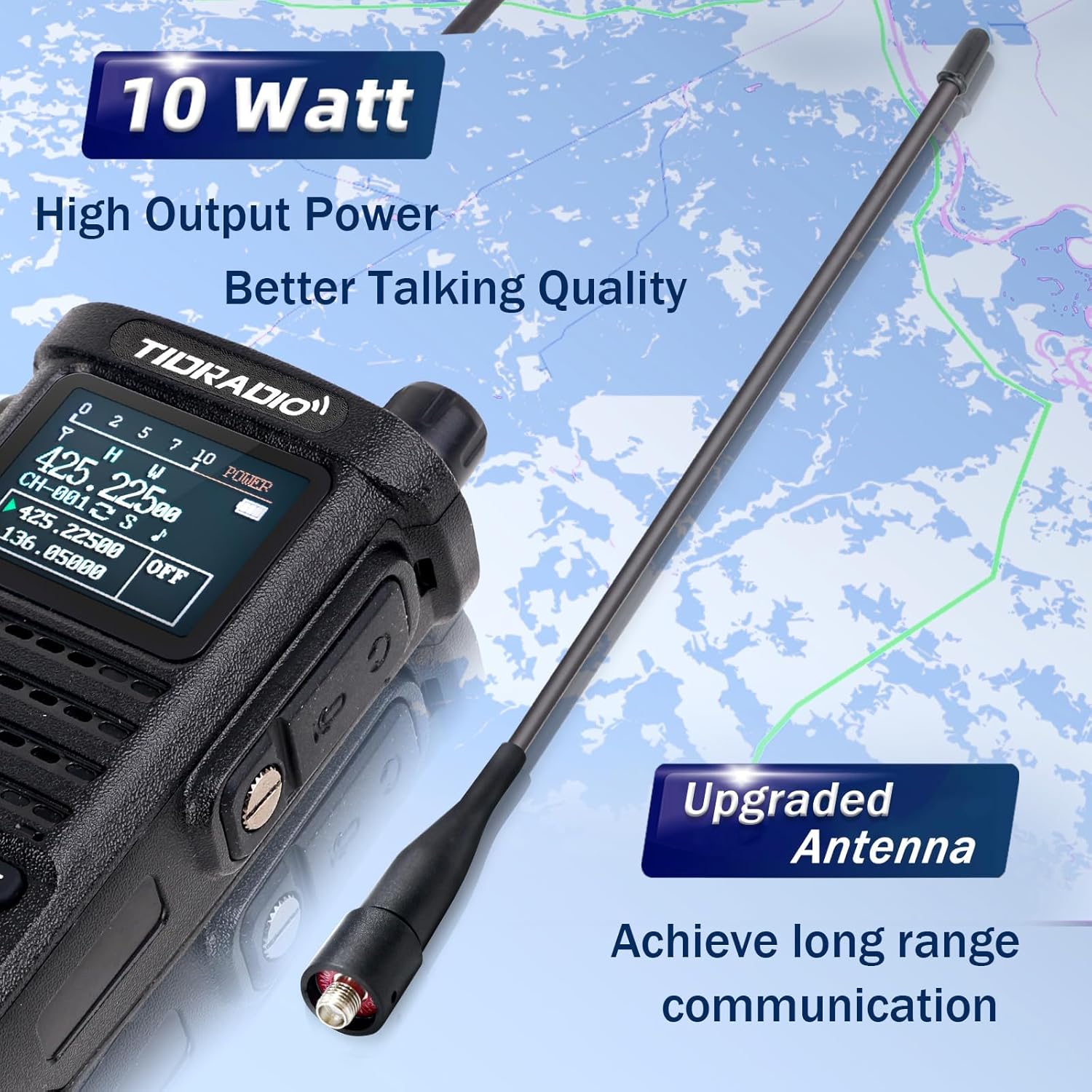

Image: The TD-H8 radio with its upgraded antenna, illustrating the high output power for long-range communication.
5. Operating Instructions
5.1 Basic Operation
- Power On/Off: Rotate the top knob clockwise to power on, counter-clockwise to power off.
- Volume Control: Rotate the top knob to adjust volume.
- Frequency/Channel Selection: Use the up/down arrow keys to change frequency or channel.
- Transmit (PTT): Press and hold the PTT (Push-To-Talk) button on the side to transmit. Release to receive.

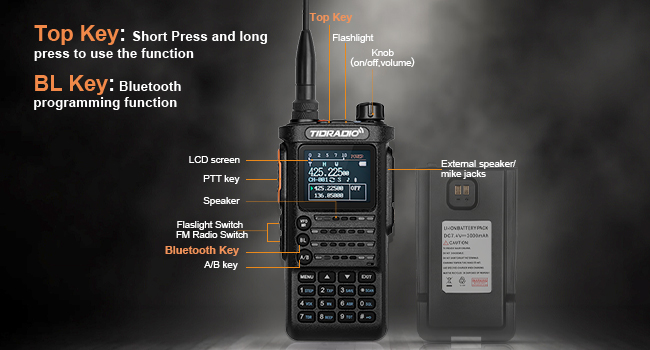

Image: Labeled diagram of the TD-H8 radio, indicating the location and function of its main components and controls.
5.2 Display Information
The 1.77" color screen provides comprehensive information:

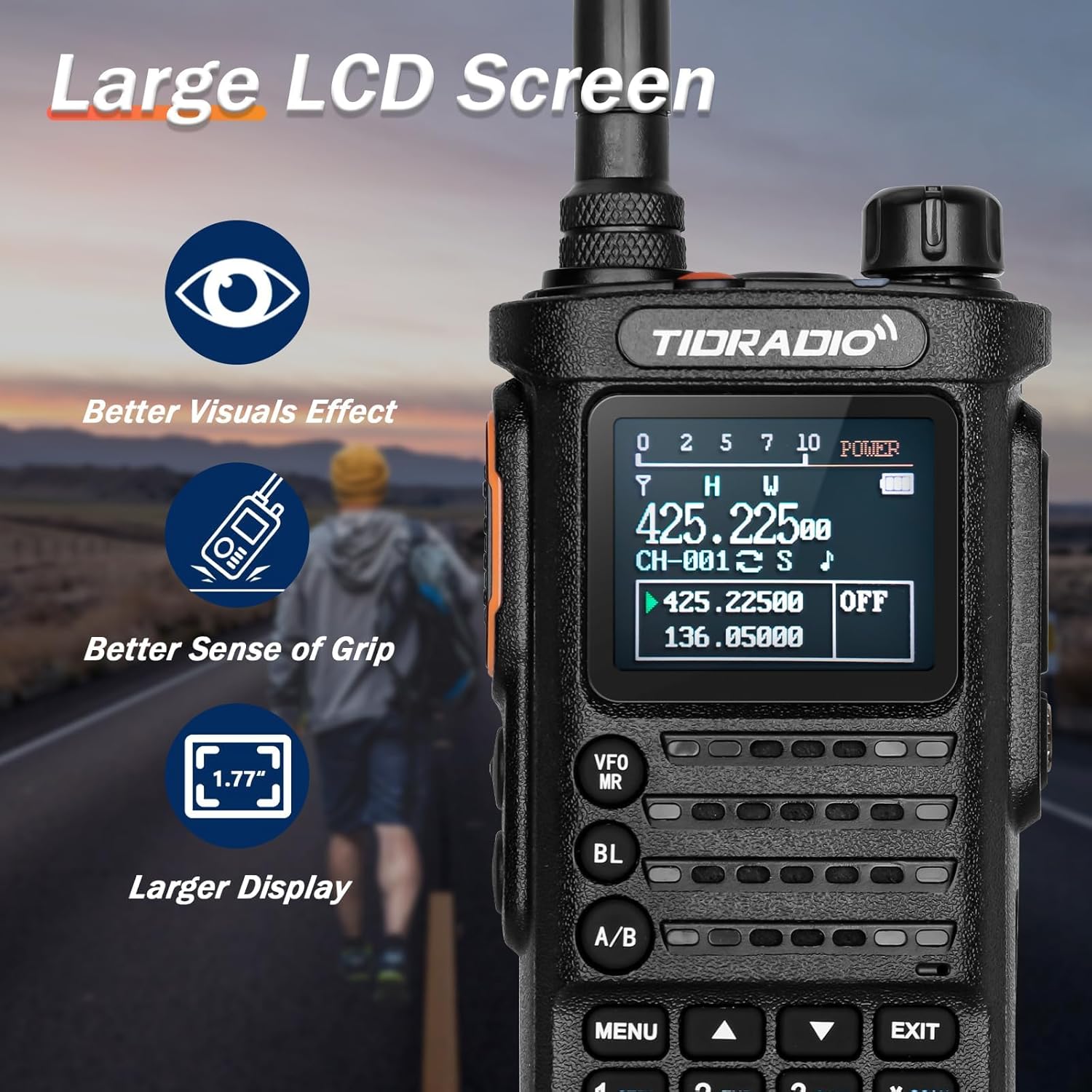

Image: The large LCD screen of the TD-H8, demonstrating its visual clarity and display size.
Image: A detailed breakdown of the TD-H8's screen layout, explaining the various indicators such as frequency, channel number, channel name, and dual watch status.
- Frequency: Displays the current operating frequency.
- Channel Number: Indicates the active channel.
- Channel Name: User-defined name for the channel.
- Dual Watch: Shows if dual watch mode is active.
- Power Level: Indicates current transmit power (Low, Mid, High).
- Battery Indicator: Displays remaining battery life.
5.3 Advanced Functions
- NOAA Weather Scan: Access NOAA weather alerts.
- Dual Watch: Monitor two frequencies simultaneously.
- VOX: Enable voice-activated transmission.
- Scanning: Scan through channels or frequencies.
- CTCSS/DCS Codes: Set up privacy codes for group communication.
Image: The TD-H8 radio featuring NOAA Weather Radio functionality, useful for receiving weather alerts.
6. Wireless Programming
The TD-H8 supports wireless programming via the Odmaster smartphone application, eliminating the need for a PC or programming cable.
6.1 Odmaster App Installation
Download the Odmaster app from your smartphone's app store:
- For Android: Google Play Store
- For iOS: Apple App Store

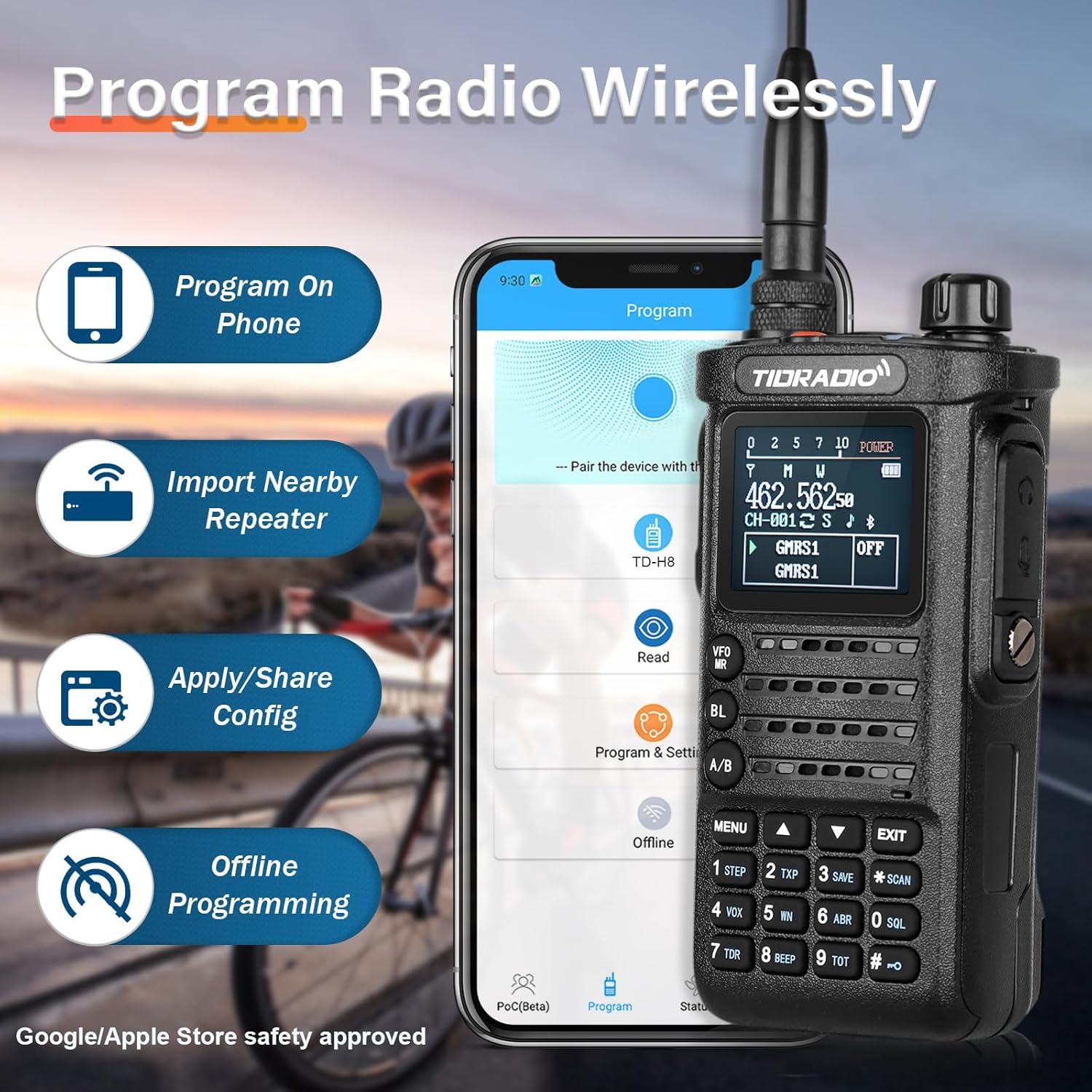

Image: The Odmaster app on a smartphone demonstrating wireless programming capabilities for the TD-H8 radio.
Image: QR codes provided for convenient download of the TD-H8 programming app from Google Play Store (Android) and Apple App Store (iOS).
6.2 Programming Steps (via Odmaster App)
- Ensure your TD-H8 radio is powered on and Bluetooth is enabled (press the BL key).
- Open the Odmaster app on your smartphone.
- Follow the in-app instructions to connect to your TD-H8 via Bluetooth.
- Once connected, you can:
- Edit channels and frequencies.
- Search for and import nearby repeater information.
- Save and share radio configurations.
- Apply configurations offline without a cellular network.
- Press the 'Write' button in the app to transfer settings to the radio.
Image: Visual representation of wirelessly customizing the TD-H8 radio using a smartphone, highlighting the convenience of programming on the go.
Image: The Odmaster app's repeater list feature, showing how users can search for and apply nearby repeater information to their TD-H8 radio with ease.
Image: The frequency configuration interface within the Odmaster app, illustrating how users can save, cache, and share their radio settings, accessible from their account anytime.
Image: The offline configuration feature of the Odmaster app, allowing users to apply radio settings even without an active cellular network, adapting to different scenarios.
6.3 Firmware Updates
The TD-H8 supports over-the-air firmware updates. Check the Odmaster app or TIDRADIO's official website for the latest firmware versions. Keeping your firmware updated ensures optimal performance and access to new features.

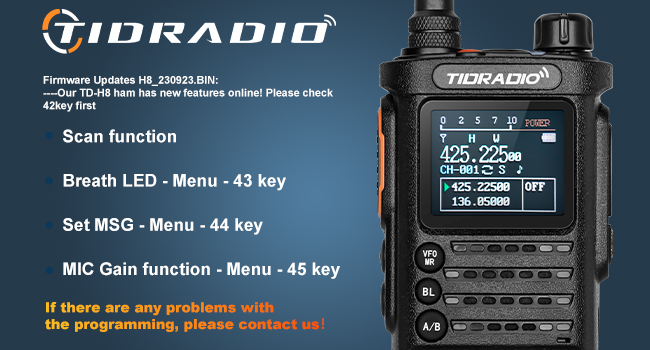

Image: Information regarding firmware updates for the TD-H8, highlighting new features such as Scan function, Breath LED, Set MSG, and MIC Gain. Users are advised to contact support if programming issues arise.
7. Maintenance
- Cleaning: Use a soft, damp cloth to clean the radio's surface. Do not use harsh chemicals or abrasive cleaners.
- Battery Care: Fully charge the battery before first use. Avoid overcharging or completely draining the battery for prolonged periods. Store in a cool, dry place.
- Storage: When not in use for extended periods, remove the battery and store the radio in a dry, dust-free environment.
- Water Resistance: The radio is water resistant, but not waterproof. Avoid submerging it in water.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Radio does not power on | Low or dead battery; Incorrect battery installation | Charge the battery; Reinstall battery correctly |
| Cannot transmit or receive | Incorrect frequency/channel; Antenna not properly attached; Out of range | Verify frequency/channel settings; Check antenna connection; Move closer to other radio |
| Wireless programming fails | Bluetooth not enabled on radio/phone; Incorrect model selected in app; Firmware issue | Ensure radio Bluetooth is on (BL key); Select TD-H8 3rd model in app if 2nd fails; Update firmware; Contact support |
| Poor audio quality | Low signal strength; Obstructions; Incorrect MIC Gain setting | Move to an open area; Adjust MIC Gain (Menu - 45 key) |
9. Specifications
| Feature | Specification |
|---|---|
| Model Number | TD-H8 |
| Output Power | 10 Watt (High), 5-7 Watt (Mid), 2-3 Watt (Low) |
| Battery Capacity | 2500mAh Li-ion |
| Display Type | 1.77" Color LCD |
| Frequency Range | VHF/UHF/FM |
| Number of Channels | 199 |
| Talking Range (Max) | 10000 Meters (Line of Sight) |
| Voltage | 7.4 Volts |
| Water Resistance Level | Water Resistant |
| Item Weight | 2.27 pounds (approx. 1.03 kg) |
| Package Dimensions | 9.92 x 8.62 x 2.4 inches |

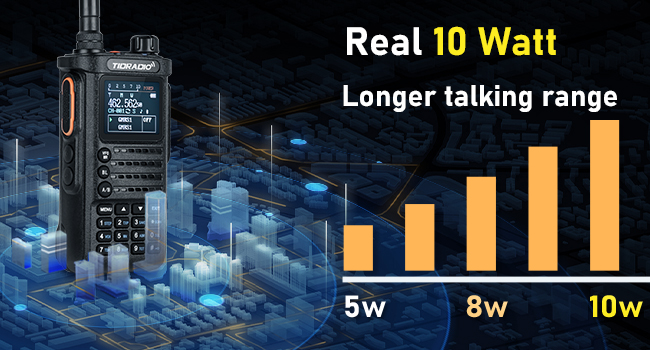

Image: A comparison chart illustrating the superior talking range achieved with the TD-H8's real 10 Watt output compared to 5W and 8W radios.

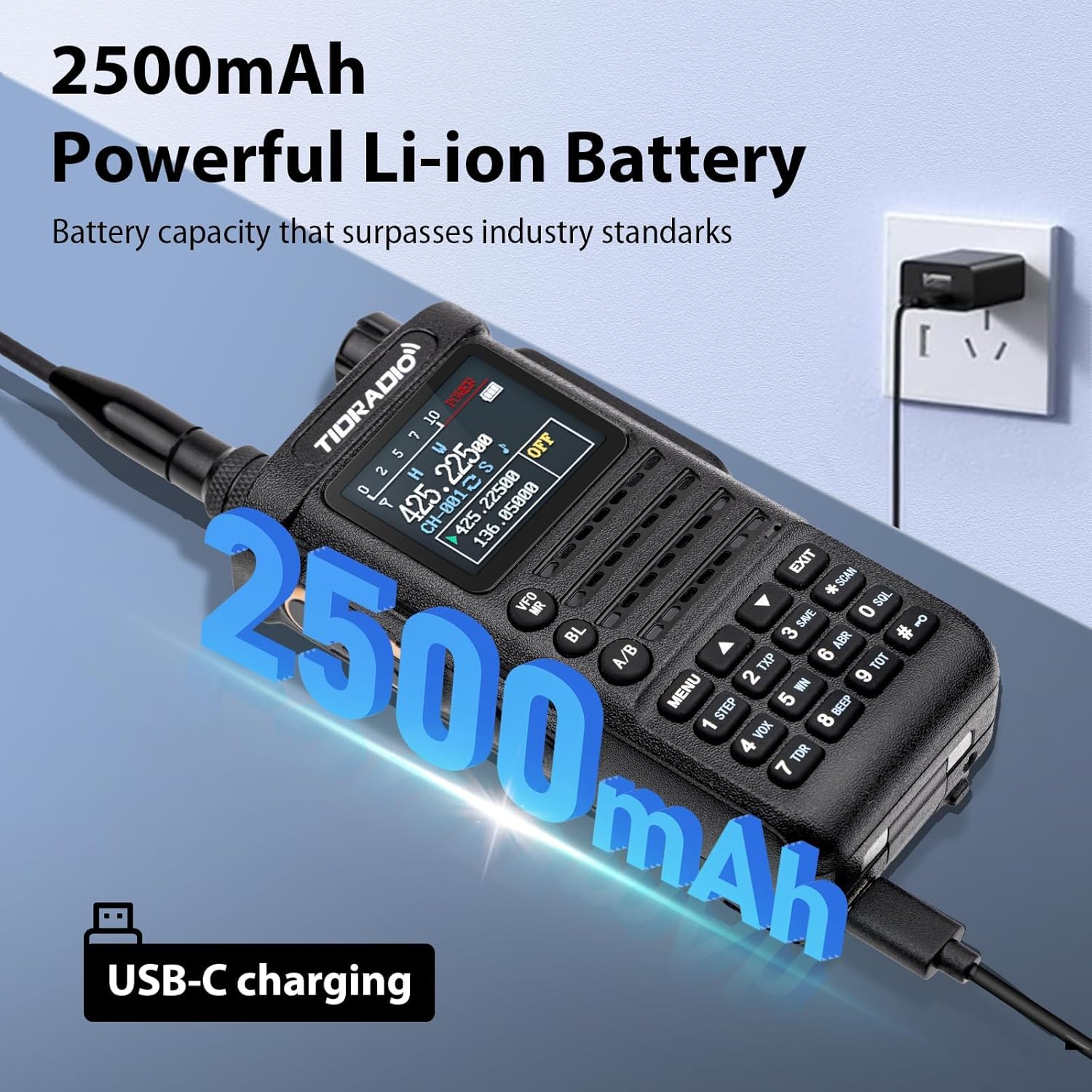

Image: The 2500mAh battery of the TD-H8, emphasizing its upgraded capacity which is 40% larger than standard 1800mAh batteries, providing extended power.
10. Official Product Video
Video: An official overview of the TIDRADIO TD-H8 10W HighPower Ham Radio Handheld (2nd Gen), showcasing its features and capabilities.
11. Warranty and Support
For warranty information and technical support, please refer to the contact details provided on the TIDRADIO official website or the documentation included with your purchase. If you encounter any issues with programming or operation, please reach out to customer service for assistance.
Image: A reminder about firmware updates and the importance of contacting support for any programming difficulties.
