Sojag Monaco Gazebo Instruction Manual

1. Introduction

Thank you for choosing the Sojag Monaco Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new sun shelter. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Sojag Monaco Gazebo is designed to provide a shaded outdoor living space, featuring a rustproof aluminum frame, a durable double roof, and integrated curtains and mosquito netting for enhanced comfort and protection.

Safety Information

• Always assemble with at least two people.
• Ensure all components are securely fastened before use.
• Do not use the gazebo in extreme weather conditions, such as heavy winds or snow loads exceeding its design capacity.
• Keep children and pets away from the assembly area.
• Regularly inspect the structure for any signs of wear or damage.

2. Package Contents

Before assembly, verify that all parts listed in your separate assembly guide are present and undamaged. The main components typically include:

• Aluminum Frame Components (posts, beams, connectors)
• Galvanized Steel Roof Panels
• Double Roof Ventilation Cap
• Spun Polyester Curtains
• PVC-Coated Polyester Mosquito Netting
• Hardware Kit (bolts, screws, anchors)

Image 2.1: Diagram illustrating key features and components of the Monaco Gazebo series, including the protective finish, improved air circulation, quality materials, pest prevention, easy assembly, and clean design.

3. Setup and Assembly

The Sojag Monaco Gazebo requires assembly. It is recommended that two or more people participate in the assembly process due to the size and weight of some components. Refer to the detailed illustrated instructions provided in your separate assembly guide for step-by-step procedures.

Key Assembly Considerations:

• Site Preparation: Choose a level surface for installation. Ensure adequate clearance around the gazebo for safe assembly and use.
• Frame Assembly: Begin by assembling the main aluminum frame. Ensure all bolts are tightened securely but do not overtighten until the entire frame is aligned.
• Roof Installation: Install the galvanized steel roof panels according to the instructions. The double-tier roof design enhances airflow.
• Anchoring: Securely anchor the gazebo to the ground using the provided hardware or suitable alternatives for your specific surface (e.g., concrete anchors for a patio, ground stakes for grass).

Image 3.1: Close-up view of a gazebo support post and its base plate, showing the sturdy construction and anchoring points.

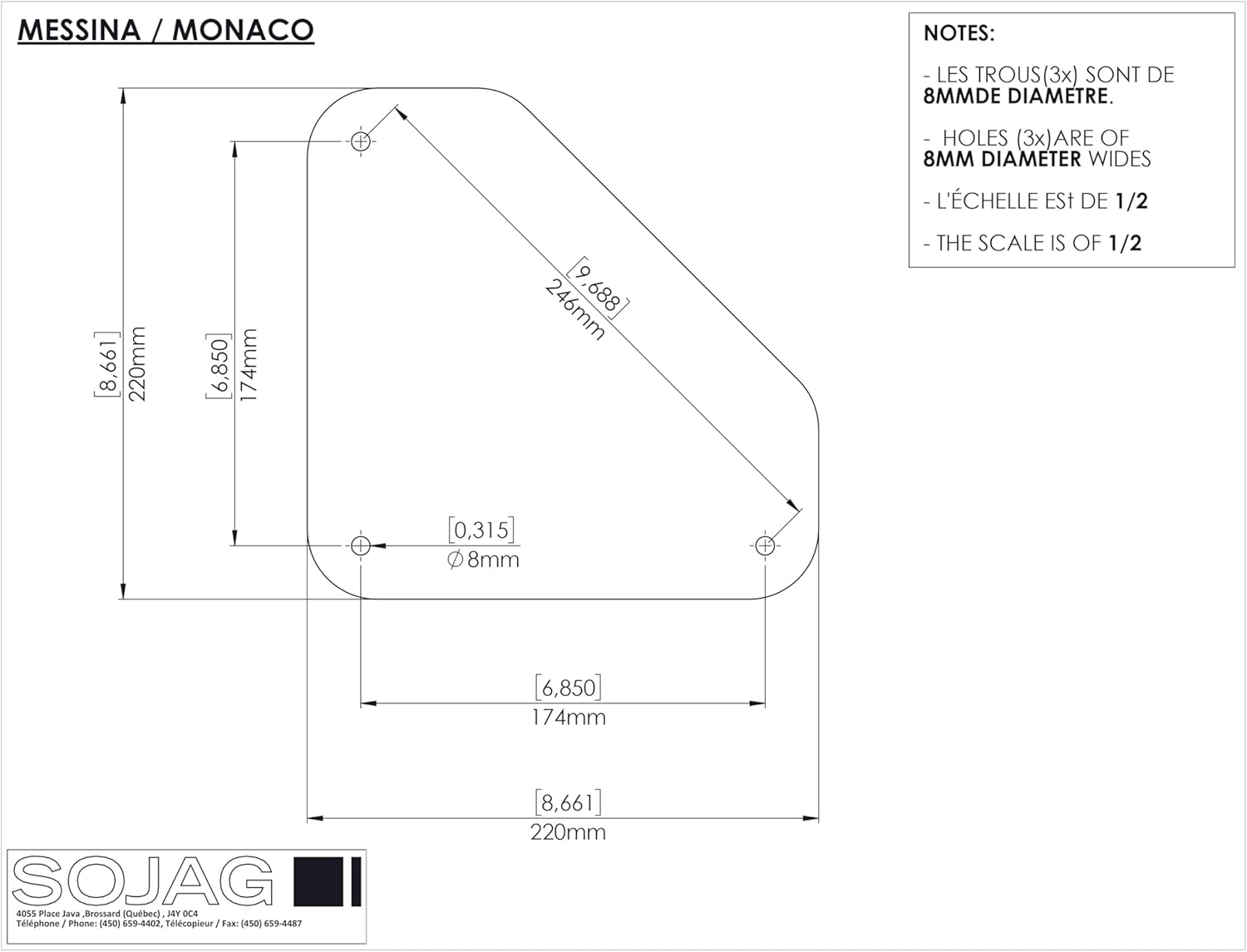

Image 3.2: Technical drawing detailing the dimensions of the gazebo's base plate, crucial for proper anchoring and foundation planning.

4. Operating Instructions

Your Sojag Monaco Gazebo is designed for ease of use and comfort.

Curtains and Mosquito Netting

The gazebo includes high-quality spun polyester curtains and PVC-coated polyester mosquito netting. These can be easily deployed or retracted as needed.

• Privacy Curtains: Use the curtains for shade, privacy, or protection from light wind. They can be tied back to the posts when not in use.
• Mosquito Netting: The netting provides an effective barrier against insects, allowing you to enjoy your outdoor space without interruption. Ensure all zippers are closed to create a complete enclosure.

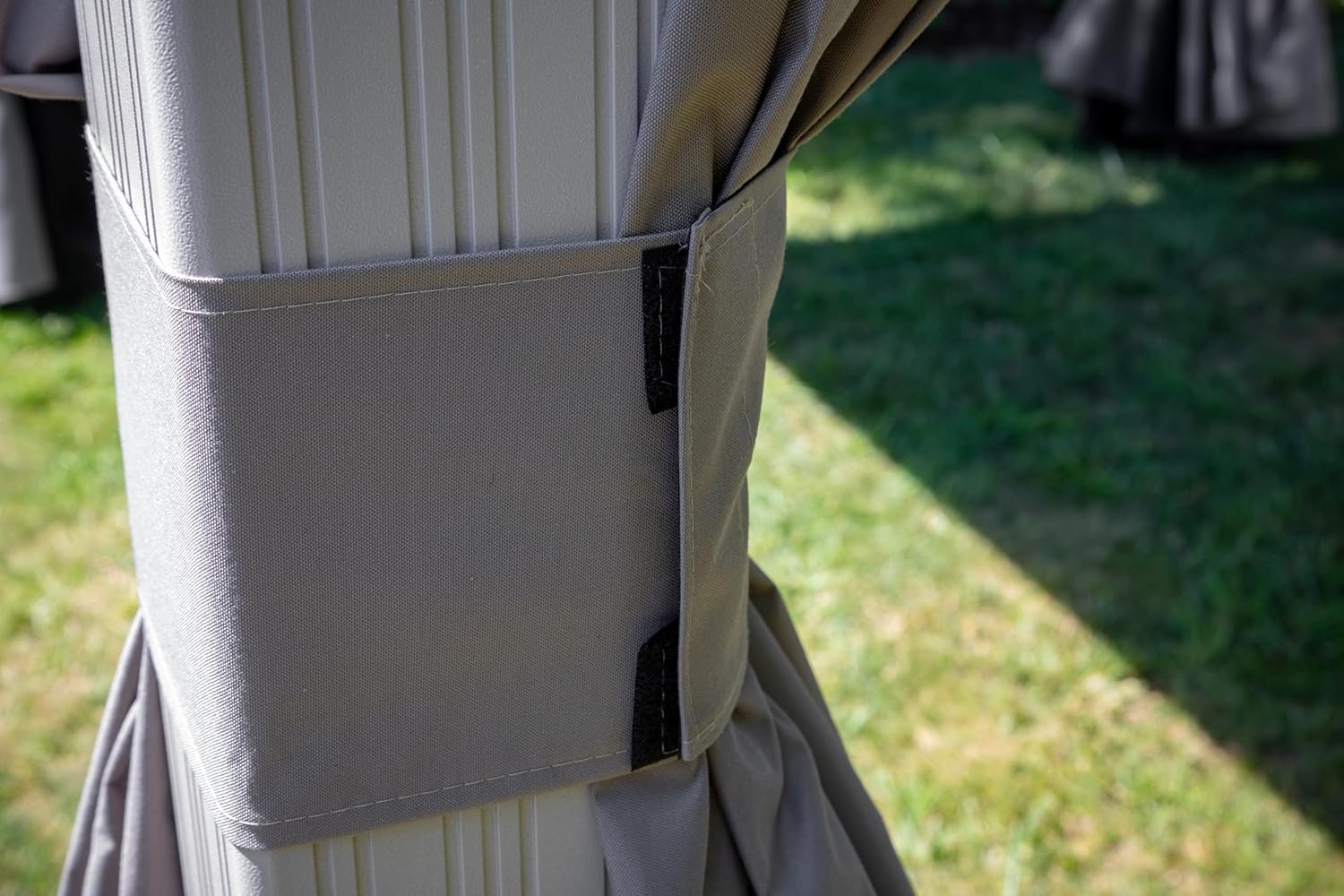

Image 4.1: Close-up view of the curtain attachment mechanism on a gazebo post, showing how the curtains are secured.

Image 4.2: Close-up view of the mosquito netting attachment point located under the gazebo roof, ensuring a secure fit to keep insects out.

Air Circulation

The double roof design promotes improved air circulation, helping to keep the interior of the gazebo cooler and more comfortable, especially on warm days.

Image 4.3: The Sojag Monaco Gazebo providing a comfortable shaded area for a family enjoying an outdoor meal, with curtains and netting deployed.

5. Maintenance

Proper maintenance will extend the life and appearance of your Sojag Monaco Gazebo.

• Frame: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly and dry. Avoid abrasive cleaners or harsh chemicals.
• Roof Panels: The galvanized steel roof panels are designed for durability. Clean them periodically to remove debris, leaves, or dirt.
• Curtains and Netting: These can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure they are completely dry before storing or retracting for extended periods to prevent mildew.
• Seasonal Care: While designed as an all-season gazebo, it is advisable to remove any accumulated snow from the roof to prevent structural damage. In areas with severe winter weather, consider disassembling and storing the fabric components.
• Hardware: Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary.

6. Troubleshooting

If you encounter issues with your gazebo, consider the following common solutions:

• Instability: Ensure the gazebo is properly anchored to a level surface. Check all frame connections for tightness.
• Leaking Roof: Verify that all roof panels are correctly installed and overlapping as per the assembly instructions. Check for any loose screws or gaps.
• Curtains/Netting Not Moving Smoothly: Inspect the tracks or hanging mechanisms for obstructions or damage. Clean any dirt or debris.
• Missing Parts: If parts were missing upon delivery, contact Sojag customer support with your model number and a description of the missing components.

7. Specifications

Image 7.1: Floor plan diagram illustrating the 12 ft x 14 ft dimensions of the gazebo and potential furniture arrangements.

8. Warranty

The Sojag Monaco Gazebo comes with a 1 Year Limited Warranty. This warranty covers manufacturing defects and material flaws under normal use and service conditions. Please refer to the warranty card included with your product for specific terms, conditions, and exclusions.

Image 8.1: Graphic indicating the product is covered by a 1 Year Limited Warranty.

9. Customer Support

For further assistance, missing parts, or warranty claims, please contact Sojag customer support. Have your model number (500-9169669) and proof of purchase ready when contacting support.

Visit the official Sojag website for contact information and additional resources: www.sojag.ca
