1. Important Safety Instructions
Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
- Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
- Personal Safety: Always wear eye protection, such as safety glasses with side shields, and hearing protection. Use appropriate personal protective equipment (PPE) for the task. Stay alert, watch what you are doing, and use common sense when operating a power tool.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.
- Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2. Product Overview and Components
The NEU MASTER 18 Gauge 2-in-1 Cordless Brad Nailer/Staple Gun is a versatile tool designed for various woodworking and home improvement tasks. It operates on a 20V Max battery, eliminating the need for compressors or hoses.
Figure 2.1: The NEU MASTER cordless nailer/stapler, including the 2.0Ah Li-ion battery and charger, along with sample nails and staples.
Key Features:
- Cordless Design: Powered by a 20V Max Li-ion battery, offering portability and freedom from cords and air hoses.
- 2-in-1 Functionality: Compatible with 18 gauge brad nails (5/8" to 2") and 18 gauge 1/4" crown staples (5/8" to 1-3/4").
- Cylinder Driving Technology: Provides consistent firing power for effective penetration into various materials.
- Safety Mechanism: Features a safety pole that must be fully pressed to trigger firing, preventing accidental discharge.
- Dry-Fire Lockout: Prevents the tool from operating when the magazine is empty, protecting the tool and workpiece.
- Tool-Free Depth Adjustment: Allows for easy adjustment of nail/staple depth for precise results.
- Dual LED Light: Illuminates the workspace and provides error indications.
- Quick-Release Magazine: Holds up to 100 nails/staples for efficient reloading.
Figure 2.2: The 2-in-1 functionality of the tool, demonstrating its use with both 18 gauge brad nails and 1/4 inch crown staples.
3. Setup
3.1 Charging and Installing the Battery
- Ensure the battery is fully charged before first use. Connect the charger to a power outlet and insert the battery pack. The charger indicator will show charging status. A full charge typically takes approximately 60 minutes for the 2.0Ah battery.
- Once charged, slide the battery pack into the base of the nailer until it clicks securely into place.
- To remove the battery, press the release button on the battery pack and slide it out.
Figure 3.1: The 2.0Ah Li-ion battery, highlighting its cordless design, battery indicator, and fast charging capability.
3.2 Loading Nails or Staples
- Ensure the battery is removed for safety.
- Press the magazine release button and pull the magazine open.
- Insert a strip of 18 gauge brad nails or 1/4" crown staples into the magazine channel. Ensure the fasteners are oriented correctly with the points facing forward.
- Push the magazine closed until it latches securely.
Figure 3.2: Visual guide for loading both staples and brad nails into the tool's magazine.
3.3 Adjusting Depth of Drive
The tool features a tool-free depth adjustment wheel to control how deep the fasteners are driven into the material.
- Locate the depth adjustment wheel near the nose of the tool.
- Rotate the wheel to increase or decrease the driving depth. Test on a scrap piece of material to achieve the desired depth.
Figure 3.3: The tool-free depth adjustment wheel, allowing users to easily achieve consistent and professional results by increasing or reducing shooting strength.
4. Operating the Tool
4.1 Selecting Firing Mode
The NEU MASTER nailer offers two working modes: Single Firing and Contact Firing.
- Single Firing Mode: For precise placement of individual fasteners. Press the safety pole against the workpiece, then pull the trigger.
- Contact Firing Mode (Bump Firing): For rapid fastening. Hold the trigger, then press the safety pole against the workpiece to fire.

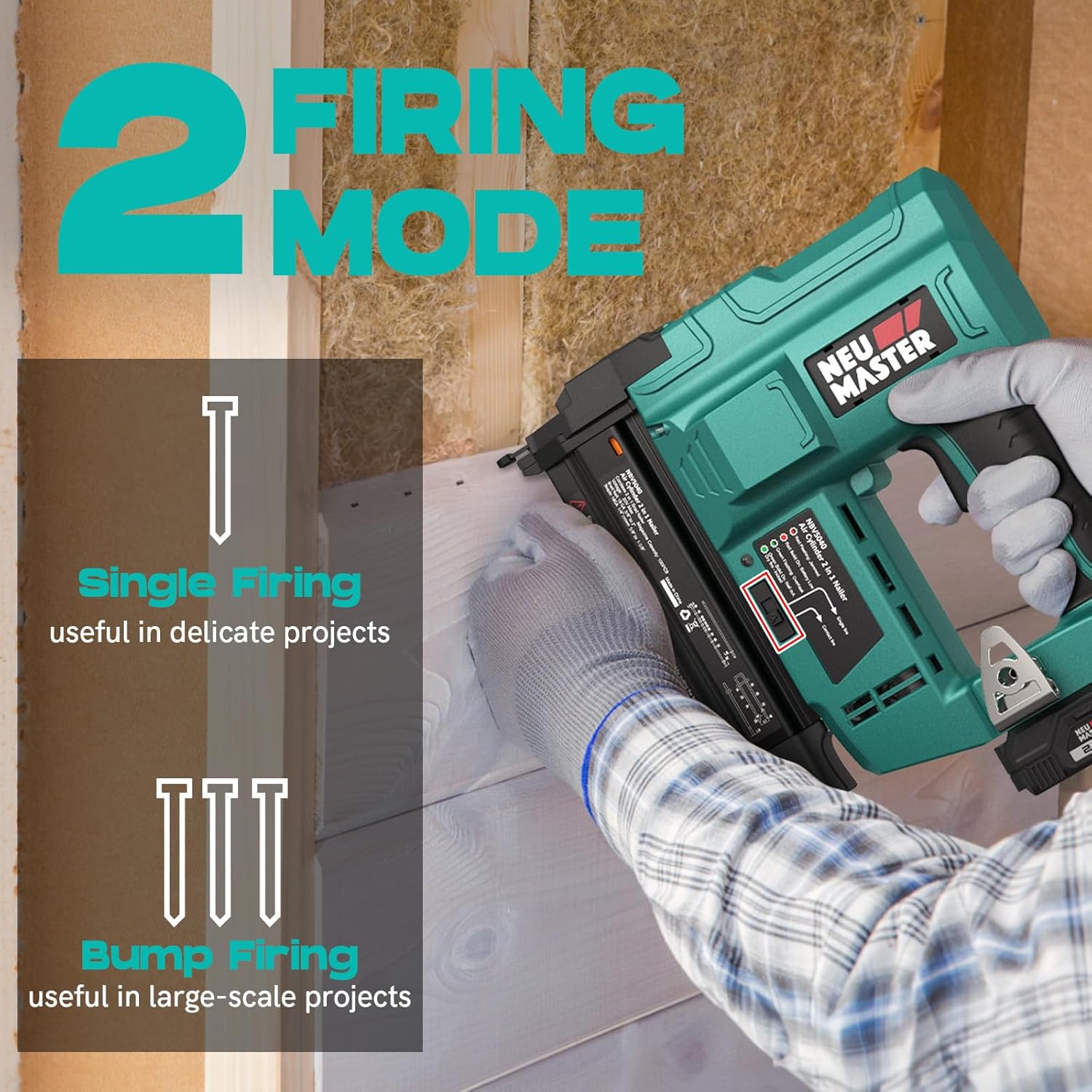

Figure 4.1: Illustration of the two firing modes: Single Firing for delicate projects and Bump Firing for large-scale projects.
4.2 Using the Safety Pole
The safety pole is a critical feature designed to prevent accidental firing. The tool will only fire when the safety pole is fully depressed against the workpiece.
Figure 4.2: The safety lock mechanism, which ensures the tool only fires when the safety pole is fully depressed against the work surface, preventing damage and accidental injury.
4.3 LED Work Light
The integrated LED light illuminates the work area, improving visibility in dimly lit conditions. It also serves as a diagnostic indicator (see Troubleshooting section).
Figure 4.3: The bright LED work light, designed to illuminate dimly lit work areas for increased visibility and safety.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your NEU MASTER nailer.
- Cleaning: Keep the tool clean and free of dust and debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners.
- Magazine Inspection: Periodically check the magazine for any obstructions or damage. Ensure it opens and closes smoothly.
- Fastener Compatibility: Always use 18 gauge brad nails (5/8" to 2") or 18 gauge 1/4" crown staples (5/8" to 1-3/4"). Using unsuitable fasteners can cause jams and damage the tool.
- Storage: Store the tool and battery in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the battery from the tool before storage.
6. Troubleshooting
Refer to the following common issues and their solutions. The LED diagnostic work indicating light can help identify problems.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not fire | Battery not installed correctly or discharged; Safety pole not fully depressed; Dry-fire lockout engaged (empty magazine). | Ensure battery is charged and properly seated. Press safety pole firmly against workpiece. Reload magazine with fasteners. |
| Fasteners not driven flush | Depth adjustment too shallow; Low battery charge; Incorrect fastener length for material. | Adjust depth setting deeper. Recharge battery. Ensure appropriate fastener length for material thickness. |
| Tool jams frequently | Incorrect fastener size/type; Damaged fasteners; Debris in magazine/nose. | Use recommended 18 gauge fasteners. Inspect fasteners for damage. Clear any debris from the magazine and nose piece. |
| LED Indicator lights up (Red Flashing) | Impact knife or nail jam. | Refer to jam clearing instructions in the manual (if provided, otherwise carefully inspect and clear). |
| LED Indicator lights up (Red Solid) | Low battery. | Recharge battery or change to a new pre-charged battery. |
| LED Indicator lights up (Green Flashing) | Overload or Hot delay. | Allow the tool to rest and cool down. |
| LED Indicator lights up (Green Solid) | Dry-fire lock out. | Reload magazine with nails or staples. |
7. Specifications
Detailed technical specifications for the NEU MASTER Cordless Brad Nailer/Staple Gun.
| Specification | Detail |
|---|---|
| Model Number | NBV5040-NEW2 |
| Power Source | Battery Powered |
| Voltage | 20 Volts |
| Battery Type | Lithium Ion (2.0Ah included) |
| Nail Gauge | 18 Gauge Brad Nails |
| Nail Length Range | 5/8" to 2" |
| Staple Gauge | 18 Gauge 1/4" Crown Staples |
| Staple Length Range | 5/8" to 1-3/4" |
| Magazine Capacity | 100 fasteners (approx.) |
| Item Weight | 12.78 pounds |
| Product Dimensions | 17 x 13 x 0.04 inches |
| Material | Plastic |
| Color | Green, Black |
8. Warranty and Support
NEU MASTER provides a 12-MONTH FREE WARRANTY for this product. If you encounter any issues or have questions regarding your NEU MASTER tool, please contact customer support.
For warranty claims or technical assistance, please refer to the contact information provided in your product packaging or visit the official NEU MASTER website.
9. Product Applications
The NEU MASTER 2-in-1 Cordless Brad Nailer/Staple Gun is suitable for a wide range of applications, including but not limited to:
- Home Improvement projects
- Woodworking
- Skirting Board installation
- Roofing (light-duty)
- Furniture Building
- Home Decoration
- Pet House DIY
Figure 9.1: Examples of multiple applications for the NEU MASTER cordless nailer, including portable use with a belt hook, roofing, skirting board installation, and general woodworking.
